I also need the gaskets for this pump, do you offer them? I understand there are 4?
Reply
Hi Helen - Yes we do offer the gasket for the Pinnacle pump you may purchase or view them individually from the Pentair Pinnacle Parts Page or we also have a Pentair Pinnacle Tune Up Kit which includes all of the gaskets, o-rings, lubricant and shaft seal. Typically the Tune Up Kit is the best way to go.
Reply
I need a Pinnacle Pump Housing that was part #35-5611 . Would this be compatible? I think it is a 3/4hp.
Reply
Hi, The Pump Housing, Almond (356011) will be compatible with p/n 35-5611 and work with your 3/4 hp motor and other existing parts.
Reply
I have a Pinnacle PacFab Pump Housing, part number 34-2356. Its Black. What would be the replacement, and is the replacement made in an Almond color now?
356011?
Reply
Hi Tony, The Almond Pump Housing (356011) will replace the now obsolete black Pinnacle pump housing.
Reply
If this dose not fit my system do you accept returns for a full refund?
Reply
Hi John. As long as the item is unused, unmarked and returned in the original packaging, you would receive a full refund once we receive it back and inspect it. You would, however, be responsible for return shipping charges.
Reply
I have recenly received the above pump housing Pentair Alond (356011) and now realize that probably will need to replace the housing gasket as well . what is the price of the gasket ? Does it come with a kit? Thanks! John Eggers
Reply
Hi, You can purchase the Pentair/Pacfab Pinnacle Tune Up Kit or just jet the Housing O-ring (368).
Reply
I need to replace a Pinnacle Pump Housing, the book that came with it says it's number 35-5611, but the number that is actually on the housing says 34-2319. Would this pump housing work for me? Have they changed the part number? Would you please advise me where to get this part. Frank
Reply
Hi Frank, The Pinnacle Pump Housing, Almond (356011) will replace your current damaged pump housing. You can place an order through our website or call us at 877.372.6038.
Reply
My pump housing model number is 34-2853. I am looking for a replacement pump housing for that model but can't seem to find it. Your help will be appreciated.
Karl Oswald
Reply
Hi Karl, The Almond Pump Housing (356011) will be the correct housing for your model pump.
Reply
Hi my pump # is 34-2854 will this housing work and is the shipping to Canada free ?
Reply
Paul, Yes, this housing (356011) is the correct housing for your Pentair Pinnacle pump (342854). Unfortunately, free shipping only applies inside the continental US.
Reply
I have pump housing #34-2856 . Will this replacement part work for me ?
Reply
Yes, the 346011 pump housing is the correct replacement for your Pentair Pinnacle Pump Model # 342856.
Reply
Is there a diy video on how to replace the pump housing? I didn't find anything on Youtube.
Reply
We do not have a video on how to replace a pump housing. I will put that in the HOW TO suggestion box. The removal of the motor from the pump housing is the easy part. Once you have disconnected the old pump body from the piping, you will want to transfer the parts from the old housing to the new one. Then reconnect your piping and reattach the motor.
Reply
I need a replacement pump cover for a Pinnacle PAC FAB part number 34-2351.
Will this fit? Thanks you
Reply
Good Afternoon Howard, Yes Part.. Pump Housing, Almond (356011) is the correct replacement. If you need help with ordering this part let us know.
Reply
Hi, I need to replace my pump motor and Im trying to figure out what shaft seal is the correct one for me so that I can order both the motor and shaft seal. I have a pinnacle 34-2352 housing and a pentair 7-177475-20 motor. Thank you in advance for all your help!
Reply
John, If you have the Pinnacle pump, you can use this shaft seal.
Reply
I have a model 34-2356 and need to replace the housing. Will this part fit my pump? I have added a picture of the nameplate on the pump just in case you need it.
HI Ron, thanks for the photo! Yes this Pinnacle housing will replace your 34-2356
Reply
Hi,
I have a model 34-2350 for a PFII-P1-3/4. The housing is leaking and needs to be replaced can you advise if this is the correct housing? Thanks in advance.
For your Pentair Pinnacle 342352, the correct pump housing replacement is the: Pump Housing, Almond (356011) - 356002.
Reply

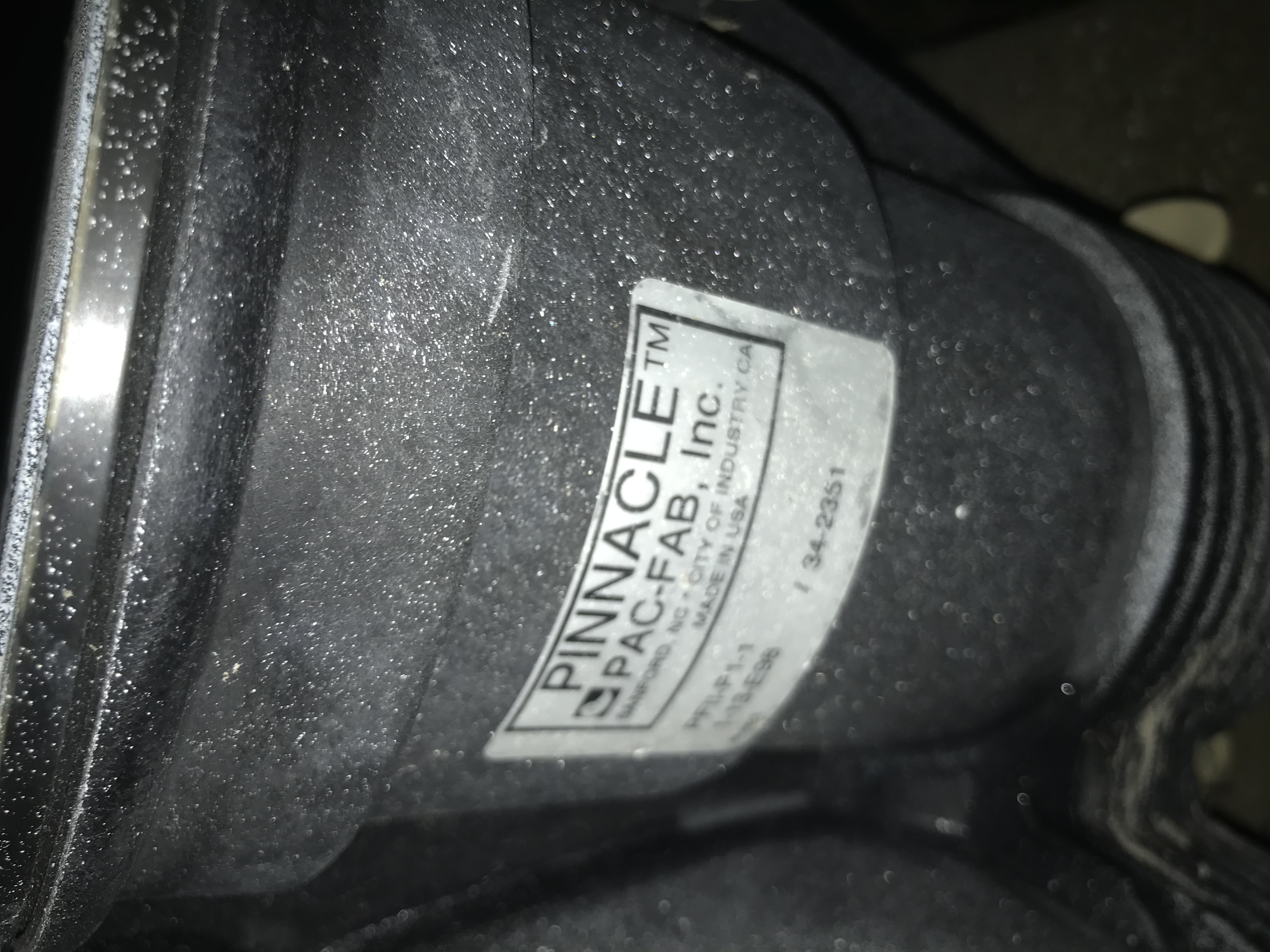

Is this a replacement for the Pinnacle pump attached? Thanks Tim
-356002.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-356002.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Pentair Pac Fab Pinnacle Pump Housing with Drain Plugs, Almond - (356011) - 356002")
Hello Tim. The Pentair Pool Products Pump Housing (356011) - 356002 is compatible with your Pinnacle Pool Pump model PFII-P1-1.
Reply
I have a 34-2853 which the website says will work with the pump housing 356011. When turned on, it sprays water from a small hole (see picture 3), otherwise is working fine. I'm not sure how this small hole was made but wondering if I need to replace the entire housing unit?
Hello. If the water leak is coming from the pump housing, the best resolution is to replace the housing. Pump Housing, Almond (356011) - 356002 Repairs made to a pump housing are, typically, only temporary. To facilitate the installation of the new pump housing, the use of unions is recommended. The Pentair Pinnacle Pump has 1 1/2" intake and discharge ports. Attached please find the selection of unions available. Custom Molded Products High Temp Unions Any union listed as 1 1/2" MIP can be matched to your PVC pipe size. Attached please find the Pentair / Pac Fab Pinnacle exploded parts diagram for reference.
Reply
