How To Replace the Sand in a Pentair Triton 2 Side Valve Sand Filter

WRITTEN BY:  Inyo Pools

  3.33 out of 5 stars on 6 ratings
(Click on a star to add your rating)

Every 5 - 7 years you will have to replace the sand in your sand filter. The sand actually wears out. The sharp edges of the sand particles become worn and rounded and don't capture the contaminates as well. Also the sand will start to ball up or the water will create channels thru the sand. You will notice that your pool water is not as clean or the interval between required backwashes is shorter. This guide shows you the steps required to replace the sand in a Pentair Triton 2 Side Valve Sand Filter.

Video

Step by Step

Top

Step 1

COLLECT MATERIAL - Before you start to change the sand in your filter, be sure to purchase any material or equipment you will need ahead of time. This might include sand, the O-ring between the valve and the tank, Teflon tape, lubricant. For the sand use only high rate No. 20 Silica Sand. An example is pictured at left. Check the manufacturer to determine the amount required. This unit (Pentair Triton 2 TR-60) uses 7 50 lb bags of sand - 350 lbs total. You can also purchase our superior to sand Click here for our Sand Alternative.

Step 2

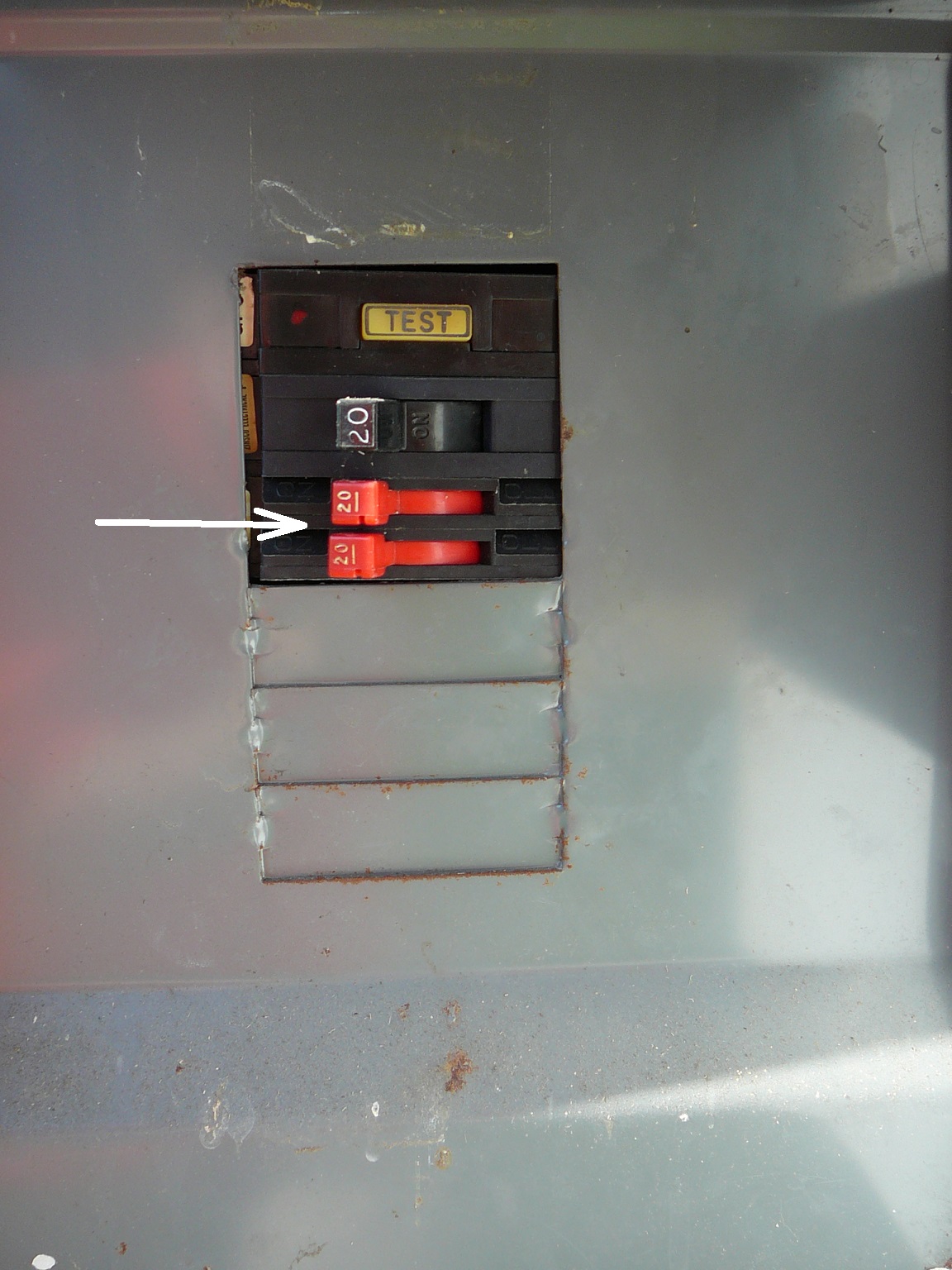

TURN OFF PUMP - Before you start to change the sand, make sure you TURN OFF THE POOL PUMP. For maximum safety turn off the power at the circuit breaker to the pump.

Step 3

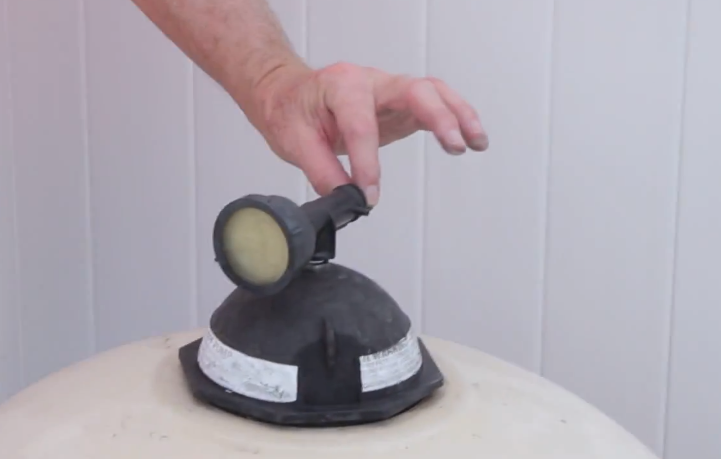

RELIEVE PRESSURE - Next you will have to relieve the pressure that builds up in the filter during operation. To relieve pressure turn the relief valve on top of the filter counter-clockwise. Water may spray out initially as you see the pressure on the pressure gauge go to 0 psi.

Step 4

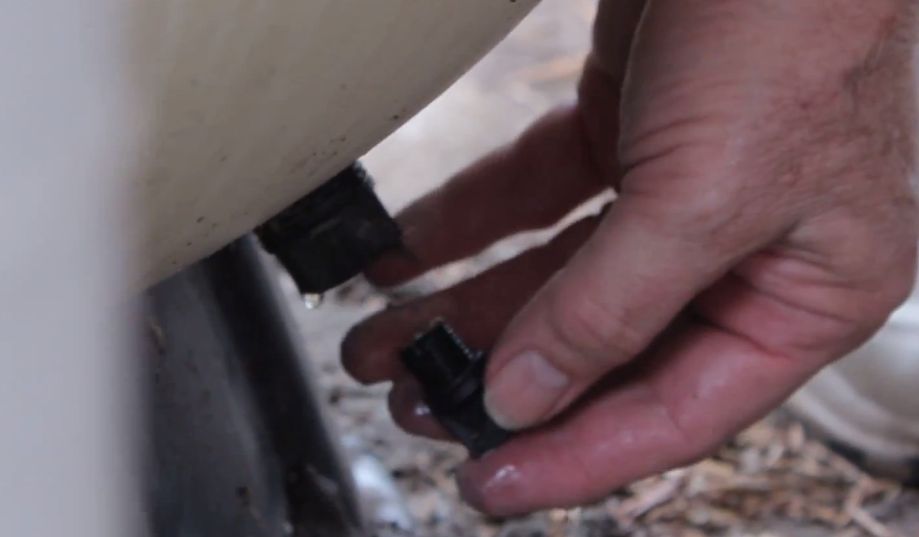

REMOVE DRAIN PLUG - Remove the drain plug at the bottom of the filter tank by twisting it counter-clockwise. This step will drain the water out of the sand in the tank.

Step 5

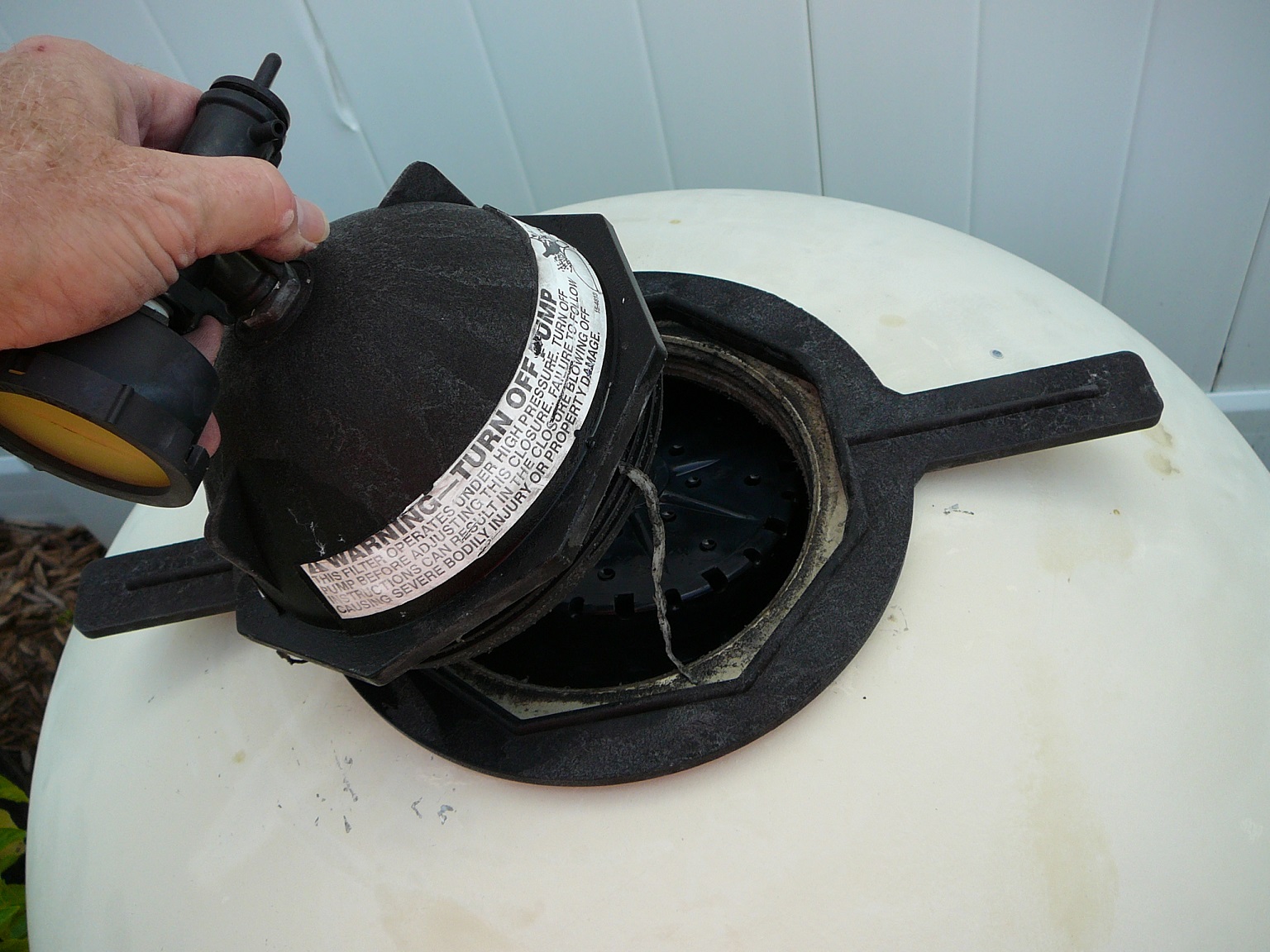

REMOVE CLOSURE LID - Using the Lid Wrench provided with the original purchase of the filter, twist the Lid off the top of the filter - twist counter- clockwise.

Step 6

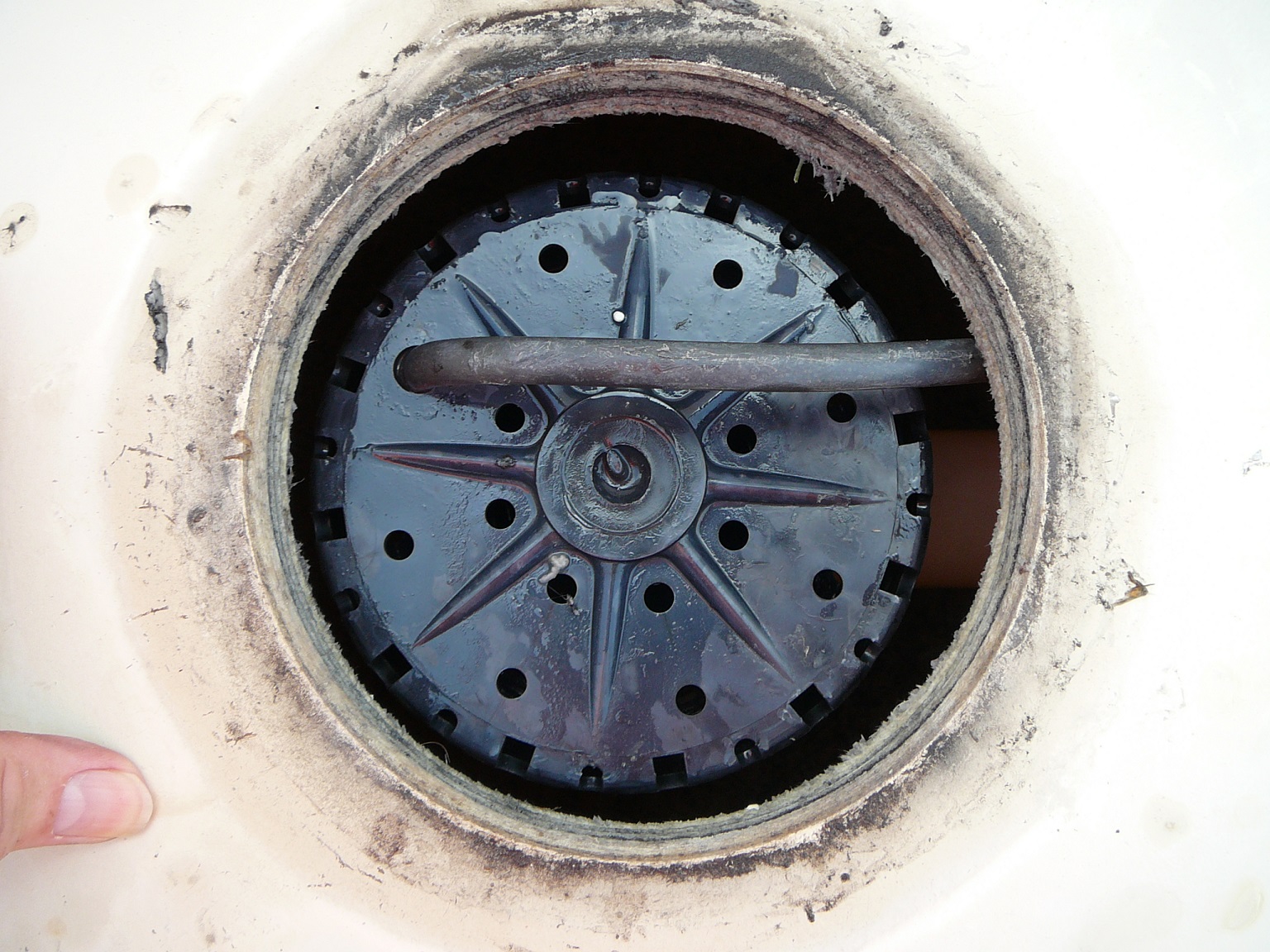

VIEW BAFFLE AND AIR RELIEF TUBE - With the Lid off the top of the Filter, you will see the Baffle and the Air Relief Tube. The Baffle distributes the water from the pump over the top surface of the sand. The Air Relief Tube connects to the bottom of the tank and relieves any air that is caught in the top of the tank.

Step 7

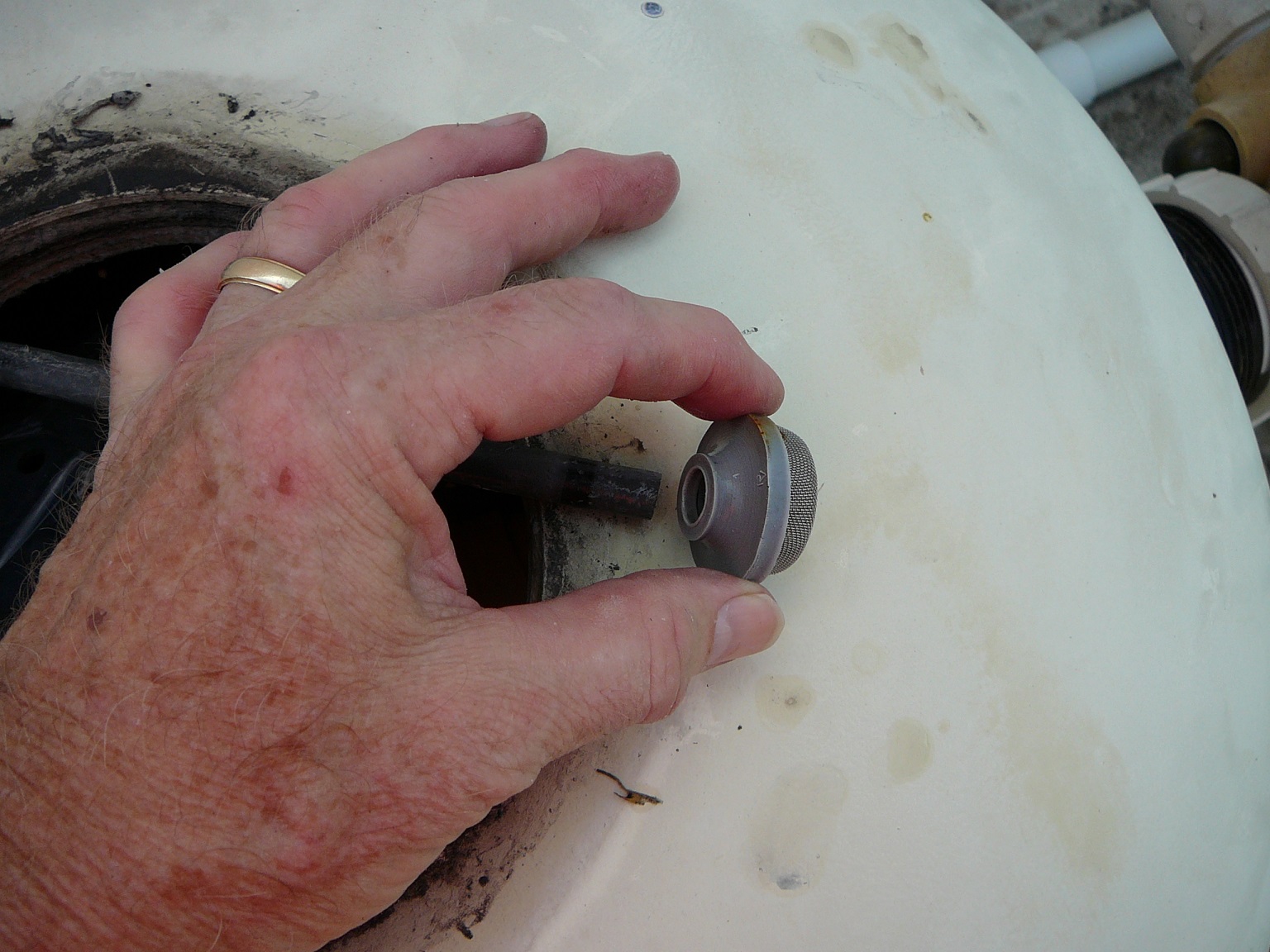

CHECK AIR RELIEF SCREEN - The top of the Air Relief Tube is covered with a screen to prevent sand from clogging the Tube. Remove this screen and clean it. Clean off the top of the tube and blow through it to make sure it is clear.

Step 8

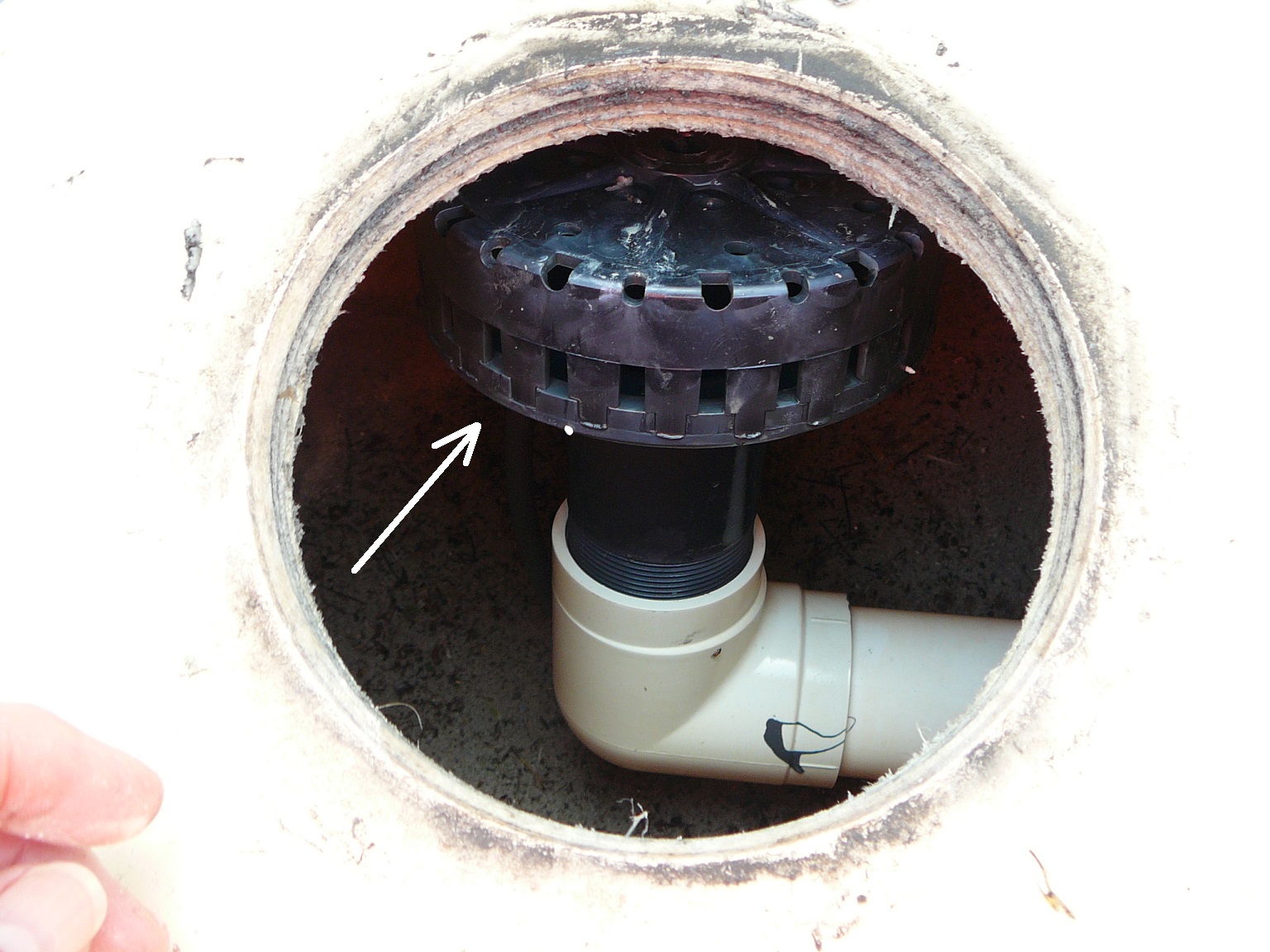

PUSH BAFFLE ASIDE - Move the Baffle away from the opening in the tank by pushing it aside horizontally. You should be able to push it so that the tank opening is completely open for maximum access to the sand.

Step 9

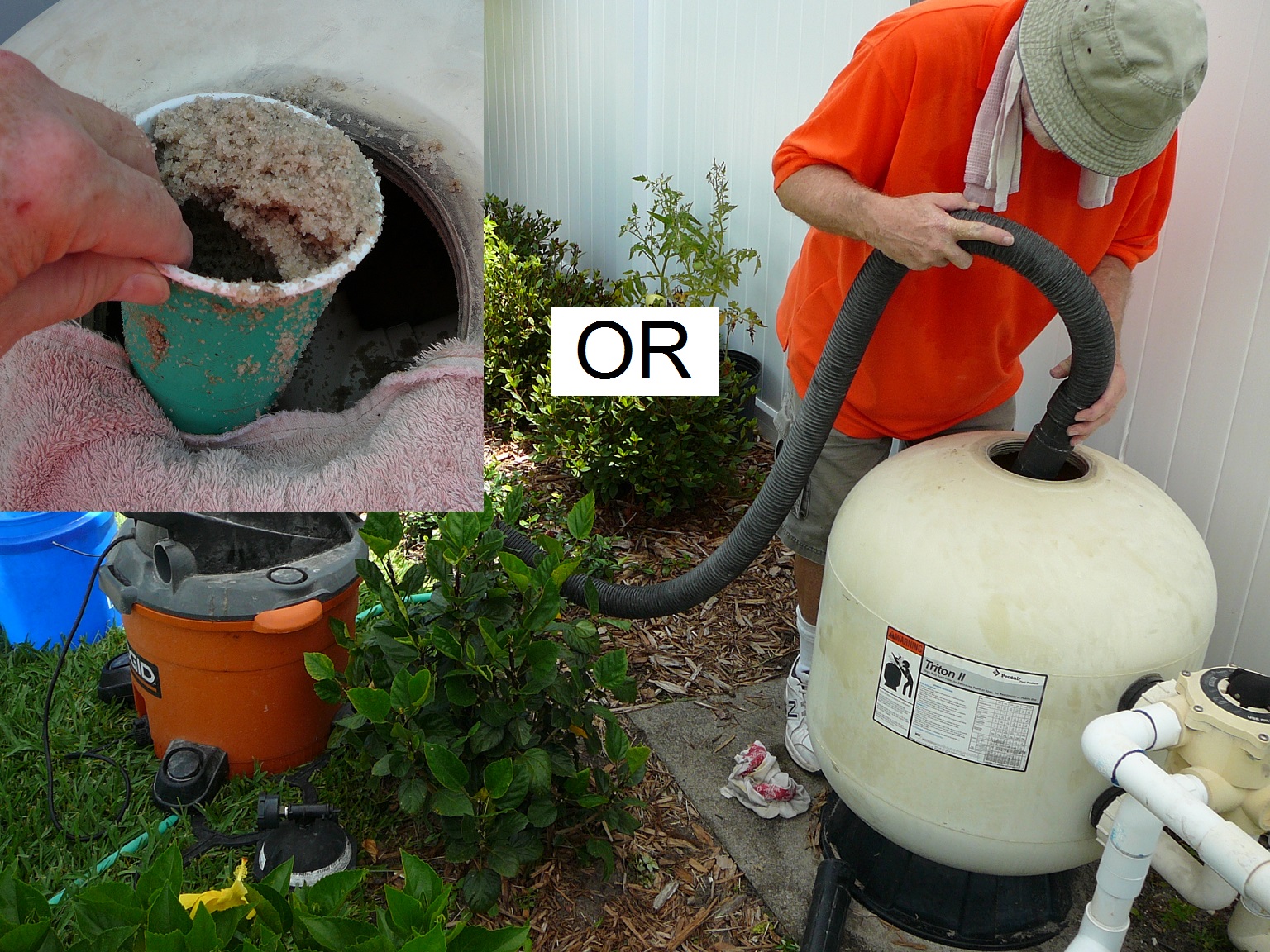

REMOVE SAND - Remove the old sand using a cup or small coffee can, or a medium to high powered wet vac. Dump the sand on a tarp for later disposal. Clear the sand down to the top of the laterals at the bottom of the tank. If you are using a cup to clear the sand, place a cloth on the edge of the tank opening to avoid fiberglass splinters.

Step 10

CLEAR LATERALS - When you get to the lateral, be careful removing the sand around and under the laterals as they are somewhat fragile and can be broken easily. Clear all the sand away from the lateral so you can inspect them.

Step 11

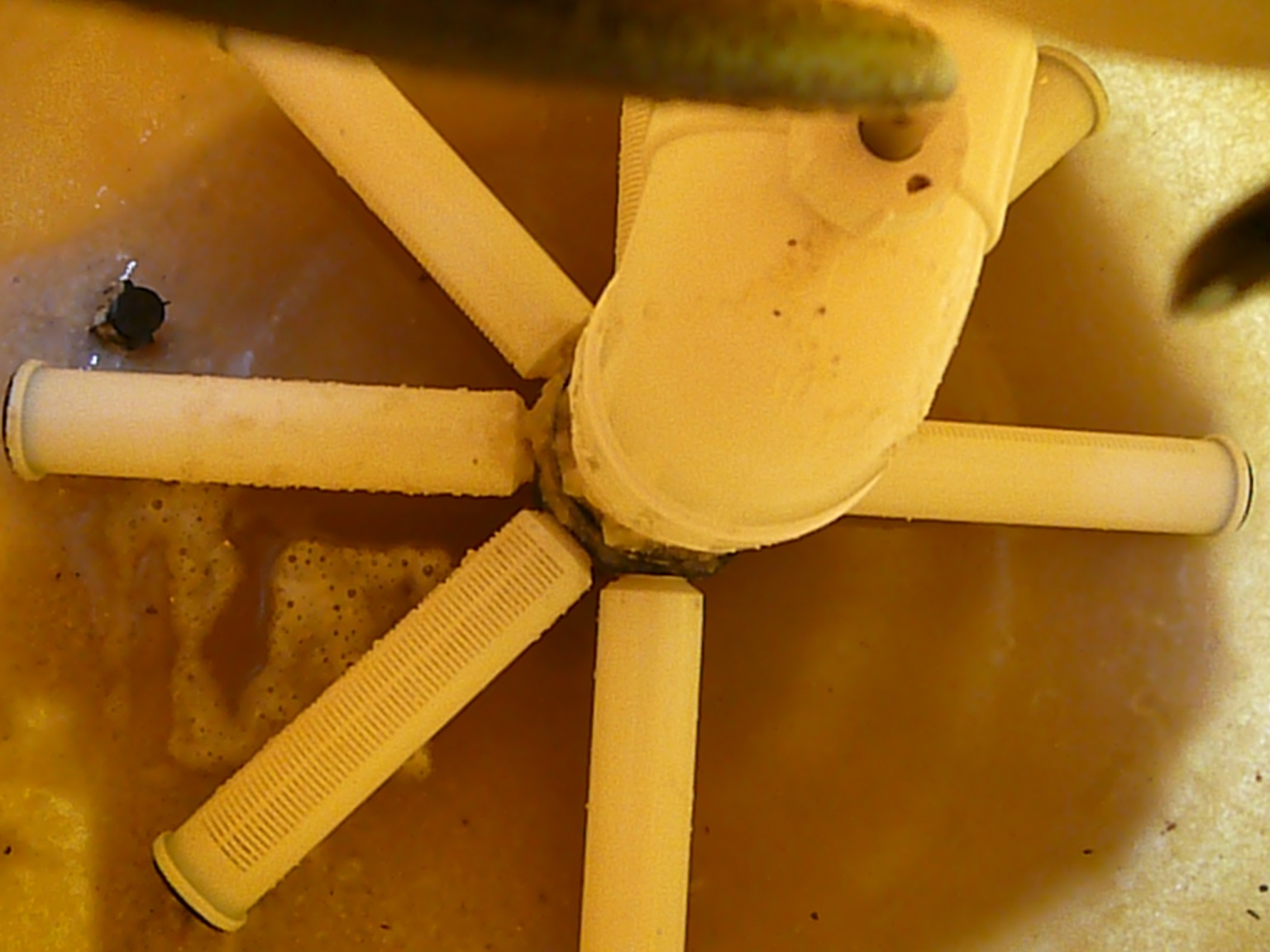

CLEAN TANK - Wash off the laterals and the bottom of the tank. Let the water drain out the drain port.

Step 12

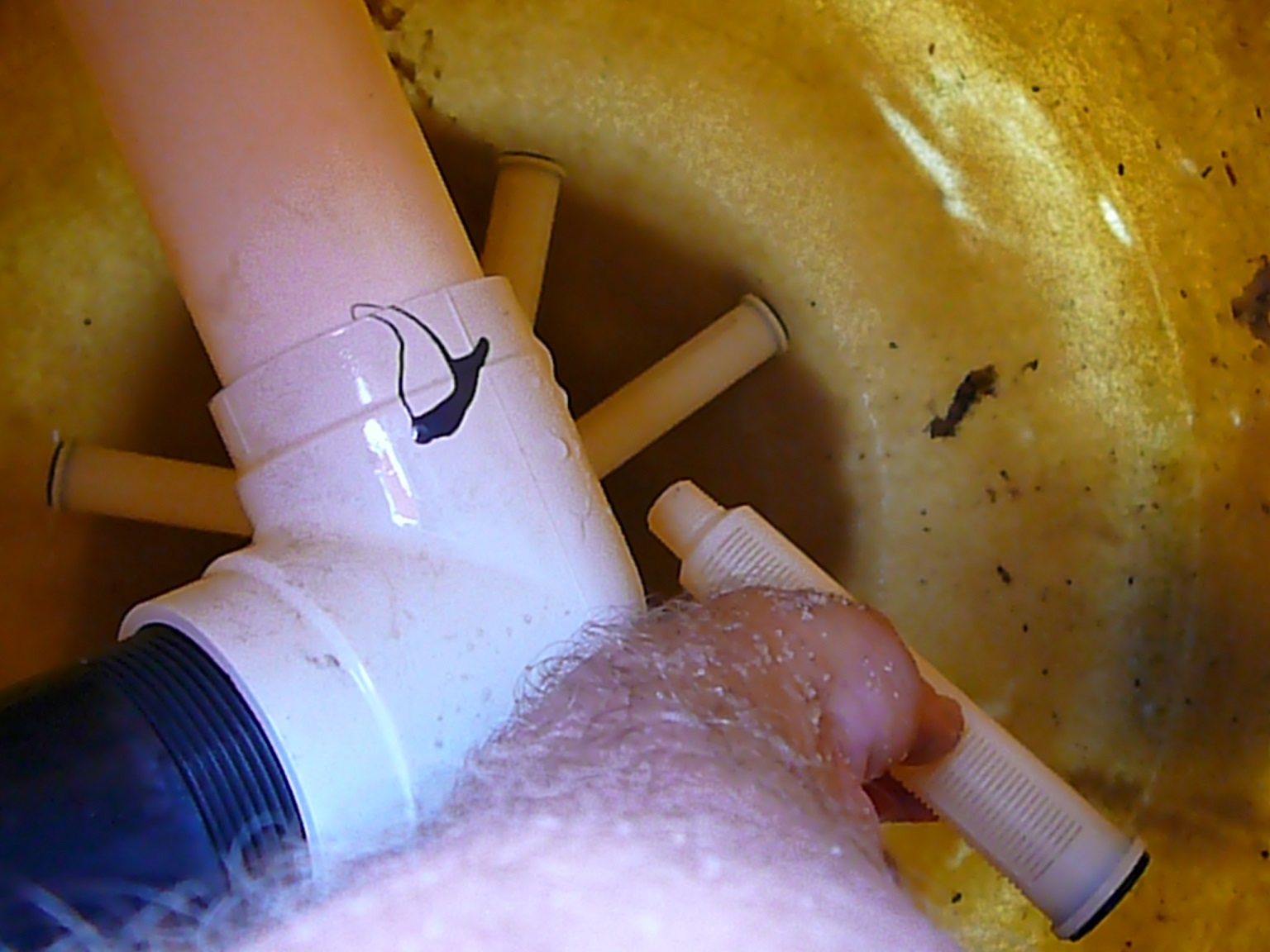

CHECK LATERALS - Look at and feel each of the laterals to see if any are damaged. If necessary, remove the questionable laterals and replace them. See our guide on "How to replace Laterals in a Pentair Triton 2 Side Valve Sand Filter".

Step 13

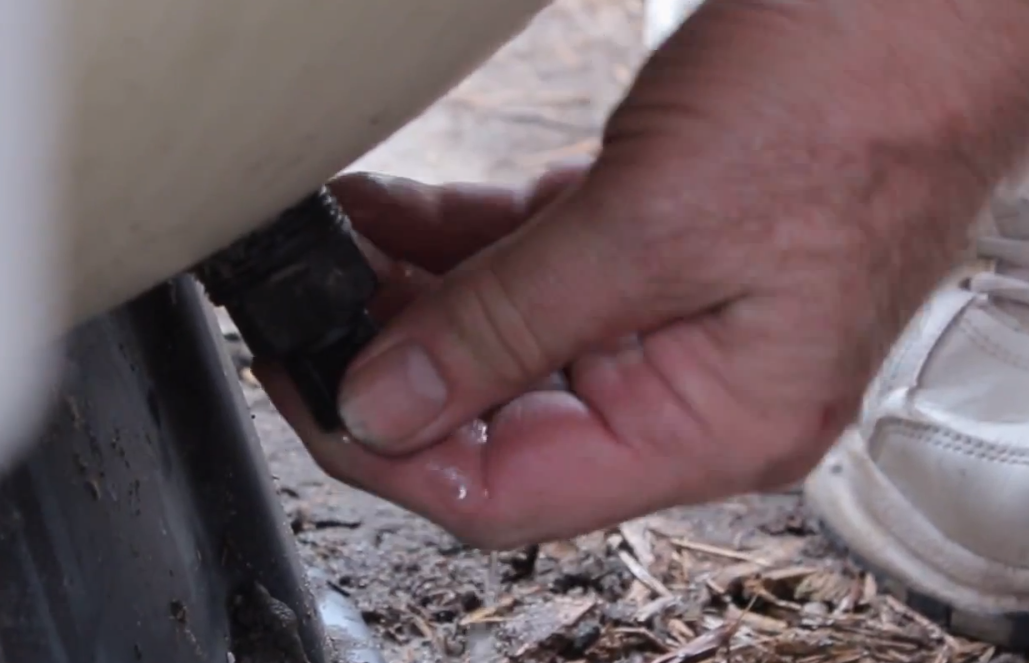

REPLACE DRAIN PLUG - Once all the laterals have been checked and are in place, check and lubricate the Drain Plug's O-ring, then replace the filter Dain Plug.

Step 14

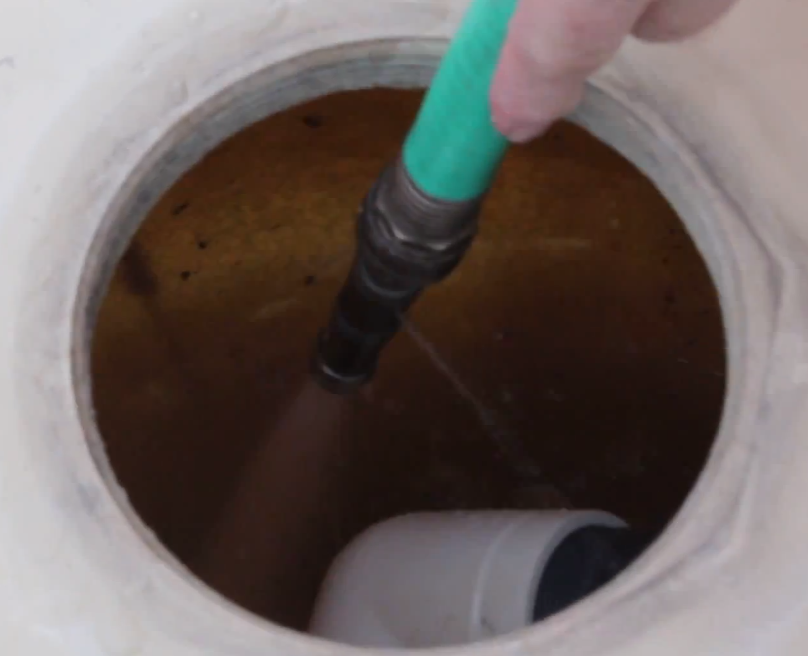

ADD WATER TO TANK - Fill tank about 1/2 way full with water to provide a cushion when the sand is poured in. This will help protect the laterals.

Step 15

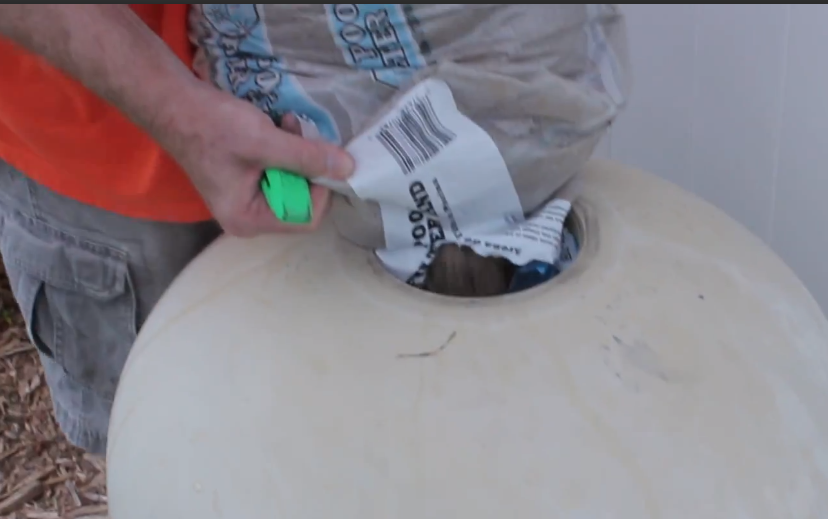

REPLACE SAND - To replace the sand, place a bag on top of the filter and cut out a large corner at the bottom of the bag nearest the hole in the top of the filter tank.

Step 16

ROTATE BAFFLE BACK - Push the baffle back until it is positioned in the center of the tank opening.

Step 17

CHECK AIR VENT - Make sure the air vent tube is still connected through the baffle and the screen is attached securely at the end of the tube. The screen should be positioned close to the top of the tank.

Step 18

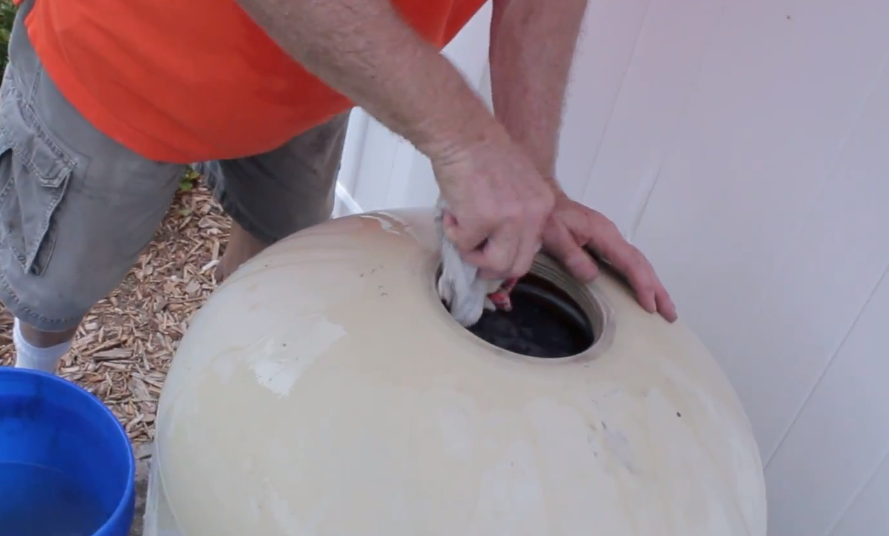

CLEAN LID GROOVE - Clean any sand or other debris out of the threads of the lid cover and tank.

Step 19

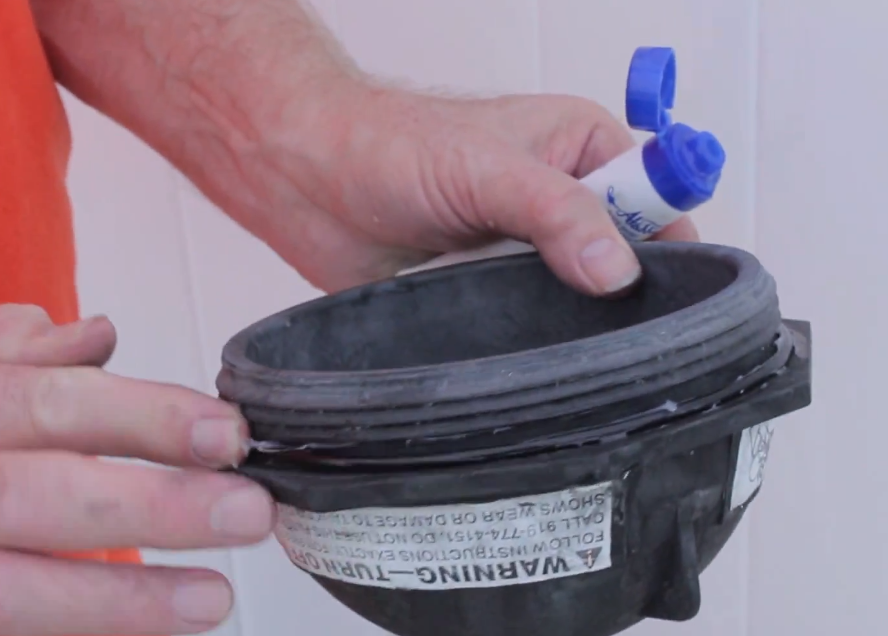

CHECK AND LUBRICATE O-RING - Check the Lid Cover O-ring for cracks or splits. Replace it is required and then lubricate it lightly with a silicon based lubricant.

Step 20

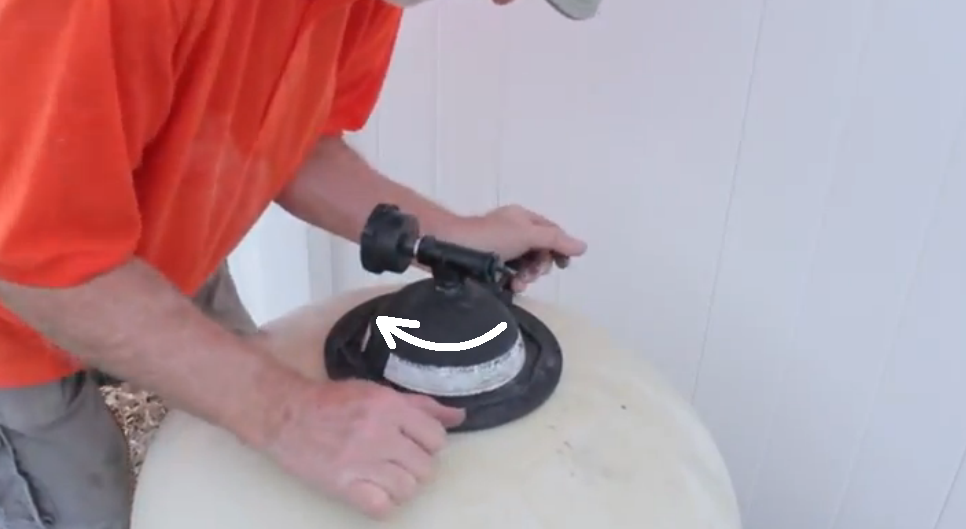

REPLACE LID - Screw the Cover Lid into the top of the filter tank using the large hex wrench. Make sure the threads line up. If it becomes hard to turn, back the Lid off and rethread it.

Step 21

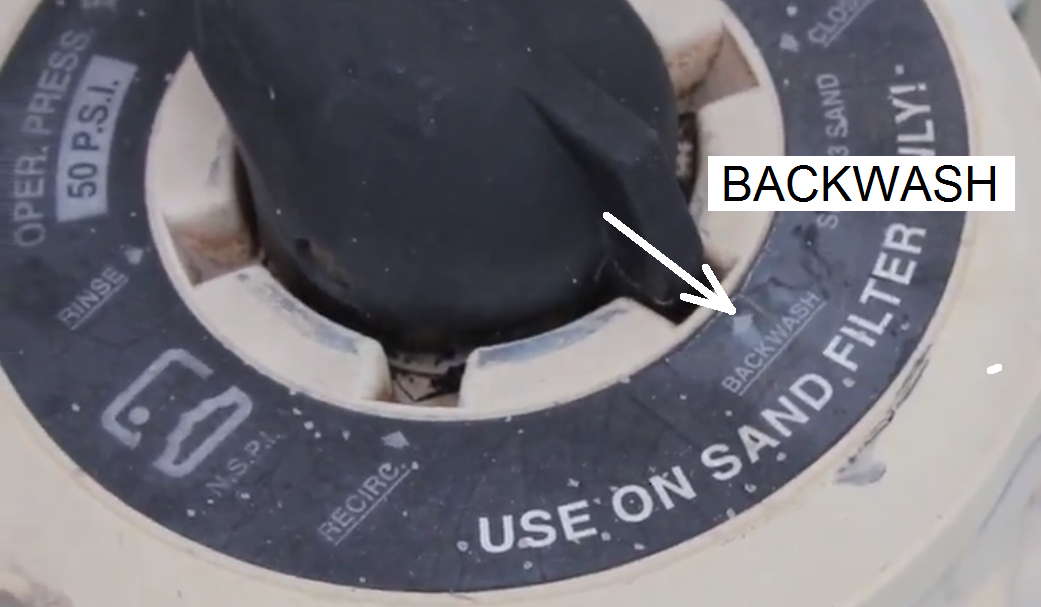

SET TO BACKWASH - Rotate the multiport handle to "Backwash".

Step 22

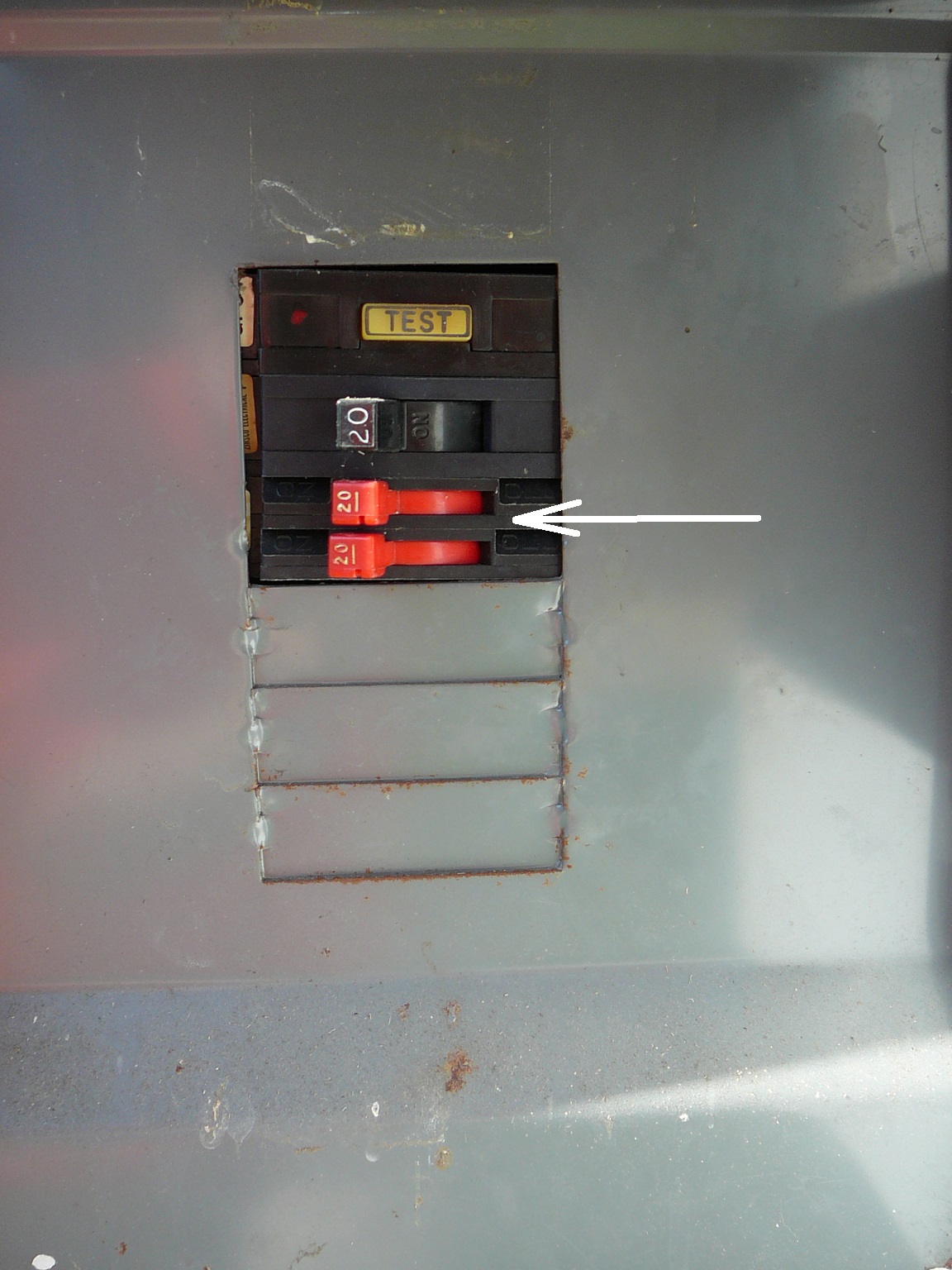

TURN ON PUMP - Turn on the power to the pump.

Step 23

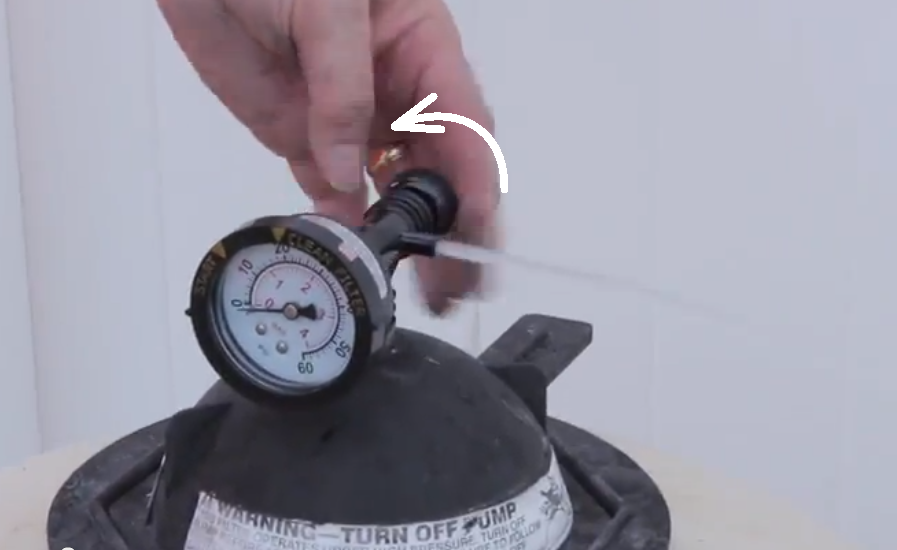

CLOSE RELIEF VALVE - When a steady stream of water shoots out of the relief valve, turn the valve off. Run the filter in Backwash mode for 2-3 minutes.

Step 24

TURN OFF PUMP - Shut off the power to the pump.

Step 25

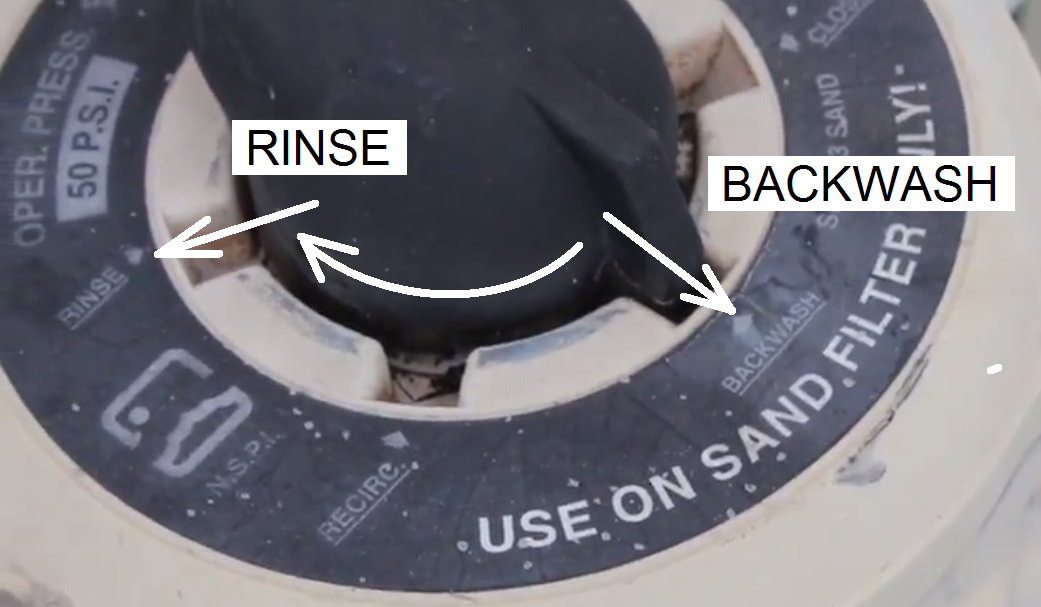

SET TO RINSE - Rotate the Multiport Valve Handle to "Rinse".

Step 26

TURN ON PUMP - Turn on the pump and operate in "rinse" mode for 30 seconds.

Step 27

TURN  PUMP OFF

Step 28

SET TO FILTER - Rotate the Multiport Valve Handle to "Filter".

Step 29

TURN PUMP ON - You filter should be operational. Note the filter pressure. In the future, when it goes 10 psi higher, it will be time to backwash the filter again..

Comments

Top
(1 to 29 of 29)

BlueHairCj  Posted: 08/14/2017 13:46 PM  Latest

I am looking at replacing the sand in my unit this coming week. My question is out of curiosity, could the need to replace The old sand have anything to do with the pressure of my vacuum in the pool?
I have done all steps to finding any leak that may occur but it seems to be 100% OK. I have noticed that if I release tension off the Triton 2 and the pump starts it goes really good for about five minutes and then slows down or stops


Inyopools  Posted: 07/30/2017 13:18 PM  Inyo Product Specialist

Poolhelp - Try tapping around the sides of the top cap gently with a rubber mallet. If that doesn't loosen it up, try brushing on a diluted solution of TSP around the joint, Let it sit awhile and tap it again with a rubber mallet. Repeat with solution and tapping until it loosens up. If you have lost your hex wrench, try using a strap wrench.


Poolhelp  Posted: 07/27/2017 11:26 AM

The top of my Sand Filter will not break loose to open any suggestions


Inyopools  Posted: 06/13/2017 18:51 PM  Inyo Product Specialist

mike - I'd question having to buy a new filter. See our guide on "How To Break Chlorine Lock". Look at Step 2, partially draining the pool. Also look at the second comment labeled "Anonymous" on 5/31/2017. This person had good results partially draining her pool.


mike  Posted: 06/12/2017 14:55 PM

I have had some issues with my filter or chemicals "locking up" as my pool service calls it. That's when the chlorine is high and the water is green or a light green. I ran the pool for 60 hours straight as directed by my pool service company. They thought that would clear it up after a few backwashes. Well it didn't change anything and now they tell me that my filter is bad and needs to be changed out. My TRITON II TR60 is about 15 years old or a little longer. I just cant believe that a filter can go bad and cant wrap my head around that. I changed the sand last year and seem to have this problem every summer (Phoenix, AZ) My plaster is 30 years old and deteriorating and will be redone this winter. Could that be my problem or could the filter really be shot and needs replaced? Thank you for opinions


Inyopools  Posted: 06/05/2017 18:18 PM  Inyo Product Specialist

Anonymous (Lid Wrench) - Here is the link to the Pentair Triton 2 Lid Wrench - Plastic.


Anonymous  Posted: 06/05/2017 13:28 PM

where can I get a new hex wrench to remove top?


Chad2000k  Posted: 06/22/2016 12:13 PM

Thank you for the reply. I have 12" from the sand to the top. I changed the sand yesterday and ran fine all night with the exception of the endless air bubbles going into the tank which I remedy by leaving the relief valve open slightly. The lid just keeps popping up enough for it to shoot water out of the top of the tank. A replacement lid is $60 and my home warranty charges $60 and hopefully will just replace the filter with a newer maybe the Triton II. Wiser choice is to just replace the whole tank instead of just the lid at the same price.


Inyopools  Posted: 06/22/2016 11:03 AM  Inyo Product Specialist

Chad2000k - I don't have information on your older model, but I would assume that if they are both 24" in diameter, they would have to operate with the same free space between the top of the sand and the top of the tank. Triton II specifies 10 1/2'.


Chad2000k  Posted: 06/22/2016 9:52 AM

I have an older version of this Triton. Triton is the only word I can make out on the data sheet on the side of the filter. It is 24" diameter on the inside of the tank. Can someone tell me how many pounds of sand this older filter holds? The newer Triton II does 300lbs for 24" and that's what I've changed it out with. It seems too much to what was in there but the guy running this before us last year did a number of wrong things to the pool.


Inyopools  Posted: 06/12/2016 12:45 PM  Inyo Product Specialist

Laszio - I would think that the Air relief tube would get clogged with sand if it wasn't connected to the bottom. Did you try removing the Upper piping assembly to see if you model has a pivoting joint or if you could free up the pivoting joint? Or you might consider replacing it so your baffle will pivot. If this model does not pivot, can you attach the baffle to the detached Upper assembly, then attach the tube before reattaching the Upper assembly?


Laszlo  Posted: 06/10/2016 16:19 PM

Thank you for your fast replay.
If you are interested and you can feel the challenge I pushed some more photos here with my comments: https://goo.gl/photos/riGEMwuAzLPBLZLi6
I don't have other idea, I will not connect the Air relief tube to the bottom. I will screw back the baffle with the air tube without connecting to the bottom. Than I will put a sac to the baffle. I will fill with 70 kg sand etc. (I talked with a guy, and he said that is not a big problem if I not connect the Air relief tube to the bottom. Maybe the filter will not use the full capacity, but it will work). Do you have any better idea?


Inyopools  Posted: 06/10/2016 11:48 AM  Inyo Product Specialist

Laszlo - I see your filter picture. It's not clear from the picture if this is a Pentair Triton w Side Sand Filter. If not, the baffle may not pivot. Can you take the top pipe assembly out by disconnecting the pipe at the top external connection to the valve. Then you could take a closer look at the pivoting section of the pipe if there is one, and if there is, you might be able to soak it to loosen it up. Like you say, I don't see how to reconnect the breather hose if the baffle isn't able to pivot.


Laszlo  Posted: 06/10/2016 1:55 AM

I'm stuck with Step 8
I can't move the Baffle, only I can unscrew.
So I can't put the air relief back if I can't move the Baffle. Any suggestion? I don't want to brake it.


Anonymous  Posted: 06/09/2016 15:36 PM

I'm stuck with Step 8. I can't move the Baffle aside. I unscrew it, I removed the sand, but if I screw the Baffle back, I can't connect the air relief botton part. Should I force the Baffle to left or right? I'm afread I broke it... pictures about the issue: https://goo.gl/photos/8ZAdsPofSu5MP7hj9?


Inyopools  Posted: 05/09/2016 10:29 AM  Inyo Product Specialist

Tess - Try adding a 50/50 solution of vinegar to the filter to see if that breaks it up. You do not want to break it out with a hammer and chisel because that will probably break the laterals. If you do have to revert to a hammer, use light taps on a small screwdriver and try to tap horizontally.


Tess  Posted: 05/06/2016 19:34 PM

I am changing sand my sand is hard. How do it get that out?.


Inyopools  Posted: 04/26/2016 16:15 PM  Inyo Product Specialist

Changing sand - Most sand filters just specify sand, and even the picture in the Triton 2 manual (page 6) shows the option of "sand or sand and gravel). We went with what most filters use.


Anonymous  Posted: 04/25/2016 19:38 PM

I am going to change the sand in my filter but can I ask why 50 lbs gravel and 275 lbs sand is not being used in your demonstration as this is specified by the manufacture.


Inyopools  Posted: 01/19/2016 10:27 AM  Inyo Product Specialist

Rachel - This procedure for removing sand will work regardless of which valve you have attached to the filter. The insides of the filter are the same.


Rachel  Posted: 01/14/2016 10:33 AM

I the same sand filter but I only have a backwash valve. Would I be able to do the same thing or not please help me.


Inyopools  Posted: 07/31/2015 11:16 AM  Inyo Product Specialist

hg - Thank you very much for your feedback. It's helpful for us to hear variations on our procedures and how you solved your problems.


hg  Posted: 07/30/2015 21:16 PM

I followed you instructions for the replacement of the filtering material, Except it should be noted that after opening the filter I noticed that the baffle(diffuser?) would not move to the side as stated on your instructions, but I reached in, felt threads, and proceeded to unscrew and remove it from the plastic tubing. I cover the pipe with a small plastic bag and follow the rest of your instruction. Thanks for your help. P.S. Thanks for mailing the new top so promptly.


hg  Posted: 07/30/2015 21:08 PM

My filter top was stuck and would not budge with the plastic octagonal wrench. It broke. I decided to order a new top since I knew that I would have to destroy the top. I didn't want to cut it since I was afraid to damage threads on filter casing. I drilled two 3/8" diam. holes through and inserted a 3/8" dia. two foot long steel bar. This worked and I was then able service filter Replaced pea rock and sand, and is now working better than ever.


Anonymous  Posted: 07/25/2015 12:15 PM

My sand filter top was also very stubborn. I was about ready to cut it off, and then talked to the guys at my local pool store. The had an old style STEEL, not aluminum, wrench that did the trick. This was NOT the Pentair 154510 that you can get on Amazon for $125. That wrench, at least according to the Amazon reviews, is a sand cast non-professional grade tool. The tool my pool store had was older, made of square steel stock, and had rubber handles on eash side for an excellent grip. The cover relented in short order wnen that wrench was uses! Now I'm looking for one of my own, but so far no luck :(


Inyopools  Posted: 07/24/2015 10:55 AM  Inyo Product Specialist

stuck filter top - Thank you for your feedback. Sounds like the previous owner glued the top on and, in that case, about all you could do was cut the top off. As you said, you have to be very careful doing this so that you don't damage the threads in the tank top.


Anonymous  Posted: 07/23/2015 19:58 PM

Thank you for answering. I actually ended up sawing it off with a sawzall (be very careful). Then I was about to hammer and get a screw driver in there to loosen it up then it twisted off. I obviously bought a new top and O ring. I always about to safe the pressure valve being cutting around it.
And it was glued with something black not sure why
.


Inyopools  Posted: 07/23/2015 11:37 AM  Inyo Product Specialist

stuck filter top - I would guess that this top has not been removed for years and is stuck on with mineral deposits. Try brushing some CLR around the top to break up the deposits. Try trapping around the top with a rubber mallet. Also, for a little more leverage try using a strap clamp to remove the top - counter-clockwise.


Anonymous  Posted: 07/23/2015 0:55 AM

I cannot get the top off of my filter to remove the sand. I have the wrench and have tried for hours. I am 26 so have the strength. I just bought this house is it possible the previous owner glued it or something. Is there another way to get it off?
I have relived all psi pressure and bottom valve to let water leave already.
