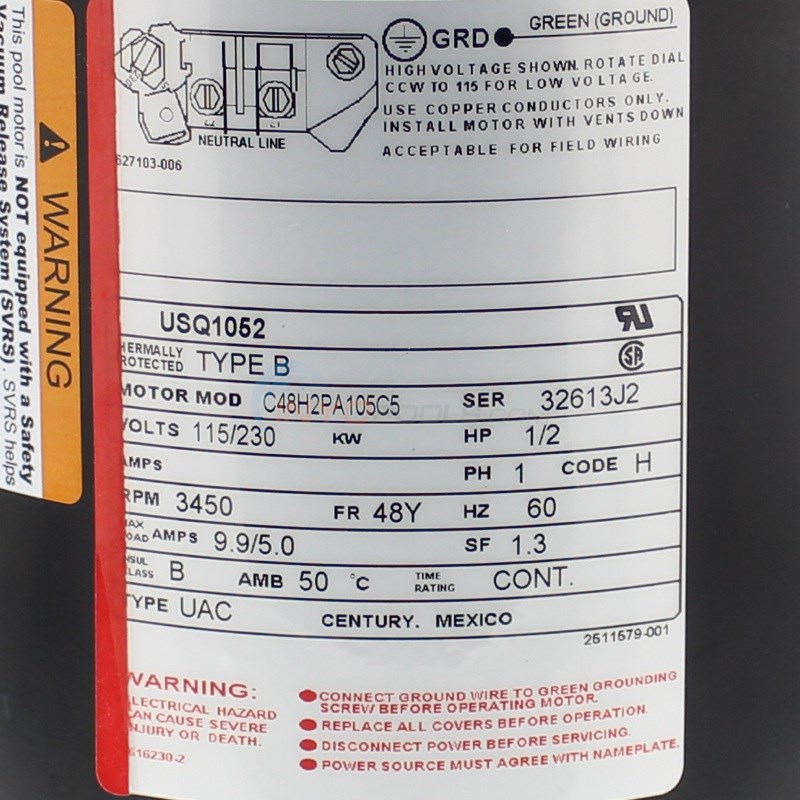

Part # USQ1052
Warranty 1 Year
Dimensions 12" L x 7" W x 7" D
Alternate Part #'s 19714, 3K030, 54001, 5KC38JN2071, A100CHL, A100CL, A100CLL, AS100CL, B537, B856, B856SE, C1243, C48B17B84, C48H2EC101, C48H2EC101A1, C48H2EC103, C48H2EM15, C48H2P104, C48H2PA104A1, C48H2PA104A3, C48H2PA105, C48H2PA105A4, C48H2PA105C5, J218-577AC, J218-769AC, SQD50UP1, USQ1052, V54001
Voltage 115/230, Max Amps 115V = 8.2 230V = 4.1, Single Speed, Square Flange, RPM = 3450, Threaded Shaft, Frame = 48Y Used on the following models: Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair Whisperflow, Pinnacle and Anthony AR2 Series.
Want to buy the right pump replacement for my ingroung swimming
Reply
Hi Marie, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
I have a STA-RITE motor 1/2 hp. The pump model number is P2RA5C-179L, MOTOR # IS C48H2PA 105C1. it's 115/230, 3450 RPM, S.F.1.3 Type B, Code K. It's an A.O Smith motor. I did not see anything that had a code K for a 1/2 hp motor. The label does not have a frame type on it. What do you recommend as a direct replacement for it? Would Century 1/2 HP Square Flange 48Y Up Rate Motor - USQ1052 work for this ?
Thank You
Hi Bill, yes, this is the correct single speed replacement motor for the motor included in your photo. You will also need a Sta-Rite DuraGlass seal kit when you replace your motor. Be sure to remove the cone insert from the seal plate if you have one. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
Hello I have a Sta-Brite Max-E-Pro pump. Will this replacement pump work. I have attached reference pictures.
Hi guys, I need to change my pump motor in the pool, this is the P2RA5D 120L, I would like to know if I am on the right page A.O. Smith 1/2 HP Square Flange 48Y Up Rate Motor - USQ1052. Will I also need this? http: //www.inyopools.com/Products/00500022000635.htm Tune Up Kit Sta-Rite Dura-Glas & Max-E-Glas Pump Pre 1998 - GOKIT6 or no...thanks
Being that the motor details are illegible I would recommend getting the part number that should be molded on the impeller to confirm the motor strength. You can always use the GOKIT54 on this series and just remove the copper cone in the seal plate.
Reply
Howdy, so my moms water pump is going out these are pics of it would yalls 1/2 hp motor work or could i put a more powerful one on there?
Hello,
Trying to replace our pump motor.
The motor is a Sta-Rite 1/2 hp 230 v Self priming
C4SH2PA10SCI
P2RASC-179L
Do you have a motor available to replace this model?
Thank you,, Susan
Hi Susan, This USQ1052 motor is the correct replacement motor for the motor included in your photo. You will also need this Sta-Rite Seal Kit Pre 1998 or this Sta-Rite Seal Kit 1998 and After. If you are not sure if your pump is from before or after 1998, then we put together this Video on How to Determine if your Sta-Rite Pump is Before or After 1998. We also put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
Reply
does the century poool pump usq1052 have seal installed? thanks
Reply
No, these seals are sold separately and are dependent on the model name or number of the front pump housing that the motor bolts to.
Reply
what is the direct replacement for dura glas model c48h2ec23 1\2 hp a.o.smith pump,and do you supply to the uk and at what cost with freight,or have you a uk agent thanks
Reply
Good morning Bob, You are looking for part A.O. Smith 1/2 H.P Square Flange Up Rate Motor - USQ1052. I would need the address you need it shipped to for a shipping quote.
Reply
Hi, what is the direct replacment for Pump model C48H2EC23 ?
Reply
Good morning Kev, It Depends on what the horsepower is on the motor and if it is full-rated or uprated. You can look at the label that is on the motor. There you find what the model # it is and what Horse power it is. Here is a list of parts for that pump. Sta-Rite Dura-Glas and Max-E-Glas Parts
Reply
Need replacement for Sta-Rite motor #C48H2PA105C1. What is the correct replacement and what other parts do I need?
Reply
Hi David, The USQ1052 motor can be used as a replacement for the C48H2PA105C1 motor.
Reply
I would like to purchase a new pump for a back-up. My current pump is a Sta-rite max-e-glas 1/2 hp pe5c-180l. But I'm told it's obsolete. Is there a motor and pump that will fit into the existing tank housing ?
Reply
I need a new motor for my Max-glas pump and the model no. is PE5C-18OL. Do you have this motor?
Reply
The A.O. Smith 1/2 H.P Square Flange Up Rate Motor USQ1052 would be the correct replacement motor for your pump.
Reply
what pump motors replace a Sta-Rite P2R A5C-119L
Reply
Here is a complete part listing for the Sta-Rite Dura-Glas and Max-E-Glas Parts, Sta-Rite P2R model you provided. This also includes the motors available for your pump.
Reply
is this a replacement for Dura-Glas P2R A5C-119L
Reply
Hello- I would double check your model number as it appears it is not correct. I was able to find that the motor replacement for a p2ra5c-179l would be this A.O. Smith 1/2 H.P Square Flange Up Rate Motor USQ1052.
Reply
I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
Reply
Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
The Most Helpful Review
171 8
(5 out of 5 stars) Excellent Pump Moter Replacement
Reviewed By: PoJo from Clarence, NY ()
Pros: Awesome fit - excellent replacement
Cons: none
Tip to get the impeller off the old pump moter: use a 7/16" open ended wrench - it slides in near the capacitor on the electrical side... rotate the impeller until the wrench slides into place at the end of the shaft and then one person holds the motor and the wrench while a 2nd person loosens the impeller off with bare hands by turning the impeller counter clock-wise.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars) Great price on rare motor
Reviewed By: Andrew S. from Jacksonville, FL ()
Pros: great price, perfect replacement
Cons: none
This 1/2 hp motor is becoming harder and harder to find. INYO Pools had it in stock and at the best price anywhere. The product was shipped and received promptly and in perfect condition.
Was this review helpful to you?
(5 out of 5 stars) Pump motor
Reviewed By: Robert from Cghicago, IL ()
Good product, fast service. This is second time I ordered from this company.
Was this review helpful to you?
2 0
(5 out of 5 stars) Perfect Replacement
Reviewed By: Chazz from Guntersvilla,Al ()
Pros: Works good
Cons: None
Perfect fit and replacement for what I had, Just what I wanted out of it.
Was this review helpful to you?
1 0
(4 out of 5 stars) Easy install/replacement.
Reviewed By: ThePoolGuy from Angleton, TX ()
Pros: Easy install, Tab connectors and bolt-downs
Cons: Hard to hold shaft for threaded impeller.
Nice motor, quiet. Rear capacitor design is sleek and compact.
Was this review helpful to you?
2 0
(4 out of 5 stars) So far, so good.
Reviewed By: Doninfla from Sebring, FL ()
Pros: Price is right, shipping is outstanding.
Cons: Made in China.
Great customer service people, outstanding prices, and immediate shipping. Nothing to complain about. The motor was an EXACT fit, and I had no trouble replacing the dead motor. It seems to be running about the same temperature as the old (American Made) motor.
Was this review helpful to you?
(5 out of 5 stars) new pump motor
Reviewed By: poolbob from palm coast, florida ()
Pros: direct replacement
this pump motor was easy to install. it was a direct replacement. everything fit as it should. the seal kit is a good idea to buy when doing the job. would recommend this seller. will come back to this store to do buisness in the future.
Was this review helpful to you?
1 0
(5 out of 5 stars)
Reviewed By: Lance from San Antonio, TX ()
I installed this new motor with no problems. It seems to run more quietly than the replaced one.
