$264.99

Qty:

By Century Motors


Details

Top

Part # USQ1152

Warranty 1 Year

Dimensions 14" L x 7" W x 9" D

Alternate Part #'s 1103016463, 13773, 186360, 187333, 3K033, 4205007400, 54004, 5KC38SN2535DX, 5KC39SN2074, 5KC39UN6086X, 90106931, A100FLL, B693, B854, B854SE, B854SM, C1246, C48AB46A01, C48AB46A79, C48L2EB103, C48L2EC11C3, C48L2EC15, C48L2EM15, C48L2P103, C48L2PA103A1, C48L2PA103A3, C48L2PA104, C48L2PA104A3, C48L2PA105, C48L2PA105A1, C48L2PA105A2, C48L2PA105A7, C48L2PA105C5, C48L2PM100, C55CXKLT-5007, EB854, J218-824A, SPX2710Z1M, SQD15UP1, USQ1152, V54004, AOSUSQ1152, CRMUSQ1152

Product Description

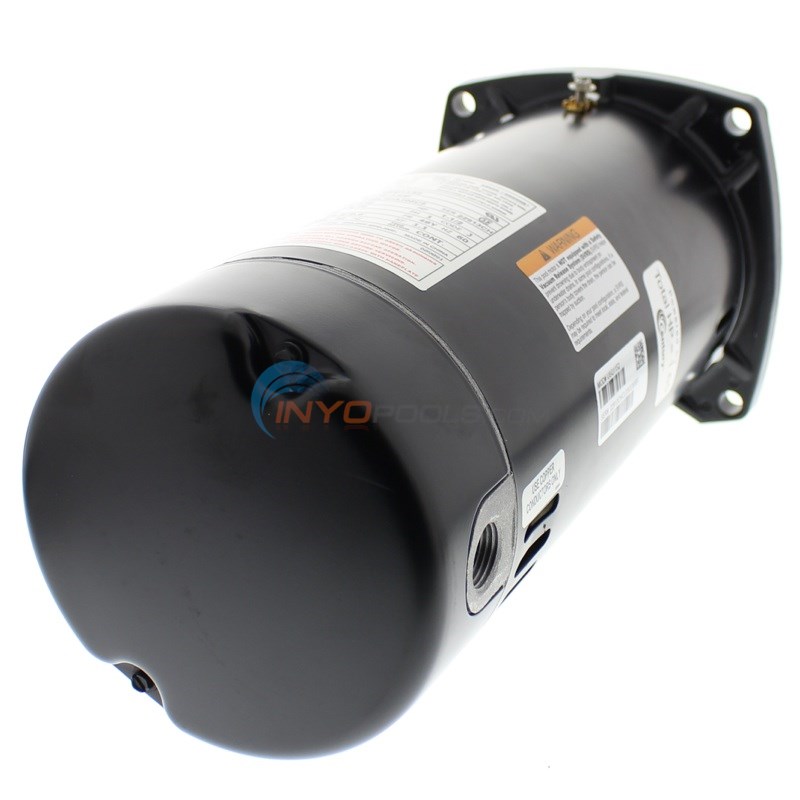

Century USQ1152 Details

Voltage 115/230, Max Amps 115V = 19.2 230V = 9.6, Single Speed, Square Flange, RPM = 3450, Threaded Shaft, Frame = 48Y Used on the following models: Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair Whisperflow, Pinnacle and Anthony AR2 Series.

Note: NOT California Title 20 Compliant.

California Title 20 Compliant Option:

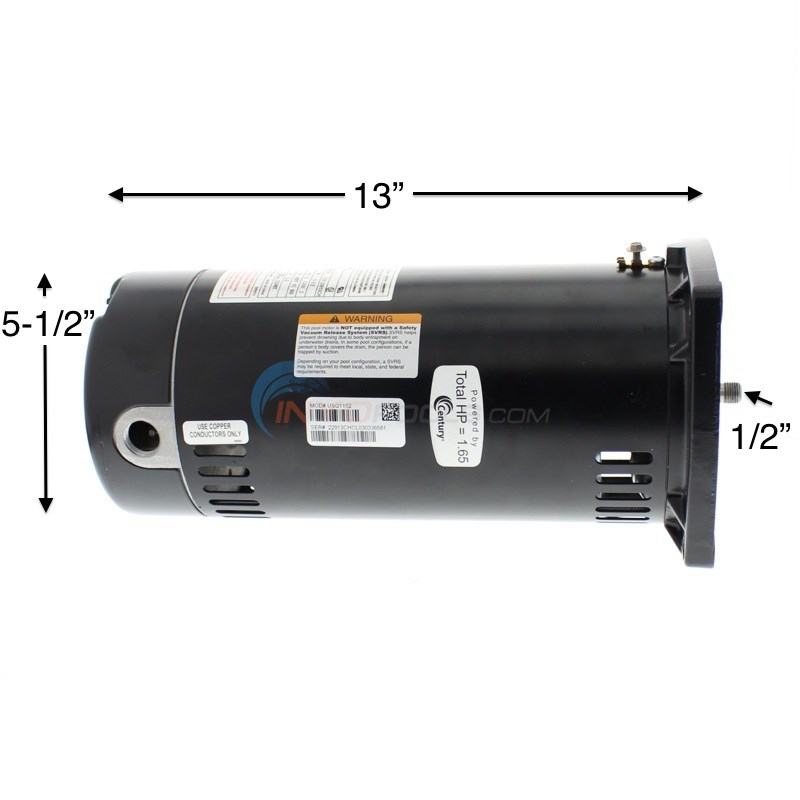

Motor Dimensions Motor Dimensions
Motor Image Motor Image

Product Specifications

HP:
1.5 HP
Frame:
48Y
Volts:
115/230 V
Speed:
Single
Amps:
19.2/9.6 amp
Service Factor:
1.1
Total HP:
1.65 HP
Manufacturer:
Century (A.O. Smith)
Shaft:
Threaded
Flange:
Square
RPM:
3450 RPM
Stock #:
USQ1152
Phase:
Single
Commonly Used On:
Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max Pentair Whisperflow, Pinnacle and Anthony AR2 Series.
Top

?     Asked on 1/11/2012by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

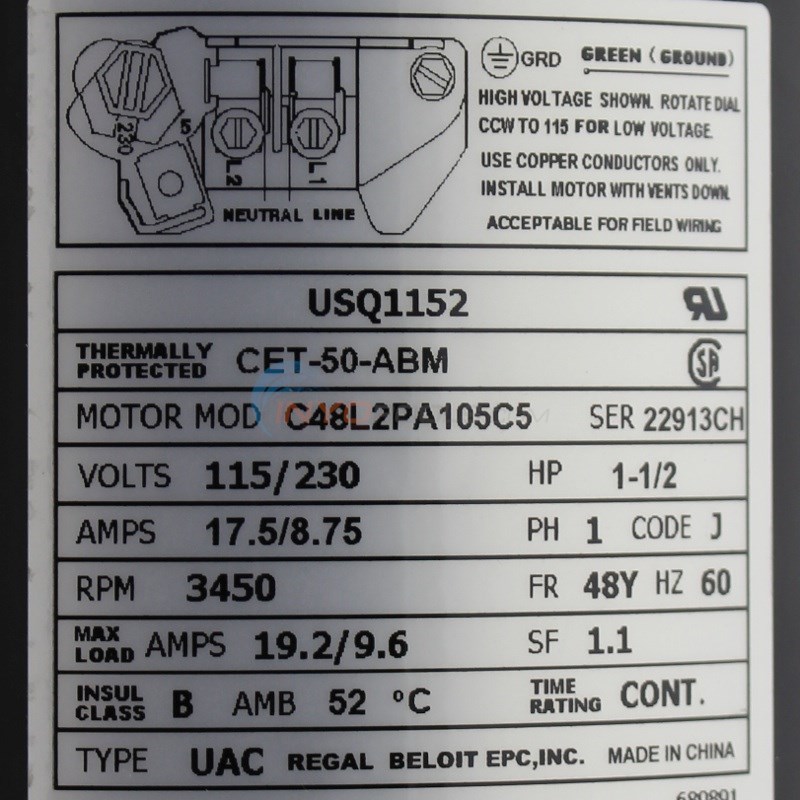

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


?     Asked on 1/12/2012by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is toĀ prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor toĀ fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due toĀ water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/12/2012by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New sealsĀ will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor andĀ ensure that the pump is working efficiently.
 Reply


?     Asked on 1/19/2012by Guest

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
 Reply

A  Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
 Reply


?     Asked on 5/5/2015by tony

My pump is a sta rite #P2RA E(E MAYBE A 5) 1246 code #1L926. What motor is required?
 Reply

A  Answered on 5/5/2015 by InyoPools Product Specialist Robert M.

Hello Tony - Your model number did not bring up a match. The USQ1152 would be the correct motor for the P2RA5F-182L.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Socket Set, Wrench Set

Main pump replacement

Written on 10/23/2023 by Guest

Replaced per video. Had to buy extender wrench to get bolts off.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set

Old pump just quit.

Written on 8/6/2022 by Guest

Removed old pump ordered new motor from INYOPools. Reinstalled new motor and seals to pump. Bolted pump to other half of pump. Then rewired and fliped the switch and now working just fine.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set

5     1

Motor stop working On my Jandy Plus PHPM 1.5

Written on 6/10/2020 by Guest

1. Shut down Electricity to the motor.
2. Disconnect the 3 electrical wires from the back of the motor.
3. Remove the (8), 9/16 bolts connecting motor unit & the wet unit, remove seal.
5. Separate the motor unit & impeller by carefully inserting a screwdrivers around the edge of the seal plate. slow and carefully wiggle back the motor unit.
6. remove the (2) diffuser screws.
7. If you have an impeller lock screw. Remove it by turning it clockwise. You can hold the impeller with the other hand to remove the screw. I had to bang the screw with a screwdriver and hammer, to loosen the screw. Some motor do not use this lock screw.
8. Separate the impeller by rotating it counterclockwise. Hold the screw on the back of the motor, to stop the free spinning of the shaft. Insert flat blade screwdriver into the outer edge of the impeller and strike the screwdriver close to the impeller. That should loosen the impeller so you can twist off.
9. Remove the seal from the impeller by twisting it off with pliers.
10. Install the new seal on the impeller. Use seallube or dish soap and water. . Do not use oil, grease, teflon or silicone.
11. Remove the (4) 9/16 bolt that attaches the motor to the seal plate and separate.
12. Remove the seal from the center of the seal plate. From the side that was not connected to the motor softly tap it with a screwdriver and hammer.
13. Wash the seal plate, impeller and diffuser with dish soap and water.
14. Reinstall the new seal in the center of the seal plate, use sealube or soap and water. Use the back of a screwdriver to make it evenly flat on the seal plate.
15. Reinstall the seal plate to the new motor with the (4) screws.
16. Reinstall the Impeller to the seal plate by turning it clockwise. Hold the screw on the back of the motor to stop the free spinning of the shaft and hand tighten only.
17. Replace lock screw, if the motor has a center hold on the shaft.
18. Reinstall the diffuser with the (2) screws.
19. Reinstall the new Oā€™ring with seallube to hold it in place on the seal plate
20. Make sure you have the (2) Oā€™rings on the diffuser.
21. Reinstall the new power unit by sliding left to right into the wet unit.
22. Reinstall the (8) bolts.
23. Reconnect the electrical wires.
25. Remove the basket cover from the pump and add 2 gallon or more water into to pump.
26. Turn on Electricity to the motor.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Nut Drivers, Socket Set, Adjustable Wrench

4     0

No problem

Written on 7/11/2019 by Guest

Ordered pump, received on time, installed new pump & other parts in 2hrs,with information from tech, No problems since.saved $600 in labor šŸ˜

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Socket Set, Adjustable Wrench

3     0

Replaced frozen motor with new motor.

Written on 6/13/2018 by Guest

Very easy procedure just many steps as you donā€™t want to rush through it. Make sure you donā€™t lose any of the washers or nuts and bolts. The new motor uses your existing hardware. Great product and great company with fast shipping. Will buy my products from them in the future.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set

1     0

The pool pump motor seized-up.

Written on 1/29/2018 by Guest

After confirming the correct replacement frame and horsepower requirements with INYO Pool Products, the correct motor arrived quickly. In my case, it was a simple break-down of the components (after deenergizing the circuit at the breaker panel); removing the motor, impeller, and diffuser from the pump housing using basic hand tools. I was careful to keep track of all fasteners and where they would reattach. It was simply a matter of attaching the new motor to the existing frame and reattaching the impeller and diffuser in the reverse order. From the external electrical disconnect box I replaced the water-tite flex conduit and connected power to the new motor, following the enclosed diagram. Once all connections were made and confirmed that Allen fasteners were tightened on the pump, I reset the breaker and turned the pump on using the external disconnect switch. The pump is now working better than ever.

Were these instructions helpful?
