$614.00

Qty:

By Century Motors


Details

Top

Part # EVQ225

Warranty 18 Months

Alternate Part #'s AOSEVQ225, CRMEVQ225, EVQ225

Product Description

V-Green EVO™ with Century Connect™ Automation Mode to enable communication with many popular automation systems!

Versatility and performance best describe A. O. Smith's new V-Green EVO™ variable speed pump motor with an integrated timer. Capable of delivering superior energy savings of over 80% versus a standard single-speed motor. Spurred by consumer interest in energy-saving products and government-mandated efficiency standards, the innovative V-Green variable speed EVO offers premium efficiency boosted by such features as Power Factor Correction, which raises overall efficiency while reducing input amps! The state-of-art user interface ensures programming ease and flexibility, with on-screen navigation, ergonomic selector switch, and pre-set programs for out-of-the-box operation. A. O. Smith's V-Green EVO  is Title 20** compliant and with three user-defined variable speeds is a superb choice for reducing energy consumption, for lowering overall pool ownership costs, and for satisfying regulatory requirements.

Square Flange Pentair, Pac-Fab, WhisperFlo, Challenger, Sta-Rite, Dura-Glas, Max-E-Glas, & Max-E-Pro Pumps

Don't Forget Your Tune Up Kit

** California's Title 20 legislation states that pumps > 1HP (total) must be 2-speed or variable speed, and must have control to default to low speed (i.e. timer)

Features:

  • Dual Voltage 230/115 VAC with Automatic Voltage Detection
  • Freeze Protection
  • Sealed Ball Bearings
  • Variable Speed Operation (600-3450 RPM)
  • TEFC Design Rotation: CCWPE
  • Single Phase
  • 50/60 Hz
  • 303 Stainless Steel Shaft
  • Class F Insulation
  • 50°C Ambient

Benefits:

  • Communicates easily with most automation systems leading to no loss of automation system functionality
  • New simplified user interface allows for easier programming and motor setup all with the push of a button
  • Lightweight, compact design, and rotatable mains wiring compartment allow for ease of installation
  • Available in both square flange and C-Face mounting configurations to allow for replacement versatility
  • Water, weather, and UV resistant IPX5 moisture intrusion rating and UV resistant components protect against harsh conditions to extend motor life



THP RPM VOLTS AMPS SERVICE FACTORS FLANGE VGREEN EVO™ MOTOR STOCK NUMBER
1.30 600-3450 230/115 8.6/15.6 1.0 Square EVQ130
1.65* 600-3450 230/115 10.5/17.7 1.0 Square EVQ165
2.25* 600-3450 230/115 13.5/17.4 1.0 Square EVQ225
1.30 600-3450 230/115 8.6/15.6 1.0 C-Face EVC130
1.65* 600-3450 230/115 10.5/17.7 1.0 C-Face EVC165
2.25* 600-3450 230/115 13.5/17.4 1.0 C-Face EVC225
*When motor is running at 115VAC the total horsepower is 1.65 THP.

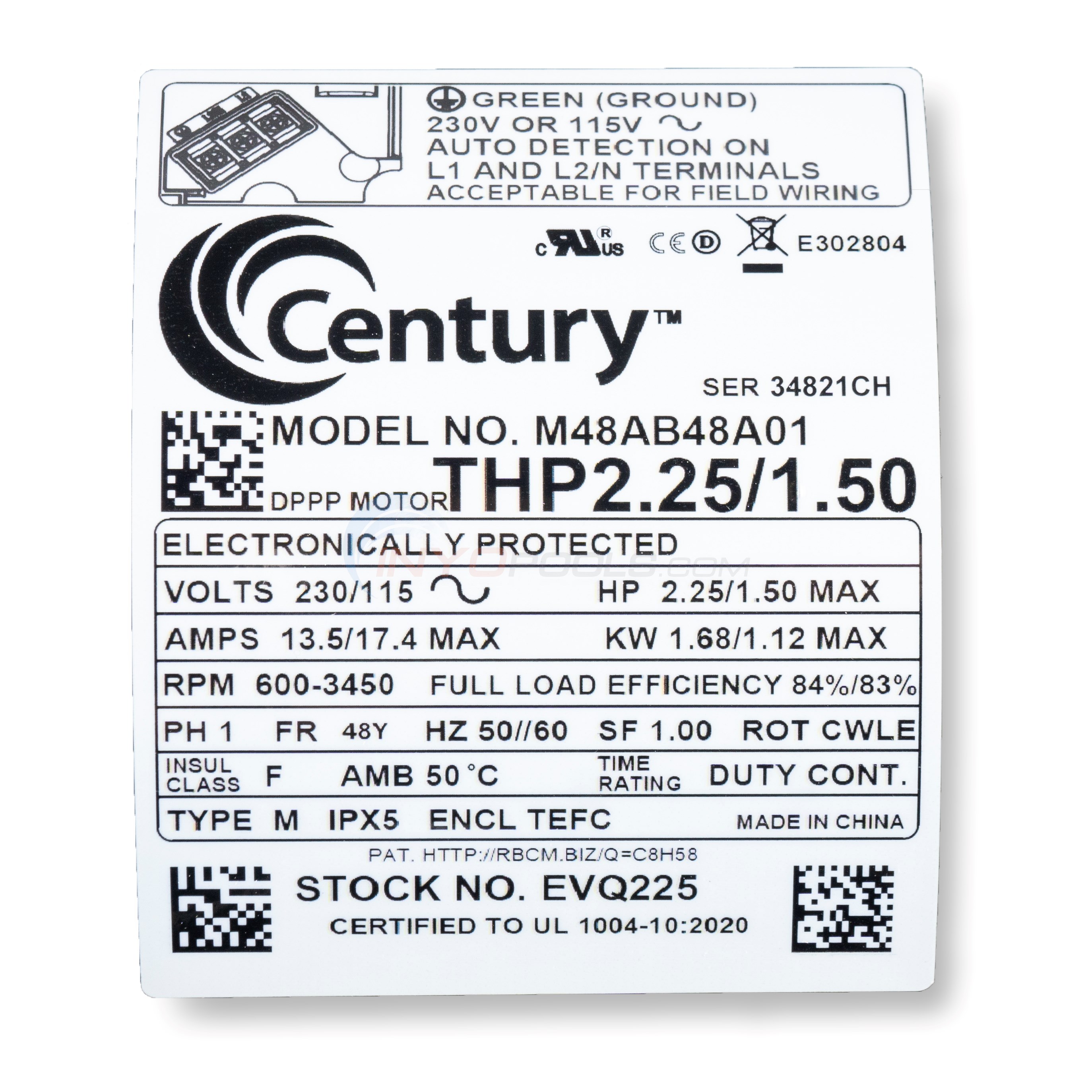

Product Specifications

HP:
2.25 HP
Frame:
48Y
Volts:
115/230 V
Speed:
Variable
Amps:
17.4/13.5 amp
Service Factor:
1.0
Total HP:
2.25 HP
Manufacturer:
Century (A.O. Smith)
Shaft:
Threaded
Flange:
Square
RPM:
600-3450 RPM
Phase:
Single
Height:
8 in.
Length:
11.83 in.
Top

?     Asked on 6/10/2023by Karl Rich

Will this replace my 2 h.p. Century Mod#UST1202 pool pump motor mounted on a Haywood
 Reply

A  Answered on 6/10/2023 by InyoPools Product Specialist Hector F.

Hello Karl, the correct variable speed motor for your Century motor model UST1202 is the EVC225. When replacing a pool pump motor we also recommend replacing the seals and gaskets. Here is our "Finding the Tune-Up Kit for Your Pool Pump" guide that we put together which should assist you with that.
 Reply


?     Asked on 6/27/2023by Bobby Charles

Will this fit my Jandy stealth shpm 2.0? I currently have a Century 1.5 HP Square Flange 56Y Full Rate Motor B849. I know it's a 2hp motor but curious if this would fit my pump as I would like to upgrade to a variable speed since I think my motor is about to go out.
 Reply

A  Answered on 6/27/2023 by InyoPools Product Specialist Hector F.

Hello Bobby, yes this motor is compatible with your Jandy SHPM pool pump that used motor the model B849. We also recommend replacing the seals and gaskets when replacing a pool pump motor. For your series pump that will be the GOKIT77. I have also emailed you an estimate that you can convert to an order if you would like. Items are currently in stock and ready to ship.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Socket Set

2     0

Needed to replace my aging pool motors

Written on 10/3/2023 by Guest

I was able to watch your supplied DIY videos and complete the job with no problems or guess work. The parts that your on line tech recommended were all correct and easy to follow the step by step video instructions. Thank you!!! I was quoted $5800.00 to complete this job. Using your parts and DIY video I was able to get it all done at $1000.00!! Amazing and thank you!
