Top Mount Valve for Sand 1.5"

PART#SP0714T

MANUFACTURERHayward Pool Products

  (4.85 out of 5 Stars on 52 Ratings)

resources:   Q&A: Ask a Question  | Q&A: View Answers (96) | Reviews (46) | Documents (1) | Parts (10) | How To's (5)

item is in stock

includes free shipping

Back To Top

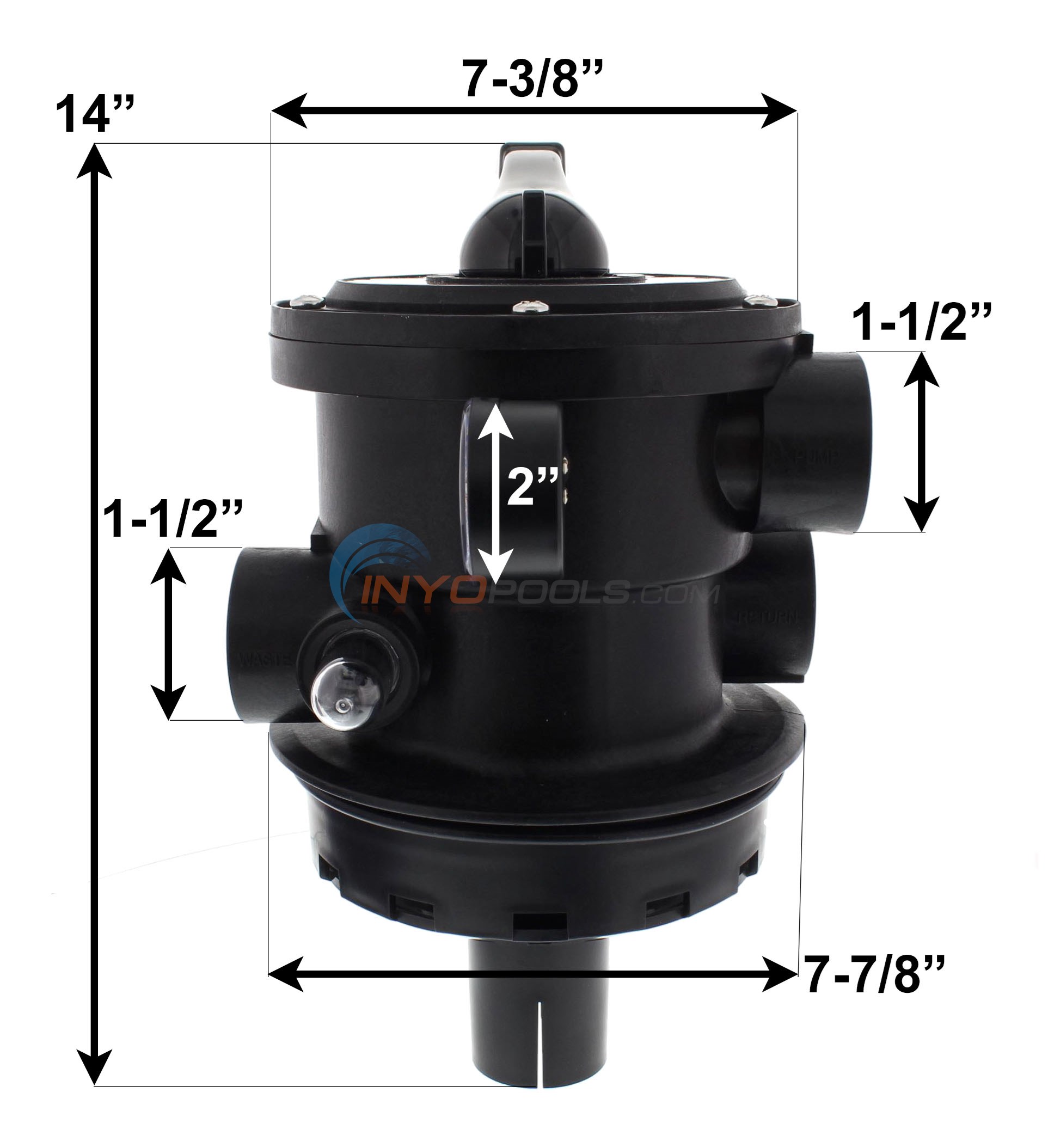

DIMENSIONS9" L x 8" W x 15" D

ALTERNATE PART #'S5535100 SEA, HAY06221, SP071113, SP704, SP714T, SW711T


Product Desciption

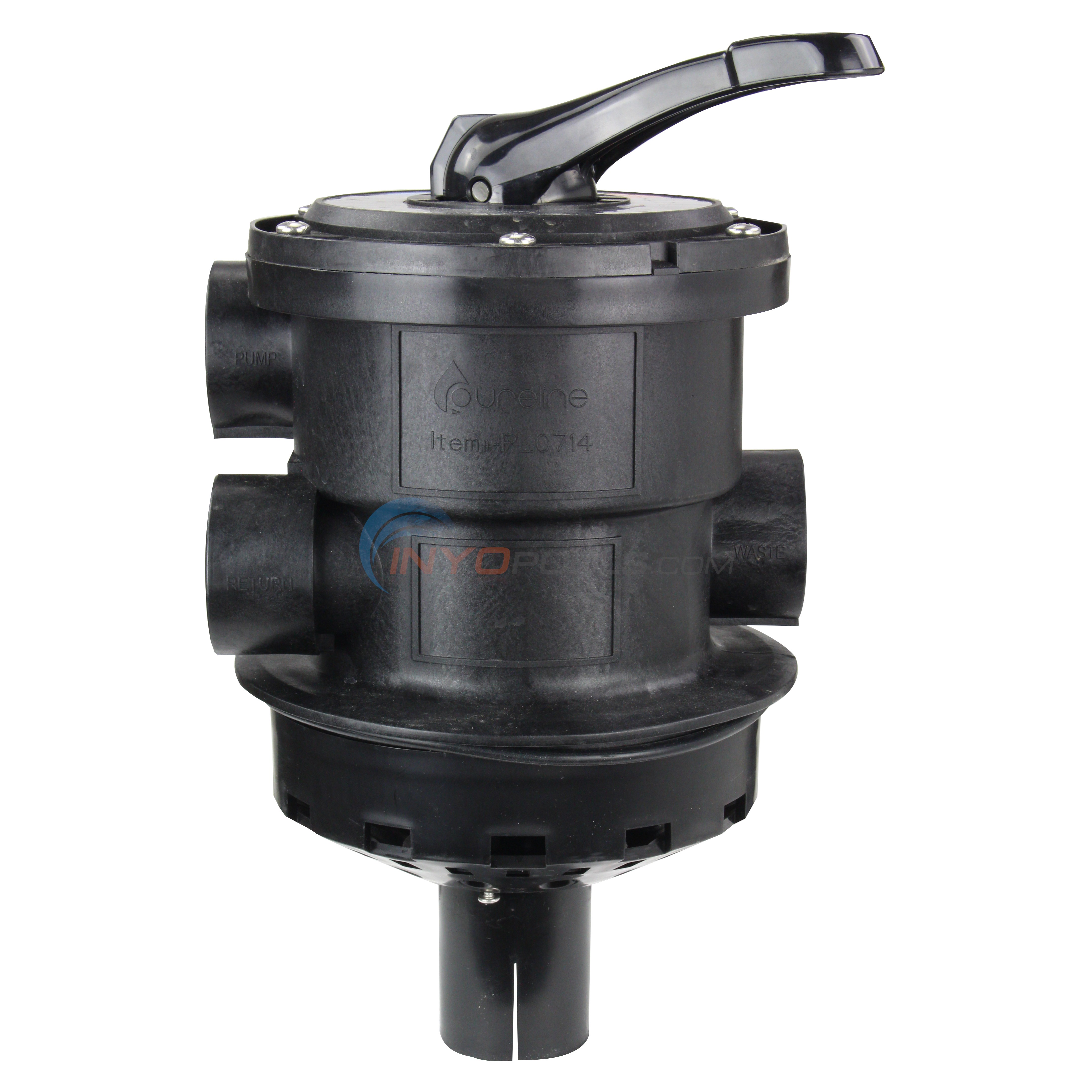

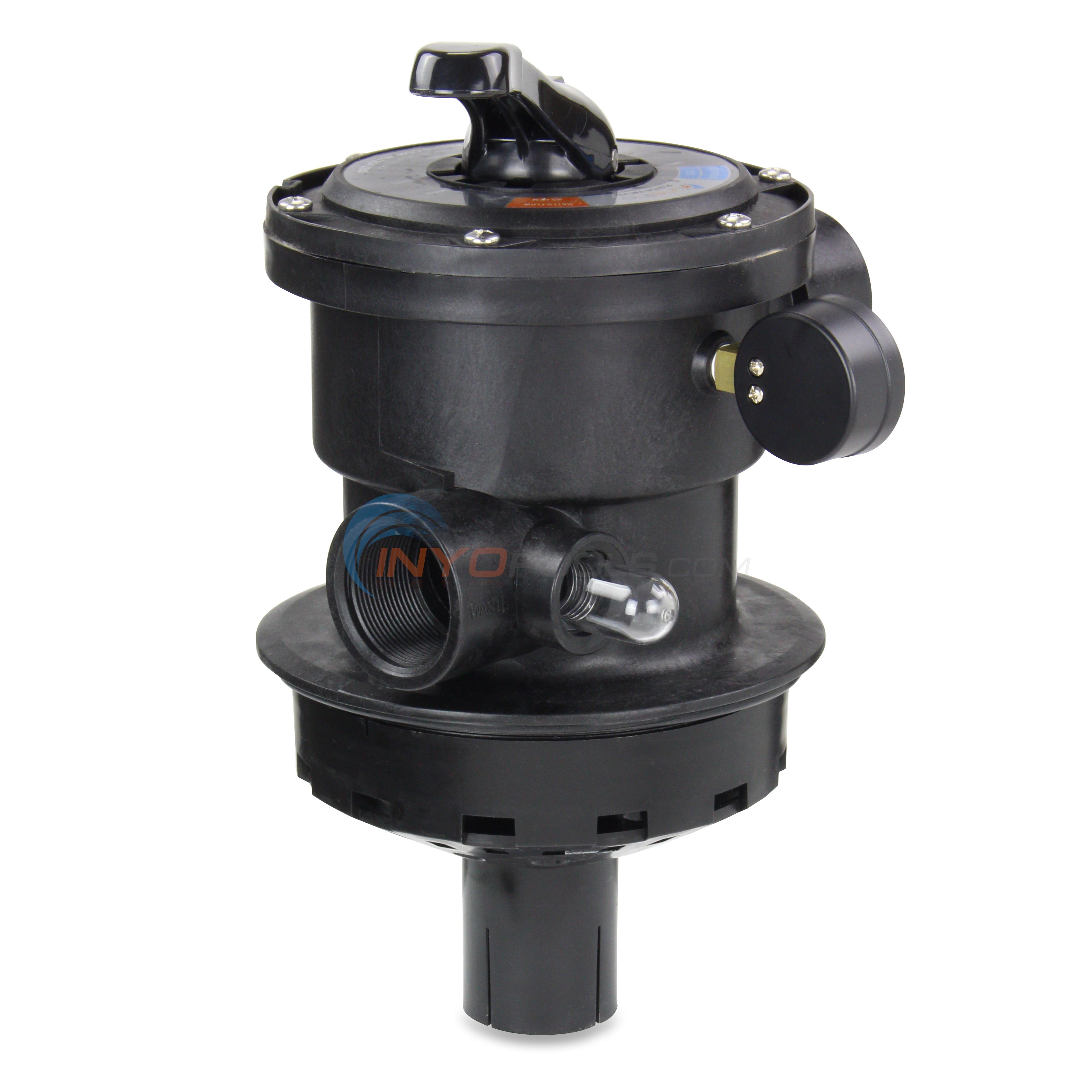

The Hayward Vari-Flo 1.5" top mount valve is used on a variety Hayward sand filters including the Pro Series, Swim Pro, Sand Master and E-Series. The SP0714T valve is made of PermaGlass XL™ material and designed for maximum flow at lower pressure drops. It will retrofit any filter that has an SP071113 valve that needs replacement and upgrading.

This seven-position multiport valve has a handle with easy lever action allowing you to easily select from filter, backwash, waste, rinse, recirculate, closed or winter.  Includes an integrated sight glass so you can quickly check if backwashing is complete.

Vari-Flo Control Valve Functions

  • Filter - For normal filtering and regular vacuuming
  • Backwash - For cleaning filter sand bed of accumulated debris
  • Rinse - Use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste
  • Waste - By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line.
  • Recirculate - Water is recirculated through the valve by-passing the filter
  • Closed - Shuts off the flow from the pump to the filter
  • Winter - For winterizing (SP0714T only)
  • Includes sight glass, gauge and o-ring
  • 1 year warranty

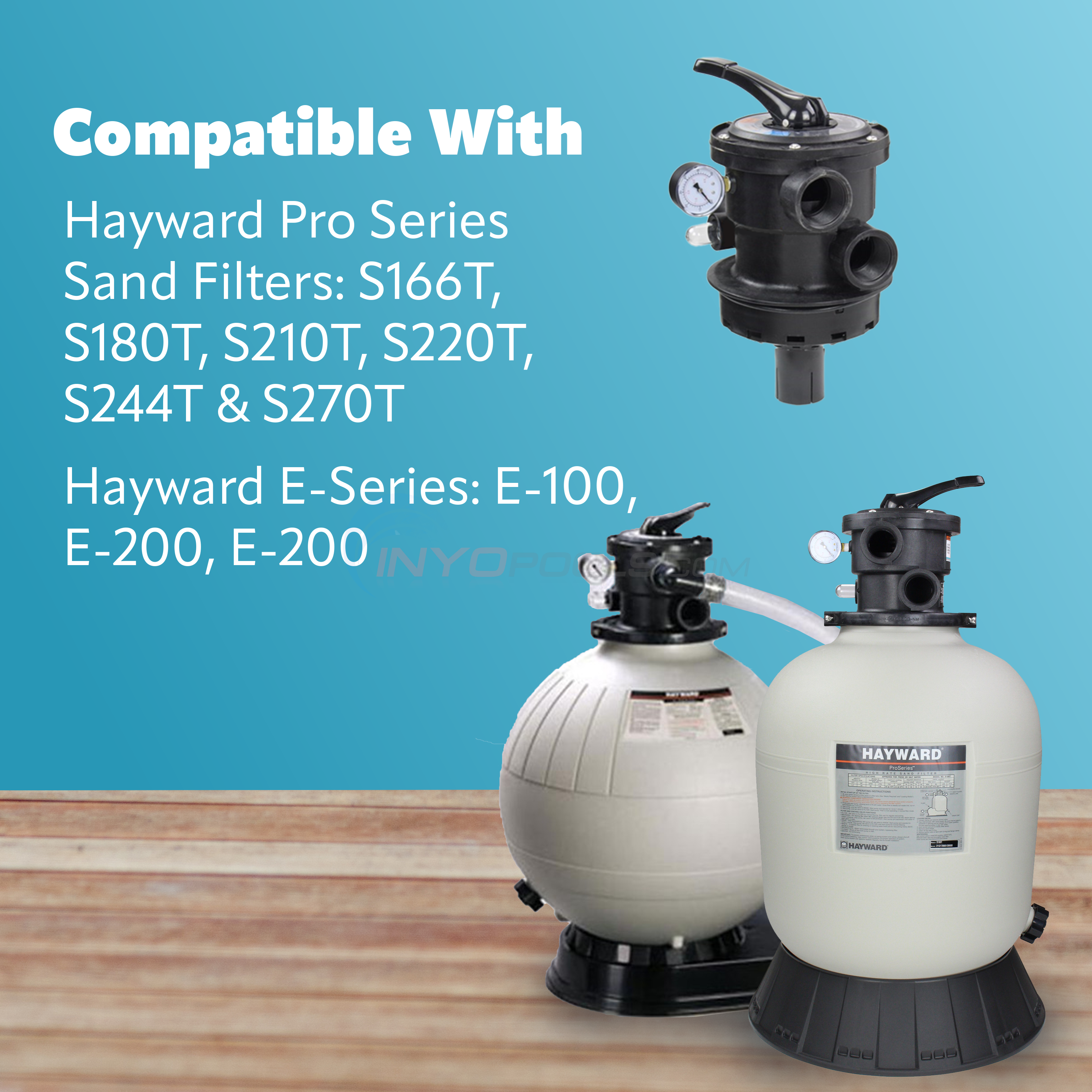

* The following valves are used with the Hayward Pro Series Top-Mount Sand Filters. SP0704T Valve is only used with filter S144T.

Plumbing Size:
1 - 1/2 in.
Model:
Hayward Pro Series Top Mount Sand Filters
Valve Type:
Multiport
Valve Location:
Top Mount

Back To Top


Ask a Question
Question

Asked on 08/27/2015 by PERRY SMITH

Will this part replace part SP-711-13? THANK YOU

Inyo Answer

Answered on 08/27/2015 by Product Specialist Robert M.

Hello Perry - The SP0714T will replace the SP-711-13.

Question

Asked on 08/20/2015 by

The vari-flo control valve on the Hayward S180T has slipped the bolt on the top and water leaks through the backwash hose. Can the bolt be reinserted to the proper position?

Inyo Answer

Answered on 08/24/2015 by Product Specialist Lennox H.

Hi, Our How To Replace a Pool Multiport Valve Spring guide can provide you with the correct information to properly position the cover for installation.

Question

Asked on 08/19/2015 by Guy

Hi Everyone, I have sand im my pool. Is there something broken in the filter. Thank you for your response.

Inyo Answer

Answered on 08/19/2015 by Product Specialist Andy O.

Guy- It sounds like there could be an issue with your laterals or your lateral hub assembly on the inside of the filter.

Question

Asked on 08/10/2015 by Patrick

I need the lock ring that holds the valve on tank.

Inyo Answer

Answered on 08/11/2015 by Product Specialist Robert M.

Hello Patrick - The clamp for this valve and Hayward sand filters is part number GMX600NM (4802-03D).

Question

Asked on 07/31/2015 by Cindy

I have a S-244T sand filter. I have a slow leak from the waste line when the filter is running. What part do I need to replace to fix this leak? Also, is this something I can do myself if I can get the part? What would be the problems I could encounter replacing it myself?

Inyo Answer

Answered on 08/03/2015 by Product Specialist Lennox H.

Hi Cindy, You will need to replace the Key/seal Assembly (Diffuser w/ Gasket Glued In) (SPX0714CA). You can follow our How To Replace a Pool Multiport Valve Spring for step-by-step replacement instructions.

Question

Asked on 07/26/2015 by

my old one reads sp741a will this work for a new replacement

Inyo Answer

Answered on 07/27/2015 by Product Specialist Andy O.

The sp714a is the part number for JUST the body of the sp714t, which would mean that is the correct model vlave.

Question

Asked on 07/20/2015 by

We have a S166T sand filter, however the valve position diagram has come off the unit. What diagram is compatible with that filter?

Inyo Answer

Answered on 07/21/2015 by Product Specialist Andy O.

The SP0714t valve does not have a separate label. to replace the label you would have to buy the whole KEY,COVER AND HANDLE ASSEMBLY 4703-20. Looking at the pictures would be the only way to see the positions.

Question

Asked on 07/19/2015 by Nathan

I have a dream line S170TSCP sand filter, need replacement part for top mount valve? Thanks

Inyo Answer

Answered on 07/22/2015 by Product Specialist Lennox H.

Hi Nathan, The 1.5" Top Mount Valve (SP0714T) will be the correct replacement valve for your Dream Line S170TSCPE Sand Filter.

Question

Asked on 07/19/2015 by amy

does this come with the pressure valve also, the guage?

Inyo Answer

Answered on 07/20/2015 by Product Specialist Hector F.

There is no "pressure valve" on this multiport but if you are referring to the pressure gauge then yes it does comes with the valve.

Question

Asked on 07/17/2015 by Mark

Hello I was looking at my valve . SP714 is all I can still read on . Can you tell me what valve parts will fit it

Inyo Answer

Answered on 07/17/2015 by Product Specialist Matt S.

Hello Mark, parts for the Hayward SP714T valve can be found on the Hayward Multiport Variflo XL 1 1/2" SP714T Parts Page

Question

Asked on 07/10/2015 by

my model number for my top mount valve is spo714tx, is there a new replacement part for this one type?

Inyo Answer

Answered on 07/11/2015 by Product Specialist Patrick P.

Yes this would be the proper replacement valve for your Hayward SP0714TX valve.

Question

Asked on 07/10/2015 by Betty

I have a Hayward GM245 filter with a SP711-13 valve. It looks like the SP0714T is the correct replacement but the ports are not one above the other like the old one. Is this the only valve available as a replacement?

Inyo Answer

Answered on 07/11/2015 by Product Specialist Patrick P.

Hi Betty, the SP0714T would be the proper replacement valve for the SP711-13 valve being used on your GM245 Filter. This would be the only replacement valve and you may have some slight re-plumbing due to the change in port location.

Question

Asked on 07/08/2015 by Ken

Will this valve work on a S166T sand filter?

Inyo Answer

Answered on 07/09/2015 by Product Specialist Robert M.

Hello Ken - The SP0714T is the correct valve for the Hayward S166T sand filter.

Question

Asked on 07/07/2015 by JT

Is this the right valve for the S 245 t high rate sand filter.

Inyo Answer

Answered on 07/08/2015 by Product Specialist Hector F.

Yes this is the correct multiport valve for that model filter.

Question

Asked on 07/07/2015 by

Looking for a replacement valve assembly for a 1.5hp sand filter model S230T. Can you help?

Inyo Answer

Answered on 07/08/2015 by Product Specialist Alex V.

Hello, The Hayward SP0714T valve is the correct valve for the S230T filter. Please note that this is a 1.5" valve.

Question

Asked on 07/02/2015 by

Hello, I have a very old Hayward top mount sand filter (22inch, 2.64 Sq Ft filter area) and the only P# still visible on the Vari-Flo valve is SP711 (50psi and 60gpm). Could you provide me with the modern replacement valve(s) P#'s. Thank you in advance

Inyo Answer

Answered on 07/05/2015 by Product Specialist Lennox H.

Hi, The Top Mount Valve for Sand 1.5" (SP0714T) will be a modern replacement for your SP711 valve.

Question

Asked on 06/28/2015 by stephanie

Is the sp0714tx the same as the sp0714t valve?

Inyo Answer

Answered on 06/29/2015 by Product Specialist Lennox H.

Hi Stephanie, The 1.5" Top Mount Valve for Sand (SP0714T) is the same as the SP0714TX Valve.

Question

Asked on 06/25/2015 by john cap

my sp0714t filters and backwash at the same time while handle is in filter position the pressure shows 0-2 lbs help I replaced the top piece with handle, it eithers trickles out or some times is about half the flow out of the back wash pipe, no pressure but good floe to the pool line...help

Inyo Answer

Answered on 06/27/2015 by Product Specialist Lennox H.

Hi John, If you replaced the Key Cover And Handle Assembly (SPX0714BA) and still having the problem you may need to replace the complete 1.5" Top Mount Valve for Sand (SP0714T) because the rotor isn't sitting properly in the housing.

Question

Asked on 06/21/2015 by Marnie

I have a Hayward S-166T high rate sand filter. When I have the valve in any position the water still goes out the wast line. what do I need? does it have a gasket or O ring in the top??

Inyo Answer

Answered on 06/22/2015 by Product Specialist Dennis R.

Hi Marnie, Sounds like you need a new spider gasket for your filter valve. The spider gasket is not sold seperately and is only available as part of the Hayward SP0714T Diverter. See our guide on "How to Replace a Spider Gasket on a Multiport Valve" for more information

Question

Asked on 06/21/2015 by Shirley

Hi, I have a SP071113 would this mount fit my filter?

Inyo Answer

Answered on 06/22/2015 by Product Specialist Patrick P.

Hi Shirley, Yes the SP0714T is the direct replacement for your SP071113 valve and will mount your filter.

Question

Asked on 06/21/2015 by L J

I have an old SP 711 A 12, What would the replacement part be?

Inyo Answer

Answered on 06/21/2015 by Product Specialist Robert M.

Hello LJ - The SP0714T is the correct replacement valve.

Question

Asked on 06/20/2015 by jim dolan

I have model sp0714t1 and when it's running on filter ihave water returning to the pool and at the same time water is flowing out the waste line. ihave to put the waste line in the pool so my pool doesn't empty. turning the selection lever has become more difficult. what do I need?

Inyo Answer

Answered on 06/21/2015 by Product Specialist Lennox H.

Jim, You will need to replace the Key/seal Assembly (Diffuser w/ Gasket Glued In) (SPX0714CA). I would also recommend replacing the Cover O-ring (SPX0714L). You can follow these step on How to repair a leaking Hayward backwash valve.

Question

Asked on 06/20/2015 by

I have a SP0714T1 and I need a new gasket for the Valve up where you turn to different setting. How can I order one?

Inyo Answer

Answered on 06/20/2015 by Product Specialist Hector F.

This spider gasket comes in a key/seal assembly. Please click here to go to the page where you can add the item to a cart to place your order.

Question

Asked on 06/19/2015 by PHIL

I need to replace the filter valve on my Hayward system. It's old and the model and serial number is no longer readable. Can you tell me any other ways to determine the replacement valve I need to purchase. The only identifying info i can find is Vari-Flow XL Valve. Thanks

Inyo Answer

Answered on 06/19/2015 by Product Specialist Dennis R.

Hi Phil - If you have a Hayward Multiport Valve top Mounted on a Sand Filter with 1.5 " ports, it is most likely this MPV. It is a Variflo XL Valve and is the most common of these valves. Lool at the pictures in this link and compare them to your Valve in appearance and dimensions.

Question

Asked on 06/19/2015 by

is part #4700-14 still available ?

Inyo Answer

Answered on 06/19/2015 by Product Specialist Patrick P.

Yes the 4700-14 Hayward Valve Label is still available.

Question

Asked on 06/18/2015 by Ina

I need a new sticker/label for my valve. Do you sell them?

Inyo Answer

Answered on 06/18/2015 by Product Specialist Hector F.

Yes, the decal label part number is 4700-14.

Question

Asked on 06/18/2015 by Jane

Can I replace my above ground Valve SP0714D with SP0714T1?

Inyo Answer

Answered on 06/18/2015 by Product Specialist Wes B.

HI Jane,Yes this valve would be the correct replacement for the Hayward Vari-Flo XL Valve with model number SP714d.

Question

Asked on 06/16/2015 by Howard

Why is air being generated thru my multi port valve

Inyo Answer

Answered on 06/17/2015 by Product Specialist Joe S.

It is possible the oring is not seated or you will need to apply lube to the oring to create a tight seal.

Question

Asked on 06/15/2015 by

The handle on our valve is not fitting into place when turning it to the different positions. After taking it apart we found the spring to be corroded and broken. We need to replace the spring...do you sell just that part?

Inyo Answer

Answered on 06/15/2015 by Product Specialist Patrick P.

Yes we do carry the Spring Only for the Hayward Multiport Valves.

Question

Asked on 06/15/2015 by Edward

Is there a replacement spider gasket for a Hayward Vari-Flo XL Valve bearing the ID code SP 0714 C on the underside of the valve assembly?

Inyo Answer

Answered on 06/15/2015 by Product Specialist Patrick P.

Hi Edward, the spider gasket is not sold seperately and is only available as part of the Hayward SP0714T Diverter.

Question

Asked on 06/14/2015 by Sandra

Is this the correct replacement valve for Hayward sand filter model S244S?

Inyo Answer

Answered on 06/14/2015 by Product Specialist Patrick P.

Hi Sandrad, the last digit of "S" on the S244S filter indicates a side mount filter and this valve is for a top mount filter. The S244S would require the SP0710X62 Valve if you have 1-1/2" plumbing and the SP0175X62 Valve if you have 2" plumbing.

Question

Asked on 06/09/2015 by Charles

I have an SP714-A model. Will this valve replace it?

Inyo Answer

Answered on 06/09/2015 by Product Specialist Wes B.

Hi Charles, The sp714-t will replace your sp714-a.

Question

Asked on 06/07/2015 by tom

My valve isnt working . The spring is rusted and wont let the handle lock in the slot.

Inyo Answer

Answered on 06/07/2015 by Product Specialist Robert M.

Tom - It sounds like the top assembly of the valve needs to be replaced. Part number SPX0714BA is the top assembly.

Question

Asked on 06/06/2015 by

Did you miss type SO0714T for SPO714T to replace valve #SP0704TX

Inyo Answer

Answered on 06/06/2015 by Product Specialist Joe S.

The SP0714T is the replacement for the SP0704TX

Question

Asked on 06/06/2015 by

What valve replaces Sp0704TX

Inyo Answer

Answered on 06/06/2015 by Product Specialist Joe S.

The SO0714T is the replacement for the SP0704TX

Question

Asked on 06/04/2015 by kris

i use a self contained pool cleaner to clean my pool,but when i turn my filter on after cleaning im getting dirt on the floor of my pool, my filter has new clean sand, could my valve be bad. thanks.

Inyo Answer

Answered on 06/05/2015 by Product Specialist Patrick P.

Hi Kris, Yes this is a sign of a bad filter valve. We also have an Article on Getting Sand Back in Your Pool which lists other common culprits.

Question

Asked on 06/04/2015 by

does this fit a S210T?

Inyo Answer

Answered on 06/04/2015 by Product Specialist Brian M.

Yes, part number SP0714T will fit onto a SA210T. Please look at the parts explosion of the Hayward S210T for any other pieces you may be needing.

Question

Asked on 06/03/2015 by Marlo

The handle on my filter SP714T1 is not locking into place and my "filter" is also leaking water into my backwash hose and I am losing inches of water. The "ring" just inside the handle mechanism looks broken and does not lock tightly into place. Do I need to replace the entire Veri-flow XL Valve or is it a gasket replacement or something else?

Inyo Answer

Answered on 06/03/2015 by Product Specialist Patrick P.

Hi Marlo, Based on the situation you explained I would suggest replacing the complete SP0714T valve.

Question

Asked on 06/01/2015 by James

I have a Hayward pro series sand filter model S-180T, with a SP714 TC valve. Is the SP0714T the correct replacement?

Inyo Answer

Answered on 06/02/2015 by Product Specialist Patrick P.

Hi James, Yes the SP0714T would be the correct valve for your S180T Hayward Sand Filter.

Question

Asked on 05/31/2015 by Brad

Does this valve replace Hayward SP-704 valve?. It will be going on a Hayward GM142-6 Sand Filter.

Inyo Answer

Answered on 05/31/2015 by Product Specialist Patrick P.

Hi Brad, Yes the SP0704 valve was discontinued and the SP0714T would be its correct replacement.

Question

Asked on 05/31/2015 by Kevin

i have a S-244T that just started leaking around the flange clamp, directly beneath both the waste line and pool return lines. It only does this in the filter position immediately after I back washed. Is it likely the o ring or does the entire valve assembly need to be replaced?

Inyo Answer

Answered on 05/31/2015 by Product Specialist Patrick P.

Hi Kevin, The most likely problem is a bad spider gasket and you would need to replace your SP714T Difusser & Spider Gasket here.

Question

Asked on 05/31/2015 by David

Does this model #SP714t replace the Hayword Vari-Flo XL Valve motor with model number SP714?

Inyo Answer

Answered on 05/31/2015 by Product Specialist Patrick P.

Hi David, Yes this valve would be the correct replacement for the Hayward Vari-Flo XL Valve with model number SP714.

Question

Asked on 05/30/2015 by Mark

I have an s210t sand filter. Is this the right multi port to replace my current one?

Inyo Answer

Answered on 05/30/2015 by Product Specialist Patrick P.

Hi Mark, Yes the SP0714T valve is the correct valve for the Hayward S210T sand filter.

Question

Asked on 05/29/2015 by Erica

What should the normal circulating pressure be fire this valve? My father used to maintain the pool and passed away so this is all new to me...pool store says 20 yet on the side of my filter it looks to me like it says 35...just checking!

Inyo Answer

Answered on 05/29/2015 by Product Specialist Patrick P.

Hi Erica, All plumbing set ups are a little different so there is no "normal" operating pressure. What you would want to do is backwash your filter to clean the filter, once this is done note your clean filter PSI rating. Once your pressure reaches 6-10 PSI over your clean PSI reading then it is time to backwash the filter. Normally we see the clean PSI readings in the 10 - 15 PSI range. Most likely the 35 PSI you see on the label is the max PSI in which the tank can handle.

Question

Asked on 05/28/2015 by richard mount

Does this replace the sp-711-13?

Inyo Answer

Answered on 05/28/2015 by Product Specialist Lennox H.

Richard, The 1.5" Top Mount Valve for Sand is the replacement for your SP-711-13 valve.

Question

Asked on 05/27/2015 by Jerry Montgomery

We have had our pool for years now. The Handle to the Filter on top of the pump broke, can we get a replacement handle for our SP714 filter system????

Inyo Answer

Answered on 05/27/2015 by Product Specialist Lennox H.

Jerry, Handle SPX0710XF is the replacement handle for the SP714 Multi-Port vale.

Question

Asked on 05/26/2015 by Bobbie

I have a Hayward S180T sand filter. The current vari-flo valve is a SP711. Which model of vari-flo valve will I need to replace the SP711?

Inyo Answer

Answered on 05/26/2015 by Product Specialist Lennox H.

Bobbie, Top Mount 1.5" Valve for Sand SP0714T is the replacement for the Vari-flo SP711.

Question

Asked on 05/26/2015 by David

I have an SP714 T1. When the filter is running, there is a fare amount of water running out the discharge hose. I took off the top part of the housing and it appears that the "gasket" material that separates the chambers have deteriorated to the point that it also appears that water could be bypassing each of the chambers. Can I get by with replacing the top half, or do I need to replace the whole valve housing etc.?

Inyo Answer

Answered on 05/26/2015 by Product Specialist Robert M.

Hello David - The cost of the top assembly is as much as a complete valve. We would recommend replacing the entire valve. You could always use the top assembly from the new valve and save the bottom half.

Question

Asked on 05/24/2015 by Doug

I have a Hayward SP711 Vari Flo Valve that sits on top of a S244T Sand Filter. I know the valve is old is there a newer model that replaces the SP711. I read somewhere that the SP0714T replaces the SP711. I'm just checking before I order a new one. Thanks for your time

Inyo Answer

Answered on 05/24/2015 by Product Specialist Patrick P.

Hi Doug, you are correct the SP0714T valve would be the replacement valve for the older SP711 valve.

Question

Asked on 05/24/2015 by Terry

Hello, Are the Hayward SP714T and the SPO714T valves the same or interchangeable? Thanks

Inyo Answer

Answered on 05/24/2015 by Product Specialist Hector F.

Yes that is correct.

Question

Asked on 05/23/2015 by David

I have the sp0714tx valve and is leaking when in filter position do I need to replace the whole assembly or is there a gasket/o ring I can replace?

Inyo Answer

Answered on 05/24/2015 by Product Specialist Patrick P.

Hi David, If your valve is leaking from the upper half of the valve, then I would suggest the SP0714T Handle and Cover Assembly. If your valve has a leak on the lower half of the valve then I would suggest replacing the entire valve with the SP0714T valve listed on this page.

Question

Asked on 05/23/2015 by Johnny

i have a sp0714t the handle broke on the valve where pin fastens the handle to the valve on the valve side can you just replace that part if so how does it come apart it is not two weeks old

Inyo Answer

Answered on 05/24/2015 by Product Specialist Patrick P.

Hi Johnny, Can you email us a photo of the crack? If the crack is on the valve body then most like you will need to replace the entire valve. If it is just the Handle which is cracked then you would need the SP714T Valve Handle. You may also view all of the Hayward SP714T Valve Parts here.

Question

Asked on 05/20/2015 by Yvette

I have a Haywood SP714T valve, can you tell me what the pressure gauge should read?

Inyo Answer

Answered on 05/20/2015 by Product Specialist Lennox H.

Yvette, The pressure reading on your valve varies. The HP of your pump, size of your filter, plumbing size all will determine what your pressure should be. Usually when the filter is first installed or when the sand is changed you can get your ideal pressure level.

Question

Asked on 05/19/2015 by Ghislain

Want to replace my harward vari-pro serial 120b28, modèle sp-711-txc, 50 p.s.i, 60 g.p.m.

Inyo Answer

Answered on 05/19/2015 by Product Specialist Lennox H.

Ghislain, The 1.5" Top Mount Valve for Sand Filter p/n SP0714T is the replacement for your old SP-711-TXC multiport valve.

Question

Asked on 05/18/2015 by Bill

I purchased a sp0714t valve not more than 2 years ago. It now leaks through the threads on the in and out ports. I replaced the plumbing and used Teflon tape. Is my value shot and might it be under warranty.

Inyo Answer

Answered on 05/18/2015 by Product Specialist Patrick P.

It does sound like you may have a crack somewhere in the valve unfortunately after 2 years the valve would no longer be under warranty.

Question

Asked on 05/18/2015 by

WILL THIS VALVE WORK ON SP-712 SERIES OR IS THIS ITS REPLACEMENT THANKS

Inyo Answer

Answered on 05/19/2015 by Product Specialist Patrick P.

We would suggest the Hayward SP07122 Valve as the replacement for the Hayward SP-712 valve.

Question

Asked on 05/18/2015 by Jacie

Can this also be used with salt, instead of sand?

Inyo Answer

Answered on 05/18/2015 by Product Specialist Andy O.

Jacie- The SP0714T Hayward Top Mount Valve 1.5" is meant to be used with sand filters. Sand is referring to the type of filter this is used with, Salt would be the sanitizer.

Question

Asked on 05/17/2015 by Jennifer F.

My sand filter is model # S-166T. And my Vari Flo Valve says its model # SP071113. Would this be the replacement for it?

Inyo Answer

Answered on 05/17/2015 by Product Specialist Patrick P.

Hi Jennifer, Yes this valve is the direct replacement for the Hayward SP071113 valve.

Question

Asked on 05/17/2015 by connie

will this fit spo704tx

Inyo Answer

Answered on 05/17/2015 by Product Specialist Lennox H.

Connie, SP0714T will replace SP0704TX.

Question

Asked on 05/16/2015 by

I have a Hayward Pro Series model S220T. Will this valve fit my filter?

Inyo Answer

Answered on 05/16/2015 by Product Specialist Alex V.

Hello, Yes it will work if you have 1.5" plumbing.

Question

Asked on 05/15/2015 by Joseph

Will this work on a Poolco Model # 246RT-XL150SDBH2?

Inyo Answer

Answered on 05/15/2015 by Product Specialist Patrick P.

Hi Joseph, Not this is not the correct valve for your Poolco filter. You will require the Poolco 246RT Valve shown as key #1 on our Poolco Filter Parts Breakdown.

Question

Asked on 05/13/2015 by

Will this valve work on a 256 t swimpro sand filter?

Inyo Answer

Answered on 05/13/2015 by Product Specialist Patrick P.

Yes this is the correct valve for a Hayward 256 t swimpro sand filter.

Question

Asked on 05/13/2015 by kevin

I have a s166t when I open the pool it filters great then it rains a lot I put it to waist to lower it after I noticed that I am getting sand and what ever else in pool does this mean I need to replace the spider gasket as I already replaced the lateral assembly or would you suggest replacing the valve assembly ?

Inyo Answer

Answered on 05/14/2015 by Product Specialist Joe S.

Hi Kevin, Yes i would recommend changing the gasket/ Key Assembly ot the entire unit to make sure that Valve is completely sealed with no chance of leak

Question

Asked on 05/13/2015 by bryan

I have a hayward s210t pro series. Where the pressure gauge screws in is leaking. Is the sp0714t the replacement top housing I need?

Inyo Answer

Answered on 05/13/2015 by Product Specialist Robert M.

Hello Bryan - The SP0714T is the correct valve for the Hayward S210T.

Question

Asked on 05/12/2015 by

I have a new top mount sp0714t, when I installed it ,sand came through the input hose and into the pool, put it on backwash nothing came out,any idea's Thanks J.C

Inyo Answer

Answered on 05/24/2015 by Product Specialist Alex V.

Hello, You may have plumbed the valve incorrectly. Please double check that the ports are plumbed correctly.

Question

Asked on 05/11/2015 by Francis

Is this SP0714T a replacement for a SP0714C? The waste line leaks when in filter mode.

Inyo Answer

Answered on 05/11/2015 by Product Specialist Patrick P.

Hi Francis, Yes the Hayward SP0714T valve is a replacement for a SP0714C valve.

Question

Asked on 05/10/2015 by jeff

my valve model # is SP0714TC. Is the SP0714T a good replacement?

Inyo Answer

Answered on 05/10/2015 by Product Specialist Patrick P.

Hi Jeff yes the SP0714T would be a direct replacement for your pool filter valve.

Question

Asked on 05/10/2015 by Vickie

I have an older Hayward sand filter, model S170TSCP, and was wondering if this valve will work on it?

Inyo Answer

Answered on 05/10/2015 by Product Specialist Patrick P.

Hi Vickie, Yes this would be the correct valve for the Hayward Dreamline S170TSCP sand filter.

Question

Asked on 05/09/2015 by Tara

I have a Hayward Top Mount Valve for Sand 1.5" (SP0714T). It is leaking from the waste and I think it's the spider gasket after researching the issue. I can't seem to find the gasket. Do you sell the gasket?

Inyo Answer

Answered on 05/10/2015 by Product Specialist Patrick P.

Hi Tara, On the Hayward SP0714T valve the spider gasket is only sold glued into the diverter assembly. We do carry the Hayward SP0714T Spider Gasket and Diverter Assembly here.

Question

Asked on 05/06/2015 by Jeannie

Hi, I have a Vari-flo XL Valve, model SP714 that I need to replace because it won't turn. I'm wondering if the model "SP0714" is the same since it doesn't match exactly. Mine says it has rated pressure of 50 PSI/3.6 BAR, and Rated flow of 75 GPM/284 LPM. Is this the same model? Thanks!!

Inyo Answer

Answered on 05/07/2015 by Product Specialist Patrick P.

Hi Jeannie, Great question we get this one a lot, yes the Hayward SP714 and SP0714T valve would be the exact same model.

Question

Asked on 05/06/2015 by frank

does valve assembly on hayward part Sp07141 fit Hayward model S-210T filter.

Inyo Answer

Answered on 05/06/2015 by Product Specialist Patrick P.

Hi Frank, Yes the SP0714T valve does fit the Hayward S210T Sand Filter.

Question

Asked on 05/04/2015 by Tinker

My sand fillter motor cracked over winter. can you tell me which one I can use for a 24ft above ground pool. I currently have a hayward s-166T model on motor says tm-12 but can't find that anywhere.

Inyo Answer

Answered on 05/05/2015 by Product Specialist Patrick P.

Hi Tinker, You would require the TM-12 Valve for the Hayward S166T Sand Filter The TM-12 valve is a generic valve used on the Hayward S166T filter. You may also use the SP0714T valve on this page for a Hayward S166T filter. The SP0714T valve is the OEM valve made by Hayward and the TM-12 valve is a generic valve made by Praher, both valves will work.

Question

Asked on 05/03/2015 by jessica price

I have a Hayward ser# 120C30 model SP714TA part number SP0714d and it is cracked can i get a replacement part for this valve instead of having to buy the whole valve assembly? Thank you.

Inyo Answer

Answered on 05/03/2015 by Product Specialist Patrick P.

Hi Jessica, Yes we do carry all of the Replacement Parts For The Hayward SP0714T Sand Filter Valve here.

Question

Asked on 04/30/2015 by Robert Reed

My valve is leaking when it is in the closed position. Can I just replace the handle part or does the whole valve need to be replaced. Thank you

Inyo Answer

Answered on 04/30/2015 by Product Specialist Wes B.

Hello Robert, If your valve is leaking 9 times out of 10 its going to be the spider gasket. To find the correct gasket for your valve we would need the model  number of the valve or filter.

Question

Asked on 04/29/2015 by Rebecca

I have model number SP0714T, what adapter do I need that the hoses clamp onto, that screw into the 3 hose outlets? Do you sell them, and what size? What are they actually called?

Inyo Answer

Answered on 04/30/2015 by Product Specialist Lennox H.

Rebecca, They're called hose adapter. 1.5" Hose Adapter (White) 1.5 Hose Adapter (Black)

Question

Asked on 04/28/2015 by Gail alsbrook

Do u have the stricker on top of the value for replacement. Mine is faded and I can't read it.

Inyo Answer

Answered on 04/29/2015 by Product Specialist Lennox H.

Gail, The label for this valve is not sold separately, you'll have to replace the Key Cover And Handle Assembly in order to get a new label.

Question

Asked on 04/28/2015 by Frank

I have a SP711TXC filter valve. What would be the right replacement for this?

Inyo Answer

Answered on 04/28/2015 by Product Specialist Alex V.

Frank, The Hayward  SP0714T is the replacement valve for model SP711TXC.

Question

Asked on 04/05/2015 by

I have a Hayward S166T sand filter. I need to replace the vari flo valve assembly. Is this the correct assembly for my filter? Does it come complete or are there other parts I need (gaskets etc.)?

Inyo Answer

Answered on 04/06/2015 by Product Specialist Robert M.

The SP0714T is the correct valve for the S166T. You will not need to purchase additional parts for the valve.

Question

Asked on 03/17/2015 by Michelle

Does the Hayward SP0714T come with a pressure gauge ?

Inyo Answer

Answered on 03/18/2015 by Product Specialist Robert M.

Hello Michelle - The SP0714T does come with a pressure gauge.

Question

Asked on 02/06/2015 by

Will the SP0714T work on my Hayward tank model S244T?

Inyo Answer

Answered on 02/06/2015 by Product Specialist Robert M.

The SP0714T valve will work with the Hayward S244T filter.

Question

Asked on 01/02/2015 by

Is model SP0714T the replacement valve for the Hayward S190T? Mine has "split mounting rings" which bands to the filter housing. I noticed the complete value you offer doesn't show the split rings. Not sure if its relevant or if new ones were included in the kit. BTW what is included?

Inyo Answer

Answered on 01/05/2015 by Product Specialist Robert M.

The Hayward SP0714T is the correct valve for the S190T. The valve does not include the split clamp. However, it does come with the tank o-ring and pressure gauge.

Question

Asked on 10/03/2014 by Guest

My valve needs to be replaced. Is the part SP0714T correct?

Inyo Answer

Answered on 10/03/2014 by Product Specialist Patrick P.

The SP0714T would be the correct valve for the S210T.

Question

Asked on 09/10/2014 by Guest

My problem is that the pump is leaking at the backwash hole and now it appears that it does not do it if it is running only when it is off. I would like to see if you could help me fix it then replace it right now. Please help me attempt to fix it!

Inyo Answer

Answered on 09/10/2014 by Product Specialist Patrick P.

From what you've described, you will need the diverter assembly: http://www.inyopools.com/Products/07501352020282.htm

Question

Asked on 09/10/2014 by Guest

Is the Hayward Vari-Flo Valve model no. SP714 the same as your Hayward Vari-Flo Valve model no. SP0714T?

Inyo Answer

Answered on 09/10/2014 by Product Specialist Patrick P.

Yes, both the SP714 and the SP0714T valves are the same.

Question

Asked on 05/02/2013 by Guest

I am replacing a Hayward SP0704 valve with the SP0714T, will all the ports be in the same location?

Inyo Answer

Answered on 05/02/2013 by Product Specialist Patrick P.

The ports on the SP0714T are positioned differently than the ones on the SP0704 valve so will have to move the locations of the hoses.

Question

Asked on 05/01/2013 by Guest

For Hayward multi-port valve model # SP0714T, is the handle sold separately as a replacement part?

Inyo Answer

Answered on 05/01/2013 by Product Specialist Patrick P.

Yes, the handle is sold by itself, which is part # 4700-01X.

Question

Asked on 05/01/2013 by Guest

Does the Hayward SP0714T valve replace an older Hayward SP0704SW?

Inyo Answer

Answered on 05/01/2013 by Product Specialist Patrick P.

Yes, the SP0714T would replace the older SP0704SW valve

Question

Asked on 04/23/2013 by Guest

Is this the correct replacement for the Hayward S244T sand filter?

Inyo Answer

Answered on 04/23/2013 by Product Specialist Patrick P.

The SP0714T would be the correct valve for the Hayward S244T sand filter.

Question

Asked on 04/18/2013 by Guest

Is the Hayward model SP0714T the correct replacement for the SP711 valve?

Inyo Answer

Answered on 04/18/2013 by Product Specialist Patrick P.

Yes, model SP0714T is the correct replacement for the SP711 valve.

Question

Asked on 04/18/2013 by Guest

Is model SP0714T the correct replacement for the Hayward SP711 valve?

Inyo Answer

Answered on 04/18/2013 by Product Specialist Patrick P.

Yes, Hayward model SP0714T is the replacement valve for model SP711.

Question

Asked on 08/20/2012 by Guest

I have a leak in current multi valve near the sight glass, and want to replace it. The # on my valve is SP714A what is the direct replacement? Is it SP0714t?

Inyo Answer

Answered on 08/20/2012 by Product Specialist Patrick P.

Yes the direct replacement for your SP714A valve would be the SP0714T valve listed here

Question

Asked on 08/01/2012 by Guest

Is the SP714T the same as the SP0714T?

Inyo Answer

Answered on 08/01/2012 by Product Specialist Patrick P.

The SP714T and the SP0714T are the same exact valve.

Question

Asked on 07/15/2012 by Guest

I have a Hayward S-180T model sand filter and my owner's manual states that a SP-711-13 is the proper vari-flo control valve. I do not see this item listed anymore. What do I replace it with?

Inyo Answer

Answered on 07/15/2012 by Product Specialist Patrick P.

The SP711-13 which was used on the Hayward S180T has been replaced by the SP0714T listed here on this page.

Question

Asked on 01/31/2012 by Guest

I need parts for my filter valve. When I look at the filter parts breakdown, it gives me different choices. How do I know which one is the one I need?

Inyo Answer

Answered on 01/31/2012 by Product Specialist Patrick P.

In order to locate the correct parts we will need to know the model number of the filter valve. Two identical filters can have two different valves. Typically the valve model will be located on the label of the valve. If there is no model number on the valve, you can try to see if there are any part numbers on the valve itself. Once you've located you valve model you can check out our >Filter Valve Parts.

Question

Asked on 01/23/2012 by Guest

How do I bleed air for a top mounted Hayward multiport valve? They have no air bleeder valve.

Inyo Answer

Answered on 01/23/2012 by Product Specialist Patrick P.

Hayward TOP mounted multiport valves do not require an air bleeder valve. They self purge air in the system through the return lines.

Question

Asked on 06/28/2009 by Guest

My Sand Filter is a Hayward S160T is the is the proper replacement valve the S160T filter?

Inyo Answer

Answered on 06/28/2009 by Product Specialist Patrick P.

No this is not the proper filter valve for the S160T. You may view the proper valves here >http://www.inyopools.com/pool_parts_hayward_s_160t_filter.aspx The 4707-0 is the Hayward Original valve and the 4707P is the generic replacement which will work as well.

Ask a Question

Back To Top

Ratings Summary

Average Rating:   (4.85 out of 5 Stars)

Recommended: (98%) 51 of 52 customers would recommend this product to a friend.

52 Ratings 5 star:   (45) 4 star:   (6) 3 star:   (1) 2 star: (0) 1 star: (0)

Write A Review

The Most Helpful Review

6 of 6 people found the following review helpful:

   (5 out of 5 Stars) Exactly the correct part I needed to put my pool filter back in operation.

Reviewed By: from Clarksville, Tn ()

Pros: Easy to find the part I needed

Cons: None

I looked all over for this part. Many places have the part number listed, however, I was no longer available. My filter system is in its 13th year of operation and needed some updating. Happy you could help me in that mission.

Was this review helpful to you? Yes - No

Read All Reviews

The Most Recent Reviews

Be the first to say if this was helpful or not

   (5 out of 5 Stars) Top Mnt Valve for 1.5 sand filter

Reviewed By: ()

Pros: EZ to install

Cons: Large plastic washer under handle failed on last one.

It arrived quickly, EZ to install and works great.

Was this review helpful to you? Yes - No

1 of 1 person found the following review helpful:

   (5 out of 5 Stars) Top Mount Valve for Sand 1.5"

Reviewed By: from Geneseo, NY ()

Pros: Easy to install

Cons: On hold for a a bit, but worth the wait.

Excellent product and timely delivery. Online chat is a great tool

Was this review helpful to you? Yes - No

1 of 1 person found the following review helpful:

   (5 out of 5 Stars) Great Filter Mount

Reviewed By: ()

Perfect product...Love the help finding what I need with live chat..

Was this review helpful to you? Yes - No

1 of 1 person found the following review helpful:

   (5 out of 5 Stars) great service

Reviewed By: from west haven,ct. ()

ordered valve on sunday evening............recieved it on tuesday afternoon{FREE SHIPPING}....florida to ct. you people are terrific.
had pool up and running for july 4th..thanks so much and again keep up the great service...........leon s.

Was this review helpful to you? Yes - No

Be the first to say if this was helpful or not

   (5 out of 5 Stars) great product

Reviewed By: from Conway,AR ()

exactly what I was looking for and promt delivery.

Was this review helpful to you? Yes - No

Be the first to say if this was helpful or not

   (5 out of 5 Stars) Valve asembly

Reviewed By: from Fairfield,ohio ()

THe valve assembly I ordered is a direct replacement for Hayward sand filters. Perfect fit at a great price,and fast shipping too!
I would highly recommend anyone looking for replacement parts to order from Inyo!

Was this review helpful to you? Yes - No

Be the first to say if this was helpful or not

   (5 out of 5 Stars) Fantastic replacement part!!!

Reviewed By: ()

Pros: Perfect fit!!!

This product was an exact fit for what I needed. The ease and convenience of putting it on was unbelieveable. It was so easy and had my pool up and running in working order in no time at all.

Was this review helpful to you? Yes - No

Read All Reviews

Back To Top

Hayward SP0714T Manual (57.17 KB)

Please feel free to view our complete library of owners manuals.
