$84.99

Qty:

By Jandy


Details

Top

Part # 4716

Alternate Part #'s 25912-204-000, 4716, JDY564054, 26-295-1059, JND4716

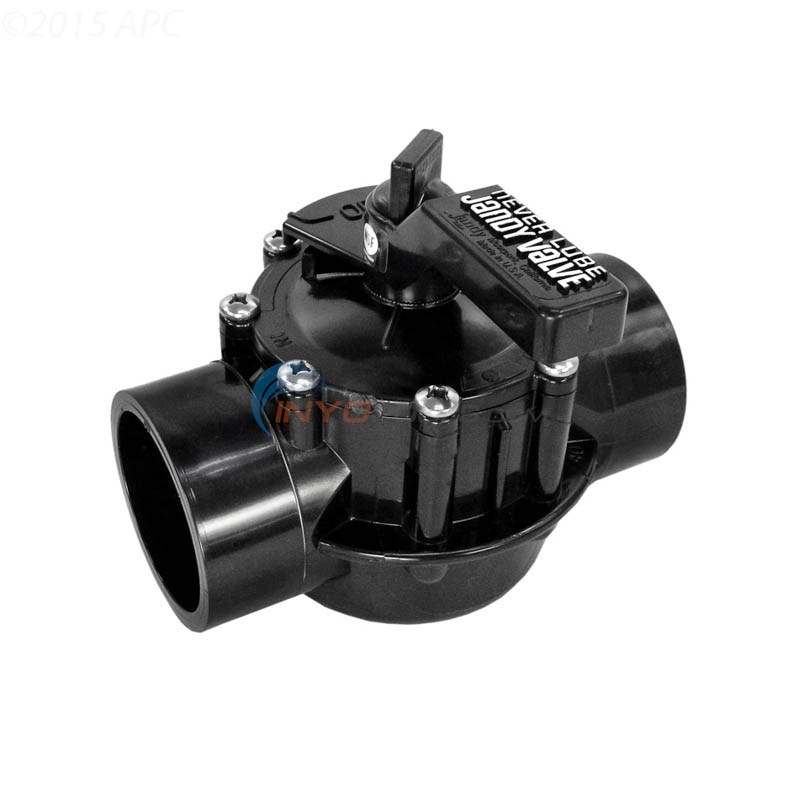

Product Description

Jandy sets the benchmark for valves. For over 30 years Jandy valves have become synonymous with innovation, durability and quality. We pioneered and patented NeverLube technology. NeverLube Valves are designed not to leak, break, melt, lose pressure or slip – even under the most demanding conditions. And they are guaranteed for life. All Jandy valves pass 18 different quality control checks before leaving the factory.

NeverLube Valves are designed and engineered to be totally maintenance free. They are easy to install and easy to use. We use the best materials and best design for the ultimate combination of structural integrity and hydraulic flow.

Features:

  • Never requires lubrication
  • Designed for easy automation
  • Innovative port design
  • Available in standard 11/2 - 2” and 2-2 1/2” sizes
  • Constructed of temperature and chemical resistant CPVC material

Click here for more Jandy Valves

Product Specifications

Inside Diameter:
2 in.
Valve:
2 Way
Outside Diameter:
2 1/2 in.
Typical Order Qty.:
1
Top

?     Asked on 1/23/2012by Guest

Why do the Jandy valves list ID and OD for each valve?
 Reply

A  Answered on 1/23/2012 by InyoPools Product Specialist Patrick P.

Each Jandy valve is designed to connect to two different size pipes. For example on a valve shown with ID 1 1/2" and OD 2", a 1 1/2" pipe can be glued inside the port or a 2" pipe can be glued on the outside of the port.
 Reply


?     Asked on 9/23/2014by Guest

I have this valve installed at my pump. I have a lot of air coming out of the pool jets and it doesn't stop. If I rotate the valve to vacuum and back to skimmer, it clears the air immediately. Do you have any suggestions?
 Reply

A  Answered on 9/23/2014 by InyoPools Product Specialist Patrick P.

I would recommend checking the gaskets/o-rings on the valve and pump housing. They may be letting air into the system.
 Reply


?     Asked on 4/11/2015by Inyo Visitor

What is the on and off position
 Reply

A  Answered on 4/13/2015 by InyoPools Product Specialist Hector F.

Which ever line the off word molded into the plastic is facing is the line that is tuned off.
 Reply


?     Asked on 6/14/2017by Inyo Visitor

My Jandy JDY564054 works great but the nut that holds the lever on snapped off with the shaft in it. Can I replace just these 2 parts?
 Reply

A  Answered on 6/14/2017 by InyoPools Product Specialist Hector F.

Yes, those parts are listed on keys 2, and 3 on the parts diagram here.
 Reply


?     Asked on 5/11/2018by Tony

On the valve ( in ) is writen on one port... (2 port valve) does it matter which direction this vale is installed in reference to the ( In ) writen on the port ??
 Reply

A  Answered on 5/11/2018 by InyoPools Product Specialist Hector F.

One port will be labeled in and the other labeled out.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Saw to cut pipe and file sandpaper

1     0

Frozen valve broke

Written on 3/15/2021 by Guest

We cut out pipe and old valve.
We used primer and plumber glue to fit new pipe and new valve in same configuration.
After drying 24 hours, we ran the pool and it’s working beautifully.

Were these instructions helpful?
