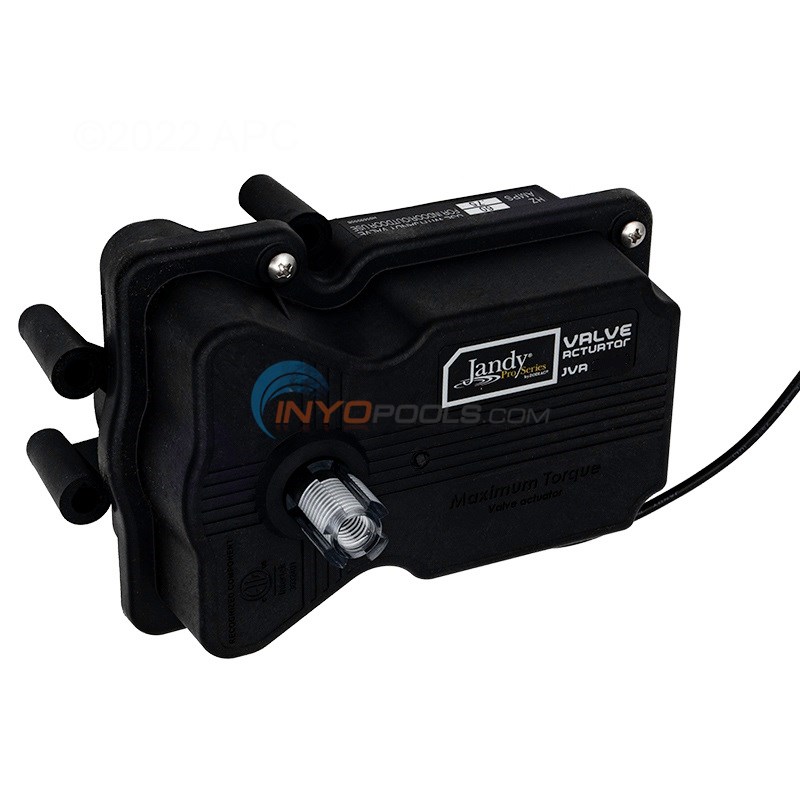

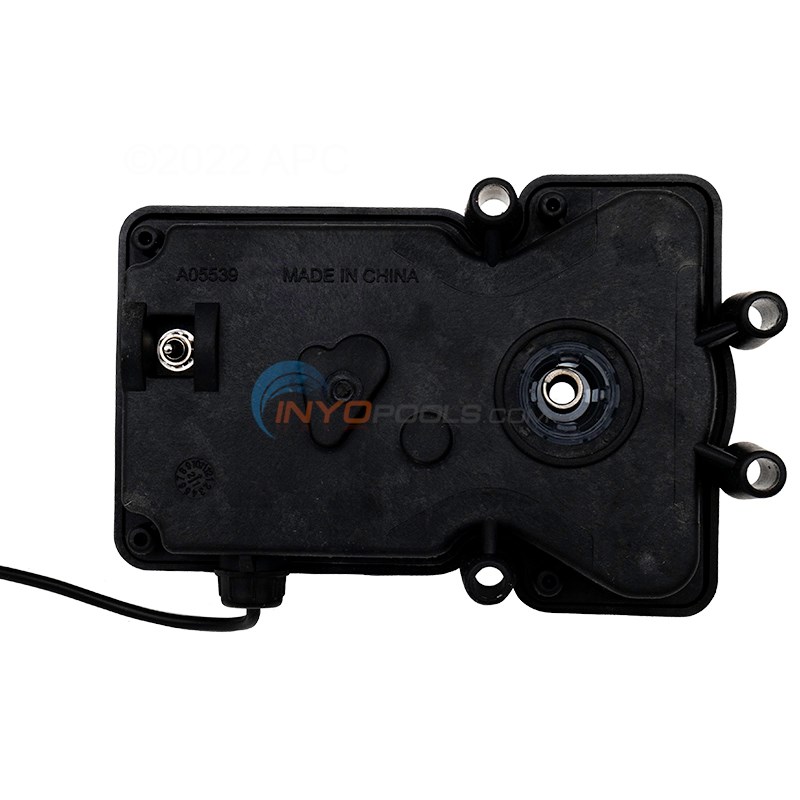

JVA Valve Actuator 24VOLT - 4424



Part # 4424

By Jandy

  4.56 Average



Part # 4424

Alternate Part #'s JVA4424

Product Description

Jandy Valve Actuators JVA and NeverLube Valves ...the Perfect Match JVAs are the perfect complement to Jandy NeverLube Valves. Industry Standard, Jandy NeverLube Valves have diverter seals that are guaranteed for the life of the valve, making the JVA/NeverLube combination a durable automation solution. Perfect for O.E.M. Applications Original Equipment Manufacturers have found JVAs perfect for many of their automations applications, like solar heating. If you're an OEM, ask Jandy what we can do for you. Built-in Safety & Simplicity Installing JVAs insures that there will be no customer confusion. No callbacks for valve settings. And because JVAs can stop or start diverters in any rotation position, the danger of deadheading the pump is eliminated. Pool and Spa One-Button Control. With the single touch of a button on an AquaLink RS Control System, JVAs let you switch water circulation from pool to spa, control the spa overflow, and drain water. Easily Automate Fountains and Waterfall Features JVAs let you automatically control fountains and waterfalls and add convenient flow control to virtually any water feature. The Industry Standard. JVAs are the number one choice of plumbers, builders, and OEMs for one reason --- a reputation for quality.

Please Note item used to be labeled "JVA2440" Jandy made internal improvements and it is now labeled "JVA2444" but it is still the same product, item #4424.

Click here for more Valve Actuators


?     Asked on 4/2/2017 by Karl

I need my jandy actuator to move and stop in 90 degree increments. If I have a 3 port valve with an actuator and the B port is the inlet and the A and C ports are outlets (standard position) I need the following to happen: At 0 degrees B is off or dead headed. At 90 degrees B is connected to C; A is off. At 180 degrees A, B and C are all connected. At 270 degrees B is connected to A; C is off. The valve will do this but can the actuator do this? Help!! Karl

A     Answered on 4/7/2017 by Andy O.

Hello Karl-  Looking in the owner's manual for this actuator it appears you would be able to have that functionality. Here is a link to the manual for you to double check, there is a chart on page 8. I believe you will need Mounting III: http://images.inyopools.com/cloud/documents/jandy-valves-actuators.pdf

?     Asked on 3/12/2017 by Marc

Can the actuator be set to leave valve in a partially open or closed position?

A     Answered on 3/15/2017 by Lennox H.

Hi, Marc. No,  an actuator can only rotate on a 90-degree angle.

?     Asked on 10/14/2016 by Helen

Can this JVA actuator replace a Compool CVA 24T?

A     Answered on 10/17/2016 by Lennox H.

Hi, Helen. The JVA actuator will not replace the Compool CVA24T actuator.

?     Asked on 9/25/2016 by Greg

My valve is in the off position for the solar power and I cannot get it to turn to the on position?

A     Answered on 9/30/2016 by Megan C.

The Jandy Valve could have an internal issue or the Actuator may need to be replaced, if you have automation. You may click here to view the Jandy Standard & Never Lube Valve Parts diagram. I suggest reviewing our How To Repair a Diverter Valve and How To Replace an Actuator Valve guides.

?     Asked on 8/7/2016 by

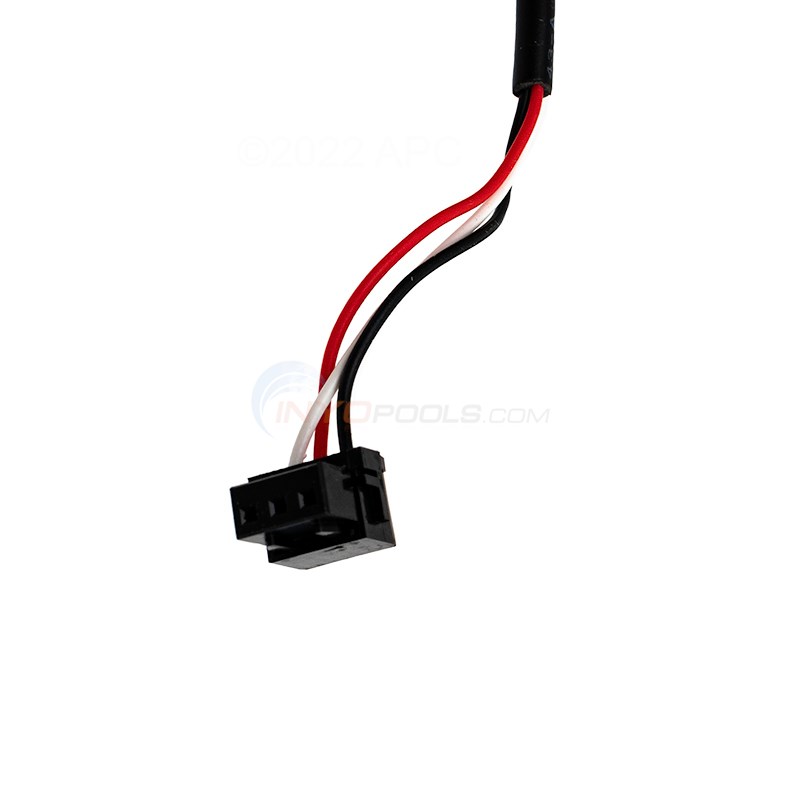

where to find and buy the three wire prong plug for the 24 volt Jandy valve

A     Answered on 8/8/2016 by Lennox H.

Hi, The Power Cord Kit 20ft (4700) which is used with the Jandy Actuator can be purchased separately.

?     Asked on 6/20/2016 by Stephen Brady

I need to replace a jandy valve actuator, model # jva 2440. Which of your replacement actuators is compatable.

A     Answered on 6/20/2016 by Patrick P.

Hi Stephen both this 4424 actuator and the Intermatic PE24VA Actuator would be replacements for your Jandy 2440 actuator.

?     Asked on 5/10/2016 by Ben Parker

I have a Jandy valve actuator that needs to be replaced. I got it in 2012. On its top its says CVA-24 Valve Acuator; Patent no.: 4547007; Voltage: 24VAC 50/60Mz (or maybe 60/60Mz); Current: 0.65 AMP. What Valve actuator should I buy to replace it? Thanks. Ben

A     Answered on 5/12/2016 by Lennox H.

Hi Ben, The Compool / Pentair Valve Actuators will be the correct replacement for the CVA-24 Actuator.

?     Asked on 9/23/2015 by Nelson

Does the Jandy Valve model Jva2444 replace the Jva2440? Thanks.

A     Answered on 9/25/2015 by Robert M.

Hello Nelson - The JVA2444 (4424) does replace the JVA2440.

?     Asked on 9/9/2015 by Dlsongle

My jandy 2440 valve has develop a leak below the activation arm. Is there a replacement gasket available? It operates fine other than the leakage

A     Answered on 9/9/2015 by Patrick P.

Hi Disongle, We do carry the Jandy Valve Actuator Gasket which can be found on our Jandy Valve Actuator Parts Diagram.

?     Asked on 5/10/2015 by

I need to replace a Jandy electric valve actuator model JVA559580, but have had no luck finding it , is there a newer replacement part # ? Thank you

A     Answered on 5/11/2015 by Robert M.

Model 4424 is the new Jandy 24 volt actuator.

?     Asked on 1/23/2013 by Guest

Will this Jandy 4424 replace my 2440 valve actuator?

A     Answered on 1/23/2013 by Patrick P.

Yes, the Jandy 4424 will replace the older 2440 actuator valve.

?     Asked on 9/15/2008 by Guest

How is it possible that this valve actuator will fit on any 2 or 3 way valve?

A     Answered on 9/15/2008 by Patrick P.

The most common valves in the industry are Jandy, Compool, Pentair,Hayward, and Intermatic.  These mfg'rs make up 99% of the valves on the market.  All of these mfg'rs use the same bolt pattern on their valves.  Since they use a common bolt pattern, the valve accuators are interchangeable.  Click here to view all our  valve actuators


Review Summary

  (Average 4.56 out of 5 stars)
9 Rating
5 star:
4 star:
3 star:
2 star:
1 star:

The Most Helpful Review

2     0

 (5 out of 5 stars)  Easy to install Actuator

from Jacksonville, FL ()

Pros: As advertised

Cons: Not inexpensive

At least for my specific pool configuration this was a bolt-on breeze.

Was this review helpful to you?

The Most Recent Reviews

 (5 out of 5 stars)  Great valve

from Paramus NJ ()

Pros: Quick easy install

Cons: None

Great product. Easy to swap out and replace. Quick shipping

Was this review helpful to you?

 (5 out of 5 stars)  Jandy Actuator Valve

from Sacramento, CA ()

The product works great!!!

Was this review helpful to you?

 (4 out of 5 stars)  Quality Product

from Fairfield, CT ()

Pros: Sturdy, well built, reliable

Cons: Hard to custom configure.

Like all other Jandy products, the JVA 2444 is a sturdy unit built to last. Configuring the cams for anything other than a standard pool / spa selection is not as straightforward as it could be. The cams are not labeled clearly and setting them up involve bit of trial and error. Jandy could (should) simplify this.

Was this review helpful to you?

1     0

 (5 out of 5 stars)  JVA Valve Actuator 24 VOLT

from Torrance, CA ()

Pros: Exactly what I ordered

I was very pleased with the price and the service.

Was this review helpful to you?

2     0

 (4 out of 5 stars)  Adjustable to any position

from Lewisville, TX ()

Pros: Adjustable to any position

Cons: Manual operation

I needed an actuator that would partially open a Jandy valve by just 5 clicks. It does exactly what I needed. Manual operation of the actuator depends on the actuator shaft's ability to slide down the valve's shaft. The shafts like to stick together making them hard to engage and disengage.

Was this review helpful to you?

1     0

 (4 out of 5 stars)  Easy-to-install servo valve

from Doraville, GA ()

Pros: good documentation, easy to install

Cons: stems don't pop back easily after manual

Actuators are easy to install-they just replace the manual handle. I have had some problems with the stem not popping back up (you push it down for manual actuation of the valve).
