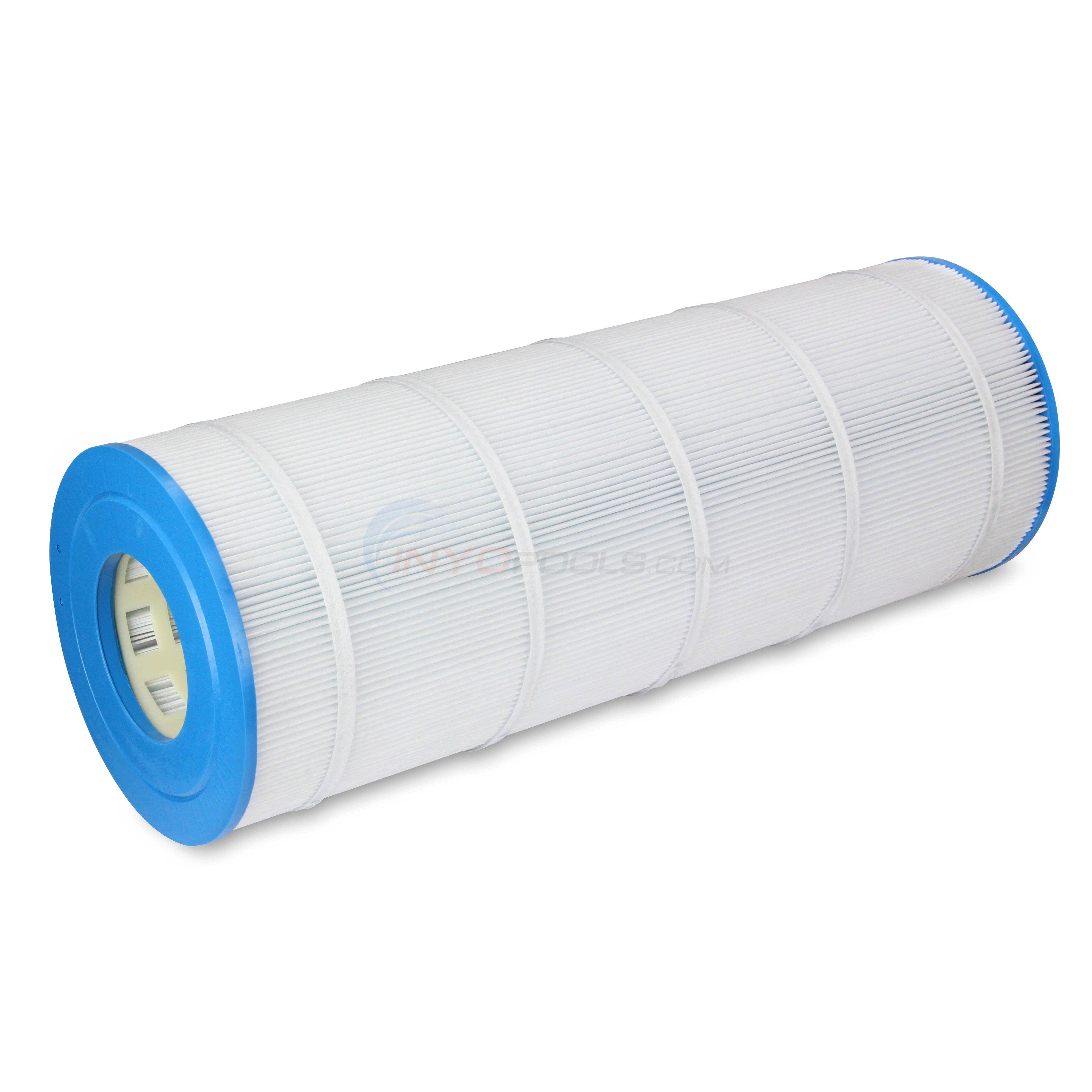

Hayward C-1100 Replacement Cartridge - PL0144



Part # PL0144

By PureLine

  5 Average



Part # PL0144

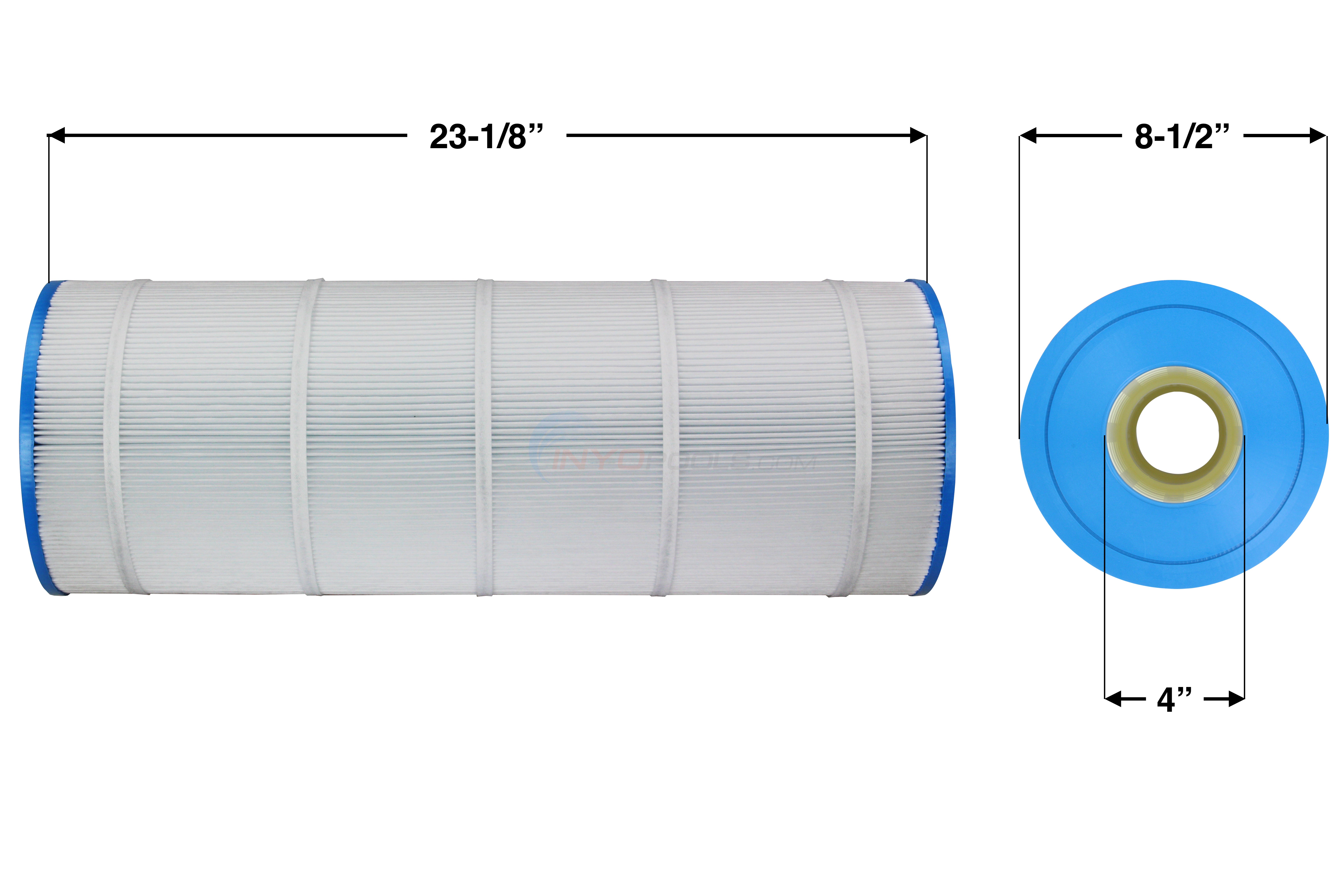

Dimensions End Cap = Round, Length = 23 5/16", Outside Diameter = 8 1/2", Inside Diameter = 4 1/16"

Alternate Part #'s 19905, C-8610, C1100RE(GEN), C8610, CX1100-RE, CX1100RE, FC-1290, FC1290, PA100, PA100-4, R173271, UNI605246, XLS-805

Product Description


  • Our generic replacement cartridges are less expensive than the original manufacturers' brands yet still meet the same high quality standards.  The key components of a cartridge - filter media, core, and end cap - are all designed for maximum water flow and cartridge life.
  • The filter media is point bonded polyester with even fiber distribution which results in an even dirt load and increased water flow.
  • The Sharp & Uniform pleated media provides filtration area (square footage) that meets or exceeds the original manufacturers' specifications.
  • An open core design provides sturdy support for the media without restricting flow.  Increased flow rates result in less wear on the pump and reduced energy usage.
  • Anti-microbial end caps inhibit the growth of bacteria, mold and mildew while supporting the core and media.
  • Banded Pleats maximize flow during operation, and help to reduce the frequency of cleaning.  Banded pleats also make the cartridge easier to clean.
  • We carry thousands of generic cartridges to replace all of the most popular OEM brands such as Sta-Rite, Pentair / Pac Fab, Hayward, Purex, American Products, Jacuzzi,  Hot Springs, Coleman, and more.

You should consider the Microban version of this filter!

Why Microban Protection?

Water and an ample food source provide the ideal condition for bacteria to quickly multiply and grow. In fact, on an unprotected surface, some microbes can double in number every 20 minutes. And only when they’ve multiplied to hundreds of thousands, can they actually be seen by the naked eye.

The images below show bacteria growth on a standard pool filter cartridge versus a pool filter cartrdge infused with Microban® antimicrobial protection over a 24 hour period.

Microban Pool Filter Cartridge

After viewing these images, you can see how Microban® protection begins to work immediately, disrupting key bacterial cell functions so that bacteria are unable to grow or reproduce on the surface. While on the unprotected surface, bacteria quickly multiply.

Top End Cap Top End Cap
Bottom End Cap Bottom End Cap

Product Specifications

Cal Spa
Filter Model:
StarClear II C-1100
8 - 1/2 in.
23 - 3/8 in.
Top Style:
Top Inside Diameter:
Bottom Style:
Bottom Inside Diameter:
Filtration Area:
100 sq. ft.
Media Weight:
4 oz.
OEM #:
Unicel #:
Filbur #:
Pleatco #:

?     Asked on 6/17/2016 by Dan

Does this cartridge replace the Hayward C1100 E cartridge?

A     Answered on 6/17/2016 by Lennox H.

Hi Dan, This is the generic replace cartridge for the Hayward CX1100RE filter.

?     Asked on 6/13/2016 by

looking for CART PF MYTL 100SF C7699

A     Answered on 6/13/2016 by Patrick P.

You would require this Pac Fab Mytilus 100 Sq. Ft. Replacement Cartridge.

?     Asked on 5/28/2016 by

does this replace the c-100 , 100 SF for Hayward - fpr Hayward xtreme

A     Answered on 5/28/2016 by Joe S.

No, the part needed will be Hayward 100 Sq Ft XStream Generic Cartridge PART#C-8311.

?     Asked on 5/13/2015 by Jim Thomas

Sorry, I recently purchased a home that came with a very nice pond and noticed that everything is functional except that there are no filters in the system. The name on the system is Hayward Star Clear II. Will this product work for a Hayward Star Clear II system, and if not would you happen to know where I can purchase the right filter for this system? Thanks for any help.

A     Answered on 5/13/2015 by Patrick P.

Hi Jim, This cartridge does work on a Hayward Star Clear II Filter however there are three different sizes of Star Clear II filters the C-800, C-1100 and C-1500. If you can get the model # off of your filter tank than that would be the best way to determine which cartridge you require, this cartridge is for the C-1100 model and measures 23 5/16" Long. The C-800 Cartridge Measures 17-3/8" Long and the C-1500 cartridge measures roughly 35" long.


Review Summary

  (Average 5 out of 5 stars)
8 Rating
5 star:
4 star:
3 star:
2 star:
1 star:

The Most Helpful Review

1     0

 (5 out of 5 stars)  Generic Filter

from Charleston, SC ()

We have used these generic filters for two years and love them. We can not tell the difference in the name brand versus the generic

Was this review helpful to you?

The Most Recent Reviews

 (5 out of 5 stars)  C-1100 Cartridge filter

from Pittsburgh Pa. ()

Pros: quality/price

Cons: none

Same quality as the orginal,cleans easily ay 30% less cost.

Was this review helpful to you?

 (5 out of 5 stars)  Pool filter

from Corinth TX ()

Pros: Works great

Cons: None

Great product Inyo Pool had them for half price of the local big name stores and free shipping can't beat it!

Was this review helpful to you?

1     0

 (5 out of 5 stars)  The Right Cartridge for the Right Filter

from Atlanta, GA ()

This filter seems to be performing very well.

Was this review helpful to you?

 (5 out of 5 stars)

from Bloomington, IN ()

So far anything is great. It was what I expected it to be. It was very timely. I will definitely use this company again for other products.

Was this review helpful to you?

 (5 out of 5 stars)  awesome filtre

from Southfield, MI ()

the filtre was better than the one pryer the construction of it was much more stronger...the new one had a inner brace which our old one did not...the price was cheaper and ordering went very smooth delivery time was super no problems any where will use your company again...thanks terry

Was this review helpful to you?

 (5 out of 5 stars)


Pros: quick shipment

works fine good price

Was this review helpful to you?

0     1

 (5 out of 5 stars)

from San Antonio, TX ()

My pool was a wreck. I needed new filters fast. I got my order in 2 days. My pool is ready for a party!!!!

Was this review helpful to you?
