Crystal Water 325 sqft Pool Cartridge Filter - 570-0325-07



Model # 570-0325-07

By Waterway



Model # 570-0325-07

Warranty 1 Year

Product Description

Pressure Relief Valve Assy

Tank Body O-Ring

Drain Plug

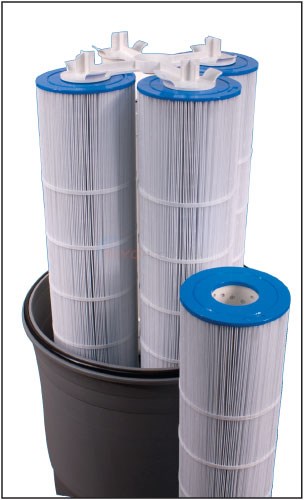

Replacement Cartridge

Crystal Water Cartridge Pool Filter

The only cartridge filter on the market with 2 1/2? internal piping, improves flow and reduces system noise when using 2 1/2", 2" or 1 1/2? plumbing. Using four cartridge elements, the Crystal Water Cartridge Pool Filter offers a superior choice for easy maintenance and crystal clear, clean water.

Combining high technology features and an easy to service design, the Crystal Water Cartridge Filter is ideal for new and replacement installations.

The Waterway Crystal Water 325 sq. ft. Pool Cartridge Filter model 570-0325-07 is comparable to filter models:

  • Pentair Clean & Clear Plus Cartridge Filter 320 sq.ft. model CCP240
  • Hayward Swimclear Cart. Filter 325 sq.ft. model W3C3030 & C3030


  • NSF Listed
  • 2 1/2″ internal piping
  • 2 1/2″ Valve Bulkhead Unions (includes 2″ and 1 1/2″ reducers)
  • Fiberglass reinforced polypropylene body for superior strength
  • “Multi-Handle” design
  • Heavy-duty tamper-proof clamp with removal tool
  • Industry proven quad-cartridge elements layout
  • “Start-Service” dial on stainless steel pressure gauge
  • 1 1/2″ bottom clean-out port
  • Convertible to D.E. by simply changing internals

Product Specifications

Filtration Area:
325 sq. ft.
Plumbing Size:
1-1/2 - 2-1/2" in.
Turnover 8 Hrs.:
57,600 gal.

?     Asked on 3/21/2020 by Fred Natale

I replaced my pool pump in 2019 with the INYOPOOLS Pentair WFE-4 1HP pump. I am also replacing the pool filter in 2020. Is this filter too big for my pool? 11,000 gallons. I live in Phoenix. Not sure what the flow rate is for the Pentair WFE-4 that I installed in 2019. PVC Piping is 2"

A  Answered on 3/21/2020 by InyoPools Product Specialist Patrick P.

Hi Fred, Thank you for the detailed information that is super helpful. Yes this would be the perfect sized filter for the pool you described. The Waterway Crystal Water 325 Filter would be our suggestion for your pool and your Pentair WFE-4 pump.

  • Commented on 3/21/2020 by Product Owner

    Thank you Patrick P for your expert help. I made the purchase this evening and looking forward to receiving the new filter.

    • Commented on 3/23/2020 by InyoPools Product Specialist Patrick P.

      Fred, thanks so much! We think you will be quite happy with this filter.

?     Asked on 3/10/2020 by Erika Colee

I have an inground pool, with 1 HP pump motor. Is this filter too big for my pool? 25,000 gallons. I live in N. central Texas. Pool season is May until september depending on the weather. I have kept the pool open until November a few years.

A  Answered on 3/11/2020 by InyoPools Product Specialist Lennox H.

Hi, Erika. This filter is NOT too big for your pool. It can be used if your pump's flow rate does not exceed 120 GPM.
