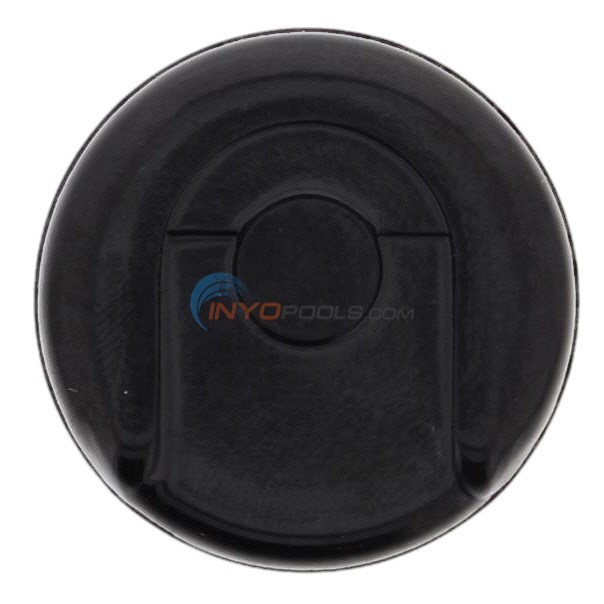

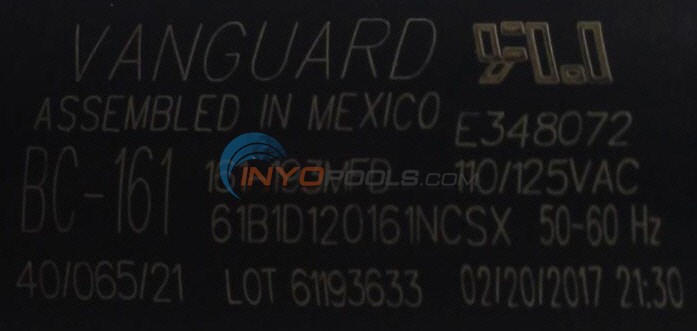

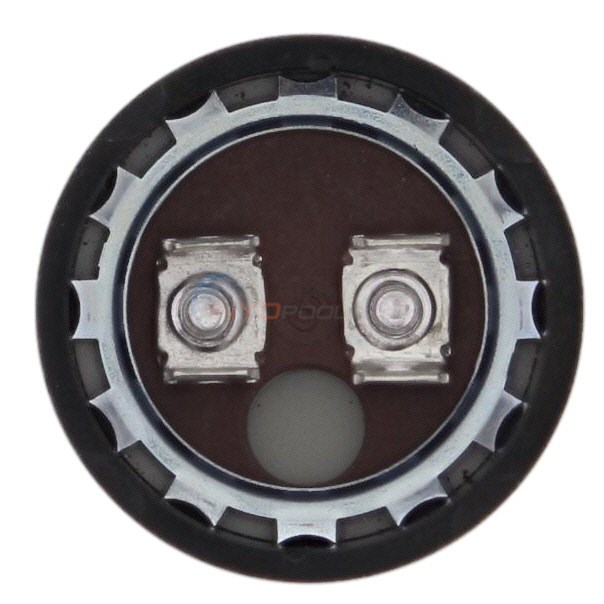

START CAPACITOR, 161-193 MFD (BC-161)

$11.49

IN STOCK

Part # 5270-14

By U.S. Seal Manufacturing

  4.86 Average

Details

Top

Part # 5270-14

Manufacturer Code BC-161

Dimensions 1-7/16" x 2-3/4"

Alternate Part #'s 35-125-1020, 351251020, 610807-002, 610807-2, 61B1D110161NNMO, BC-161, BC161, C103237300107, E348072

Product Description

Start Capacitor 1-7/16" dia x 2-3/4" hgt, 110-125VAC

Product Specifications

Diameter:
1-7/16 in.
Length:
2-3/4 in.
Volts:
110-125 V
Capacitor Microfarad Rating:
161-193 MFD
Top

?     Asked on 8/12/2019 by Dave

I need a start capacitor for a Hayward c48j2n131. It’s a 3/4hp, 115/230v set up currently for 115v. Is BC 161 the right capacitor? Thanks.
 Reply

A  Answered on 8/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Dave. The correct replacement capacitor is P/N BC-124
 Reply


?     Asked on 8/8/2019 by John

What capacitor do I need for an A.O. Smith C48K2N143B3 Hayward pool pump motor?
 Reply

A  Answered on 8/9/2019 by InyoPools Product Specialist Joe S.

Based on the information provided the START CAPACITOR, 161-193 MFD (BC-161) would be correct.
 Reply


?     Asked on 8/8/2019 by Mando

What type of capacitor should I use for a Hayward SPX2707Z2M 1-Horsepower 2-Speed ?

 Reply

A  Answered on 8/9/2019 by Industry Professional

The pump model info & the specific motor used do not reference the capacitor required. We match it based on the microfarads listed on the original, so if yours listed the 161-193 mfd, then 35-125-1020 is correct.
 Reply


?     Asked on 7/21/2019 by

hey i have a 1997 ford commander rv and wanted to know if this is the right part forf me
 Reply

A  Answered on 7/23/2019 by InyoPools Product Specialist Hector F.

Unfortunately, we do not carry automobile parts.
 Reply


?     Asked on 7/16/2019 by Ed Jakubiak

I have a Hayward Super pump Model # SP-1607-Z1M. Is the 161-193mfd the right capacitor?
 Reply

A  Answered on 7/16/2019 by InyoPools Product Specialist Lennox H.

Hi, Ed. Yes, this BC-161 Start Capacitor is the correct replacement.
 Reply


?     Asked on 7/15/2019 by michael

I have a NGM capacitor 61B1D220124NNCA which is rated as 124-148 uF and 220 V. Do you have a replacement --- running at 220 volt. Motor turned freely after shaft seal replacement.
 Reply

A  Answered on 7/16/2019 by InyoPools Product Specialist Matt S.

The replacement start capacitor is the 124-149 MFD (BC-124)
 Reply


?     Asked on 7/4/2019 by Bob Freeland

I have a Hayward super pump 3/4 hp motor. Model Number C48J2N131B1. Is the 161-193MFD (BC-161) the correct start up capacitor.
 Reply

A  Answered on 7/4/2019 by InyoPools Product Specialist Lennox H.

Hi, Bob. The Start Capacitor - BC-124 is the correct replacement for MOD C48J2N131B1.
 Reply


?     Asked on 6/22/2019 by Thomas

I switched my Hayward pump from 110 to 220VAC. Followed the instructions for the jumper settings. Pump runs fine, but I have had two starter capacitors, 61-193 MFD (BC-161), go out in just a few months. Should I switch to a higher voltage rating cap? Never had a cap fail when it was 110.
 Reply

A  Answered on 6/26/2019 by Industry Professional

What is the current voltage on the capacitor that you have?
 Reply


A  Answered on 6/25/2019 by Industry Professional

No, stay with the same rating on your capacitor. Unfortunately there is no way to determine why you have gone thru 2 lately. It should have nothing to do with the change in voltage as the mfg chose that specifically for the dual voltage motor. Your motor windings could be going bad/weak, it could be the new capacitors themselves.
 Reply


?     Asked on 6/2/2019 by William T Johnson

What would be the correct start capacitor for Sta-Rite 3/4 HP model C48J2PA105CI motor? This runs the pump for the pool water falls.
 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Hector F.

The replacement start capacitor is part number 5270-11.
 Reply


?     Asked on 6/1/2019 by Fred

I have a 2 horsepower to Hayward Super Pump I believe the start Capacitor went on. I can't find a part number for a replacement, do you know what it is? And is there a run capacitor in this type of pump also?
 Reply

A  Answered on 6/1/2019 by InyoPools Product Specialist Hector F.

So in order to cross reference the correct capacitor we would need the motor model, part number or catalog number.
 Reply


?     Asked on 5/27/2019 by Andrew

iT SAY THAT THIS CAPACITOR LISTED IS THE RIGHT ONE FOR 1.5 HP HAYWARD PUMP BUT I PURCHASED ONE AND IT WONT CONTINUE TO RUN THE PUMP
 Reply

A  Answered on 5/27/2019 by InyoPools Product Specialist Patrick P.

Most motors have both a start capacitor and a run capacitor it sounds like you may have switched out your start capacitor when you run capacitor needs to be replaced.
 Reply


?     Asked on 5/27/2019 by

I need a start capacitor for century B2847
 Reply

A  Answered on 5/27/2019 by InyoPools Product Specialist Patrick P.

Could you supply us the MFD rating, Part # and volts from the capacitor? Or if you could post a photo of the capacitor showing the data printed on it that would be helpful. To supply this information or photos then click the reply link below.
 Reply


?     Asked on 5/26/2019 by Jon

I have a magnatek 3/4 pump on my Polaris pool cleaner. Will the bc-161 work to replace my 124-149 MFD capacitor 0-125 volt capacitor
 Reply

A  Answered on 5/26/2019 by InyoPools Product Specialist Patrick P.

Hi Jon, This is NOT the proper capacitor for your polaris cleaner motor, you will need this BC-124 124-149 MFD Start Capacitor
 Reply


?     Asked on 5/26/2019 by jamey

what start capacitor do I need for a A.O SMITH C48D43A04 Hayward max-flo II 1.5 hp motor
 Reply

A  Answered on 5/26/2019 by InyoPools Product Specialist Lennox H.

Hi, Jamey. This BC-161 is the correct Start Capacitor for the C48D43A04 motor.
 Reply


?     Asked on 5/26/2019 by Ben

I have a Hayward Model C48L2N134B1 1 1/2 hp Super pump. Is this the correct capacitor for that model? Here's what came out.

 Reply

A  Answered on 5/26/2019 by InyoPools Product Specialist Lennox H.

Hi, Ben. This BC-161 is the correct replacement Start Capacitor.
 Reply


?     Asked on 5/21/2019 by Jason

Hello - I have a Hayward SP2607x10 1HP pump, and am getting a humming noise at times when starting. It eventually starts, but I think I am getting close to having to replace something. I figured I could try replacing the start capacitor, can you help confirm exactly what part number I could use?
 Reply

A  Answered on 5/21/2019 by InyoPools Product Specialist Patrick P.

Hi Jason, the start capacitor on this page would be the correct capacitor for your Hayward SP2607x10 1HP pump
 Reply


?     Asked on 5/8/2019 by Tom

I have a Emerson 1081 pool pump model T55CXCJ-1345 that won’t start. The motor hums but won’t start . Could the capacitor on the top of the motor be the problem?
 Reply

A  Answered on 5/8/2019 by Industry Professional

Yes, this would be the correct unit and the cheapest route to take.
 Reply


?     Asked on 3/25/2019 by Dennis

My 1hp Hayward pump would only hum and not start. I replaced the starter capacitor with the BC-161 I ordered from y’all. Now the motor runs for a few seconds and trips the breaker. Do I need a new motor or is there a run capacitor I don’t know about?
 Reply

A  Answered on 3/29/2019 by InyoPools Product Specialist Lennox H.

Hi, Dennis. Some motors are designed with either a start or run capacitor or both.   If the motor is now tripping the breaker, it will need to be replaced.
 Reply


?     Asked on 3/10/2019 by rob

I have a Mallory 161-192mfd 110 vac 610807-2 60hz will this work as replacement
 Reply

A  Answered on 3/10/2019 by InyoPools Product Specialist Lennox H.

Hi, Rob. Yes, this BC-161 Start Capacitor will work as a replacement.
 Reply


?     Asked on 12/3/2018 by Russ

looking for starting cap for a C48L2N134C2 -- everything comes up with a 5270-14 cap but its for a 115 volt motor -- we have it on the high voltage -- will it work -- over the long term?
 Reply

A  Answered on 12/3/2018 by InyoPools Product Specialist Lennox H.

Hi, Russ. This is the correct replacement capacitor. The capacitor voltage is not relevant to the motor operating voltage.
 Reply


?     Asked on 10/17/2018 by Frank Baca

I have a Mallory 161-192 MFD starting capacitor. Will the 161-193 MFD work as a replacement? What is the difference?
 Reply

A  Answered on 10/18/2018 by InyoPools Product Specialist Lennox H.

Hi, Frank. Yes, you can use this capacitor if the current voltage is 110-125 volts. The 161-193 is slightly more powerful.
 Reply


?     Asked on 9/26/2018 by William

Can you please tell me which capacitor will fit and work with my Hayward super-pump 1HP model # C48K2N143B1 so I can order it form you. Thanks
 Reply

A  Answered on 9/26/2018 by InyoPools Product Specialist Lennox H.

Hi, William. This BC-161 Start Capacitor is the correct replacement for MOD C48K2N143B1.
 Reply


?     Asked on 8/7/2018 by Jen

I have a 1.6 hp Hayward super pump. The pump starts, but within seconds trips the breaker. I have changed the circuit that it plugs into, and it tripped that one as well. When I took the housing off I could smell burning but couldn’t locate any singed wires. Could it be the capacitor? If not, is there something else I can look at?
 Reply

A  Answered on 8/7/2018 by InyoPools Product Specialist Lennox H.

Hi, Jen. The issue could be the capacitor or the winding. Use the following guides How to Test a Pool Pump Capacitor or How To Test a Pool Pump Motor - Winding Resistance to determine why your motor is tripping the breaker.
 Reply


?     Asked on 8/6/2018 by Ted Skrzynecki

Can this be used as a run capacitor the motor starts just fine but slows down under a load of any size
 Reply

A  Answered on 8/6/2018 by InyoPools Product Specialist Lennox H.

Hi, Ted. Unfortunately, you're unable to use a start capacitor as a run capacitor.
 Reply


?     Asked on 8/6/2018 by Robert Smith

Is this the correct capacitor for a sp1610z1m Hayward pump
 Reply

A  Answered on 8/6/2018 by InyoPools Product Specialist Hector F.

Yes, this would be the correct capacitor for your model motor.
 Reply


?     Asked on 6/11/2018 by michael

looking to buy a new capacitor but wanted to try and move shaft first to see if its stuck , cant find any info on how to do that with a hayward super pump model #c48l2n134b1 the cap is 61b1d110161nnmo 110v ac 60hz, 161-193 mfd
 Reply

A  Answered on 6/11/2018 by InyoPools Product Specialist Hector F.

If you click here you can view how to replace a capacitor that is on a motor very similar to yours. Also by clicking here, you will be directed to a guide for replacing an impeller. In that guide, you will see a few tips on how to grab the shaft at the rear of the motor. The replacement capacitor is part number 5270-14
 Reply


?     Asked on 6/8/2018 by

Will this replace the 161-192mfd Mallory
 Reply

A  Answered on 6/8/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this capacitor can be used if the Mallory is rated at 120 VAC also.
 Reply


?     Asked on 5/8/2018 by Phillip Ooi

I have Hayward Superpump model C48L2N134B1 volt 115/230 RPM 3450 KW 1.10 HP 1 1/2 60hz SF 1.0 FR 56J PH 1 SP1610Z1M. Will this Start Capacitor work?
 Reply

A  Answered on 5/9/2018 by InyoPools Product Specialist Hector F.

Yes, this is the correct capacitor for that motor.
 Reply


?     Asked on 5/5/2018 by Gerry N Merrihew

I have a 1hp Hayward motor, will yhis work on mine? the # on my old one is -- 61B1D110161NNAO 161-192 Thanks, Gerry
 Reply

A  Answered on 5/6/2018 by InyoPools Product Specialist Lennox H.

Hi, Gerry. Yes, this Start Capacitor will work as a replacement.
 Reply


?     Asked on 4/29/2018 by Tim

What will be the proper replacement , the following is the information on the existing capacitor: CSC 325P306H37M30A4XAO, 628318-308 SH P2 30.0uf +-6% 370VAC/B 50/60 Hz internally protected 70C
 Reply

A  Answered on 4/29/2018 by InyoPools Product Specialist Lennox H.

Hi, Tim. This is not the correct capacitor, you will need the 30 MFD, 370 VAC Run Capacitor - 628318-308
 Reply


?     Asked on 4/2/2018 by

is this the correct one for 610807-002 161-192 uf ?
 Reply

A  Answered on 4/2/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Start Capacitor - BC-161 will replace Part # 610807-002.
 Reply


?     Asked on 12/23/2017 by david

I need a replacement for my Jucuzzi magnum force pool pump capacitor 161-192uf 110 vac 50/ 60hz
 Reply

A  Answered on 12/26/2017 by InyoPools Product Specialist Megan C.

The Capacitor, MFD 161-193 (BC-161) 110-125VAC is suitable based on the specs that you provided. Please ensure to check the measurements are the same before ordering. The measurements of this capacitor are 1.5" L X 1.5" W X 3" D. How To Replace a Pool Pump Capacitor
 Reply


?     Asked on 9/3/2017 by

Is this the correct capacitor for Hayward super pump 1HP, AO motor model C48K2N143B1,
 Reply

A  Answered on 9/6/2017 by InyoPools Product Specialist Lennox H.

Hi. Yes, this is the correct Start Capacitor for the C48K2N143B1 motor.
 Reply


?     Asked on 8/6/2017 by Jim P

My Sta-Rite pump has a Mallory start Capacitor, label reads: 161-192MFD 110VAC, 610807-2 60HZ, 235-0027-01A. Which part number should I order?
 Reply

A  Answered on 8/7/2017 by InyoPools Product Specialist Lennox H.

Hi, Jim. This 161-193 MFD 110-125VAC Start Capacitor is the correct replacement that you can order.
 Reply


?     Asked on 7/25/2017 by Alex

Will this work with a hayward c48k2n143b1 pump? If not, which capacitor will? Thanks!
 Reply

A  Answered on 7/25/2017 by InyoPools Product Specialist Lennox H.

Hi, Alex. Yes, this BC-161 Start Capacitor will work with the C48K2N143B1 motor.
 Reply


?     Asked on 6/26/2017 by kevin

how do I know what capacitor to get when mine does not have a MFD number. The numbers on mine are NGM 61B1D 110161NNMO 161uf. 40/065/21 -0% + 20% 610807-002
 Reply

A  Answered on 6/26/2017 by InyoPools Product Specialist Alex V.

Kevin, What is the make, model and age of the motor?
 Reply


?     Asked on 6/13/2017 by Mike

I am in the UK. I have an old Sta Rite pump. I think the capacitor isn't working as I am getting a humming sound but the pump doesn't start turning. The capacitor is Mepco/CentraLab 161-193MFD 110VAC 60Hz. It says replace with part 610807-2. Will this capacitor work? Thanks
 Reply

A  Answered on 6/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Mike. Based on the info provided from the existing motor capacitor, this BC-161 can be used as a replacement.
 Reply


?     Asked on 5/10/2017 by Dom

The start Capacitor blew up, I have a new one rated 161-193 MFD. I believe the pump is wired on a 220 VAC. I can no longer read the weather erased old capacitor. Can I install a 110VAC capacitor on a 220 volt running motor?
 Reply

A  Answered on 5/10/2017 by InyoPools Product Specialist Lennox H.

Hi, Dom. Most start capacitors for pool motors are rated at 125 volts. You can install an 110VAC start capacitor on a motor that is wored for 220 volts.
 Reply


?     Asked on 1/19/2017 by

I have a Goulds water well pump model #c48a95406 which start capacitor would I need?
 Reply

A  Answered on 1/24/2017 by InyoPools Product Specialist Scott W.

I recommend giving ITT Goulds a call, 315-568-2811, we do not have many pumps for well pumps.
 Reply


?     Asked on 1/12/2017 by David

Using a Multimeter, how can I determine that my capacitor is my problem and not something else, what setting and what reading. The pump hums but does not start, I understand that the problem could either be the capacitor or the motor itself. My capacitor is only about 4 months old, has a 161-193 MFD. Thanks, David
 Reply

A  Answered on 1/12/2017 by InyoPools Product Specialist Adam Y.

Good afternoon David, Unfortunately there is no instructions on our site. You can find a few videos that show you how on you tube.
 Reply


?     Asked on 1/8/2017 by chris

I am trying to confirm that it is the capacitor that is the problem and that the correct capacitor will be replaced. I have a marathon 5KC38SN6084AX, the has hummed for a while prior to starting, but now it only humms but does not start. there is no oil leakage or whole that i can see, and sometimes it starts, usually not in cold weather.
 Reply

A  Answered on 1/9/2017 by InyoPools Product Specialist Adam Y.

Yes Chris, Sounds like the capacitor. You will need the UF or MFD number off of your capacitor to identify the correct replacement.
 Reply


?     Asked on 10/3/2016 by scott louk

I have a jandy plus hp.I am trying to find a start capicator for it. The model nunber is PHPM2.0 and the serial number is u13fc1567 and if you guys have any in stock.thank you
 Reply

A  Answered on 10/3/2016 by InyoPools Product Specialist Scott W.

The correct start capacitor is part number 5270-09.
 Reply


?     Asked on 9/13/2016 by

Is this the correct capacitor for Hayward Max Flo pump model # C48J2N131B1 ? Is also says it is a 3/4 HP
 Reply

A  Answered on 9/13/2016 by InyoPools Product Specialist Scott W.

Yes, that would be the correct capacitor for that motor.
 Reply


?     Asked on 9/10/2016 by joe

is this the right capacitor for a hayward super pump 1 hp model number C48K2N143B3
 Reply

A  Answered on 9/12/2016 by InyoPools Product Specialist Scott W.

Yes, part number 5270-14 is the correct capacitor for that motor.
 Reply


?     Asked on 8/25/2016 by chuck

I think you answered this in a previous question but I just want to make sure, I have a Hayward Super Pump C48L2N134B1 it is configured in 220V. Is the BC161 for both 220 AND 115 V configurations.
 Reply

A  Answered on 8/25/2016 by InyoPools Product Specialist Scott W.

Yes, that would be the correct capacitor for that motor whether it's wired 115V or 220V.
 Reply


?     Asked on 8/16/2016 by Jared DiFrancesco

I am looking for a start capacitor for a 1hp ao smith usq1072 cd6ob1be124148aut-2... 124-148uf 50/60hz
 Reply

A  Answered on 8/19/2016 by InyoPools Product Specialist Lennox H.

Hi Jared, The BC-124 is the correct capacitor for the USQ1072 and based on info provided.
 Reply


?     Asked on 7/20/2016 by EJU

Which start capacitor do I need for Hayward super pump model c48j2n131b1. thank you
 Reply

A  Answered on 7/20/2016 by InyoPools Product Specialist Matt S.

The correct start replacement start capacitor for the C48J2N131B1 (UST1072) is the BC-124, 124-149 Mfd 125v.
 Reply


?     Asked on 7/14/2016 by EJ

Could you tell me which capacitor will fit a Hayward Super Pump (1.5 horsepower), model #C48L2N134B1?
 Reply

A  Answered on 7/17/2016 by InyoPools Product Specialist Lennox H.

Hi EJ, The BC-161 Start Capacitor is the correct replacement for the C48L2N134B1 motor.
 Reply


?     Asked on 6/23/2016 by John Temperley

hi. I am trying to find a replacement motor start capacitor for pool pump it is a Doheny's 1.5 hp, 115/230v capacitor I removed was a NGM61b1D220124NNCA 124-148uf . motor set in 220v. 2 3/4 L x 1 7/16 w having trouble finding in 220v
 Reply

A  Answered on 6/30/2016 by InyoPools Product Specialist Lennox H.

Hi John, Just because the motor is set for 230 volts does not mean that you need a 220 volt capacitor. What is the voltage on the capacitor because I'm unable to find a 124-148 MFD 220 volt capacitor.
 Reply


?     Asked on 5/24/2016 by BRian

Will this capacitor replace 610807-002 from Hayward super pump?
 Reply

A  Answered on 5/24/2016 by InyoPools Product Specialist Patrick P.

Hi Brian, Yes this capacitor does replace the 610807-002 capacitor from Hayward super pump
 Reply


?     Asked on 3/29/2016 by Tom

I need a new start capacitor for an a.o. smith C48L2P104 sta-rite 1-1/2 hp two speed. The numbers are worn off but looks something like 61XXXX-002. Can you verify what the capacitor part is? Thanks.
 Reply

A  Answered on 3/30/2016 by InyoPools Product Specialist Lennox H.

Hi Tom, The 64-77 MFD 220V Start Capacitor (BC-64M-250S) will be the correct start capacitor for C48L2P104 motor.
 Reply


?     Asked on 2/4/2016 by Mark

I'm looking for a replacement for what appears to be part number 680171-002, rated 161-192 mF. It is from and A.O. Smith 1HP single speed pump. There are a ton of other numbers on the old one, so I hope this is enough. It looks like a BC-161 will be it, but I want to be sure.
 Reply

A  Answered on 2/5/2016 by InyoPools Product Specialist Lennox H.

Hi Mark, This capacitor is the correct replacement for p/n 680171-002.
 Reply


?     Asked on 1/30/2016 by Al

I'm looking for part # 610807-11 capicitor
 Reply

A  Answered on 2/1/2016 by InyoPools Product Specialist Lennox H.

Hi Al, The 36-43 MFD 220-250v Start Capacitor will be the replacement capacitor for p/n  610807-11.
 Reply


?     Asked on 12/31/2015 by Jay

I am looking for a replacement capacitor for 189-227MFD 110V AC 60HZ can you recommend the correct one?
 Reply

A  Answered on 12/31/2015 by InyoPools Product Specialist Lennox H.

Hi Jay, The 189-227 MFD 120 V Start Capacitor (BC-189) will be the correct replacement capacitor.
 Reply


?     Asked on 10/16/2015 by Dax Gearhart

Hello, I am tryong to find out which starter capacitor I need for a 1 HP Hayward Super Pump, self priming, 193E, Model C48K2N143B1. Thank you
 Reply

A  Answered on 10/16/2015 by InyoPools Product Specialist Lennox H.

Hi Dax, The 161-193 MFD 110-125 VAC Capacitor (BC-161) would be the correct capacitor for the C48K2N143B1 model motor.
 Reply


?     Asked on 10/7/2015 by

I need the capacitor for a Hayward SP2600 1.5HP motor A.O Smith motor C48L2N134. Can you tell me which one I need?
 Reply

A  Answered on 10/8/2015 by InyoPools Product Specialist Joe S.

Hello Capacitor needed, MFD 161-193 (BC-161) 110-125VAC PART#5270-14
 Reply


?     Asked on 10/4/2015 by

I am looking for a start capacitor for Hayward super pump 1 hp. Model: C48K2N143B1, SP1607z1M 110 vac 60 hz capacitor
 Reply

A  Answered on 10/7/2015 by InyoPools Product Specialist Joe S.

The Capacitor, MFD 161-193 (BC-161) 110-125VAC PART#5270-14
 Reply


?     Asked on 6/24/2015 by

Century motor 3.HP cat # SQ1302V1 I need to replace run start capacitor Can you tell me what one I need. Thanks Mike
 Reply

A  Answered on 6/25/2015 by InyoPools Product Specialist Lennox H.

Hi, Unfortunately we do not have what size capacitor is used on the A.O. Smith 3 H.P Square Flange Motor (SQ1302), you will need to provide us the specs off of the old capacitor.
 Reply


?     Asked on 6/21/2015 by Bryan Ryder

I need a capacitor for a Jacuzzi pool pump, A. O. Smith 1.5 hp 230/115v 3450RPM. Can you tell me the correct part number for this product?
 Reply

A  Answered on 6/22/2015 by InyoPools Product Specialist Lennox H.

Bryan, We will need to know the MFD and voltage of the capacitor or the catalog or part number of the motor to find the correct replacement capacitor.
 Reply


?     Asked on 6/6/2015 by Steve

I need to replace the start Capacitor on my A O Smith C48K2PA105C5 MOTOR. It's 115/230 1hp USQ 1102 and the rating are unreadable on the capacitor. How can I find out what rating I need?
 Reply

A  Answered on 6/6/2015 by InyoPools Product Specialist Patrick P.

Hi Steve, yes this is the correct start capacitor for the USQ1102 motor.
 Reply


?     Asked on 1/23/2012 by Guest

I need to replace my the capacitor on my 1.5HP pool pump. Do you carry the capacitor I need?
 Reply

A  Answered on 1/23/2012 by InyoPools Product Specialist Patrick P.

Please note that capacitors store an electric charge and should be handled with the utmost caution and care. We do not encourage handling a capacitor without any type of safety measures in place and highly recommend contacting a professional service company for repair/replacement. For those that feel comfortable changing the capacitor here's  >How to replace a pool pump capacitor. In order to match up the capacitor you will need more specifications on the capacitor. You will need to match the voltage, the MFD, whether or not the capacitor is a >run or >start type and the actual dimensions of the capacitor body.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Voltage tester

1     0

Motor Would Only Make Humming Sound But Not Start

Written on 3/31/2019 by Guest

First, as always, turn off the power to the pool pump at your panel and then verify it by using a voltage tester.

Next, remove the two screws holding the cover over the motor.

Remove the clamp over the old capacitor and note the wire placement; then take a screwdriver with a plastic or rubber handle and touch the terminals together (pro tip if you are worried, hold a paper towel between you and the capacitor). This will short out the capacitor and discharge any voltage stored in it. Then with a pair of pliers pull the wire clamps off.

Attach the wires back onto the capacitor (It should have 2 yellow wires on one terminal and a red and white wire on the other).

Put the capacitor back in place with the plastic guard over the terminals and then tighten the clamp.

Put the cover back on, then go turn the main breaker back on.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Pliers, Socket Set

1     0

My Pump Motor Capacitor Need to be replaced

Written on 6/27/2018 by Guest

I removed the motor from from the pump housing. I then removed the cover from my pump motor. Locating the capacitor, I carefully discharged the old capacitor and the new capacitor to prevent shocking. I removed the old cap connections and wired the new cap placing into the same spot. I put the cover back on the motor and reattached the motor to the pump. I plugged in the pump.

Were these instructions helpful?


Top

Review Summary

 (Average 4.86  out of 5 stars)
14 Rating
5 star:

(12)
4 star:

(2)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Helpful Review


The Most Recent Reviews
