A.O. Smith 2 HP Round Flange 56J Up Rate Motor - B230SE

$237.99

IN STOCK
FREE SHIPPING

Part # 5213X

By A. O. Smith

  5 Average

Details

Top

Part # 5213X

Warranty 1 Year

Manufacturer Code B230SE

Dimensions 16" L x 8.5" W x 6.5" D

Alternate Part #'s 1104375412, 12018, 1615Z-1-MC, 168096, 177021, 177172, 177983, 184983, 18498300, 186066, 193633, 5KCR39UN2824X, 5U143, 7-193633-24, 7-193633-74, 8-184983-21, 8-193633-24, 818498323, 9-177983-21, 90118589, 90118761, A0564400, B230, B230SE, C1320, CT120U, EB230, EUST1202, JD20UP1, JH20UP1, P724, SP-1615-Z1-MC, SP1615Z1M, SPX1615Z1M, UST1202, UST1252, V12018

Product Description

PureLine Prime Motor

Century B230SE Details

MAGNETEK THREADED SHAFT, 56J FRAME CATALOG # B230SE PART # 8-184983-23 ..... HORSEPOWER LABEL HORSEPOWER: 2.0 SERVICE FACTOR: 1.0 EFFECTIVE HORSEPOWER: 2.0 ..... ELECTRICAL VOLTAGE: 115 OR 230 VOLTS, SINGLE PHASE AMP DRAW: 9.2/18.4, 9.2 AMPS AT 230 VOLTS 18.4 AMPS AT 115 VOLTS ..... DIMENSIONS LENGTH: 11 1/2" SHAFT LENTGH: 2 1/2" DIAMETER: 6 1/2" MOUNTING HOLES: (4) 5 7/8" CENTER TO CENTER ..... CAPACITOR RUN CAPACITOR, 25 MF , 370 VOLTS *CURRENT MODEL* MOUNTING ON BACK OF MOTOR (OPT# 5270-08) SHIPPING WEIGHT: 32.65

Note: NOT California Title 20 Compliant.

California Title 20 Compliant Options:

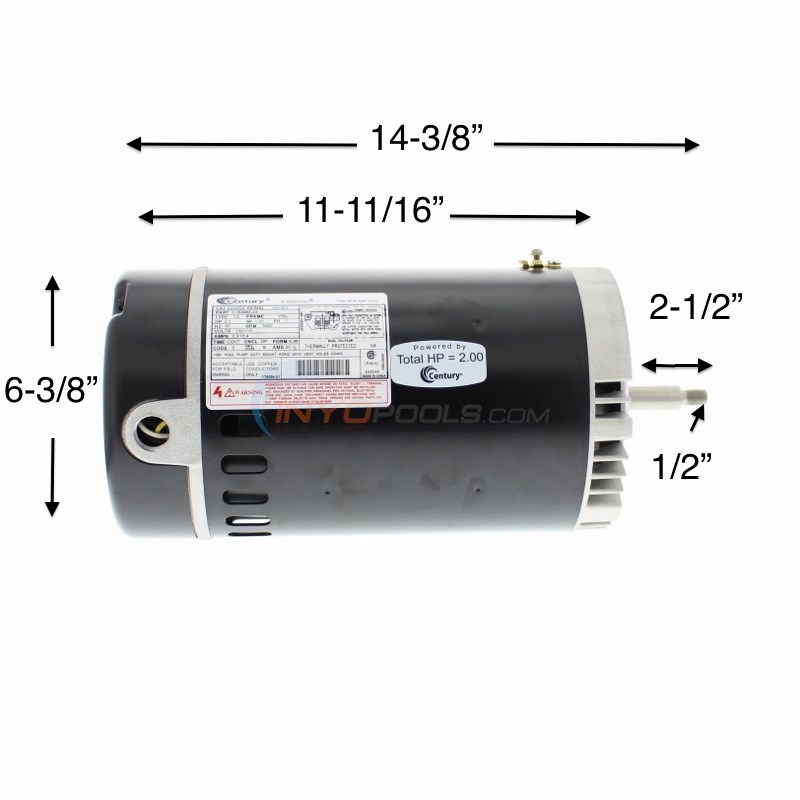

Motor Dimensions Motor Dimensions

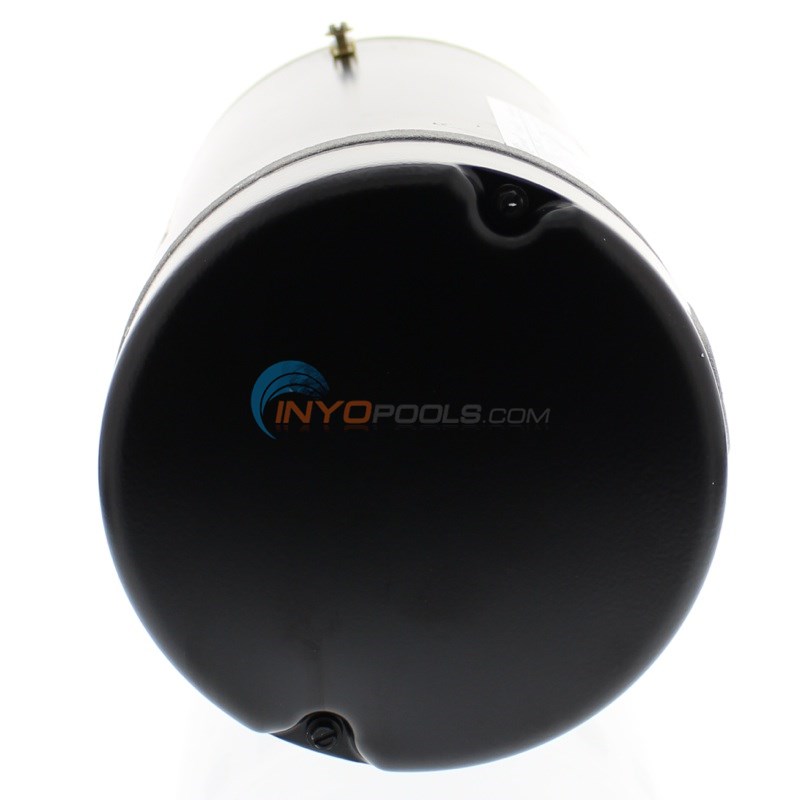

Motor Image Motor Image

Product Specifications

Motor Name:
2 HP B230SE Replacement Pool Motor
HP:
2 HP
Speed:
Single
RPM:
3450 RPM
Amps:
9.2/18.4 amp
Service Factor:
1
Total HP:
2 HP
Frame:
56J
Stock #:
B230SE
Shaft:
Threaded
Overload Protector:
Auto
Dimension Letter:
C
Dimensions:
14.31 in.
Volts:
115/230 V
Flange:
Round
Energy Efficient:
Energy Efficient
Notes:
NOT California Title 20 Compliant
Top

?     Asked on 11/1/2018 by Kathy

Replacing a very noisy and old Magnatek C Frame Motor on my Hayward Super II Pump. Motor label attached. I’d like a energy efficient motor instead of standard but not Dual speed. I also need a new seal ... Pool guy said PS201 (?). What motor do you recommend and are there good/better/best options on seals? What are options? Lastly, do I need to buy anything else with the motor for ideal installation and motor operation? Thanks!

 Reply

A  Answered on 11/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Kathy. Unfortunately, there is not a more energy efficient option available to replace the B130 motor. The Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT is the suggested item needed when replacing a motor. As for the replacement seals Good - AS-1521, Better - PS-3868, and Best - SPX1600Z2
 Reply


?     Asked on 10/2/2018 by ARIEL NORFLEET

Do we need tune up kit when we purchase B230se motor and replace it?
 Reply

A  Answered on 10/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Ariel. We do recommend getting a tune up kit which will be specific to your pump housing, not the motor.
 Reply


?     Asked on 9/29/2018 by Ariel Norfleet

I have A.O.SMITH B230SE Part number 7-184983-23 FR: X56J TYPE CX AMPS: S 9.2/18.4 RPM: 3450 Serial 004103M, Making lots of noise,Replaced capacitor 2 time.This time after replacing the capacitor made a loud grinding noise and start to show smoke. I read on other website that I can buy a Go-Kit or just replace the motor. Do I still need to purchase a Go-Kit if I decided to buy a new motor from you? Please provide me with the right motor and GO-Kit. Recommendations? Thank you,
 Reply

A  Answered on 10/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Ariel. A GO-Kit is still required when replacing the motor. I will need to know the model of the pump housing in order to locate the correct GO-KIT.
 Reply


?     Asked on 9/1/2018 by Brian

I have Jandy Model# JHP 2.0 stealth pump says 2.0 HP. Part number 7-193634-06 FR: X56J TYPE CX AMPS: S 10.5 RPM: 3450 Serial CA05 -10 Making lots of noise, so looking to replace. Recommendations?
 Reply

A  Answered on 9/3/2018 by InyoPools Product Specialist Lennox H.

Hi, Brian. You can use the following motor as a replacement, the B130 - 2 HP Full Rate Motor, or the B231SE - 2.5 HP Up Rate Motor. You will also need the JHP/JHPU Pump Series Tune Up Kit - GOKIT77
 Reply


?     Asked on 8/16/2018 by Wayne Gallo

I don't see a KW rating on the motor tag. Do they not put that info out any more. The motor I had was rated at 1.55 KWH.
 Reply

A  Answered on 8/16/2018 by InyoPools Product Specialist Lennox H.

Hi, Wayne. The kW of this motor is 2.1.
 Reply


?     Asked on 8/16/2018 by Wayne Gallo

Just pulled a AO Smith 2HP motor off my spa. Model K48N2N104. It is the same pump that is on the pool section so I used it to replace the pool side pump as it was hardly ever used. (running like a charm) Will this motor replace the one I just removed? The pump is a Hayward Super II that is 15 years old.
 Reply

A  Answered on 8/16/2018 by InyoPools Product Specialist Hector F.

Actually, the correct replacement motor is part number ST1202
 Reply


?     Asked on 6/10/2018 by Josh Stewart

I just replaced an old pool pump that was 1 hp 1.65 sf with a hayward super pump 1.5hp/1.0 sf. The flow is definitely not as strong. The piping is 1.5" would it be advisable to install this motor to get flow back? If not can you please direct me to a pump with a 1.65 total hp?
 Reply

A  Answered on 6/10/2018 by InyoPools Product Specialist Lennox H.

Hi, Josh. What is the model of the pump that was replaced? They're different types of pumps as explained in our Which is Best: High Head or Medium Head Pumps? To upgrade your Hayward Super Pump to a 2hp, you will have to replace the Impeller - SPX2615C and the Shaft Seal - SPX1600Z2
 Reply


?     Asked on 6/8/2018 by Jarrod

I have a Hayward (AO Smith model K48M2N111). It sounds like the bearings are going out of it. Do you sell the replacement bearings or what pump motor would replace it?
 Reply

A  Answered on 6/9/2018 by InyoPools Product Specialist Lennox H.

Hi, Jarrod. The K48M2N111 motor uses the 203 Bearing and 204 Bearing. You can use this B230SE or the UST1202 as a replacement.
 Reply


?     Asked on 8/19/2017 by Anna Mitchell

I need to replace an A.O. Smith 2 H.P Pool Motor B230SE part 0-184983-23. The housing is a Hayward model SP4015X2ONS. Please tell me which tune up kit I need to order. Thanks
 Reply

A  Answered on 8/22/2017 by InyoPools Product Specialist Lennox H.

Hi, Anna. There is the Hayward Northstar 4000 Series Pumps (Pre-2003) Tune Up Kit - GOKIT66 but only for pump manufactured before 2003. If your pump was manufactured after then you will have to purchase the parts separately.
 Reply


?     Asked on 8/2/2017 by Robert

What is the differents in a Y56J and a P56J frame
 Reply

A  Answered on 8/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Robert, There is no difference between the Y56J and P56J motor frame style, they're interchangeable.
 Reply


?     Asked on 7/20/2017 by Tina

I have a true L pool 20x40 by 20X50. My motor just gave out. It is an A.O. 2HP, 2 Speed. 230 volts,2MSC I was wondering if I can put an A.O. Smith round flange 56j-ust1202 motor on pump # sp2615x202s.. OR can you suggest a motor that will hook up ?
 Reply

A  Answered on 7/20/2017 by InyoPools Product Specialist Hector F.

Yes you can use the UST1202 in replacement to the original motor for that model Hayward pump.
 Reply


?     Asked on 6/26/2017 by Rich

Hello, I currently have the UST1202 motor for my SP3015X20AZ Super ii pump. I need to replace the motor since the bearings are shot, and the motor housing itself is rusted and old. Would this motor work for my setup? I would like an Energy Efficient motor if it fits and is available. Also, what other parts do I need for the install? Thanks!
 Reply

A  Answered on 6/26/2017 by InyoPools Product Specialist Alex V.

Rich, Yes, this would be a suitable replacement. Please be sure to replace the seals when you replace the motor. For the SP3015X20AZ, you will need the GOKIT2
 Reply


?     Asked on 6/12/2017 by Steve E

I have a Hayward Super II pump with a 2 hp motor. All of the markings are worn off. I believe it is a model SP3020EEAZ. It was installed in 2004. This is the second motor. The motor is starting to make noises (like a bearing is going). I was looking at your "A.O. Smith 2 H.P Pool Motor Energy... (B230SE) - 5213X" . Will this motor fit my pump? What other parts should I replace while I have it apart? Do you have instructions on how to replace a motor? Are any special tools needed?
 Reply

A  Answered on 6/22/2017 by InyoPools Product Specialist Lennox H.

Hi, Steve. The B230SE replacement motor will not work with model # SP3020EEAZ. Your replacement options are p/n ST1202 and B130 along with the Hayward Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT. You can use our How To Replace the Motor on Your Pool Pump to assist you in replacing the motor.
 Reply


?     Asked on 5/25/2017 by Tim

I am interested in replacing not just the pump but the entire basket assembly and "fins". How do I go about finding which one is correct? according to the label this pump is the correct pump. Thanks
 Reply

A  Answered on 5/25/2017 by InyoPools Product Specialist Patrick P.

Hi Tim, could you email us a wide shot of your pump showing the motor basket and plumbing and if you could also send us a close up photo of the motor label to upload@inyopools.com
 Reply


?     Asked on 4/13/2017 by JB

i currently have a ao smith motor that is almost exactly, specs wise, as the b230se you have in stock but mine has a part number of 7-184983-23 and is 56y instead of 56j. is there a different or can i use your b230se 56j to replace my 56y motor? i'm using hayward superflo pumps, i believe. thanks for your help.
 Reply

A  Answered on 4/13/2017 by InyoPools Product Specialist Scott W.

If you have a Pentair SuperFlo you need the 56Y or 48Y frame, the 56J frame will not fit. If you want to attach a picture of your motor label and your complete SuperFlo pump just so I can confirm it is a SuperFlo so we can get the correct shaft seal and motor label so I can get you the correct replacement motor.
 Reply


?     Asked on 1/23/2017 by AM Krogh

I am replacing a CAT# B230SE, PART#184983 with similar and have a couple of questions: 1. which shaft seal kit would you recommend, maybe you guys could offer this as optional for each pump when ordering? 2. are there other pumps which can be used to replace that pump, full rated for example?
 Reply

A  Answered on 1/24/2017 by InyoPools Product Specialist Andy O.

Hello- There are two options when it comes to your replacement. Obviously, there is the Motor 56j Thrd Up 2 Hp (b230se), or you can use Motor 56j Thrd Full 1.5 Hp (b129). As far as the shaft seal, motors are a generic replacement item. As far as the seal kits, motors can fit many different pumps, and the seals are specific to those pumps, not the motor. To find the correct seals you would need to know the model of your pump.
 Reply


?     Asked on 12/7/2016 by David

replacing 2hp us motor asb809 1081 j flange for a hayward northstar older system. Is this the motor I need?
 Reply

A  Answered on 12/7/2016 by InyoPools Product Specialist Adam Y.

Good afternoon David, It depends on the service factor of your motor(s.f.). If it says 1.35 you need a Full-rated SN1202. If it says 1.2 it is UP Rated USN1202. If it is just 1 then yes, that's the one you should getMotor 56j Thrd Up 2 Hp (b230se)
 Reply


?     Asked on 9/26/2016 by Sharon O'Brien

I bought a replacement motor from you a long while back. I have a Jandy Stealth Pump and the motor has gone out. Do you have a replacement in stock? JHPU 2.0 and MOD# B130 - Ser# 02213CHCL010944432
 Reply

A  Answered on 9/28/2016 by InyoPools Product Specialist Stacey M.

Hello Sharon, from the model b130 that you provided the motor that is your replacement is Motor 56j Thrd Full 2hp (b130) and i would recommend replacing pump seal and orings with GOKIT77.
 Reply


?     Asked on 4/14/2016 by Mark

Is replacement of the pump seal recommended when replacing and using this pump motor? I am replacing with the same exact motor.
 Reply

A  Answered on 4/15/2016 by InyoPools Product Specialist Lennox H.

Hi Mark, It is recommended that the shaft seal along with the pump seal be replaced when replacing the motor. If you can provided us the manufacturer and model of the pump housing we can get you the correct seals.
 Reply


?     Asked on 1/21/2016 by William

What is the part number for the start capacitor. Or what size do I need for this pump?
 Reply

A  Answered on 1/21/2016 by InyoPools Product Specialist Lennox H.

Hi William, The B230SE Motor uses the 25MFD 370 Volt Run Capacitor (17586325).
 Reply


?     Asked on 4/26/2015 by

What does the "Thrd Up" in the description/title of this motor mean? Can I also confirm that this will fit a Hayward SuperPump?
 Reply

A  Answered on 4/28/2015 by InyoPools Product Specialist Andy O.

The "Thrd up" in the description of part number 5213x means Threaded (speaking about the Shaft of the motor) and Up-rated (in reference to the power of the motor).
 Reply


?     Asked on 2/13/2015 by John

I need to replace an AO Smith B809 motor. All of the specs look identical to this one (Y56J, 230V, 2hp, etc). Can this replace my motor? My current one is 11.5" long without the shaft. Is this the same quality? Thanks!
 Reply

A  Answered on 2/16/2015 by InyoPools Product Specialist Andy O.

John,I would not suggest using the 5213x. That is an uprated motor. The B809 is a Fullrate motor, the difference would be 5213x has a total hp of 2.0 whereas the B809 is  2.4hp. The lengths would be similar as well. I would also recommend getting a shaft seal or tune up kit. But you would need to get the model of the pump, not te motor to determine that.
 Reply


?     Asked on 1/19/2012 by Guest

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
 Reply

A  Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
 Reply


?     Asked on 1/18/2012 by Guest

I'm trying to find a replacement motor for my pool pump but my model number doesn't match what you have listed as the model number. My model number begins with a C48 and yours begins with an SP. Please help.
 Reply

A  Answered on 1/18/2012 by InyoPools Product Specialist Patrick P.

What we have listed on our chart pages is the pump model number. The model number you have will just identify the motor. If you look on the plastic housing on the pump there should be a sticker which will have the pump model number. You can usually find this by the discharge port on the pump. Once you locate it you can choose the correct replacement motor. Be certain to change the shaft seal and gaskets as needed. You can use our >How to guide if you need help.
 Reply


?     Asked on 1/12/2012 by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/12/2012 by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/11/2012 by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Wrench Set, Adjustable Wrench

Old motor needed to be replaced

Written on 5/1/2018 by Guest

Researched how to replace a pool pump motor and watched the videos related to this on INYO Pools website. I spoke to an INYO pools associate to verify my choice and found a motor that is more energy efficient than my old failing motor. I added the new motor shaft seals and installed the new motor per the videos on replacing a pool pump motor. Overall a fun project that I was easily able to do myself.
