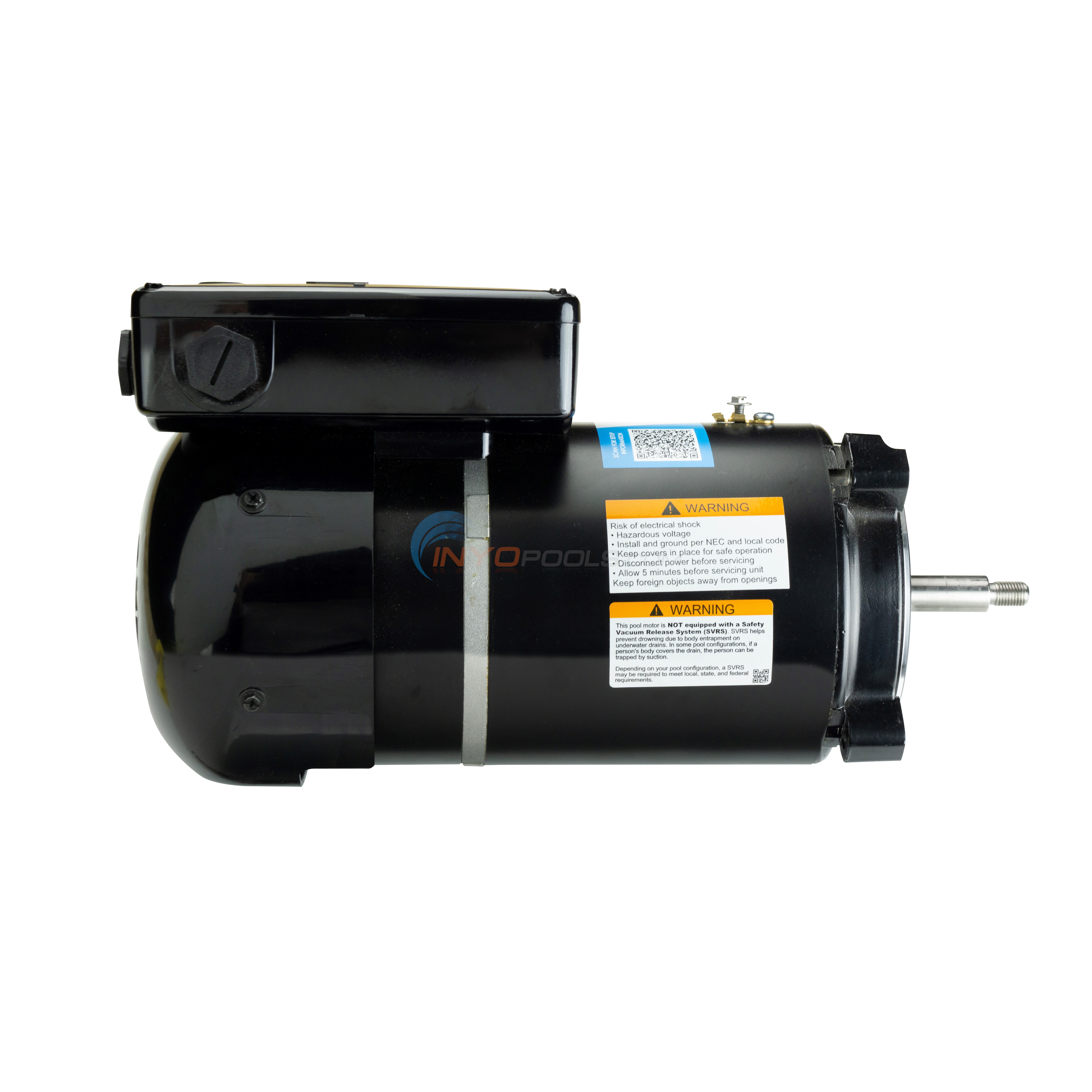

Part # EVC225
Warranty 18 Months
V-Green EVO™ with Century Connect™ Automation Mode to enable communication with many popular automation systems!
Versatility and performance best describe A. O. Smith's new V-Green EVO™ variable speed pump motor with an integrated timer. Capable of delivering superior energy savings of over 80% versus a standard single-speed motor. Spurred by consumer interest in energy-saving products and government-mandated efficiency standards, the innovative V-Green variable speed EVO offers premium efficiency boosted by such features as Power Factor Correction, which raises overall efficiency while reducing input amps! The state-of-art user interface ensures programming ease and flexibility, with on-screen navigation, ergonomic selector switch, and pre-set programs for out-of-the-box operation. A. O. Smith's V-Green EVO is Title 20** compliant and with three user-defined variable speeds is a superb choice for reducing energy consumption, for lowering overall pool ownership costs, and for satisfying regulatory requirements. *Requires a Timer or Automation System for the on/off feature, it does not provide full functionality with automation systems.
Round Flange Hayward Super Pump, Super II Pump & Max-Flo Pumps
Don't Forget Your Tune Up Kit
** California's Title 20 legislation states that pumps > 1HP (total) must be 2-speed or variable speed, and must have control to default to low speed (i.e. timer)
Features:
Benefits:
| THP | RPM | VOLTS | AMPS | SERVICE FACTORS | FLANGE | VGREEN EVO™ MOTOR STOCK NUMBER |
| 1.30 | 600-3450 | 230/115 | 8.6/15.6 | 1.0 | Square | EVQ130 |
| 1.65* | 600-3450 | 230/115 | 10.5/17.7 | 1.0 | Square | EVQ165 |
| 2.25* | 600-3450 | 230/115 | 13.5/17.4 | 1.0 | Square | EVQ225 |
| 1.30 | 600-3450 | 230/115 | 8.6/15.6 | 1.0 | C-Face | EVC130 |
| 1.65* | 600-3450 | 230/115 | 10.5/17.7 | 1.0 | C-Face | EVC165 |
| 2.25* | 600-3450 | 230/115 | 13.5/17.4 | 1.0 | C-Face | EVC225 |
| *When motor is running at 115VAC the total horsepower is 1.65 THP. | ||||||
Hi Joe, all pool motors spin at the same speed (well, the single-speed ones do), so, if you want to improve your pumps performance, you will need a new impeller to match the higher-HP motor. You will also need to get a Pentair VS pump if you want full control from your automation. The good news is that the VS motors can be controlled easily on their own. We would recommend this Hayward Super Pump VS Motor Upgrade Kit. It has everything you will need.
Reply
My model ST1202 motor on my Hayward Super II needs to be replaced, I'm in California so I have to upgrade to a variable speed motor. On the ST1202 webpage it lists the NPTT270 as the recommended replacement part, but I also noticed you sell a Super II VS upgrade kit, which uses this EVC225 motor instead. Is there a major difference between the two? Should I be worried about any comparability issues?
Reply
Hi Nicolas,The EVC225 is an option, but you would also need to downgrade the impeller. The ST1202 is a full-rated motor with a total of 2.60 HP when factoring in the service factor. A better option would be the NPTT270 from Nidec — it’s a 2.70 HP motor, and you’d only need the motor and seal kit to make the switch. It's also more versatile in being able to set programs.
Reply
The Most Helpful Review
1 0
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
So far so good. I have a rich history with Century single speed motors and so far, I'm happy with variable speed alternative. There are limitations to the pre-programmed schedules, gut this more than meets my needs.
Was this review helpful to you?
The Most Recent Reviews
0 1
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
2 seasons with no algae ??
