Top Rail 52 7/8" (ALLURE) 24'/27' (Single) - 19922

$38.99

IN STOCK
FREE SHIPPING

Part # 19922

By Wilbar

  4.17 Average

Details

Top

Part # 19922

Alternate Part #'s 18259

Product Description

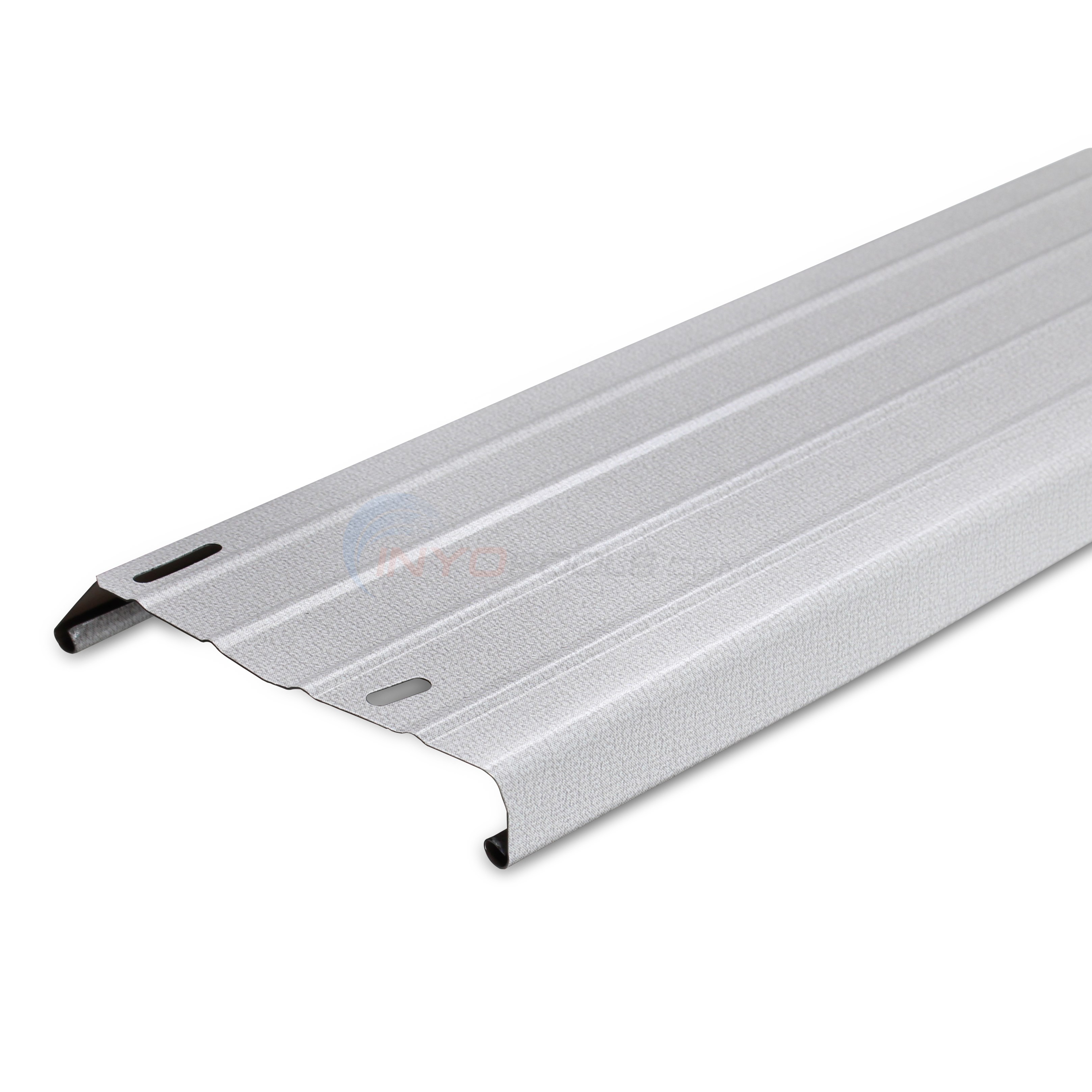

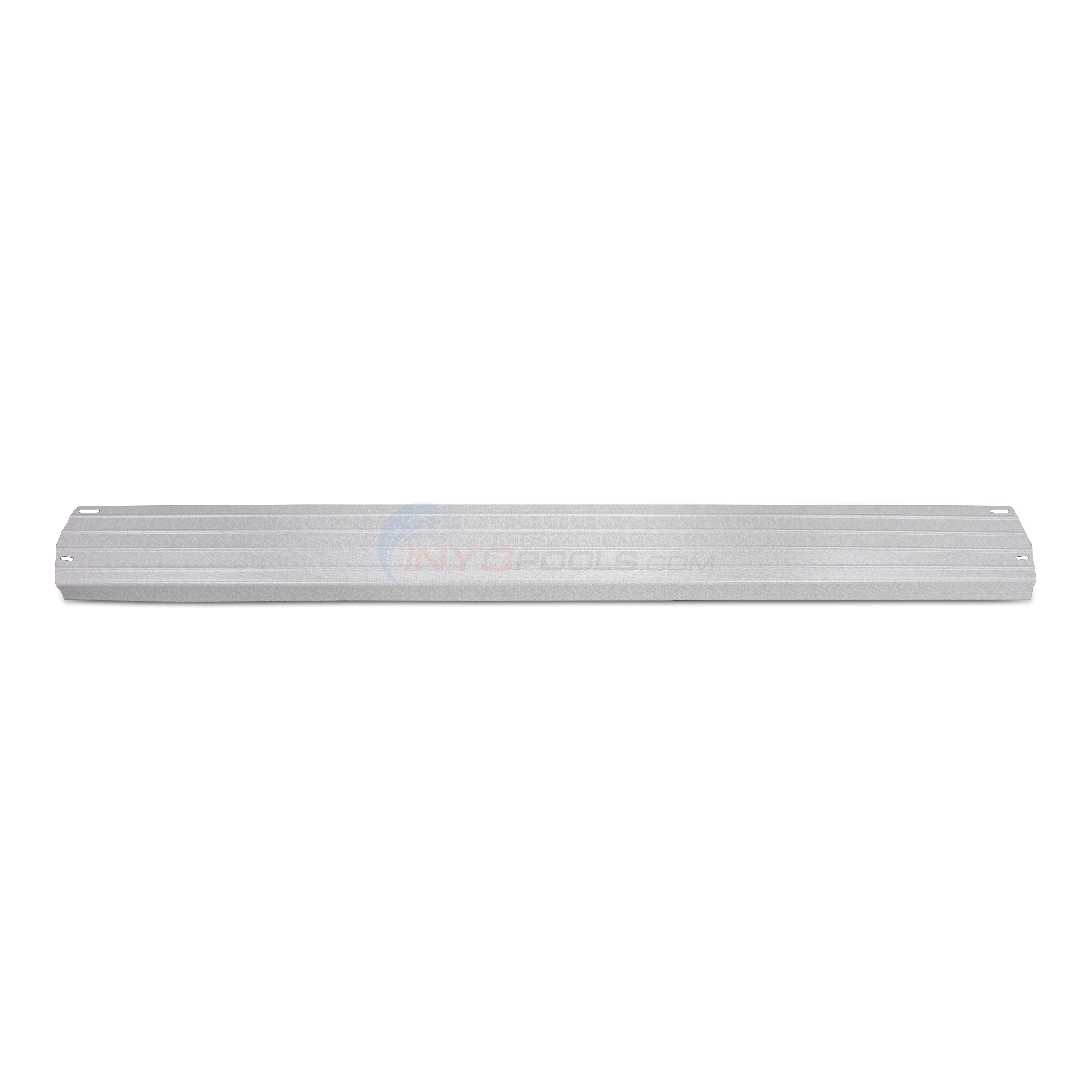

Top Rail 52 7/8" (ALLURE) 24'/27' (Single)

Above ground pool parts are not universal and can be difficult to identify. Inyo wants to make every effort  that your order meets your requirements. If you are not confident that you have chosen the right parts - Please send the following information that is requested below.  Inyo will forward to the information provided to the manufacturer to see if they can determine if the pool is one of their models.

Click here to submit the information requested below.

*   Size of the pool & approximate age of the pool?

*   Image of the pool wall.

*   Image of the upright

*   Image of the top rail connection to the upright.

*   Name & age of the pool (if known)

Product Specifications

Commonly Used On:
Allure
Pool Size:
24' & 27' Round

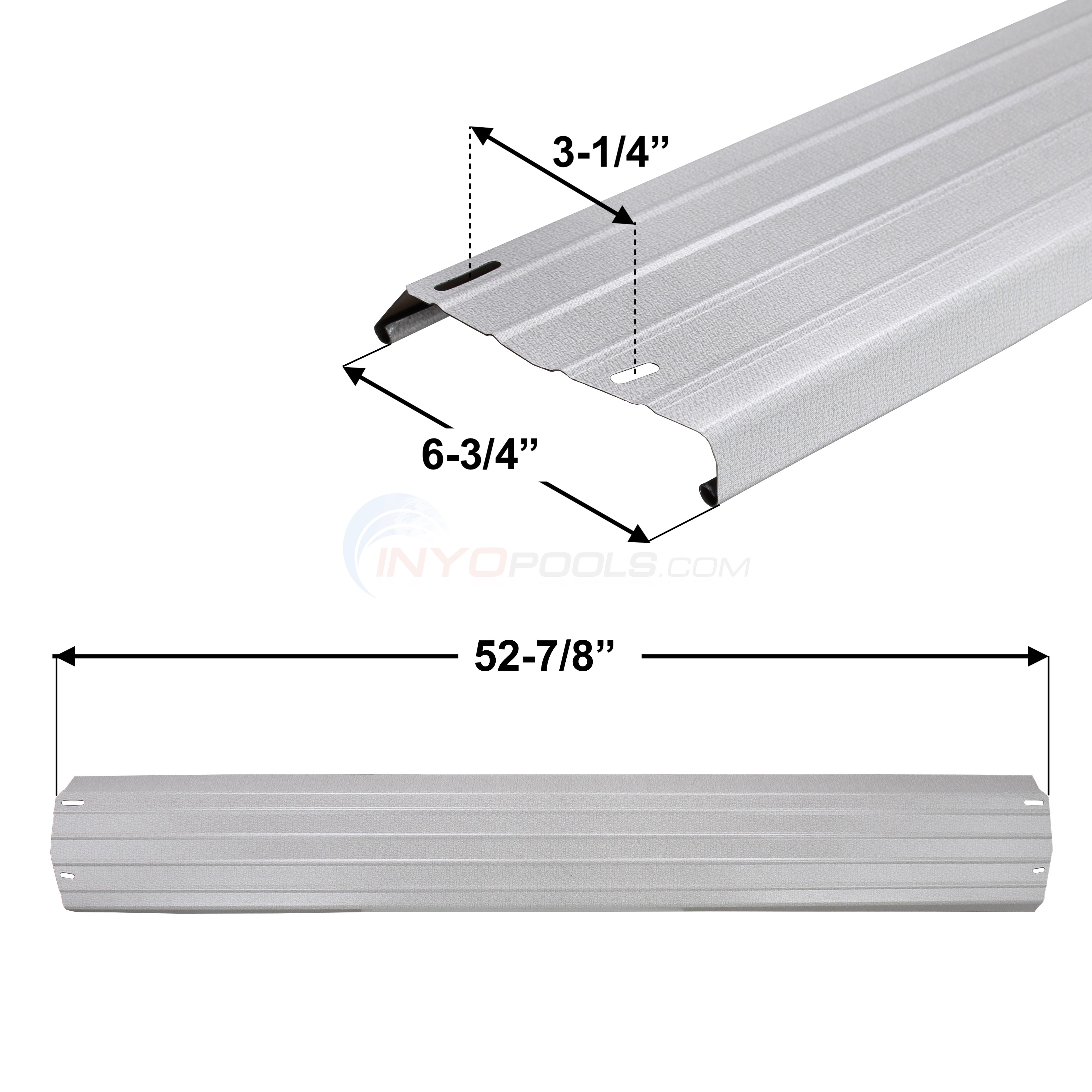

Length:
52-7/8 in.
Material:
Steel
Top

?     Asked on 6/26/2018 by Michele

This part will fit a sea spray allure 24’ round? Thanks
 Reply

A  Answered on 6/26/2018 by InyoPools Product Specialist Lennox H.

Hi, Michele. Yes, based on the info I've gathered. However, to confirm please send us pictures of the Pool Wall, Uprights, Top Rails and Top Rail.
 Reply


?     Asked on 6/1/2018 by Aaron

Is this price for all of them or just one?
 Reply

A  Answered on 6/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Aaron. These rails are sold individually.
 Reply


?     Asked on 7/20/2017 by henry

i need a 52 inch top ledge rail for a 27 ft round pool. it is 8 in wide. the only part number i have are the cap numbers which are 26990 26991
 Reply

A  Answered on 7/21/2017 by InyoPools Product Specialist Robert M.

Hello Henry - Could you email us a picture of the outside pool wall (top to bottom), a picture of where the top rail meets the upright and a picture of the top cap? Include the size of the pool and what you need in the email. You can email upload@inyopools.com
 Reply


?     Asked on 7/16/2017 by Joe C

The listing for PN 19922 states the top rail is for Allure Seaspray 24' & 27' pools. I have a 21' Seaspray. Can you tell me if 19922 will work or if not, what part number should I be looking for?
 Reply

A  Answered on 7/21/2017 by InyoPools Product Specialist Robert M.

Hello Joe - The 21' Seaspray Allure would require the 19921 top rail
 Reply


?     Asked on 5/29/2017 by Ashley

Do the caps and screws come with the rail? If not, which caps would fit the top rail with part # 19922?
 Reply

A  Answered on 5/29/2017 by InyoPools Product Specialist Stacey M.

Hello, I apologize, but these rails go with several different pools, if you could send pictures and measurements of the part needed to upload@inyopools.com
 Reply


?     Asked on 5/29/2017 by Ashley

Do the caps and screws come with the rail? If not, which caps would fit the top rail with part # 19922?
 Reply

A  Answered on 5/29/2017 by InyoPools Product Specialist Stacey M.

Hello, I apologize, but these rails go with several different pools, if you could send pictures and measurements of the part needed to upload@inyopools.com
 Reply


?     Asked on 5/1/2017 by Dave Zimmerman

I found this part on your website, I am certain they are correct. Key 149, Part # 19922 Allure Top Rail. 52 7/8" long and 6 1/2; wide. All the measurement are exactly as what I have. I need 8 but was thinking of ordering all 17. However I may order just 1 to make sure of the fit. could you offer an discount if I were to buy all new?
 Reply

A  Answered on 5/2/2017 by InyoPools Product Specialist Stacey M.

Hello, I apologize, but these only come in single units and there are no discounts on this part number 19922 for Top Rail.
 Reply


?     Asked on 3/5/2017 by

is this rail available in 41 1/4" length? I need some for a 12' x 24' oval. They look exactly like these just shorter
 Reply

A  Answered on 3/8/2017 by InyoPools Product Specialist Lennox H.

Hi, We have several Top Rails that is 41-1/4" long. We will need to know that make and model of your pool in order to locate the correct top rail. You can also send photos of the pool wall, upright, top caps along with the pool size to upload@inyopools.com so we can try to identify your pool.
 Reply


?     Asked on 3/5/2017 by

Are these available in 4 or six packs?
 Reply

A  Answered on 3/6/2017 by InyoPools Product Specialist Lennox H.

Hi, These top rails are not available in 4 or 6 packs, they are sold individually.
 Reply


?     Asked on 9/24/2016 by Dallas Grandia

Are these available in resin?
 Reply

A  Answered on 9/25/2016 by InyoPools Product Specialist Stacey M.

Hello Dallas, These pieces are only available in steel.
 Reply


?     Asked on 9/4/2016 by David Gorge

what is width of this top rail
 Reply

A  Answered on 9/8/2016 by InyoPools Product Specialist Scott W.

The width of that rail is 6.5"
 Reply


?     Asked on 7/17/2016 by Jeffrey Martin

I am looking to replace all the top rails on my seaspray allure. It is 18' x 33' x 52". I would like resin if available. Can you supply them? The pool was installed in 2010.
 Reply

A  Answered on 7/22/2016 by InyoPools Product Specialist Lennox H.

Hi Jeffrey, Unfortunately, We do not have resin top rails that will fit the Allure 18' x 33' x 52" pool. Click link > Allure 18'x33' Oval (Steel Top Rail, Steel Upright) Parts for available parts.
 Reply


?     Asked on 5/23/2016 by Jason

Are these top rails painted like factory original?
 Reply

A  Answered on 5/24/2016 by InyoPools Product Specialist Lennox H.

Hi Jason, This Rail is painted like the factory originals.
 Reply


?     Asked on 7/6/2015 by Jason

Could you tell me what color these rails are? Thanks
 Reply

A  Answered on 7/6/2015 by InyoPools Product Specialist Brian M.

The color of the rails is a tan / tope speckled pattern.
 Reply


?     Asked on 6/9/2015 by

no question--I had sent questions already and sent pics and was told this was the correct one. Thanks to all.
 Reply

A  Answered on 6/9/2015 by InyoPools Product Specialist Patrick P.

Thanks so much for the kind words, we are glad we could track down these parts for you.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver

Pool rails pitted and backside was rusting away.

Written on 10/16/2018 by Guest

We ordered replacement parts from INYO Pools. When they arrived we were able to remove the seam caps and very simply place the new rails. We used a screwdriver only and the most difficult part of the job was matching the top and bottom pieces of the seam caps. We built a deck around the pool so for a few spots someone had to get under the deck and work upward. If you have not yet built a deck around your pool, consider that you may have to replace these parts down the road and allow ample space and a straight line for a screwdriver to fit.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Nut Drivers

Top rails corroded with pieces of metal dropping into the pool, sometimes leaving shop edges

Written on 8/8/2018 by Guest

Several years ago, I acquired a used Seaspray Allure above-ground pool. As soon as I realized both the financial and time costs of chlorine tablets, I converted to salt water chlorination. It's been nearly trouble-free! Except the metal parts at the top of the pool corrode away every 2-3 years. That's when InYoPools helps out. The dealer who sold the pool took forever to get the first set of replacements. Since then, I've ordered from InYoPools and received the rails and accessories a couple days later. And at a lower price.

To replace the top rail, begin by removing the top of the clam shells on each side of the rail. This is one hex-head screw on the underside of the top piece - no need to remove the bottom supporting part of the clam shell. Two screws on each side of the rail go into the top plate. If that plate is also corroded, replace it, too, just a couple more screws to do that job. Carefully remove the old rail, especially if there is jagged metal and put it aside. Then place the new rail and screw down. Delay replacing the top clam shell pieces until all rails are replaced, especially if you want to clean them. It may be necessary to replace some of the stainless steel screws.

At one time, a couple friends and I replaced the inner stabilizer steel, coping strips, and top plates. If you are replacing the top rails and find corrosion on these parts, replace them, also. We completely drained the pool. Then in about an hour, we had the old stabilizer ring off, the new ring assembled and on the new coping strips. The secret is being sure the ring pieces are fully inserted and it may take a little work before the ring will seat. Note: Next time this is required, I leave about 1/3 the water in the pool.

Also, add a sacrificial zinc anode to your system to cut down on the corrosion.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Drill driver

The O.E.M. parts rusted after several years because we have a salt water system.

Written on 7/31/2018 by Guest

I removed the old top rails and installed the new rails purchased from INYOPOOLS.com. They were perfect match for both size and color, and were the cheapest I could find anywhere. Simply remove the plastic post caps, unscrew (4) screws with a drill driver or screwdriver, remove the old rail, and install the new one using the same (4) screws. Replace the post cap and you're done in approximately 10 minutes.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers

1     0

Top rail was rusty

Written on 6/16/2018 by Guest

Removed top caps between the rails, then removed the two screws holding each end of the rail to the post underneath, removed the rusty rail, placed new rail in position, replaced two screws on each end. Replaced the top cap and was done!

Were these instructions helpful?


Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

1/4" socket wrench and a Philips screw driver

2     0

Had to replace all top rails (17) on my pool.

Written on 3/22/2017 by Guest

I received the 17 Top Rails - 52 7/8" (ALLURE) 24'/27' (Single) rails, free shipping ,yeah, and inspected them to make sure no dents or scratches were found. Everything was good so I proceeded to replace each rail with 17 new Allure Top Plate 5.5" W/U-Shape GF (Single). The process was fairly easy but time consuming, I had no help so I did each one very slowly to make sure each section was nice and tight. I used a 1/4" socket wrench and a Philips screw driver for the entire job. The finished job looked great and was a lot more sturdy and the end. The rails I replaced were installed June of 2008(9 Years old) so they were a bit worn and rusted. All the top plate were completely rusted. It was a good Idea to change both. Now the test of time will tell how long these will last.

Were these instructions helpful?
