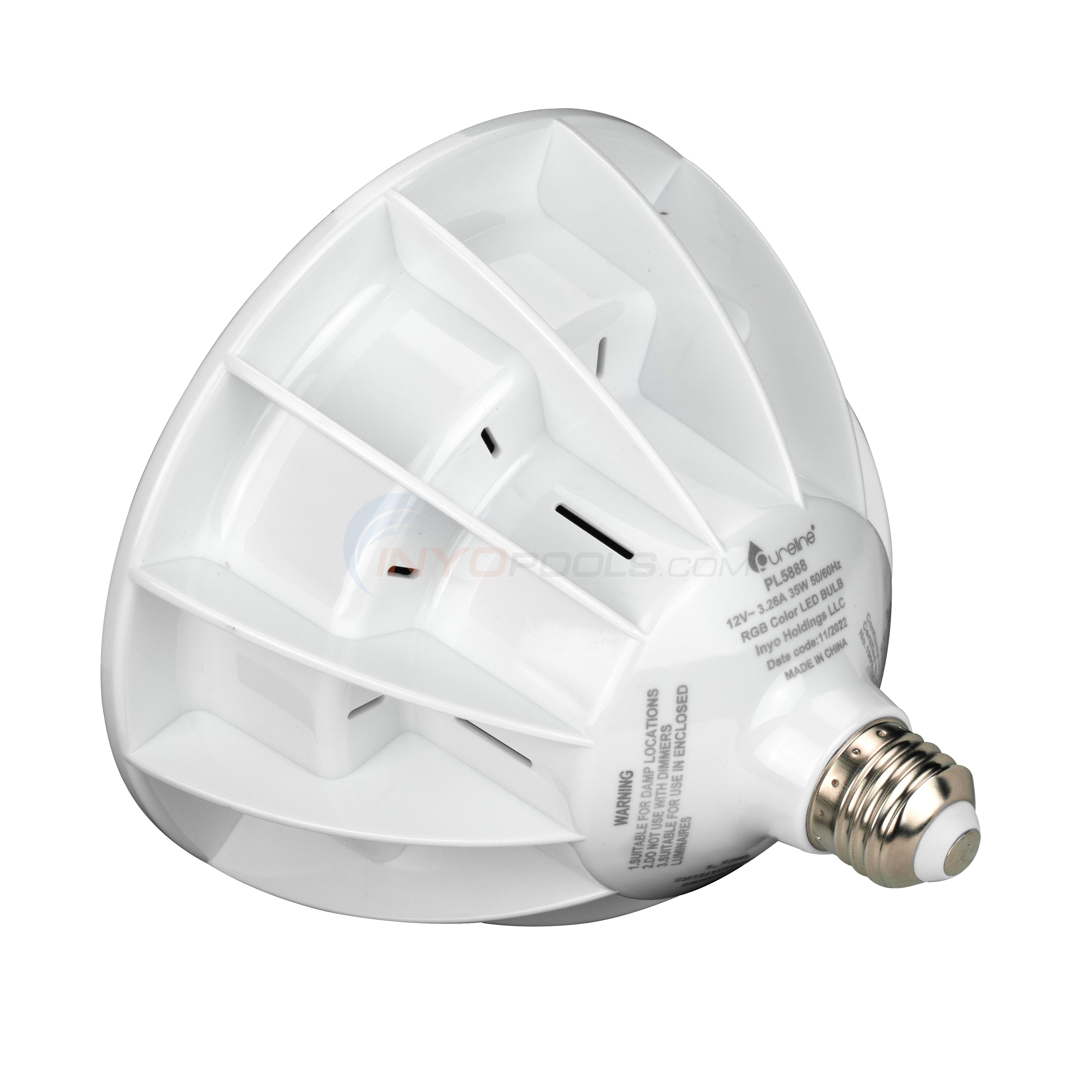

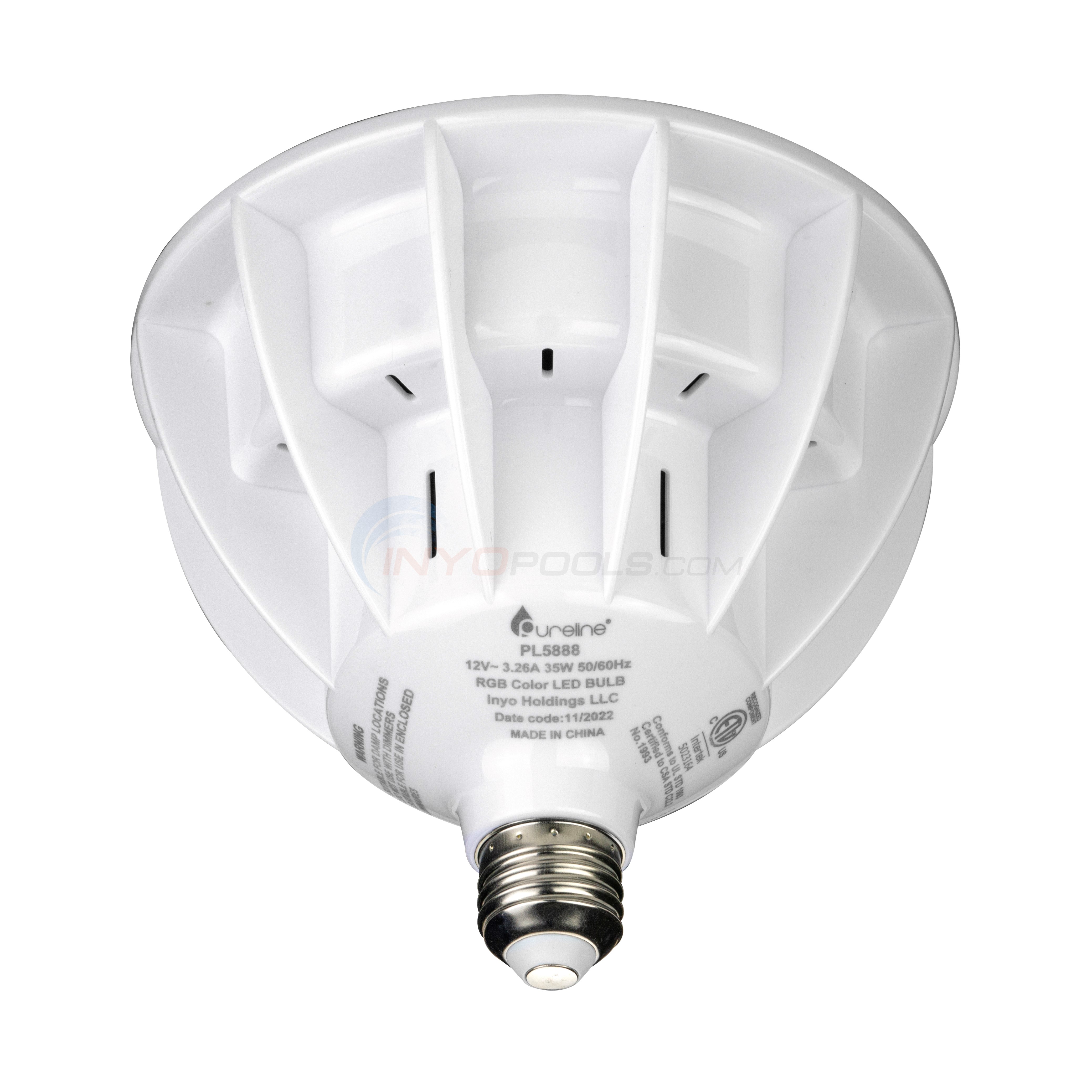

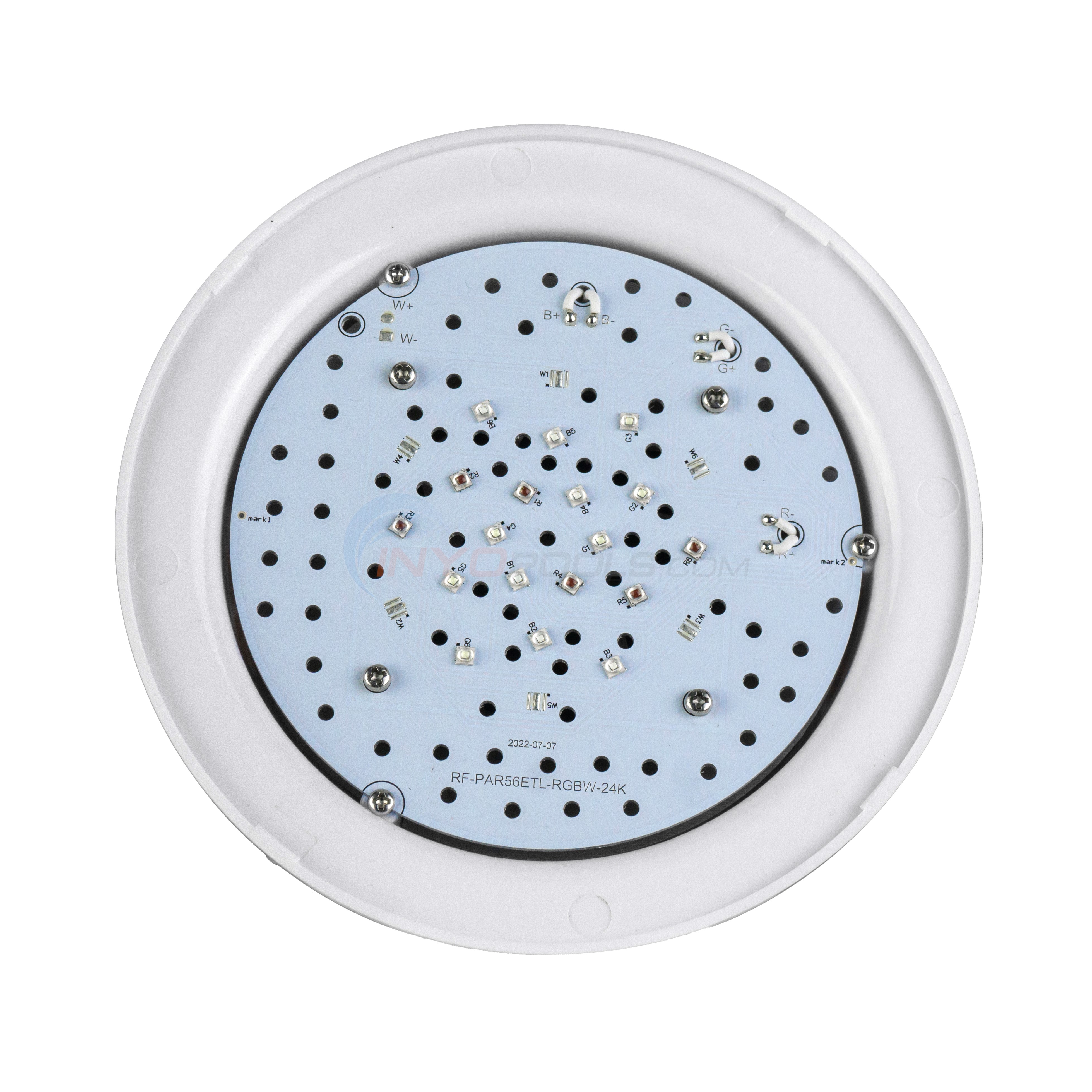

LED Pool Bulb Color Changing 12V 35W - PL5808

$149.99

IN STOCK
FREE SHIPPING

Part # PL5808

By PureLine

  4.75 Average

Details

Top

Part # PL5808

Warranty 2 Year Warranty

Dimensions 6-5/8" x 5-1/4"

Product Description


REPLACEMENT COLOR CHANGING LED POOL & SPA LIGHTS

PureColors replacement LED pool & spa bulbs offer seven solid colors, and nine light shows that can instantly transform your pool area into a color-rich paradise. The PureColors bulb uses an Edison screw in base, so they install easily into your existing fixture in just minutes. Plus, LED technology makes them the most energy efficient and longest lasting bulb on the market.

ADVANTAGES:

  • LED technology
  • 80% Operational Cost Savings
  • Standard screw in light base for quick & easy replacement
  • Synchronize multiple lights to operate in unison
  • 50,000 hours Lifespan
  • 2-year warranty
  • 441LED's

COMPATIBILITY:

  • Hayward Astrolite SP0580 Series
  • Hayward DuraLite SP0570 Series
  • Pentair Amerlite 784 Series
  • Note: Not compatible with Swimquip Light Fixtures or Hayward SP0540 series.

Product Specifications

Color:
Color Changing
Pool / Spa Type:
Pool
Volts:
12 V
Watts:
35 W
Controller:
Light Switch
Lumens:
White: 2,600 Colors: 850
Incandescent Equivalent:
300 Watt
Top

?     Asked on 9/7/2019 by David shultz

How long does a bulb last, my last bulb was not color changing, does that make a difference, How do I know what gasket size to purchase
 Reply

A  Answered on 9/12/2019 by InyoPools Product Specialist Hector F.

These LED bulbs have an approximate life of 50k hours and those between a standard bulb does make a difference. In order to confirm the gasket that you will need you will need to know the model name or number of the light fixture itself usually located on the rear of it. If that is not legible you can always email us images to upload@inyopools.com so a tech can review and further advise.
 Reply


?     Asked on 8/2/2019 by Terrence Saunders

Is there a remote included with this bulb? If not what is the procedure for changing the colors and programs?
 Reply

A  Answered on 8/2/2019 by InyoPools Product Specialist Lennox H.

Hi, Terrence. This LED bulb does not include a remote. It can be controlled using a light switch.
 Reply


?     Asked on 7/24/2019 by Alton McCallum

I have an old Anthony Sylvan Pool. I want to switch over to a color changing LED bulb. My pool is about 35,000 gallons. Wondering if this bulb will work for my pool. I attached photos of the old pool light labels.

 Reply

A  Answered on 7/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Alton. Based on your fixture model, you can use the PL5809 - 35W 120V or PL5859 - 35W 120V (v2). You will also need to get a new Lens Gasket - 79101600 (OEM), 791016 (Generic), or LPL-G-P (Heavy Duty).
 Reply


?     Asked on 7/22/2019 by Jay

I have a American Products R-30 bulb, 12 volts and 100 watts. I was inquiring about a suitable LED white light or LED color changing light replacement in which I only have to change the bulb and not any of the wiring that goes back to the circuit breaker. If you could give me model information for both the white light and color changing LED I would appreciate it. Also, if I purchase a light from your company and it does not work to satisfaction in my pool what is the return policy.

 Reply

A  Answered on 7/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Jay. Based on your fixture model your options are P/N PL5846 (White), PL5866 (Color V2), or PL5816 (Color V1). The product can be returned if you're not satisfied, it can be return within 30 days, however, returns are subjected to a restocking fee up to 20 percent.
 Reply


?     Asked on 7/8/2019 by Rodney Troutz

I have this bulb and it’s about 3 years old. It has started flickering and changing programs after about an hour of operation. I have checked the fixture and it doesn’t seem to have water in it. The switch is good, I’ve checked it too. Is it time to replace this light? Or anything else that could cause this? I have an Amerilite 12v fixture.
 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Hector F.

If the fixture is good and so is the switch then the bulb must have failed. They have about 50k hours of operation. It is likely that the bulb board shorted.
 Reply


?     Asked on 7/2/2019 by Chad Elliott

Will this bulb work for this fixture? The sticker on the fixture indicates model # SP 571, but the lens indicates it is model # SP-540-Z-1. I ask because I already have an LED bulb that measures 6 5/8 diameter that does not quite seat in the socket before the lip of it contacts the edge of the fixture.

 Reply

A  Answered on 7/2/2019 by InyoPools Product Specialist Lennox H.

Hi, Chad. Yes, this PL5808 will fit into the SP570 series fixture.
 Reply


?     Asked on 6/25/2019 by Paul Sullivan

Want to replace my existing regular light with LED, will this LED work for my pool. I have a Hayward niche, I have a photo of the label on the niche if that helps.

 Reply

A  Answered on 6/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Paul. In order to use this LED bulb, you will have to replace your existing fixture with the Hayward Duralite Fixture along with this bulb.
 Reply


?     Asked on 6/20/2019 by GM

Want to purchase an LED build for my Hayward pool light fixture. Information for current light is as follows: Light housing is Hayward Model # SP058050. Watts 100 Volts 12 and Bulb R30. What type LED bulb will fit and what gadget to I need? Looking for best value and hopefully something on sale.

 Reply

A  Answered on 6/20/2019 by InyoPools Product Specialist Hector F.

You would use bulb model PL5809 and gasket part number 3550-24.
 Reply


?     Asked on 6/4/2019 by DaveK

Looks like the PL5808 will fit my 12V Standard base fixture. The 300 watt bulb I use now, can be dimmed to set a mood for the pool. Is the P5808 led also dimmable? If not is there a similar bulb to the P5808 that is dimmable? Too bright doesn't work....for me. Thanks.
 Reply

A  Answered on 6/4/2019 by InyoPools Product Specialist Lennox H.

Hi, DaveK. Unfortunately, the PL5808 LED Bulb is not dimmable. There is not a Color LED bulb that is dimmable.
 Reply

  • Commented on 6/4/2019 by Product Owner

    Is there a White only (no color) led bulb with a standard base 12v that is dimmable? If so what is the part number and price? Thanks.
     Reply

    • Commented on 6/6/2019 by InyoPools Product Specialist Patrick P.

      We do carry a white LED bulb but it is not dimmable. None of the LED bulbs we carry are dimmable. We do carry a lower wattage bulb that will be dimmer which you can view our purchase here 18 Watt PureColors 12V LED Bulb
       Reply


?     Asked on 5/27/2019 by Chance

Is this the replacement for an R-40 120v 500w in a Pentair 619562 housing?
 Reply

A  Answered on 5/27/2019 by InyoPools Product Specialist Patrick P.

Hi Chance, since you have a 120V bulb then this bulb will not work. You will need the PL5809 120V PureLine PureColors LED Color Changing Replacement Bulb which will fit your R-40 120v 500w in a Pentair 619562 housing
 Reply


?     Asked on 5/19/2019 by Alejandro

Hello, Will this bulb be compatible with the light fixture on the picture attached? I also attached a picture of the transformer, just wondering if this is 12V transformer and if it is 300w, and could you tell me if it fits? Thank you, Alejandro

 Reply

A  Answered on 5/19/2019 by InyoPools Product Specialist Hector F.

In order to confirm, we would need to know the actual model number of the light fixture or if the light has an incandescant bulb in it. You may be able to locate that model on the rear of the light on a label.
 Reply


?     Asked on 5/17/2019 by joe

will this replace my sp-540
 Reply

A  Answered on 5/17/2019 by InyoPools Product Specialist Patrick P.

es, this bulb will fit the Hayward DuraLite SP0570 Series fixture. You will also need the DuraLite Lens Gasket - SPX540Z2
 Reply


?     Asked on 4/29/2019 by Jon

Will this bulb work with a Hayward SP-561 fixture? Thanks
 Reply

A  Answered on 4/30/2019 by InyoPools Product Specialist Patrick P.

Hi Jon, for your Hayward SP-561 12V fixture we would suggest the PL5810 Crystal Pure LED Bulb
 Reply

  • Commented on 4/30/2019 by Product Owner

    So I won’t have to replace the entire fixture, just the bulb?
     Reply

    • Commented on 4/30/2019 by InyoPools Product Specialist Patrick P.

      Hi Jon, Yes this would mean you just need to replace the bulb we do see where you ordered the PL5808 bulb and our suggestion was the PL5810. We are not 100% sure if the PL5808 will fit in the SP-561 but we do know that the PL5810 will. I would suggest trying the PL5808 bulb first as if it does fit in your housing then it will be brighter than the PL5810. If the PL5808 is too large then you can return that bulb and use the PL5810 which is a little smaller. We would also suggest replacing your Hayward DuraLite Lens Gasket.
       Reply


?     Asked on 4/14/2019 by Bob

Will the PL5808 color changing bulb fit my STA-LITE fixture? Measures roughly 8 inches across at opening. I’ve attached pictures. Thank you.

 Reply

A  Answered on 4/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Bob. This bulb will not work with the following Sta-Rite fixture.
 Reply


?     Asked on 4/8/2019 by

Do not see where anyone has asked about a STA-RITE housing, will this work for this application?
 Reply

A  Answered on 4/9/2019 by InyoPools Product Specialist Patrick P.

Hi, Could you reply back to this comment with the make and model of your Sta-Rite Light? Here is an Article on How to Find Your Pool Light Model # which you may find helpful. Also if you want to post photos you may do so by posting a new comment as that will allow you to post photos.
 Reply


?     Asked on 2/17/2019 by Alan

Pool light 35w - when it says controlled by a light switch - can you be more specific
 Reply

A  Answered on 2/17/2019 by InyoPools Product Specialist Lennox H.

Hi, Alan. Your pool light must be wired to a light switch. Toggling the light switch from On/Off will change the colors.  Instructions are available in the Start Up instructions on page 2 of the PureLine PureColors LED 12V Owners Manual
 Reply


?     Asked on 2/9/2019 by Pattinotpat

Will this bulb work with mt Hayward SP057 housing?
 Reply

A  Answered on 2/12/2019 by InyoPools Product Specialist Lennox H.

Hi, Pattinotpat. Yes, this bulb will fit the Hayward DuraLite SP0570 Series fixture. You will also need the DuraLite Lens Gasket - SPX540Z2
 Reply


?     Asked on 11/24/2018 by Mike TenYk

Will this work in an American Products 4" spa light fixture?
 Reply

A  Answered on 11/24/2018 by InyoPools Product Specialist Patrick P.

Hi Mike You would require one of the PureColors Spa LED Bulbs for a 4" American Products Light.
 Reply


?     Asked on 11/11/2018 by Yendor32

I have a Hayward SP-571 fixture 300 w 12v R40 bulb type. Will this bulb work and if so, do I have to make any type electric work? Just bought a new gasket, clamp, and fixture face.
 Reply

A  Answered on 11/12/2018 by InyoPools Product Specialist Lennox H.

Hi, Yendor32. This Color Changing LED Pool Bulb - PL5808 is compatible with the Hayward SP-571 fixture. No additional electrical work is required.
 Reply


?     Asked on 10/6/2018 by James

Hello. Have a Jandy pool light and housing. Added converter from 120v to 12v. Purchased an led color light but base was e27. Doesn't fit. Assuming e26 or something else is needed. Can you recommend the right color led bulb?
 Reply

A  Answered on 10/6/2018 by InyoPools Product Specialist Lennox H.

Hi, James. In order to confirm which LED bulb will be compatible with your Jandy light fixture, please provide us with the model number.
 Reply


?     Asked on 9/30/2018 by Betsy

Will this work in a SP-581-S fixture?
 Reply

A  Answered on 10/3/2018 by InyoPools Product Specialist Lennox H.

Hi, Betsy. Yes, this 35W 12V LED Pool Bulb will fit the Hayward SP-581-S fixture. You will also need the  Astrolite Lens Gasket - SPX0580Z2
 Reply


?     Asked on 9/16/2018 by Susan

I have a jandy cplvleds100 12 volt 4 amp light fixture-will this work?
 Reply

A  Answered on 10/10/2018 by PureLine

Hi Susan, unfortunately, this bulb will not work as a replacement for the Jandy Cplvleds100 Light.
 Reply


?     Asked on 7/10/2018 by Mark

New to the pool light scene, is the LED Pool Bulb Color Changing 12V 35W - PL5808 also a white light or just color ? Also what are the colors ?
 Reply

A  Answered on 7/10/2018 by InyoPools Product Specialist Lennox H.

Hi, Mark. This is a color changing LED bulb which also has a white color option. To view the programmed colors and shows, see page 1 of the PureLine PureColors LED 12V Owners Manual.
 Reply


?     Asked on 7/8/2018 by Phil

I have a Hayward SP-582-L fixture w/300w incandescent bulb. Will this work for me?
 Reply

A  Answered on 7/8/2018 by InyoPools Product Specialist Lennox H.

Hi, Phil. Based on you fixture model which is a 300watt/120volt unit, you can use PL5809 - LED Pool Bulb Color Changing 120V 35W and Astrolite Lens Gasket - SPX0580Z2. You will have to change the complete fixture and install a transformer in order to use this 12 volt bulb.
 Reply


?     Asked on 6/28/2018 by Patrick

My pool is a 16'x32' pool with a sports bottom that has the deepest section around 7'. Should I get the 18W or the 35W?
 Reply

A  Answered on 6/28/2018 by InyoPools Product Specialist Lennox H.

Hi, Patrick. The 35 Watts will be better if you only have one fixture in the pool.
 Reply


?     Asked on 6/16/2018 by David

How do you get it to change colors?
 Reply

A  Answered on 6/17/2018 by InyoPools Product Specialist Alex V.

David, To change colors, you would turn your light switch on and off.
 Reply


?     Asked on 6/6/2018 by Tony

How does the 12v 35watt LED crossover to the 300w as far as lumens
 Reply

A  Answered on 6/6/2018 by InyoPools Product Specialist Lennox H.

Hi, Tony. This bulb is rated at White: 2,600 / Colors: 850 Lumens, and a 300 watt incandescent bulb is rated at 3000 lumens.
 Reply


?     Asked on 6/3/2018 by

How does this bulb compare with the Color Splash LXG? The price is significantly different.
 Reply

A  Answered on 6/3/2018 by InyoPools Product Specialist Patrick P.

We have found this light to be every bit as good as the Color Splash LXG if not better. We really like the fact that the PureColors has a 2 Year warranty.
 Reply


?     Asked on 5/29/2018 by Paul

I am replacing a color logic unit that has sprung a leak and failed, My transformer is still working, so what fixture would I need to fit a Heyward Model SP0607 (U) niche that would accept this bulb and would it be as bright as the color logic?
 Reply

A  Answered on 5/29/2018 by InyoPools Product Specialist Lennox H.

Hi, Paul. You can use the Hayward Astrolite Fixture.
 Reply


?     Asked on 5/22/2018 by Paul M Rosol Jr

installing new liner. I want to change the bulb to the LED. do I need just the bulb or is there a replacement gasket that is recommended. I am also considering installing rope LED lights under the coping around the pool. What should issues would I encounter. In addition we are installing two foundations or sprays in the deep end. what options do I have? The pool is standard 18x38 with diving board and step outs on the shadow end.
 Reply

A  Answered on 5/22/2018 by InyoPools Product Specialist Patrick P.

Hi Paul, when replacing the bulb you will want to replace your lens gasket. There should be a label on the side of your light housing that will give you a model name and # for your light, if you can supply that to us then we can suggest the proper gasket. With rope lighting you will need to install a track under your coping, purchase a light tower and then the fiber optic rope light. Here is a link to various Pool Deck Jets we offer the Jandy Deck Jets are the most popular.
 Reply


?     Asked on 4/23/2018 by Billy

I have a WPLV100WS50 Jandy light fixture with 12W bulb,.. is this compatible?
 Reply

A  Answered on 4/24/2018 by InyoPools Product Specialist Megan C.

Unfortunately, it will not. The bulb size will not fit inside of the fixture housing.
 Reply


?     Asked on 4/8/2018 by jimmy

I have an American products light model R-300 BC 12 volt...I purchased a LED 12v 35w-PL 5808 bulb....in the housing is a little curly wire like a toaster wire...low water sensor?... was wondering if this would affect the plastic housing on the LED bulb
 Reply

A  Answered on 4/10/2018 by InyoPools Product Specialist Lennox H.

Hi, Jimmy. It will not affect the bulb housing.
 Reply


?     Asked on 3/25/2018 by Gene

Is the 35watt 12v light as bright as the white 300 watt 12v bulb / and how do you change colors?
 Reply

A  Answered on 3/27/2018 by InyoPools Product Specialist Lennox H.

Hi, Gene. Yes, this bulb is equivalent to a 300 watt incandescent bulb. The color is changed using a light switch, turning it on/off.
 Reply


?     Asked on 3/23/2018 by Neil

What's the difference between a PL5808 and a PL 5858 LED bulb? Thanks!
 Reply

A  Answered on 3/24/2018 by InyoPools Product Specialist Patrick P.

Hi Neil, Here is the difference between the PL5858 and the PL5808. The PureColors v2 PL5858 uses a higher quality material for the bulb housing meaning longer bulb life.The new housing design on the PureColors v2 means lower heat dispersion resulting in longer bulb life. The v2 also has a Stronger screw-in base.
 Reply


?     Asked on 2/27/2018 by Mark

I have a Amerlite p/n 74428100, Will your replacement LED work. How do i change the colors, do i need a special switch?
 Reply

A  Answered on 2/28/2018 by InyoPools Product Specialist Patrick P.

Hi Mark, We are not pulling anything up on Amerlite p/n 74428100 however as long as your light uses a standard screw-in style bulb then the Pure Colors will work on your Amerlite. You will want to double check your voltage as the bulb is available in 12V or 120V, normally this is listed on the face of your bulb or on the back of the light housing. No special switch is needed for this bulb, you would simply change the colors through a standard light switch by flipping the switch on and off to cycle through the colors.
 Reply


?     Asked on 10/29/2017 by Raj

Hi. My pool fixture requires a Halco 300w r40 12v bulb. So will PL5808 work as replacement? Thanks.
 Reply

A  Answered on 10/30/2017 by InyoPools Product Specialist Lennox H.

Hi, Raj. This bulb will only work with the following fixtures that use that specific bulb. The Hayward Astrolite SP058 Series, Pentair Amerlite 784 Series.
 Reply


?     Asked on 8/5/2017 by Ernest T Wagner

How is the heat removed from the LED bulb. Is there a built-in heat sink and/or a built-in fan.
 Reply

A  Answered on 8/5/2017 by InyoPools Product Specialist Alex V.

Ernest, The bulb is kept cool by the pool water that surrounds the light fixture. LED bulbs run cooler than a standard bulb.
 Reply


?     Asked on 7/31/2017 by Ernie W

My pool and spa lights are controlled from my Acqualink RS4 controller. There is a button for turning the lights on and off. One button controlls both the spa and pool light. Using the LED color changing bulbs, how do I make the colors change?
 Reply

A  Answered on 8/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Ernie W. The button used for controlling the pool light is the same button that will be used to change the colors of this LED bulb. Keep in mind some controllers have a delayed time which can affect the bulb's features.
 Reply


?     Asked on 7/30/2017 by Dan Carney

I have a Pentair #78411100 fixture and I am wondering what LED color changing bulb will fit? The pool is kidney shaped,10,000 gallons,so was thinking 35W for sure.
 Reply

A  Answered on 7/30/2017 by InyoPools Product Specialist Alex V.

Dan, The PureLine Pure Colors 35W pool light bulb will fit. Please be sure to order the correct voltage and replace the gasket when you change the bulb.
 Reply


?     Asked on 7/20/2017 by Kevin

My original Hayward 500W Pool light bulb is model SPX0504Z7. Basically, a 500W R40 flood light. Would the 18W PL5814 LED bulb be bright enough, or do you recommend the 35W LED PL5809 bulb, and are both compatible for replacement? TY!
 Reply

A  Answered on 7/21/2017 by InyoPools Product Specialist Lennox H.

Hi, Kevin. The Purecolors LED bulbs are not compatible with the SP504 Series fixture. You can only use the 500W 120V Bulb - SPX0504Z7
 Reply


?     Asked on 7/8/2017 by John

Yes, do you have any candelabra bulbs for a pentair pool light?
 Reply

A  Answered on 7/10/2017 by InyoPools Product Specialist Joe S.

At this time there are no LED's that will fit in a Candelabra based unit.
 Reply


?     Asked on 6/20/2017 by Brad B

I have a Hayward 12V pool light with the number SP-540-Z-1 on the glass, and the number SP-580-Z2 on the rubber gasket. Would the PL5808 bulb fit into this enclosure?
 Reply

A  Answered on 6/21/2017 by InyoPools Product Specialist Patrick P.

Hi Brad, Yes this bulb will fit your enclosure. Just make sure that your light is 12V if you have 120V then you will need the PL5809 Pure Colors 120V LED Pool Bulb
 Reply


?     Asked on 5/30/2017 by

Is this bulb good for inside a concre tpool
 Reply

A  Answered on 5/30/2017 by InyoPools Product Specialist Hector F.

Yes, but just keep in mind that these bulbs are compatible with a few model light fixtures. Please review the bulbs product details to see if your light is one of those models.
 Reply


?     Asked on 5/24/2017 by Lee Butler

Hi Guys, I have a Hayward SP0581S50 lights. I want to put color LED bulbs in. What are the brightest LEDs I can fit in there? It would be nice if your website gave a lumens level and an incandescent equivalent. Do you have a brighter bulb? I prefer to use you guys as I've bought motors from you and prefer to stick with a specialist. Thanks, Lee.
 Reply

A  Answered on 5/26/2017 by InyoPools Product Specialist Patrick P.

Hi Lee, the lumen rating of this bulb is 2,600 lumens on white and 850 lumens on the colors. The 35 watt bulb is quite bright and is the brightest bulb I have seen as a LED replacement for the Hayward Astrolight.
 Reply


?     Asked on 5/22/2017 by

If I buy one of these bulbs/ how do I make the colors change.? Is there a remote ?
 Reply

A  Answered on 5/22/2017 by InyoPools Product Specialist Patrick P.

With this model you change the colors through your light switch. We also have the PureColors Bulb with Remote which is controlled through remote and light switch.
 Reply


?     Asked on 4/29/2017 by IRENE L KHO

CAN I USE THIS ONE BULB IN PENTAIR INTELLIBRITE LED 500W MODEL NO 601305? THANK YOU
 Reply

A  Answered on 4/29/2017 by InyoPools Product Specialist Patrick P.

Hi Irene, No the PureColors replacement bulbs do not work as a replacement bulb for the Pentair Intellibrite. The Intellibrite uses a LED PCB Board where the Pure Colors LED bulb is a standard screw in bulb. I don't like the light fixtures that use a board as when the board goes bad you have to replace your entire light fixture. We do carry the Complet PureColors Light fixture which does fit into the same light niche that your Intellibrite uses. The Pure Colors Light fixtures uses a Screw in LED Bulb, so if the bulb ever goes bad it is an easy bulb replacement. We also have a Video on How to Replace a Pool Light Fixture which you may find helpful.
 Reply


?     Asked on 4/27/2017 by Stan

I still have the original niche in my pool. When I resurfaced the pool the contractor install a Fusion led light 12V over the old niche. What would I need to install the pure light 35 watt
 Reply

A  Answered on 4/27/2017 by InyoPools Product Specialist Lennox H.

Hi, Stan. You first will have to find out if the niche is still usable and also find out the model or size of the niche. Then locate a compatible fixture for that niche and confirm if this bulb is compatible with this bulb. So you will need a new light fixture that is compatible with your niche and this bulb.
 Reply


?     Asked on 4/23/2017 by Raymond

Hello, I have a pentair fixture that uses a GE 12v, 21A/R40/FL 300w pool light, can I replace this unit with this LED bulb
 Reply

A  Answered on 4/23/2017 by InyoPools Product Specialist Patrick P.

Hi Raymond, yes this LED bulb would be a suitable replacement for your Pentair light fixture.
 Reply


?     Asked on 4/22/2017 by Fez

The light fixture says Pentair and the series label says 784xxxxxx, 788xxxxx, 789xxxxx The current bulb 21A/R40/FL 12 V I am looking for an LED 12V color changing bulb to replace the old bulb. Please suggest recommended bulb. Tahnks
 Reply

A  Answered on 4/22/2017 by InyoPools Product Specialist Patrick P.

Hi Fez, Yes the PureLine PureColors LED Replacement Bulb would work as a replacement for your Pentair 784, 788, 789 series light.
 Reply


?     Asked on 4/16/2017 by Joe

I removed my pool light and I have Pentair label stating I need a gasket 79101600 and bulb type R30 12V 100W. Series was not specific, 784xxxx, 788xxxx, 789xxxx, was written. Is the gasket still made and which LED bulb can I use? Pool light is model year 2004. Thanks
 Reply

A  Answered on 4/16/2017 by InyoPools Product Specialist Scott W.

Yes, the correct replacement gasket is the 79101600 and the PL5808 is a great replacement bulb for your light fixture.
 Reply


?     Asked on 4/14/2017 by dale

My pool light does not have the screw in bulb option, is a new fixture available.
 Reply

A  Answered on 4/14/2017 by InyoPools Product Specialist Andy O.

Hello Dale- Unfortunately the LED bulbs are only available with the Edison style screw in bulb. Your only option would be to replace the entire fixture. Do you know what model light you have?
 Reply


?     Asked on 4/9/2017 by Neo SY

Can this light replaces Amerlite 79101900
 Reply

A  Answered on 4/9/2017 by InyoPools Product Specialist Patrick P.

Hi Neo, Yes this is the correct LED upgrade to the Pentair 79101900 bulb.
 Reply


?     Asked on 4/5/2017 by Vinny T

What is the life expectancy of these bulbs?
 Reply

A  Answered on 4/6/2017 by InyoPools Product Specialist Patrick P.

Hi Vinny, This bulb has a 50,000 hour lamp life.
 Reply


?     Asked on 3/28/2017 by Alex

I have an in ground pool with an American Product Company light fixture (3195) which uses 12V. I want to switch from incandescent to color LED. Can I use the LED Pool Bulb Color Changing 12V 35W - PL5808 or is there another better fit. Appreciate your advice.
 Reply

A  Answered on 3/29/2017 by InyoPools Product Specialist Patrick P.

Hi Alex, As long as your bulb on your American Products Light uses a screw in base then the PL5808 PureColors Bulb would work in your fixture.
 Reply


?     Asked on 3/26/2017 by Jeff

I have a Hayward SP0580S 12V pool lite. What are my options for white bulbs, not interested in multi color? I have 100W light, the original bulb lasted less than 3 months with moderate use. I use an Intermatic PX300 12V 300W Transformer with Automatic Circuit Breaker. Thanks for any guidance you can give. Jeff
 Reply

A  Answered on 3/26/2017 by InyoPools Product Specialist Patrick P.

Hi Jeff, For your Hayward SP0580S you would need the PL5848 White LED Bulb 12 Volt 35 Watt
 Reply


?     Asked on 3/22/2017 by Chris

I would like to install pool and spa light, they work off same electric switch, would programming be the same for both lights?
 Reply

A  Answered on 3/22/2017 by InyoPools Product Specialist Patrick P.

Hi Chris, Yes if they are working off of the same electrical switch then the programming would be the same for both lights. For example when you flip the light switch both lights would come on in the same color and when you cycle through the color shows the two lights would be synchronized together.
 Reply


?     Asked on 3/22/2017 by Beto

Hello, I just watched your video about how to update your swimming pool lights. however there is something that i couldn't quite understand. is it true that i can replaced my regular (incandescent) bulb for a LED without changing the whole wires? can i still use my existing wiring for this LED bulb? Thanks
 Reply

A  Answered on 3/22/2017 by InyoPools Product Specialist Hector F.

Yes that is correct. The LED replacement bulbs will work as replacing the current bulbs in the Pentair Amerlite, and Hayward Astrolite pool light models.
 Reply


?     Asked on 3/20/2017 by Richard

What is the Lumen output of these bulbs?
 Reply

A  Answered on 3/20/2017 by InyoPools Product Specialist Patrick P.

Hi Richard, the lumen rating on this 35 Watt bulb on white is 2,600 lumens. For the colors red, green, blue, etc.. the lumen rating is 850 lumens. This bulb has 441 individual led diodes, I hope this helps.
 Reply


?     Asked on 3/18/2017 by YABER489

IM SHIPPING THE BULBS TO COLOMBIA .DO I HAVE TO PAY TAXES?
 Reply

A  Answered on 3/18/2017 by InyoPools Product Specialist Patrick P.

You would not pay taxes to us but you most likely will have to pay taxes, duties and brokerage imposed by your local government when the product arrives into your country.
 Reply


?     Asked on 3/18/2017 by yaber489

DO I HAVE TO CHANGE GASKETS?
 Reply

A  Answered on 3/18/2017 by InyoPools Product Specialist Patrick P.

Hi yaber489, We do suggest replacing your gasket when you replace your bulb. The two most popular lights are the Hayward Astrolite which uses this Hayward Light Gasket as well as the Pentair Amerlite which uses this Pentair Light Gasket.
 Reply


?     Asked on 3/18/2017 by

HELLO I NEED 10 OF THIS ANY ESPECIAL PRICE?
 Reply

A  Answered on 3/18/2017 by InyoPools Product Specialist Patrick P.

I'm sorry but the price on the website would be our absolute best price.
 Reply


?     Asked on 3/17/2017 by yaber489

Hello I have Hayward SP0590SL100 AstroLite 100-Watt 12-Volt wich bulb do you recomend
 Reply

A  Answered on 3/17/2017 by InyoPools Product Specialist Patrick P.

Hi, The Hayward SP0590SL100 is the smaller spa light fixture so you would use the PureLine PureColors 12V Spa Bulb
 Reply


?     Asked on 3/17/2017 by Steve

My pool's equipment and lights are controlled by a Intermatic remote control transmitter. Will the replacement bulbs various color options be controllable by this transmitter?
 Reply

A  Answered on 3/17/2017 by InyoPools Product Specialist Andy O.

Hello Steve- This is both a yes and no answer. You wouldn't be able to have full control as in choosing which colors and skipping to them or the light shows. But you would be able to turn the light on and off and change the color that way, it would be just like when you use a light switch.
 Reply


?     Asked on 3/16/2017 by Thomas Mackey

I take it from reading all the above that my Pentair 12 volt 100 watt #79101800 lamp does not qualify for this product? Thank you Tom
 Reply

A  Answered on 3/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Thomas. The 79101800 is a larger flood style bulb used in the American Products/Pentair Amerlite pool fixture. You can use the PL5808 as a replacement for p/n 79101800.
 Reply


?     Asked on 2/11/2017 by Mike Whalen

Do you Have any LED light fixtures that would work on aboveground pool ,I have a 18' round with a large deck around it. Currently I have a 12V halogen light with individual colored diffusers. Thanks for your help in this matter. Also I will be changing my liner out, in the spring and thought it would be a good time to get a new light.
 Reply

A  Answered on 2/13/2017 by InyoPools Product Specialist Lennox H.

Hi, Mike. Click this link > Pool Lights for Non-Niche Pools to view LED pool lights for above ground pools.
 Reply


?     Asked on 1/1/2017 by Jon

Will this bulb fit in a Jandy WPLV300WS30?
 Reply

A  Answered on 1/3/2017 by InyoPools Product Specialist Joe S.

Good day Jon, No this unit will not fit into a Jandy housing.
 Reply


?     Asked on 12/11/2016 by

Is there a remote control option to change the light show? If not how do you control color settings, and or light show?
 Reply

A  Answered on 12/12/2016 by InyoPools Product Specialist Hector F.

There is unfortunately no remote to change the colors on this light. You use the light switch and as you go from on and off the colors and or light shows will change.
 Reply


?     Asked on 11/15/2016 by Jim

Will this bulb replace a 12v Norelco 100watt pool light. My fixture is a Amerilite...
 Reply

A  Answered on 11/15/2016 by InyoPools Product Specialist Scott W.

Yes, that will fit your Amerlite, great replacement.
 Reply


?     Asked on 9/29/2016 by lisa box

I have a fusion inground led pool light serial fpp11009823 that burnt out, is there a replacement led I can purchase or a new light that will fit that bracket thank you lisa box
 Reply

A  Answered on 9/30/2016 by InyoPools Product Specialist Andy O.

Hello LIsa- Unfortunately we have no information on a Fusion inground light. We are unable to look up Serial numbers. Do you have any other information we can use?
 Reply


?     Asked on 9/4/2016 by Ben

I have a sta-rite sunglow 05552 will this light work?
 Reply

A  Answered on 9/8/2016 by InyoPools Product Specialist Lennox H.

Hi Ben, This bulb is not compatible with the Sta-Rite Sunglow light fixture.
 Reply


?     Asked on 9/1/2016 by Henry

If I want to upgrade to led lights I have a 500 watts bulbs in my 3 lights which 1 would you recommend
 Reply

A  Answered on 9/23/2016 by InyoPools Product Specialist Lennox H.

Hi Henry. If you would like to upgrade the bulb or replace the entire fixture we will need to know the model of the light fixture and the niche.
 Reply


?     Asked on 8/20/2016 by JD

I have a pentair 78435100 will this work in my light and is it eqivalent to the 300watt 12 volt bulb
 Reply

A  Answered on 8/20/2016 by InyoPools Product Specialist Stacey M.

Hi JD, I would suggest the 12V 35 Watt Pure Colors LED Pool Bulb as an equivalent  replacement to a 12V 300 Watt Bulb. So PL5808 would work for you, please check whether you want color or pure white.
 Reply


?     Asked on 8/20/2016 by JD

i have my light wired to 14 volts at the transformer due to the distance of the wire run. will this effect this led bulb? Should i wire it for 12 volt?
 Reply

A  Answered on 8/20/2016 by InyoPools Product Specialist Stacey M.

Hello JD, yes I would wire it for 12v.
 Reply


?     Asked on 7/26/2016 by Bill Connors

I have a 20x40 rectangular pool with a Hayward SP-561 light fixture. It reads 300 watts, 12 volts, Bulb type R40. Will LED bulb PL5808 fit this fixture?
 Reply

A  Answered on 7/28/2016 by InyoPools Product Specialist Lennox H.

Hi Bill, The PL5808 bulb is not compatible with the Hayward SP561 Series fixtures.
 Reply


?     Asked on 7/26/2016 by Poul

Hi Can i use a this bulb for a Hayward Sp-580 series?
 Reply

A  Answered on 7/28/2016 by InyoPools Product Specialist Joe S.

Yes you can use that bulb in your light if the unit is a 12v.
 Reply


?     Asked on 7/20/2016 by Ken Harper

I just received the bulb, PL5808, you recommended to replace my existing pool light. My existing light is a 115 volt, light. Do I need to buy a transformer for this bulb to work? If so do you sell the transformer needed?
 Reply

A  Answered on 7/23/2016 by InyoPools Product Specialist Lennox H.

Hi Ken, I apologize for the error but we can set up a return so that you can return the PL5808 for a refund and purchase the PL5809 bulb.
 Reply


?     Asked on 7/18/2016 by Martin

I have a Hayward Duralite SP-571,with diameter of 6 3/8 and a height of 5 3/4 inches.Presently it ha a 12volt,300 watt incandescent.Will this LED fit?
 Reply

A  Answered on 7/23/2016 by InyoPools Product Specialist Lennox H.

Hi Martin, The PureLine Led bulb is not compatible with the Hayward Duralite fixture.
 Reply


?     Asked on 7/15/2016 by Otto Hass

I have a Pentair Intellibright 5G led Light so I would like to know if this bulb fits It
 Reply

A  Answered on 7/16/2016 by InyoPools Product Specialist Lennox H.

Hi Otto, This bulb is not compatible with the Pentair Intellibrite fixture.
 Reply


?     Asked on 7/12/2016 by Ken Harper

I presently have a Pentair light in my inground pool. I would like to change it to a LED bulb. Can you tell me what bulb to use. The bulb is a R-40, 120 volts, 500 Watts Model listed starts with, 7820 and 7822 and 7823 Series 784, 788 and789
 Reply

A  Answered on 7/16/2016 by InyoPools Product Specialist Lennox H.

Hi Ken, You will need the PureLine PL5809 LED bulb which is the 120 volt bulb instead of the PL5808 for your model Pentair fixture. The Guardian Silicone Lens Gasket (LPL-G-P) or the Amerlite OEM Lens Gasket (79101600) can be used as replacements for that light fixture.
 Reply


?     Asked on 6/10/2016 by Keith Heffner

If I order this light and it does not fit properly can I return it? Thank you.
 Reply

A  Answered on 6/10/2016 by InyoPools Product Specialist Charlie R.

Keith,Yes, if it doesn't fit properly, you have 30 days to return the light for a full refund. This bulb is only compatible with the Hayward Astrolite SP058 Series and the Pentair Amerlite 784 Series. It is not compatible with Swimquip light fixtures or the Hayward SP0540 Series.
 Reply


?     Asked on 6/9/2016 by PoolRN

My inground pool light fixture says: SP-561, 300W, 12V, R40. Would it be possible to change the old bulb to an LED Color changing bulb without having to change the entire light fixture? If so, then what LED bulb would you recommend? Thanks.
 Reply

A  Answered on 6/10/2016 by InyoPools Product Specialist Patrick P.

Could you send us a photo of your light and include a measuring tape in the photo showing the width and depth of the light, this would help determine if this bulb is correct for you.
 Reply


?     Asked on 6/1/2016 by Brian

Will this bulb work in Hayward Astrolite 100 Watt Pool Light SP0580S75 or does it have to be 300w
 Reply

A  Answered on 6/2/2016 by InyoPools Product Specialist Patrick P.

Hi Brian, Yes the PureColors LED Bulb will fit in the Hayward Astrolite 100 Watt Pool Light SP0580S75
 Reply


?     Asked on 5/30/2016 by Larry bondibuprofen

I have a Hayward light s 17568 what bulb what LED bulb will replace it
 Reply

A  Answered on 5/30/2016 by InyoPools Product Specialist Patrick P.

Larry, Could you reply to this email sending a photo of your light with a measuring tape in the photo. One photo of the width of the glass lens and second photo showing the depth of the light. Also on the face of the light bulb there should be wattage and voltage information can you please supply us with this.
 Reply


?     Asked on 5/25/2016 by john

I have a 16X34 in ground pool. Currently I have a 12 300 w light bulb in it. What would you recommend for an LED bulb?
 Reply

A  Answered on 5/25/2016 by InyoPools Product Specialist Patrick P.

Hi John, For a 16' x 34' pool I would suggest the 12V 35W PureColors LED Bulb listed on this page.
 Reply


?     Asked on 5/23/2016 by Andrew

What are the lumens on the 35W?
 Reply

A  Answered on 5/23/2016 by InyoPools Product Specialist Robert M.

Andrew - The LED bulbs are not rated in lumens. The 35W is comparable to a 300 watt incandescent light.
 Reply


?     Asked on 5/10/2016 by RICARDO C. KELLY

I now have a 12 volt 300 watt white Pentair bulb in my jacuzzi. I will like to change it to a ledmulticolor 12 volts . 35 watts is much lower than 300 watts. Will it make a big difference as for the lighting in my jacuzzi.?
 Reply

A  Answered on 5/13/2016 by InyoPools Product Specialist Lennox H.

Hi Ricardo, The 300 watt bulb is brighter but a 35 watt LED but can illuminate a hot tub/jacuzzi.
 Reply


?     Asked on 5/9/2016 by John

I believe I have an amerilite pool light bur how would I know for sure? Also how would I know if it's 12V or 120V? Thanks You!
 Reply

A  Answered on 5/10/2016 by InyoPools Product Specialist Patrick P.

The best bet would be to remove the light fixture from the niche in the wall of the pool. To do this you will turn off the breaker to the light then get in the swimming pool and remove the pilot screw at the top of the light face ring. This will then free the light from the wall of the pool and you can bring the light fixture up onto your deck. There should be a label on the light housing which will give you the manufacture and model # of your light. If this information has worn off then you can check your dimensions against the Pentair Amerilite Dimensions or the Hayward Astrolite Dimensions and if they match up then this bulb will fit. The voltage information should be on the light housing but if it has worn off then you can remove the bulb from inside the light fixture and the voltage information should be right on the light bulb.
 Reply


?     Asked on 5/7/2016 by Madonis12

If I replace my pool light switch with one that has an on/off switch + dimmer slider, would that effect this light at all? Do LEDs work this way, I'm not even sure.
 Reply

A  Answered on 5/7/2016 by InyoPools Product Specialist Patrick P.

Hi Madonis12 unfortunately our LED bulb does not work with a dimmer switch and we are unaware of any pool LED bulbs that do work on a dimmer. The Pure Colors LED Bulb does work with a standard on / off switch.
 Reply


?     Asked on 5/6/2016 by Patrick F

My pool has two lights, one on each side. If I were to replace both, how do I sync up the colors so that when I do change them with the light switch technique, they are on the same color or animation?
 Reply

A  Answered on 5/8/2016 by InyoPools Product Specialist Patrick P.

Hi Patrick - As long as the two lights are wired to the same on / off switch then they will automatically synchronized together. For example if when you turn your light switch on and off both lights come on and off together then you are fine. If they are wired to separate switches then you can start them off on the same color show but over time they will fall out of synch.
 Reply


?     Asked on 5/3/2016 by Yemao Huang

I need to order one LED light bulb for the spa ( it seems smaller in size than the the ones in the pool), 3 LED light bulbs for the pool ( want the color changing ones). Just don't know which ones to order. Could you help me please!
 Reply

A  Answered on 5/4/2016 by InyoPools Product Specialist Patrick P.

Hi Yemao, Yes you are correct the spa bulb is normally smaller. Right now we just have the pool lights in stock, however in roughly 10 days we will have the smaller 12V Spa bulbs in stock, so you may want to purchase the pool bulbs now and come back in 10 days to purchase the spa bulb. The spa bulb will only be available in 12V and not 120V.
 Reply


?     Asked on 4/27/2016 by

Can these lights be used to cycle colors when used on a timer and if you can when the timer goes off and turns back on will it be the color you had it on previously or will it change.
 Reply

A  Answered on 4/27/2016 by InyoPools Product Specialist Patrick P.

Yes the Pure Colors Bulb can be used to cycle colors with a timer and it does have memory so if the light is turned off for more than 20 seconds then the next time the light is turned on the light will remember the last color show it was on.
 Reply


?     Asked on 4/15/2016 by Curt

I don't know what brand of light I have now. All I know is it has to be replaced. As long as it screws in will this one work?
 Reply

A  Answered on 4/15/2016 by InyoPools Product Specialist Lennox H.

Hi Curt, These light bulb will not fit into any light fixture. If you can send us photos of the light fixture along with the dimensions we can try to identify the light fixture and confirm if this bulb will fit.
 Reply


?     Asked on 4/10/2016 by dennis

How long of a warranty/typical hrs b4 replacement
 Reply

A  Answered on 4/10/2016 by InyoPools Product Specialist Patrick P.

Hi Dennis, The PureLine Pure Colors LED Pool Bulb has a 2 year manufacture warranty and a 50,000 hour lamp life.
 Reply


?     Asked on 4/7/2016 by

What is the proper wattage of LED bulb for a 16' x 32' pool, we currently have a 12 Volt Hayward Astrolite.
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

For a 16' x 32' Pool I would suggest the 35 Watt Bulb, since you have a 12V pool light currently you would require the 12 Volt 35 Watt Pure Colors LED Pool Bulb
 Reply


?     Asked on 4/7/2016 by Dane

What is the correct wattage for lighting equivelent to the existing 12V 300W bulb?
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

Hi Dane, I would suggest the 12V 35 Watt Pure Colors LED Pool Bulb as an equivalent  replacement to a 12V 300 Watt Bulb.
 Reply


?     Asked on 4/7/2016 by

if you just have an ON/OFF switch for the light how does the color change?
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Alan M.

Hello, The light can be stopped on a color. There are 7 fixed colors white, red, green, blue, gold, cyan and violet. You would cycle to the fixed colors by flipping your pool light switch relatively quickly. In addition to the fixed colors there are 9 color shows..... Evening Sea (slow animation of blue and red), Evening rivers (slow animation of green and red), Riviera (slow animation of blue and green, Rainbow (slow animation of all colors), River of Colors (slow animation of all colors followed by Four Seasons), Disco (fast animation followed by Rainbow) and Party (Fast animation followed by River of Colors).
 Reply


?     Asked on 4/7/2016 by David

Can the light be stopped on one particular color? I tried downloading the owners manual and there seems to be a bad link
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

Yes the light can be stopped on a color there are 7 fixed colors white, red, green, blue, gold, cyan and violet. You would cycle to the fixed colors by flipping your pool light switch relatively quickly. In addition to the fixed colors there are 9 color shows..... Evening Sea (slow animation of blue and red), Evening rivers (slow animation of green and red), Riviera (slow animation of blue and green, Rainbow (slow animation of all colors), River of Colors (slow animation of all colors followed by Four Seasons), Disco (fast animation followed by Rainbow) and Party (Fast animation followed by River of Colors).
 Reply


?     Asked on 4/7/2016 by mark

is there a remote control to stop the changing colors or does it cycle the different colors constantly?
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

The light would be controlled through a standard light switch or your pool control system. Flipping your light switch on and off relatively quickly will cycle the light to the next color or next light show. There are 16 modes, 7 modes are fixed colors and 9 modes are rotating color shows.
 Reply


?     Asked on 4/6/2016 by

Can the light be changed without draining the pool?
 Reply

A  Answered on 4/7/2016 by InyoPools Product Specialist Patrick P.

Yes you can replace the bulb in your pool light with this LED bulb without needing to drain your pool water. You will first need to turn off power to the pool light at your breaker then go to the pool light and remove the pilot screw which is located on the face ring of your light. Once the pilot screw is removed this will allow you to bring your entire light fixture up on to your pool deck where you can then replace the bulb. The replacing of the bulb is as simple as unscrewing the old bulb and screwing in the new bulb. I would also suggest replacing your lights lens gasket when replacing the bulb, the two most popular would be the Hayward Astrolite Lens Gasket and the Pentair Amerlite Lens Gasket. We also have a great Video on How to Replace a Swimming Pool Light Bulb which will walk you through the process.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Wrench Set

Bad gasket on Amerilite pool light

Written on 6/22/2019 by Guest

Remove light by removing phillips head screw at the top of light

Remove retaining ring around light and separate lens and gasket from fixture

Remove & replace bulb and clean lens & retaining ring of old gasket

Replace new gasket and retaining ring

Screw fixture back into pool wall

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Adjustable Wrench

Change From Halogen

Written on 6/4/2019 by Guest

I had to enter the pool, made more difficult because my Hayward HeatPro heat pump is not operating and the water is still chilly. I removed the Hayward case but found that there had been some water seepage and the outlet corroded. I have not replaced the bulb but, I am looking into getting a new light case to complete the project.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers

2     0

Converted pool lights to low-voltage and LED.

Written on 9/26/2017 by Guest

Purchased Intermec 300W transformer from Inyo; installed by a licensed electrician. Removed each light from the niche with a single screw. Layed the fixture on a towel on the pool deck, Removed the clamp from the fixture with a single screw. Screw nuts dissolved as soon as the screw turned. Discovered that the plastic face rims were melted/deformed on both lights. Ordered replacement face rims from Inyo - delivered the next day. Removed the lens and replaced the gasket. Screwed in the new LED bulbs. Added a thin bead of silicone gasket lube. Placed the lens back on the fixture. Fitted the new face rim to the light and aligned the clamp. Replaced the screws and nuts with new stainless steel parts. Reattached the fixture into the niche via the 'hook' on the bottom of the face rim and the screw on the top. Takes a little patience to get the screw to bite, especially in the deep end. New lights look awesome!

Were these instructions helpful?


Top

Review Summary

 (Average 4.75  out of 5 stars)
31 Rating
5 star:

(25)
4 star:

(4)
3 star:

(2)
2 star:

(0)
1 star:

(0)

The Most Helpful Review


The Most Recent Reviews
