Part # PL2605

Product Description





Maximize your savings with the new Pureline Prime Variable Speed Pump.

The PureLine Prime Variable Speed Pump utilizes Century’s fully featured V-Green 165 motor, delivering premium energy efficiency and program flexibility with an integrated user interface. The PureLine Prime Variable Speed Pump is an exact replacement to the Hayward® Super Pump Variable Speed Pump, making it quick and cost efficient to replace.

The PureLine Prime Variable Speed Pump can save you up to 80% in energy costs over single-speed pumps.  It also has faster payback than the more expensive variable speed pumps because of it is sized to match the performance of the most common medium head pumps.

Specs:

  • Horse Power = 1.65 - .50 HP
  • Voltage = 208-230V
  • Port Size = 2"
  • Amps = 10.5 - 0.5
  • Service Factor = 1.0

PureLine Prime Pump Application:

  • In-ground pools of all types and sizes
  • In-ground spas

PureLine Prime Variable Speed Pump Benefits:

  • Drop in Replacement for the Hayward® Super Pump
  • Up to 80% energy savings over single speed pumps
  • Full Variable Speed (600-3450 RPMs)
  • Same dimensions as the Hayward® Super Pump means no realigning of plumbing significantly reducing the time it takes to swap out your pump
  • Paired with a Century® Motor. The most reliable pool motor in the world.
  • Same quality as Hayward®, Pentair®, Sta-Rite®, Jandy®, and Waterway®
  • Costs 30% Less than Hayward® Super Pump
  • Noise reduction design
  • Large 2” ports

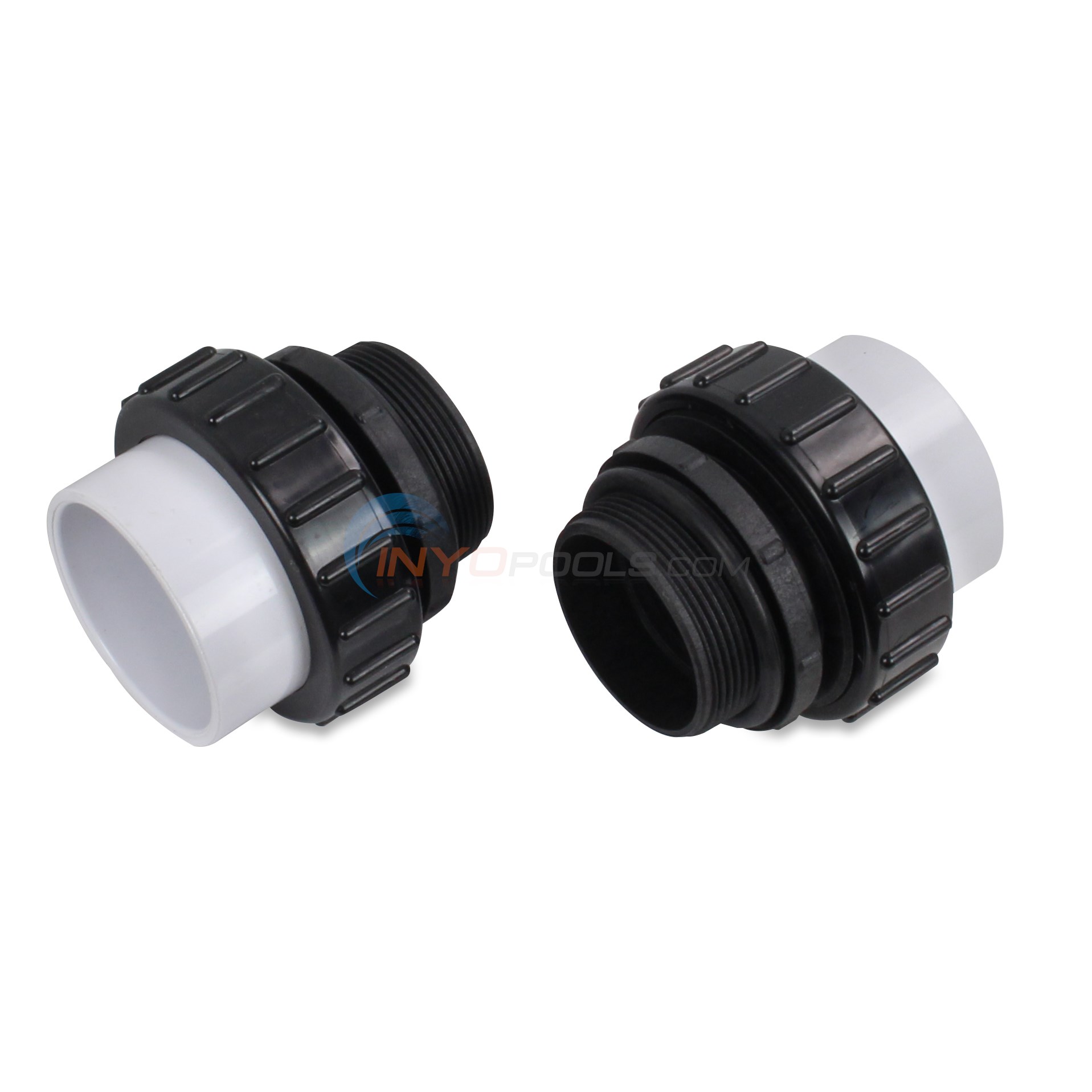

  • Quick Disconnect Unions included ($40 Value)
  • 18 Months Motor Warranty
  • 12 Months Housing Warranty
  • Self-priming (the pump can be placed up to 10' above water level)
  • Quick & Easy basket removal, with swing aside hand knobs
  • Clear Lexan™ cover makes it easy to see when basket needs cleaning
  • Large capacity basket
  • Basket design ensures free flow of water
  • All components made of corrosion proof plastic
  • Heavy-duty, high performance motor for quieter, cooler operation
  • Easy access to all internal parts for servicing

 Pump Curve



Disclaimer:

All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Product Specifications

Manufacturer:
Pureline
HP:
1.65 - .50 HP
Speed:
Variable
Volts:
208 - 230
Amps:
10.5 - 0.5
Port Size:
2 in.
Union Connectors:
2 inch included
Service Factor:
1.0
Notes:
California Title 20 Compliant
Top

?     Asked on 5/18/2016by Inyo Visitor

Is this pump OK for 220 volts? Can it modified for 220 volts?
 Reply

A  Answered on 5/19/2016 by InyoPools Product Specialist Patrick P.

Yes this pump is okay to be wired 220 volts.
 Reply


?     Asked on 5/28/2016by Daru Stevens

Can this pump be computer controlled?
 Reply

A  Answered on 5/29/2016 by InyoPools Product Specialist Joe S.

If you are referring to automation yes, most 3rd party controllers will be able to run this unit. Others will only be able to turn on and off the unit. Please email us at support@inyopools.com the automation system and we can check compatibility.
 Reply


?     Asked on 5/31/2016by Inyo Visitor

Is the Pureline Prime Variable Speed Pool Pump 1.65 HP a direct replacement for my existing Hayward Super Pump Model SP3010X15AZ? Also, cant the controller on the Pureline Variable Speed Pump be remotely located?
 Reply

A  Answered on 5/31/2016 by InyoPools Product Specialist Patrick P.

The PureLine Prime would not be a direct replacement to the Super II as the plumbing ports are in a slight different location meaning you might have some minor re-plumbing. The controller on this variable speed pump cannot be mounted remotely, it is affixed directly to the motor. This pump would be a great option as a replacement for the Hayward Super II.
 Reply


?     Asked on 6/2/2016by Inyo Visitor

Is this energy star qualified pump?
 Reply

A  Answered on 6/3/2016 by InyoPools Product Specialist Patrick P.

This is not Energy Star Qualified I would suggest the Speck EcoMV Variable Speed Pump which is Energy Star Rated.
 Reply


?     Asked on 7/4/2016by Inyo Visitor

what size pump for inground rectangular 8000 gal
 Reply

A  Answered on 7/7/2016 by InyoPools Product Specialist Lennox H.

Hi, Our How To: Size a Pool Pump guide has all the info needed to determine what size pump you will need.
 Reply


Top
Difficulty

Est. Repair Time

2 to 4 hrs

Tools Needed

Screwdriver, Pliers, Adjustable Wrench

Old pump quit working

Written on 3/5/2020 by Guest

We had to replumb a few pipes but it was easy overall. We watched a few youtube vidoes to get us up to speed on the replacemnet.

Were these instructions helpful?


Difficulty

Est. Repair Time

4 to 8 hrs

Tools Needed

Screwdriver, Socket Set, PVC cutter, multimeter

4     0

Pump replacement and startup operation

Written on 6/18/2019 by Guest

I tested this pump 6+ months before submitting this review.

Overall, I am pleased with the product and would recommend it to others if seeking a replacement or as a first pump. My pool is a 10K gallon inground fiberglass unit with 2-inch PVC piping, no lengths exceeding 50 feet in total length. This 1.65 HP Pureline replaced a 1.5HP Jandy single speed and pumping performance is equal to or better based on sand filter pressure at similar RPMs.

The variable speed capability is a nice feature and allows a homeowner to customize operation based on the seasons and situations (e.g., evening pool party – normally off). I operate the pump for 10 hours total run time each day in warm weather, 2 hours at near maximum RPM for initial start and skimmer cleanup, followed by 8 hours at mid-range RPM for circulating through the sand filter and chlorine production with the salt cell.

The automatic low RPM operation at 39 degrees F is perhaps the second-best feature that eases your stress and labor when cold weather hits. The pump controller keypad is easy to use however, I still need to refer to the owner’s manual when making changes because some steps are not intuitive. I created a brief written procedure for my wife to place the pump in standby and return to operation when backwashing and rinsing the sand filter.

She added this to her smartphone and doesn’t need my assistance now for these routine evolutions. Installation of the pump required new anchor bolts in the concrete pad, minor wiring changes (i.e., terminal ends, length), and new PVC pipe configuration for the discharge to the sand filter.

If you have average weekend warrior skills as a homeowner, you can do this yourself. Make absolutely sure all power to existing wiring is dead before starting the job and expect to visit the hardware store more than once as you get smarter.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, Socket Set, Adjustable Wrench, Saw

2     0

Pool Pump Motor Failure after 15 Years

Written on 5/20/2019 by Guest

Quick and easy swap

Kill Power

Cut old pump out to replace 1.5" piping with 2" from two way diverter to multiport valve.

Hard Plumbed new 2" piping using threaded fittings while saving provided unions for future pump relocation to accommodate SWG (not advised - use provided unions with gaskets to prevent leaks).

Ran new watertight flex conduit and 12ga THHN wiring and 8ga bonding wire to accommodate future pump relocation for SWG. Replaced existing breaker with GFI breaker and wired pump.

Filled skimmer and started up. Ran flawlessly. Be prepared for some surging as pump primes and changes speeds.

Noted slow leak at outlet connection due to use of 2" threaded PVC fitting rather than supplied union. Replaced with supplied union and no leaks.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Socket Set, Adjustable Wrench

6     0

Cost of running my Single Speed pump were too high

Written on 6/21/2018 by Guest

I purchased this pump to replace my Hayward 1hp Super pump for my 25,000 gal pool. The costs of running the single speed pump for 8 - 10 hours a day from June to Mid September was killing me. The initial cost of a variable speed pump was putting me off until I found Inyo Pools and the PureLine Variable speed pump. With the Electric company rebate of $200 and reduced electrical costs, this pump has easily paid for itself in less than a year.

Installation was a breeze since it fits into the footprint of the Haywards Super Pump. All I needed to do was:
1:Uninstall the Hayward Super Pump
a: turn off the power to the pump
b: unhook the electoral wires from the super pump
c: Unbolt the super pump from the concrete footing
d: Unscrew the PVC fittings from the super pump
e: remove the super pump
2: Install the new PureLine Variable Speed pump
a: Bolt the PureLine pump to the concrete footing
b: Attach the PVC fittings to the Pureline pump
c: Hook up the electrical wires to the Pureline pump
d: Fill the skimmer basket with water
e: turn on power to the PureLine Pump
f: Push the start button on the PureLine pump
g: Program the pump per the directions

3: SAVE MONEY

That's it. I am no handyman. Although I can do minor repairs this was one of the easiest jobs I ever did.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Pliers, Adjustable Wrench

5     0

Needed new variable speed pump

Written on 4/9/2018 by Guest

I removed the old pump, replaced with the variable speed pump. The wiring was tricky; the two holes for wiring on my old pump didn't fit the new pump setup. Luckily there were three holes for wiring on the new pump so I made an adjustment that works fine. The new pump was about one inch lower than the old pump, so I needed to raise the new pump up a little. Twenty minutes total time for the replacement.
