Product Description

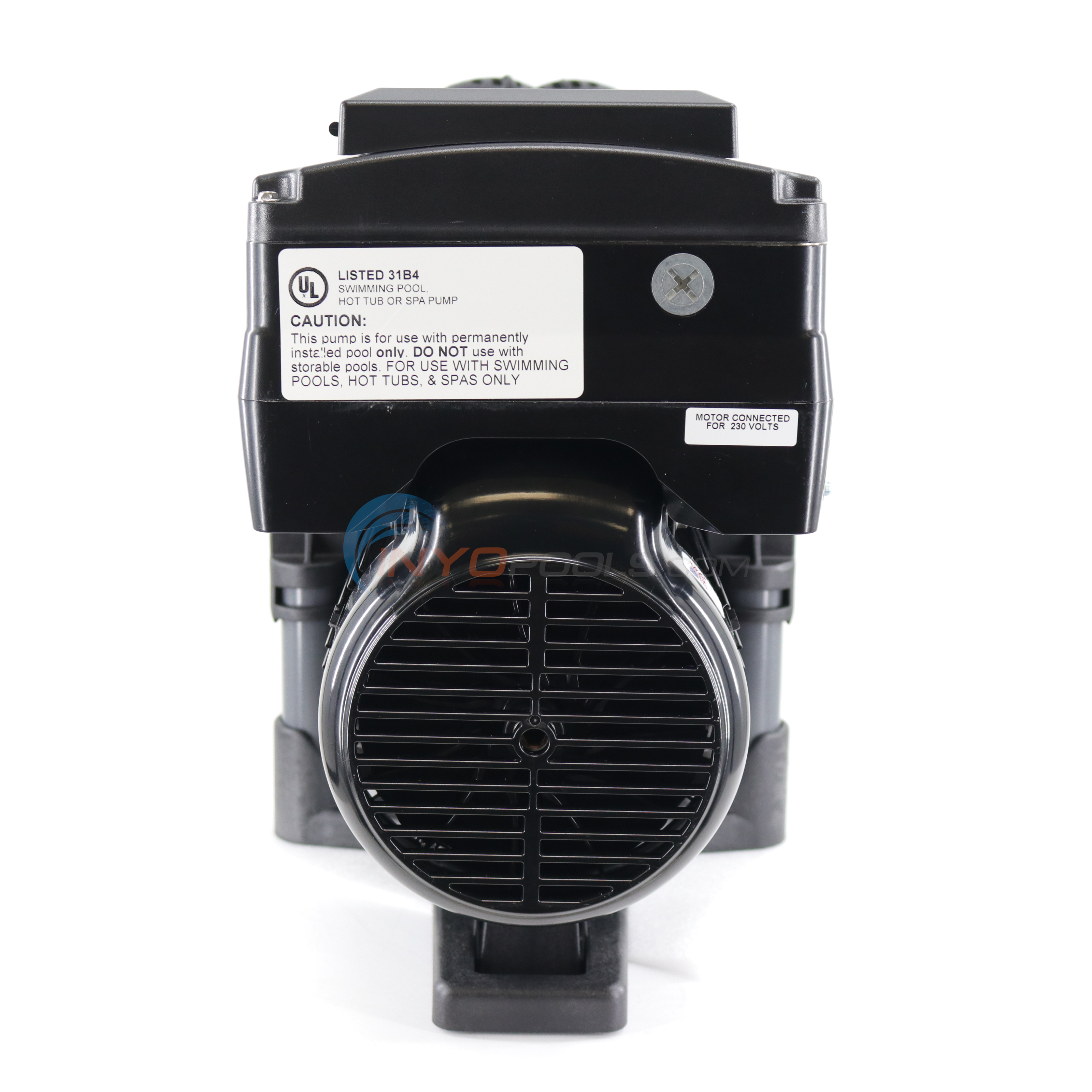

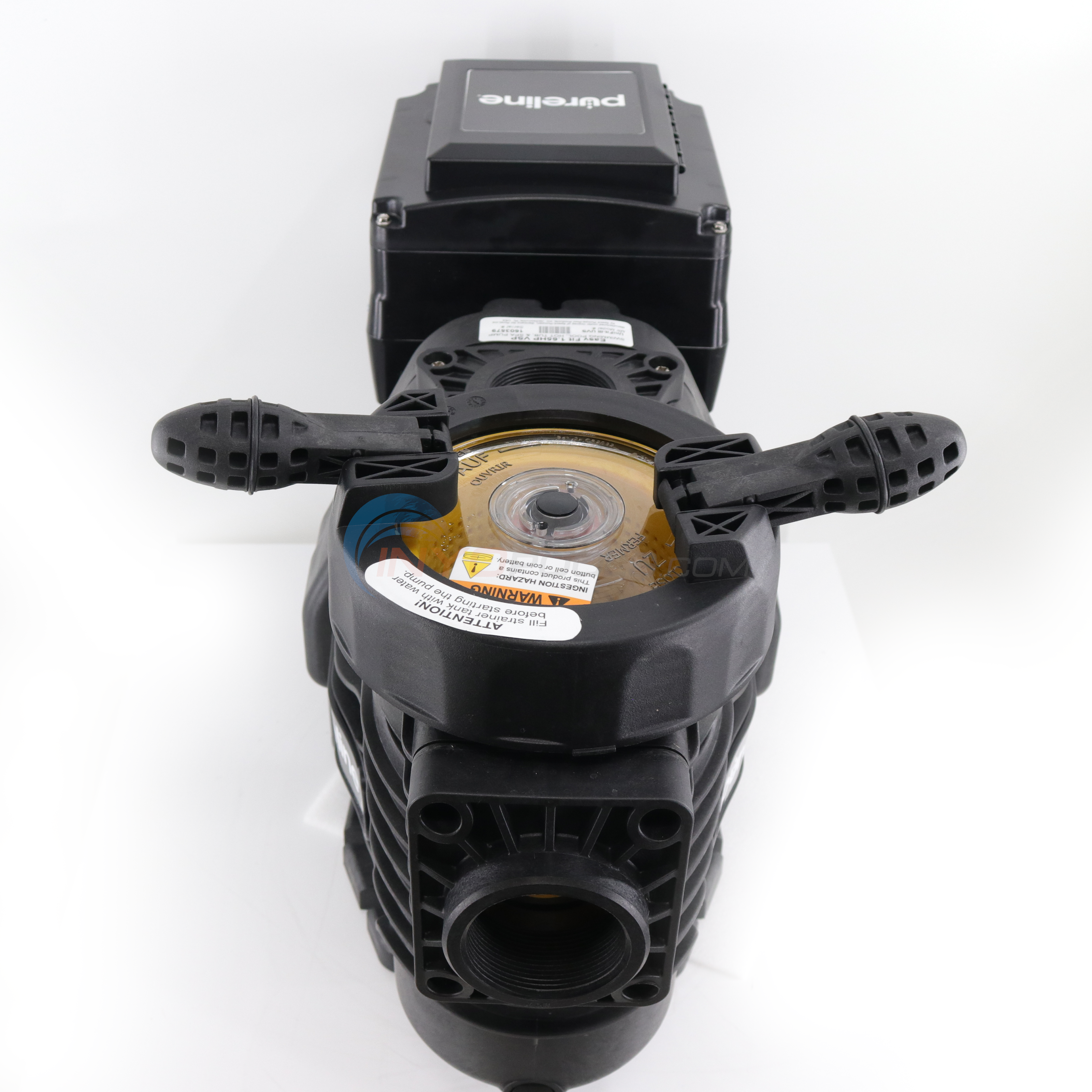

Pureline EasyFit® 1.65 HP Variable Speed Pool Pump

Model #: PL2805SP | Warranty: 2 Years
High Performance. Energy Efficient. Automation Ready.

The Pureline EasyFit® PL2805SP is a universal aftermarket variable speed pool pump designed to deliver maximum performance, reduce energy consumption, and make installation easier than ever. Perfect for residential pools, it’s the smart choice for both new builds and retrofit upgrades.

✅ Key Features & Benefits

✅ Universal Replacement Design – Drop-in fit for select Hayward®* Super Pump® configurations. Includes multiple risers and fittings for precise alignment with most existing plumbing.

✅ Energy-Efficient Variable Speed Motor – 1.65 THP motor provides quiet, high-efficiency circulation while cutting energy costs compared to single-speed pumps.

✅ Built-In Automation Adapter – Ready to integrate directly with Hayward®, Pentair®, and Jandy®* control systems—no separate interface required.

✅ Salt Pool Compatible – Handles salt concentrations up to 5,000 ppm, ideal for modern saltwater pools.

✅ Heavy-Duty Construction – UV- and chemical-resistant housing withstands extreme weather and temperatures up to 175°F.

✅ Dry-Run Protection – Mechanical shaft seal protects the pump for up to 1 hour of dry operation.

✅ Clear Lid with Integrated LED Light – Makes nighttime maintenance and low-light inspections quick and easy.

✅ DIY-Friendly Maintenance – Tool-free locking lid and quick-disconnect unions simplify installation and servicing.

✅ Tested for Reliability – Every pump undergoes rigorous flow, motor, and durability testing before shipment.

✅ Certifications – California Title 20 Compliant, UL Listed, ETL Certified, Proudly Assembled in the USA.

➡️ Ideal Applications

• Residential inground pools

• Pump replacements or upgrades

• Energy-conscious homeowners

• Automation-enabled pool systems

➡️ Installation & Tech Tips

✅ Check Valve Placement – Install a check valve on the suction side to help maintain prime and speed up start-up.

✅ Use Larger Suction Plumbing – Matching or upsizing the suction line reduces strain and improves flow efficiency.

✅ Maintain Straight Pipe Clearance – Keep at least 12" of straight pipe before the pump inlet. For larger plumbing, maintain a distance equal to 5× the pipe diameter from the first valve, tee, or elbow.

✅ Elbow Positioning – Avoid 90° elbows within 12" of the pump inlet or outlet. Two 45° fittings are preferable.

⚠️ Do Not install a 90° elbow directly into the pump inlet or outlet—it can cause turbulence and reduce performance.

Find the perfect EasyFit® Variable Speed Pump for your pool’s size, usage, and budget:

• EasyFit® 1.65 HP (PL2805SP) – Ideal for smaller residential pools or energy-conscious upgrades.

• EasyFit® 2.7 HP (PL2806WF) – Balanced power for medium-to-large pools, HOAs, and hospitality properties.

• EasyFit® 3.4 THP (PL2807WF) – Maximum performance for large commercial pools, aquatic centers, and heavy-use facilities.

Tech Tip: Choosing the right horsepower ensures optimal flow, energy efficiency, and extended pump life. When in doubt, size up for commercial or high-bather-load applications.

Upgrade your pool system today and experience the Pureline EasyFit® difference—quiet, efficient, automation-ready performance with plug-and-play compatibility. Perfect for hospitality, commercial, and residential applications, this pump delivers the power, efficiency, and reliability your guests, residents, or members expect—while keeping operational costs in check.

⚠️ Trademark Disclaimer

Pureline products are high-quality aftermarket solutions and are not manufactured by or affiliated with Hayward®, Pentair®, Jandy®, or any other OEM. Brand names are used for compatibility and identification purposes only.
