90-004
|
Replacement Fine Filter Bag for Aquabot
|
|
10-030
|
DRIVE BELT, TAN, SMALL; (Single)
|
|
*
|
Super Climbing Ring for AquaBot Pool Cleaners 4-Pack (3007)
|
|
10-029
|
DRIVE TRACK, G TYPE, BLUE; (EA/2/2)
|
|
10-014
|
BUSHING, .5 ID, NYLON, WHITE; (EA/4/4)
|
|
10-015
|
BUSHING, WHITE; (EA/1/1)
|
|
10-021
|
FLOAT, UNDER MOTOR; (EA/1/1)
|
|
10-038
|
SLEEVE ROLLER, STEPPED
|
|
10-042
|
ROLLER, NYLON, LARGE; (EA/1/1)
|
|
10-044
|
GROOVED PIN COVER; (EA/1/1)
|
|
10-047
|
FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
|
|
10-054
|
PLUG, DOME, BLACK; (EA/2/2)
|
|
10-082
|
OUTLET, TOP, BLUE; (EA/1/1)
|
|
10-087
|
OUTLET, BOTTOM, BLUE, LARGE; (EA/1/1)
|
|
10-091
|
BUSHING, NYLON, BLACK PER EACH
|
|
10-102
|
BRACKET, WHITE, FOR JET NOZZLE; (EA/1/1)
|
|

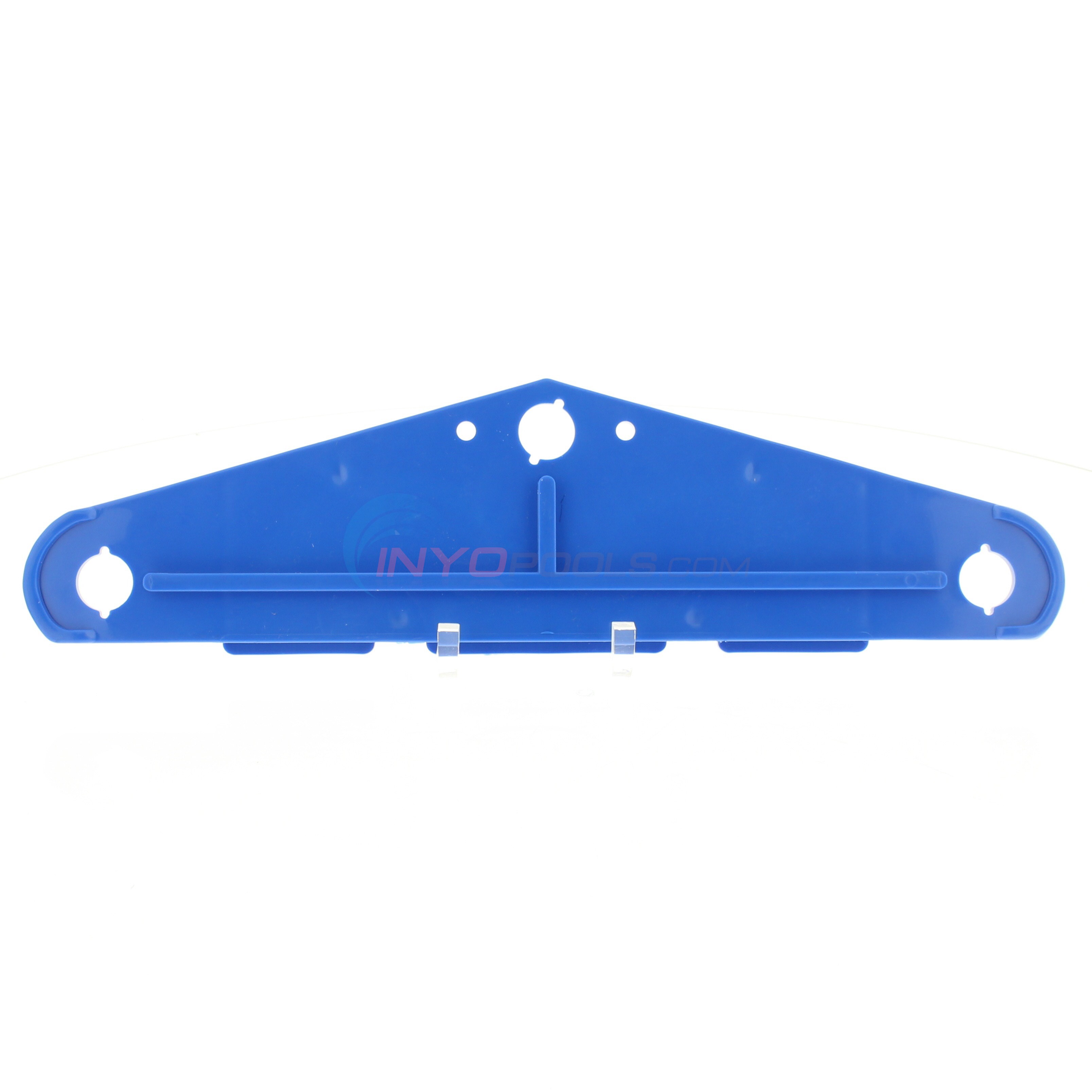

10-107
|
SIDE PLATE, BLUE, BASIC; (EA/1/1)
|
|
10-116
|
LOCK TAB, NATURAL; (EA/2/2)
|
|
10-118
|
PULLEY ASSY, LARGE PULLEY W WASHERS; (EA/1/1)
|
|
10-127
|
BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
|
|
10-149
|
SK HANDLE BRACKET, OVAL, BLUE;(EA/1/1)
|
|
10-163
|
SPARE PARTS KIT, DMXJRHT, DMXJRTRC; (EA/1/1)
|
|
10-165
|
SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
|
|
15-002
|
HANDLE ASSY, BLUE, OVAL BRACKET COMPLT, NO FLOAT; (EA/1/1)
|
|
20-016
|
WHEEL TUBE, RESIDENTIAL, 12"; (EA/1/1)
|
|
20-029
|
SK BRUSH, RUBBER EZ, BLUE, 12", 2 BRUSHES, 2 PINS;(EA/1/1)
|
|
30-003
|
INSERT, BRASS, PRESS-IN; (EA/4/4)
|
|
30-005
|
LOWER CASING PIN; (EA/1/1)
|
|
30-006
|
SCREW, 8-18 .75", S/S, PH-FIL; (EA/4/4)
|
|
30-007
|
SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
|
|
30-013
|
SCREW - LOCK TAB -BODY ASS./DUMAX
|
|
30-020
|
SCREW, #8 .6875", S/S, PH-PN; (Single)
|
|
30-032
|
SCREW, S/S 10/32 X 1" PH PHD; (EA/2/2)
|
|
30-035
|
SCREW, S/S, PH; (EA/2/2)
|
|
30-037
|
WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
|
|
30-038
|
WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
|
|
30-042
|
SCREW, S/S, PH-PN, 6/32 x 5/8; (EA/1/1)
|
|
30-043
|
SPRING, FOR HANDLE BRKT; (EA/2/2)
|
|
30-046
|
NUT, S/S, LOCK; (EA/1/1)
|
|
30-058
|
RETAINER RING, .5",S/S, E STYLE; (EA/4/4)
|
|
30-060
|
WASHER, S/S, 5/32; (EA/2/2)
|
|

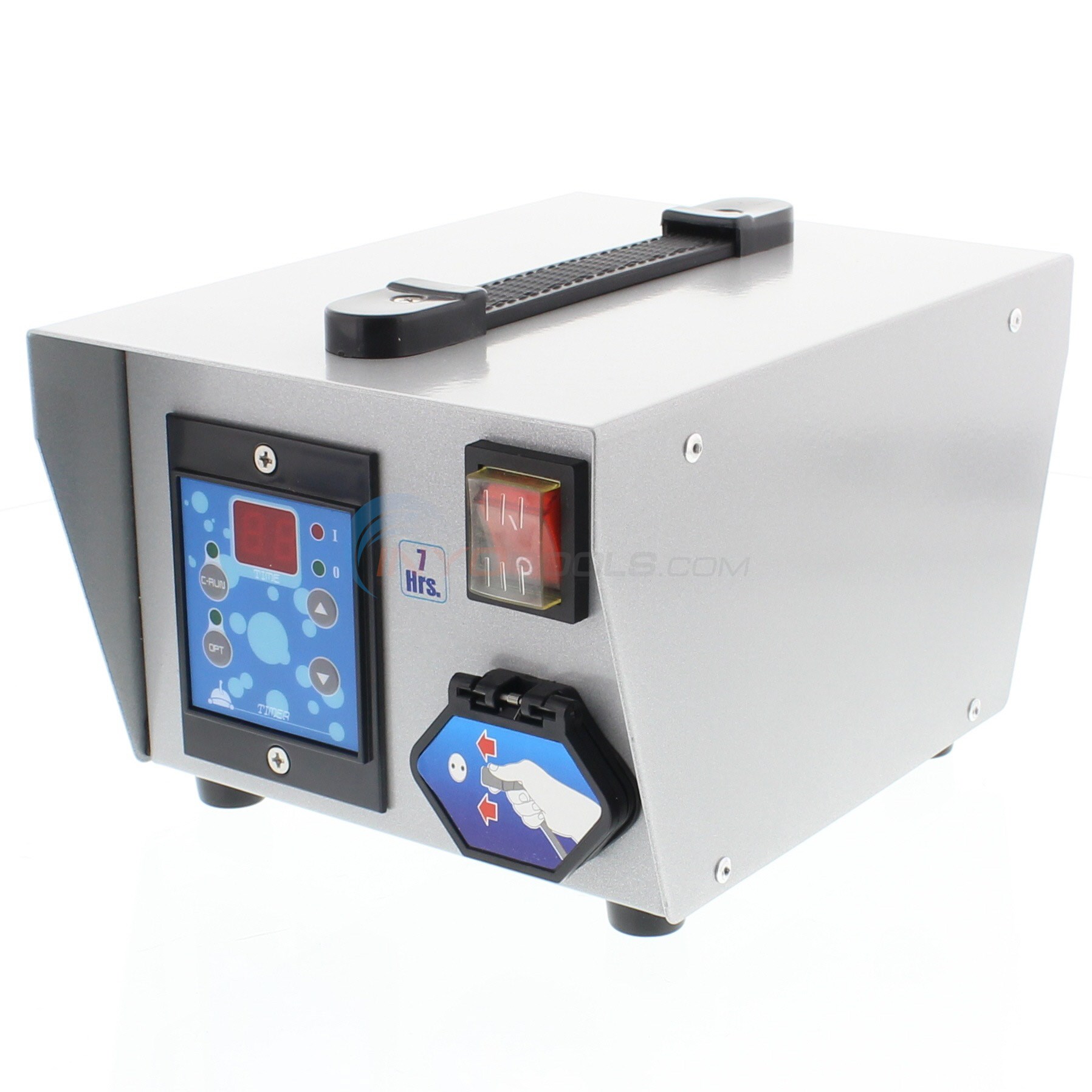

60-008
|
POWER SUPPLY, 115/36V AC DIGITAL, 7HR, 2 PRF; (EA/1/1)
|
|
70-018
|
CABLE ASSY, 2C/75', 17AWG, GRAY, LDP, 2PRM, 2PRM, GRMT, FLOAT; (EA/1/1)
|
|
80-009
|
P CLIP, 7/16", BLUE, COATED; (EA/2/2)
|
|
80-017
|
TIE, PLT PANDUIT, MINI; (EA/2/2)
|
|
80-035
|
SK MOTOR INSTALL KIT 1; 1 (1617) 3.5", 1 (1619) 4.5", 2 (5474); (EA/1/1)
|
|
80-037
|
SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
|
