How To Use a Tune up / GO-KIT

WRITTEN BY:  Inyo Pools

  3 out of 5 stars on 25 ratings
(Click on a star to add your rating)

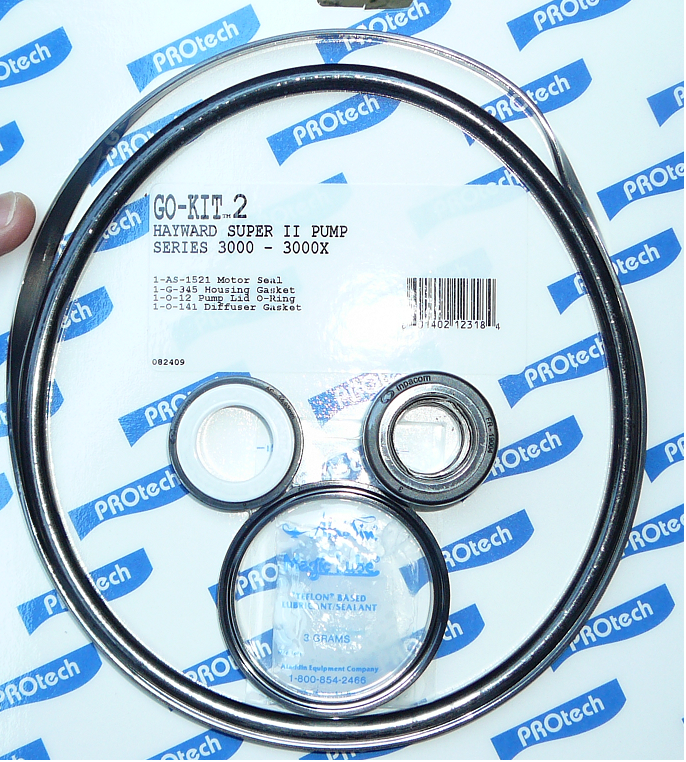

If you are repairing your pool pump or pool pump motor consider purchasing a GO-KIT. Each GO-KIT contains the replacement seals and gaskets you will need to repair your pump. A typical GO-KIT like the one pictured here for a Hayward pump, contains the motor shaft seal (2 parts), the pump housing gasket, the pump lid o-ring and the diffuser gasket. We have written How To Guides that describe in detail where each of these parts are installed and how to install them. This quide points you to each of the applicable installation quides. Note: These GO-KIT are generally unique to the make and model of the pump. Order the GO-KIT specified for your pump's make and model.

Things You'll Need

Step by Step

Top

Step 1

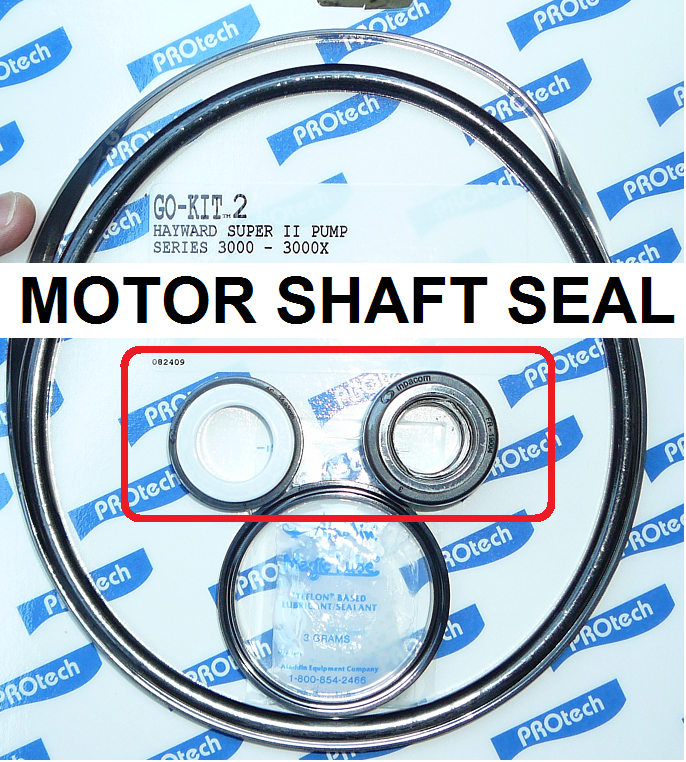

The two parts of the motor shaft seal are identified in the picture at left. If you see water leaking out of the bottom of your motor, it is probably due to a worn shaft seal. Or if your are replacing your pool pump motor, it is also a good practice to replace this seal.

Step 2

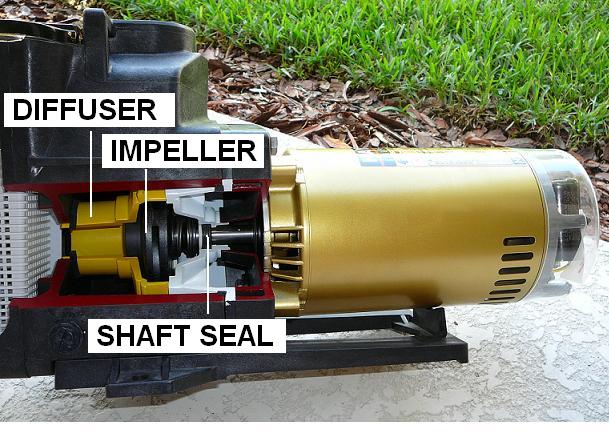

The location of the motor shaft seal in a Hayward pool pump is shown in the cut-away model pictured here. For instructions in how to replace a motor shaft seal go to How To Replace A Motor Shaft Seal.

Step 3

The diffuser gasket is identified in the picture at left. If your are replacing your pool pump motor, it is also a good practice to replace this gasket.

Step 4

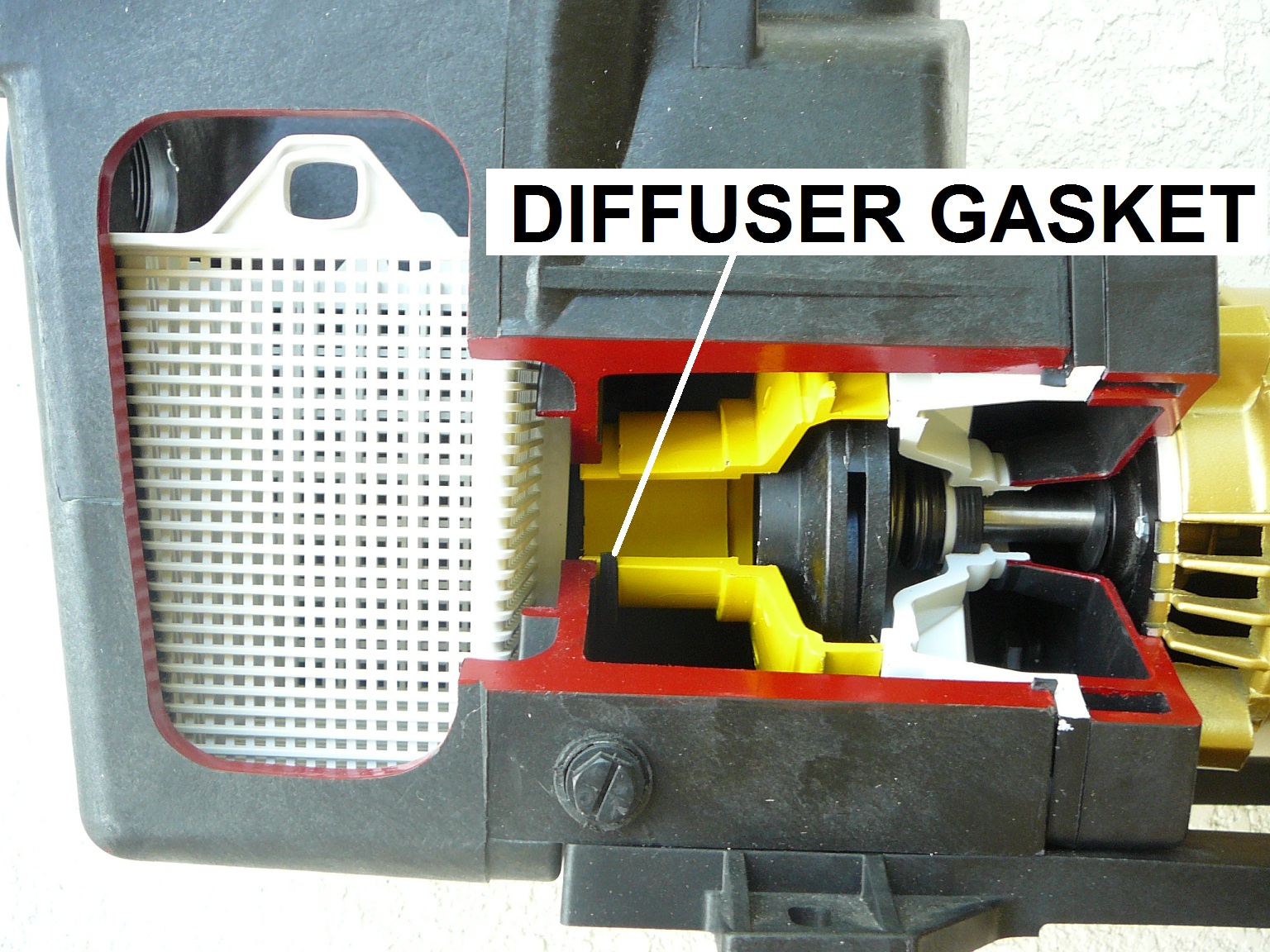

The location of the pool pump diffuser gasket in a Hayward pump is shown in the cut-away model pictured here. Note that a part of the gasket is also cut away. For instructions in how to replace a diffuser gasket go to How To Replace Pool Pump Gaskets.

Step 5

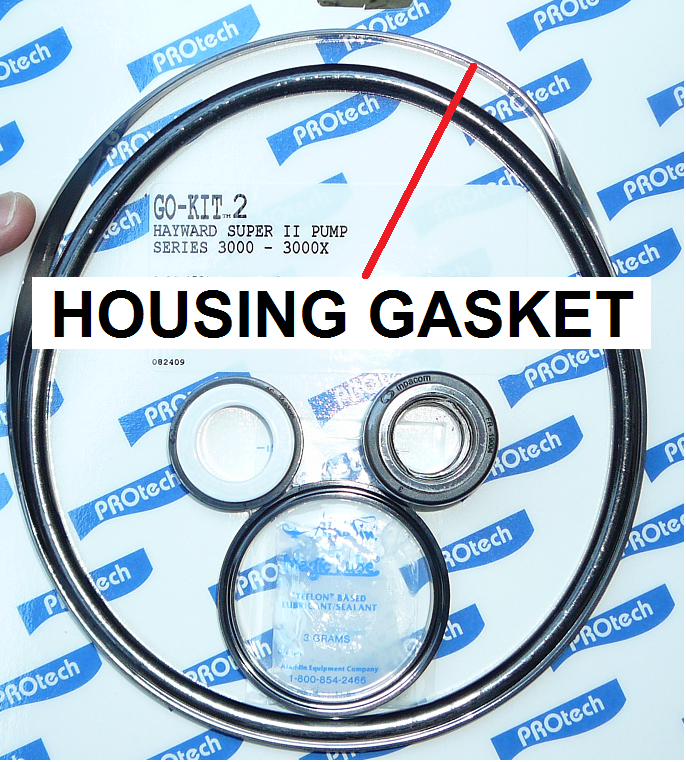

The housing gasket is identified in the picture at left. If you see water spraying out between the pool pump housing and the motor assembly you will need to replace this gasket. Or if your are replacing your motor, it is also a good practice to replace this gasket.

Step 6

The location of the housing gasket in a Hayward pool pump is shown in the picture at left. For instructions in how to replace a housing gasket go to How To Replace Pool Pump Gaskets.

Step 7

The pool pump lid O-ring is identified in the picture at left. This O-ring frequently gets worn or is stretched to the point that it does not seat properly and needs to be replaced.

Step 8

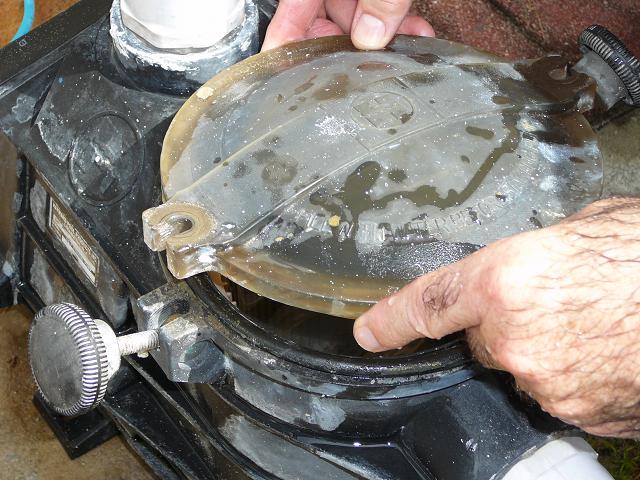

The location of the pool pump lid O-ring in a Hayward pump is shown in the picture at left. The instructions for replacing a pump lid O-ring are included in the following guide: How To Clean Out the Pump Strainer.
