Part # ST1152
Warranty 1 Year

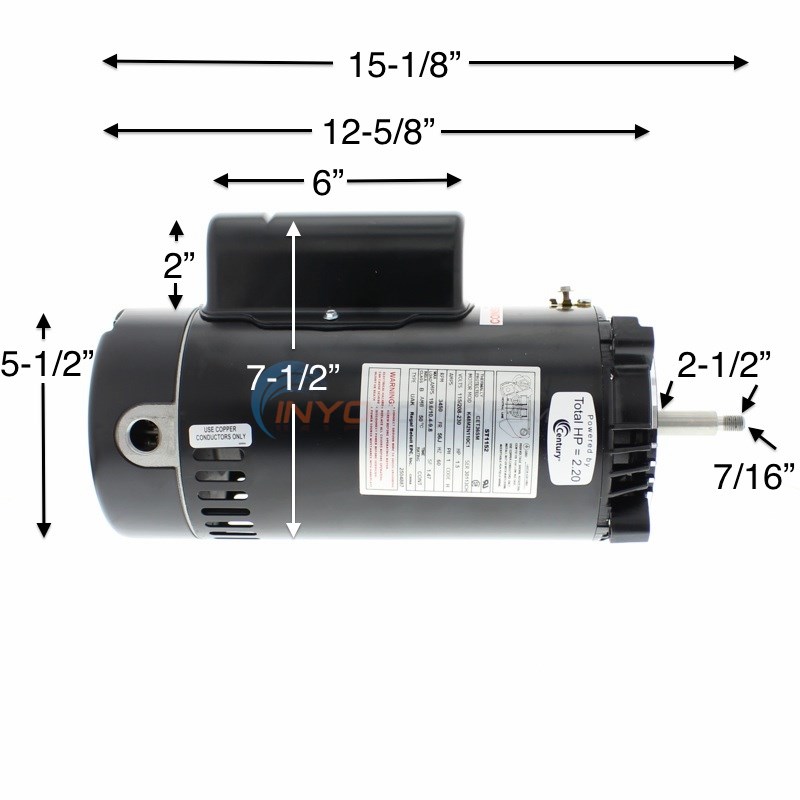

Dimensions 15.5" L x 7.5" W x 5.5" D
Alternate Part #'s 110284, 13870, 15236, 16055, 164566, 165113, 17318, 177026, 177032, 184950, 184950PJ, 186917, 19361, 1K048, 3K132, 52011, 5KCR49UN2088X, 6K878, 82772, 89361, 90118589, 90118761, 91715, 91727, B129, B139, B196, B709, B751, B796, C1101, C48L2N120, C48L2N120A2, C48L2N134HH, C48M2DB11A9, C48M2N107A2, C48M2N107A5, C48M2N110, C48M2N110A3, C48M2N110A4, C492, C56M2D107A1, C56M2N105, C56M2N110, C56M2N110A1, C56M2T61, C56M2T61A1, C56M2T61A2, C56M2U11A3, C56M2U11A6, C56M2U11A8, C56M2U4C3, CT115C, CT215CE, EB129, EB796, EST1152, JD15FL1, JD15FL1E, K48M2N106, K48M2N107A1, K48M2N107A2, K48M2N107A7, K48M2N110, K48M2N110C1, K48M2N111A2, K56M2N101A1, K63MWEET-5318, M-536DA, M-546DA, M546, MFK-19361, S88-175, SP1615Z1BBK, SP1615Z1BE, SP1615Z1BEE, ST1152, SW2562, T55CXCJL-1346, V16055
Voltage 115/230, Max Amps 115V = 19.4 230V = 9.7, Single Speed, Round Flange, RPM = 3450, Threaded Shaft, Frame = 56J Used on the following FULL RATE ENERGY EFFICIENT models: Hayward Super II Energy Efficient, Hayward Northstar Full Rate and Jacuzzi Magnum Full Rate pumps.
Note: NOT California Title 20 Compliant.
California Title 20 Compliant Options:
We are replacing a pump #K48M2N110C1. Please confirm this is the correct choice and guide me to any seals or other materials recommended for replacement. Thank you
Reply
This is the correct single speed replacement motor for the model K48M2N110C1 and in order to confirm the seal kit needed you will need to know the model name or number of the front pump wet end housing that the motor attaches to.
Reply
In your picture for mounting there are four bolts holes to attach the motor to the pump mine has six and is not round. The current motor I want to replace is a ST 1152 mod K48M2N110C1. Thank You
Your front pump housing model may be a different model than what you may have seen in a video. Please click here to view the Hayward Super II pump which may be your model,
Reply
Thank You for the response, Can you recommend a specific model number that would work for me? I only wanted to buy the motor. Is it possible to re use the existing mounting flange and remove the round one that comes with the ST 1152?
Reply
Patrick. This ST1152 is the correct replacement motor. You will also need the Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
I need to replace my motor and i believe this is the correct one. The electrical collar is broken where it mounts to the motor, do you have a part number for that?
Reply
Hi, Darin. If you're referring to the 1/2" Watertight Conduit Connector, that can be purchased at a hardware or electrical store.
Reply
I have a burned out K48m2n110 and want to confirm that the ST1152 is the correct replacement. Is there anything else I need to buy for the replacement?
Reply
Yes, the A.O. Smith 1.5 HP Round Flange 56J Full Rate Motor - ST1152 is the correct motor. It is suggested to replace the seal plate, impeller, and diffuser every ten years, along with the correct Tune-Up kit or Shaft Seal when you replace the motor. This will provide the most optimum performance of the life of the new motor.
Reply
I have a Burnt out K48M2N110 and it appears that the ST1152 is the proper replacement. It was a remanufactured one and only lasted a year. The question is do I need any other parts to replace this myself? since it was only there for a year I’m assuming seals etc are still OK. It’s a salt water pool. Thx!
Reply
Yes, the A.O. Smith 1.5 HP Round Flange 56J Full Rate Motor - ST1152 is the correct motor. It is suggested to replace the seal plate, impeller, and diffuser every ten years, along with the correct Tune-Up kit or Shaft Seal when you replace the motor. This will provide the most optimum performance of the life of the new motor. We will need the pump model number to provide the other necessary parts. (The shaft seal must be replaced every time you replace the motor.)
Reply
I currently have the K48M2N110 1 1/2 HP motor.
This ST1152 is the replacement. My pool is 15,500 gallons. If I wanted to go with a 2HP to move water quicker which should I choose & is that wise?
Thanks
Reply
Hi, Jim. The Total HP of your motor is 2.25. If you want to go with the ST1202 (2.6 THP) motor, you will have to first make sure your plumbing, filter size and circulation system is sufficient to handle the increased water flow using the steps in our How to Size a Pool Pump guide. Once you've confirmed, you will also need to replace the impeller, diffuser etc to match the increased motor.
Reply
Hello, I'm looking to replace my burned out pool motor, a 56J frame 1.5HP with SF 1.33, total HP 1.995. It was suggested that the INYO motor, 56J frame 1.5HP with SF 1.5, total HP 2.25, would be ok using the same impeller, SP3016-C. Do you think the two motors are close enough in their Total HP specs to perform with no harmful effects? Thanks, Mark G.
Yes, that motor is a good match replacement.
Reply
Does your impellor look in good shape? Worn? Replace it if is. This would be a good replacement motor don't forget to order your new pump seal kit also.Go kit 2
Reply
Thanks, I meant to respond earlier. Impeller looks good and I picked up a kit. Thanks again.
Reply
Yes, that motor is a good match replacement.
Reply
I have a hydramax II motor 1 hp, I would like to replace it with a 1 1/2 hp. It looks like the ST1152 ao smith is the replacement and the SPX Impeller. Is this correct and if so do I need anything else?
Reply
My motor is a Hayward Super II - The tag states SP1615-Z-1-BE. I can't find any reference to this pump in your site. I have figured out that I need a ST 1152 motor, a diffuser SPX3021B, an Impeller SPX 3016C, a Shaft seal PS-201.
The Ring is not so clear SPX 3005r?? Or SPX3021R as stated in the various question-answer area. Thanks
Reply
Hi Jay, I double checked your motor # of SP1615-Z-1-BE and all the part #'s you stated in your email are correct. Since you use the SPX3016C impeller you will require this SPX3021R Ring
Reply
I have a Hayward RS 1500 pump purchased from Leslie's that needs a new motor. The current AO Smith is a 1.5 hp 115/230 V 19.4/9.7 A, 56J Frame 1.33 SF Model K48M2N110. Will the ST1152 be a suitable replacement? I also use a SWG so can you advise on the proper pump seal, o-ring, gasket to use? Thanks,
Yes this is a single speed replacement motor for your model. Also, the seal kit is GOKIT2 for a chlorine pool, and if you have a saltwater pool then you can use the GOKIT2SALT.
Reply
I currently have a k48m2n110 motor and would like to replace it with a variable speed motor. Is that possible and if so what do I need?
Reply
Is this the correct replacement motor? And what other parts do I need? I have a A.O. Smith Model: K48M2N110 (? Plate is worn/faded), SER: 8B02, HP ½ (? Plate is worn/faded), Volts: 115/230 (? Plate is worn/faded), RPM: 3450, AMPS: 19.4/9.7, HZ: unknown (Plate is worn/faded), SF: 1.33, FR: 56J, PH: 1, Thermally Protected: CET36WX (? Not sure first letter, worn plate), CODE: L, INSUL Class: B, ENCL: ?, TYPE: UAK,
SP-1615-Z-1-BE
Pool pump is Hayward SP3015EECR.
Thank you for your help.
Reply
Hi, Albert. Yes, this ST1152 is the correct replacement for MOD # K48M2N110. You will also need the Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
I am replacing a Hayward SP3020EECP 1.5hp pump model K48M2N110. I am told the ST1152 is the correct replacement pump. My question- The original installation paperwork indicates the original pump may have been a 2hp pump (the 1.5hp is the second pump). This pump only runs water features (2 scuppers and 1 sheer descent). Is the 1.5hp ST1152 sufficient to run my water features? The furthest away water feature is about 50' from the pump. If this is the correct pump, what other products do I need?
Reply
So this motor model may say 1.5 horsepower on it but it is a full rated motor. What that means is that its actual total horsepower is 2.25. That very well could align with what you paperwork states.
Reply
Will this motor replace a B129 that is currently installed on a Hayward SP3010X15? What else will I need to order to complete the installation? Thanks
Reply
Hi. Yes, this ST1152 can be used as a replacement for the B129 motor. You will also need the Super II Pump Tune Up Kit - GOKIT2 or GOKIT2SALT.
Reply
I have a 4 year old RS Series RS1500 Hayward pool pump 1.5 HP and need to replace the motor. Which model A.O. Smith motor should I buy to replace the one I have?
Reply
I have a Magne Tek Part #8-177080-40, 1.5HP, Type CX, 3450 RPM, CodeF, Encl DP, Frame Y56Y, Form KJM, 1081 Pool Pump Mnt Horiz
American Products #98710700, Model # 384484, Ser# 10966
Pool Pump.
What is the Replacement, and the Shaft Seal?
Reply
The correct motor replacement will be the model B848 and if you click here you can view the parts diagram for your model pump. Key 2 has both the standard and saltwater version shaft seal but you can also purchase the GOKIT20 which has all of the seals and gaskets for your series pump. It uses the standard shaft seal.
Reply
I have an aquatron II-6 pump and am replacing an ST1152. what gokit do I use?
Reply
Hi Jeff you will require this AquaTron Seal Kit
Reply
I have a spa pump: Hayward 3015 X 20 EE. The correct (2HP) motor is too long to maneuver in place. It is located in a tight spot, so I assume the previous owner downsized the motor. I cannot read the old motor's label anymore, but the Impeller model # is SP 3015-C (which is a 1 1/2 impeller for a different pump)
Will this motor be a valid replacement?
Reply
I have a 1.5 HP Motor: Century Centurion (AO Smith) CAT # B229SE (Part# 184982) PR: Y56J motor. Will this replace my current motor?
Reply
I have a Hayward Super II Pump SP-3015AQ with an Century motor part #165111-21 3/4 pump. I need to replace the motor. I would like to go 1 1/2 HR with either the ST 1152 or the STS 1152 motor. What else will i need to complete this process.Thanks
Reply
I have st1152 k48m2n110c1 and the bearings went out in it on my sp2607x10 Hayward pump and need to make sure I buy the correct motor because I will be installing it myself. Which is the correct motor and seal kit?
Reply
The correct replacement motor is the ST1152 and the seal kit is the GOKIT3, but just letting you know that your pump model says it is a 1HP Super Pump but you have a 1.5HP motor. Do you have a 1.5HP impeller to go with your 1.5HP motor?
Reply
I have a 15 year old UST 1152 (motor model C48L2N134C1), should i replace this with the New UST1152 or upgrade to the ST1152.
Reply
I would go with the direct replacement UST1152 and replace the pump seals as well.
Reply
I am replacing an AO Smith motor #K48M2N110. What motor should I use and what else do I need to buy?
Thanks
Reply
Yes, the ST1152 is the correct replacement motor, if you have the pump model I can help with the shaft seal as well.
Reply
Will this replace my motor? Currently running a AO K63CXEYPY - 4766, 1HP, SF1.4 attached to a Hayward SP3010EEA2 (Z?). I would like to upgrade the HP to 1.5.
Reply
Hello, The motor that matches this unit is an Energy Efficient A.O. Smith Round Flange 1 HP Full Rate Motor - CT1102, if you switch to a ST1152 you will have to change out your impeller and diffuser. I highly recommend changing out your seals with Tune Up Kit Hayward Super II - GOKIT2.
Reply
Hi INYO. I need to replace my pool pump motor. It is attached to a Hayward pump SP3015X20AZ (Super 2 pump?) driving a pool and spa. The current motor is a CENTURY UST1202 Total HP=2.20 Model K48M2N110C2. HP=2 FR 56J SF 1.1.
I see on your website that you sell the UST1202, ST1212, and the ST1152. Which motor do you recommend and what are the differences? Thanks.
Reply
Good morning Mike, You are looking for A.O. Smith 2 H.P Round Flange Up Rate Replacement Motor - UST1202 The seal kit you will need is Tune Up Kit Hayward Super II - GOKIT2 Unless you have a salt pool then you would need a gokit2salt.
Reply
hi, mine is a c48l2n134c1 pool pump, will this one work?
Reply
The direct replacement for that motor model number is the UST1152. You could replace it with the ST1152 but you might have to upgrade the impeller as well. For the motor replacement you will also need to replace the shaft seal as well. I can help you with that, just need to know the model of your pump.
Reply
Hi: Our pump model# sp2610x15. I don't remember the original gold motor's spec. other than it was 1.5hp. the current motor is a USTt1152. Question: can I replace it with a ST1152?
Reply
The SP2610x15 has a total HP rating of 1.5HP. The replacement motor is the UST1152 in use with a Tune-Up Kit. If you opt to replacing it with the A.O. Smith Round Flange 1 1/2 HP Full Rate Motor (C1101, ST1152) it is advised to change the impeller and the diffuser, to those that are recommended for the 1.5 Full Rate Motor ST1152. By increasing the size of the equipment you are increasing the the gallons per minute output from the pump. You will need to verify the design flow rate that your filter and plumbing is set for, before making your decision. If you only replace the motor using the ST1152 with the existing impeller and diffuser, you are only spending more money with no results.
Reply
We have a Hayward RS1500 pump with an AO Smith model # K48m2n110 1.5 hp motor.
Our pool pump is moving water but putting off a burning smell. shuts down in the middle of a cycle. No impeller blockage.
Assuming I need to replace my pump with your st1152, how does the motor separate from the impeller? They seem to be fused together with no obvious external screws. Also which tune up kit?
Thanks!
Reply
That would be the correct replacement motor and the part numbers for the seals you will need for SPX1600Z2 and 5110-12A. As far as getting the impeller off, you will have to take the end cap off the back of the motor and hold the shaft with a channel lock so the shaft does not turn while you are trying to twist the impeller off.
Reply
are pumps ST1152 and UCT1152 interchangeable? Both look to be replacements for C48L2N134B1 Hayward super pump motors
Reply
It's gong to depend on if you have the UST1152 or the ST1152, the total horsepower is going to be the difference from 1.5HP to 2.25HP. So the UCT1152 will be good if you currently have to UST1152, unless you don't mind moving down in horsepower.
Reply
I have two different pumps.
1st pump I have is a AO Smith model # C48L2N134B1. this is the pool pump we had when we bought the house. This locked up and we bought a Hayward 1 1/2 horse but the model number we cant see. There is a number at the bottom which is SP1610Z1M.
I would like the replacement motor only.
Our pool is in ground and 40 x 20.
Thank you
Reply
This motor is listed as a replacement for my Leslie's Hydromax II pump. Can I replace this with the dual-speed A.O. Smith B977t? Also, which Go Kit do I need with this pump. Thanks.
Reply
Yes that dual speed would go with that pump. As far as the go kit, there isn't one with for that pump, but you should replace the shaft seal and housing gasket when you replace the motor.
Reply
What housing and seal plate do I need for this ST1152 motor?
Reply
Hi Aaron, In order to match the correct parts, we would need to identify the pump that your motor attaches to. Please provide the make and model of your pump in order to better assist you. Thanks for your question.
Reply
Here is the model number for my pump motor, k48m2n111a2 . The unit is leaking can you advise me as to the seals that I should replace? Thank you
Reply
Hi Frank, We will need to know the model number of the pump housing in order to locate the seals. If you do not have the pump model you can send use photos of the housing for identification.
Reply
I have a Jandy HHP 1.5 pump and I need to replace the motor on that. What are my choices? Also, is there a decibel rating on these motors? Thanx.
Reply
Does the motor come with everything you need to install it including gaskets?
Reply
The motor does not come with any parts, gaskets, o-rings, or seals. You will need to identify what pump manufacturer and model you have to determine which seals and o-rings correspond.
Reply
What is the correct start capacitor for the AO Smith ST 1152 pump motor? The capacitor that failed is rated at 124-149 MFD and 165 VAC. Thanks.
Reply
I have a Hayward RS1500 pool pump that the motor (K48m2n110) is going out on. I am unsure if this is the Hayward Super II motor but believe it is. It looks as though the replacement motor is the ST1152. I am looking for the go kit that I would need when replacing this motor.
Reply
Hi, The A.O. Smith Round Flange 1 1/2 HP Full Rate Motor (C1101, ST1152) would be the correct motor for the Hayward RS1500 Pump, The Hayward Super II Tune Up Kit (GOKIT2) is the correct gokit can can also be used on the Hayward RS1500 Pump.
Reply
Pump is on a timer. The motor will try to start, but only hum and either eventually automatically shut off (and then retry to start until it throws a breaker), if I re-set breaker, it will then at some point actually work until it is time for it to shut down. If you touch the pump motor while it is running it is VERY HOT!!!......should I just be getting a new motor?
Reply
Yes based on what you are explaining I would suggest replacing your entire motor, especially since the motor is running so hot as this may have caused other damage to parts within the motor.
Reply
I run my pump year round about 8-12 hours per day using the 1.5 HP full rate motor....should the pump motor be lasting more than a year or 2?
Reply
The pump motors should last more than a year or two. Make sure you replace the seals when you replace the motor. Check out our guide on "How to Extend the Life of Your Swimming Pool Motor".
Reply
How warm/hot to the touch should the motor feel after it has been running for a few hours...? The average outside air temp while the motor is running is 85 degrees F.
Reply
Rick, generally motors have a rating on them It will say AMB. It could, for example, say 50 Degress C, which means it will operate at 122 degrees F ABOVE the ambient temperature. Easily a motor can feel 200 degrees.
Reply
My pump makes a loud high pitched screaming noise when running. The pump moves the water well but the noise is very loud. Would replacing the seals eliminate my noise problem?
Reply
I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
Reply
Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
Reply
Why should I purchase a Tune Up Kit?
Reply
A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
Reply
Why do I need to purchase a new shaft seal?
Reply
We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
Reply
What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
Reply
The Most Helpful Review
171 8
(5 out of 5 stars) Excellent Pump Moter Replacement
Reviewed By: PoJo from Clarence, NY ()
Pros: Awesome fit - excellent replacement
Cons: none
Tip to get the impeller off the old pump moter: use a 7/16" open ended wrench - it slides in near the capacitor on the electrical side... rotate the impeller until the wrench slides into place at the end of the shaft and then one person holds the motor and the wrench while a 2nd person loosens the impeller off with bare hands by turning the impeller counter clock-wise.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: ()
it is easy to be installed and runs great after installed.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Gary B. ()
The old motor went toes up last season - lasted 5 or 6 years so no complaints. Installed this new motor last week and fired it up-PERFECTO. Seems a bit quieter than the old one but hard to say. In any case, it pumps great.
Was this review helpful to you?
(5 out of 5 stars) AO Smith Pump Motor
Reviewed By: mimi from Pennsylvania ()
Recently I have had to replace my pump motor which I did with the same product that I had before. I cannot complain since it lasted longer than eleven years with near constant running during the Pennsylvania swimming months (May - October). INYO Pools was very helpful in helping me order all of the necessary parts to complete the installation. Oh and the free shipping is a bonus.
Was this review helpful to you?
(5 out of 5 stars) New motor install
Reviewed By: pukhed from Marco Island ()
Pros: Easy to replace
Cons: None.
Never done this before. Took some input from the support team here to figure out the correct replacement. My label was completely trashed. But after reading all the support documents here the actual replacement was easy. Super quiet.
Was this review helpful to you?
(5 out of 5 stars) Good Pump
Reviewed By: Darren W. from Sparks NV ()
Pros: Quiet
This is good quiet strong pump. With the how to videos on the website, it was easy to install
Was this review helpful to you?
(5 out of 5 stars) Nice motor
Reviewed By: coolGRap from San Jose, ca ()
Pros: Great power
Cons: Too loud
Perfect replacement motor for my Hayward super pump II. Easy to replace after watching the YouTube video of the process
Was this review helpful to you?
(5 out of 5 stars) Good motor, fast service
Reviewed By: Jack Scuba from Fort Worth, TX ()
Pros: Easy install, good solid motor
Cons: None so far
My old motor was going out so I decided to order this one as a back up. Sure enough, about 6 weeks later the old motor failed. I did the motor replacement myself in about 2 hours with no problems. The ordering and shipping went great, fast, easy, no problems.
Was this review helpful to you?
