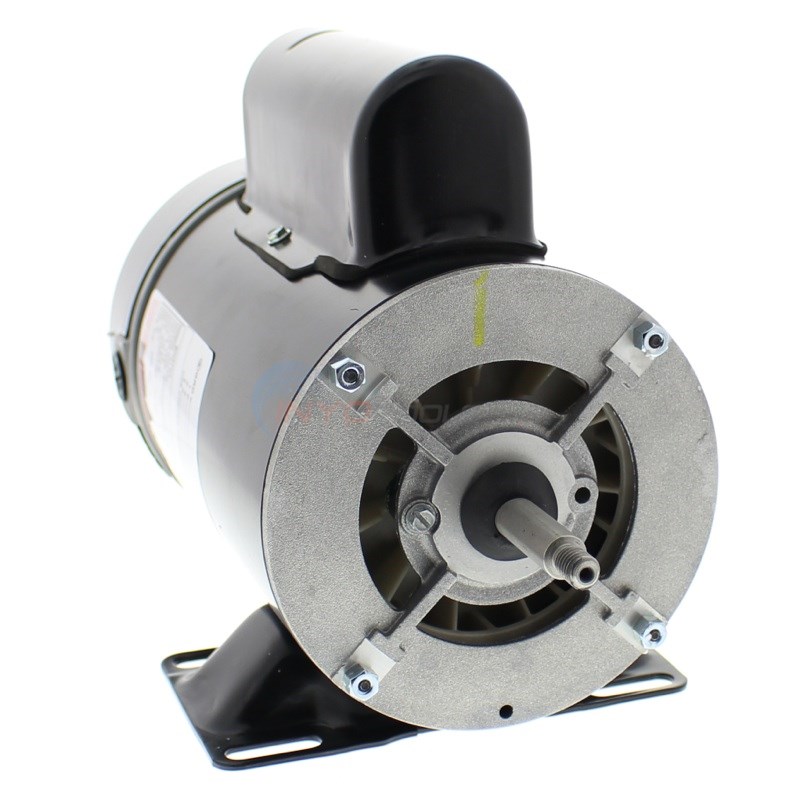

Century 1.0 HP Thru-Bolt 48Y Dual Speed Low Amps Motor - BN37V1



Part # BN37

By Magnetek

  4.67 Average



Part # BN37

Warranty 1 Year

Manufacturer Code BN37V1

Dimensions 11.5" L x 5.75" W x 6" D

Alternate Part #'s 10-177782-03, 10-177782-30, 10-177782-83, 10-181327-03, 10-193077-01, 1510Z-2-EC, 1510Z-2-EXC, 1510Z-24-EC, 1510Z-24-EXC, 1510Z-24-XEBKC, 1510Z-24-XLEC, 15669, 15698, 15699, 15700, 15707, 159906, 164003, 164077, 164250, 164266, 164461, 164679, 164858, 164923, 165362, 165378, 165527, 165527PJ, 165789, 168768, 168971, 173392, 173416, 173632, 177192, 177782, 177784, 181327, 181327PJ, 181961, 182714, 182745, 182835, 184165, 186093, 186265, 186266, 193077, 193743, 1D155, 1D156, 35-6482, 35-6484, 4405100412, 5KC39RN2901X, 5U146, 7-164003-01, 7-164003-05, 7-164003-06, 7-177782-01, 7-177782-02, 7-177782-03, 7-177782-07, 7-177782-40, 7-177782-83, 7-181327-03, 7-181327-40, 7-182714-01, 7-182835-01, 7-182835-02, 7-182835-20, 7-184165-01, 7-184165-03, 7-186093-02, 7-193077-01, 8-165527-04, 8-177192-03, 8-177782-01, 8-177782-40, 80104993, 9-165362-02, 901014993, 90104993, agl10fl2s, B027, B037, B038, BN037, BN038, BN37, BN38, BO27, C1279, C1323, C1903, C48A03A24, C48A20A24, C48L2A18, C48L2A25, C48L2A29, C48L2A29A1, C48L2A31A1, C48L2A36, C48L2A40, C48L2A41C1, C48L2A41C1A1, CBS1102, CBS2102, F48AD32A01, M-194AG, MTG-C1279, S48A39A79, S48L2A10, S48L2A10A1, S48L2A10A2, S48L2A10A3, S48L2A10A5, S48L2A14, S48L2A14A1, S48L2A14A4, S48L2A27, S48L2A27A1, S48L2A27A2, S48L2A27A3, S48L2A33A1, S48L2A39, S48L2A40A1, S48L2A40A2, S48L2A48, S48L2A48A1, S88-555, SP1510Z24XE, SP1510Z24XEBK, SP1510Z2KXB, SP1510Z2XB, SP1510Z2XE, SP1510Z2XEBK, SPL10FL2, SPX1510Z24XE

Product Description

Century 1.0 HP Thru-Bolt 48Y Dual Speed Low Amps Motor - BN37V1

Application: Above Ground Pools & Spas Replaces: Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy, Etc... Features: All copper windins, Auto protector, Open drip proof, Stainless steel threaded shaft, Thrubolt pump mount, "1081" design, 60 HZ , 115V, H.P = 1 High Speed / .125 Low Speed, Full load Amps = 10.8 High speed / 2.8 Low Speed, Frame 48Y, Threaded Shaft


Motor Dimensions Motor Dimensions
Motor Image Motor Image

Product Specifications

Motor Name:
1 HP BN37 & BN37SS Replacement Pool Motor
1/ .12 HP
3450/1725 RPM
115 V
11.0/2.9 amp
Service Factor:
Total HP:
1 HP
Stock #:
BN37 or BN37SS
Overload Protector:
Dimension Letter:
12.08 in.
Commonly Used On:
Sta-Rite, Hayward, American Products, Hydra Bath, Pac Fab, Jacuzzi, Doughboy

?     Asked on 12/22/2019 by WG

Is there a difference between BN37 and BN37V1?

A  Answered on 12/23/2019 by InyoPools Product Specialist Lennox H.

Hi, WG. The internal wiring design is the difference.

?     Asked on 11/13/2019 by

I have a Hayward SP-1510-Z-2-XE spa pump with a motor Mod S48LA210 - 110v- 11.6/3.3 amp - 1 1/6hp . The motor shaft is pitted and I must frequently change out the mechanical seals. What would be a replacement for this unit?

A  Answered on 11/19/2019 by InyoPools Product Specialist Lennox H.

Hi. This BN37V1 is the correct replacement.

?     Asked on 9/10/2019 by Eric L Lucy

Does the motor include the through bolts?

A  Answered on 9/10/2019 by InyoPools Product Specialist Joe S.

Yes, this unit would include the through bolts.

?     Asked on 8/29/2019 by Peter

I have a Hayward Power Flo Pump with an A O Smith motor model number C48L2A29 (also has SP-1510-Z24-XE written on the label). Is the BN37V1 the correct odor replacement part?


A  Answered on 8/29/2019 by InyoPools Product Specialist Lennox H.

Hi, Peter. This BN37V1 is the correct replacement.

?     Asked on 7/17/2019 by K. Renee Monroe

Hello Dave, I have a BN37 1.5 hp, RPM 3450/1725 AMP 11.0/2.9 part #7-177782.03, Frame R48Y. Apparently this model is discontinued. If possible I would like to g to a 2HP without changing any plumbing. 1 1/2 Inlet and outlet FMCP wertend NEW.

A  Answered on 7/18/2019 by InyoPools Product Specialist Lennox H.

Hi, K. Renee Monroe. The BN37V1 motor is still available. However, a 2 HP pump with 1-1/2" plumbing is not good if your goal is a higher flow.

?     Asked on 6/19/2019 by Dave K.

Re: listed pump. How much is it to include the power cord and and off switch already attached to the motor. OR do you have other like motors that come as a complete system?

A  Answered on 6/21/2019 by InyoPools Product Specialist Lennox H.

Hi, Dave K. Unfortunately, there is not a replacement motor available with a power cord and or switch already attached. These parts will have to be purchased separately and then installed on the motor.

?     Asked on 6/19/2019 by Maureen

Hello, Would this be the replacement motor for part #7-186554-01?


A  Answered on 6/19/2019 by InyoPools Product Specialist Michelle B.

Hello, Can you please send a side view picture of the entire pump?

?     Asked on 6/17/2019 by Chuck

Hello I have a 1.4hp motor The switch burned up... I need a wiring diagram to repair power cord to switch and switch to motor please and thank you

A  Answered on 9/30/2019 by Industry Professional

Sorry but all we can give you is the motor wiring layout.


?     Asked on 3/3/2019 by Ben

Hi there, I have a Hayward power flo II SP1515-Z-24-e 1.5 hp dual speed 3450/1725. Looking for a replacement motor, what I don't see is the shaft length in the descriptions. My shaft length is 2.25" from the motor face to the end of the shaft with 3/8-16 thread. what do you recommend?

A  Answered on 3/8/2019 by InyoPools Product Specialist Lennox H.

Hi. Ben. The shaft length is 2.38".

?     Asked on 11/11/2018 by jerry

Can BN37V1 2sp 1hp replace Sta-rite ABG4E7-2A4SP through bolt. Im in Calif. Can a 1.5 hp 2sp, 115v in BN37 also replace stay-rite ?

A  Answered on 11/12/2018 by InyoPools Product Specialist Lennox H.

Hi, Jerry. This BN37 can be used as a replacement for Sta-Rite ABG4E7-2A4SP. You can also use the BN50 - 1-1/2 HP 2 Speed.

?     Asked on 10/3/2018 by Michael Marzec

I have a 1.5 hp 2 spd pump 115 v, 60 hz, 12.0/3.1 amps p/n 7-181327-03. What would a correct replacement be?

A  Answered on 10/4/2018 by InyoPools Product Specialist Lennox H.

Hi, Michael. This BN37 - 1 HP 2 Speed 115V Thru-Bolt Motor is the correct replacement motor.

?     Asked on 6/19/2018 by Randy

I have a Jacuzi/Magnetec motor 7-181326-01, 2-speed, 1 HP (I think, 115V motor that I want to replace. Is the BN37 the correct replacement?

A  Answered on 6/19/2018 by InyoPools Product Specialist Lennox H.

Hi, Randy. The correct replacement motor for Part # 7-181326-01 is BN36. This BN37 can also be used depending on the impeller you have.

?     Asked on 6/6/2018 by Steve

Will this motor replace MagneTek 8-177192-01?

A  Answered on 6/6/2018 by InyoPools Product Specialist Hector F.

Yes, this would be the correct replacement motor for your model.

?     Asked on 8/28/2017 by Robert A Lebeck

I ordered a BN37 pump and impeller turns counter clock wise. How do I wire it to turn Clockwise? I have a 3 wire power cord Green,White & Black The lable states: Ground # 1 High Speed I attached White Wire to # 1 # 5 Common I attached Black Wire to # 5 # 6 Low Speed No Wire attached This now turnes Counter Clockwise. How do I change to Clockwise? Thanks so much for your help.

A  Answered on 8/31/2017 by InyoPools Product Specialist Lennox H.

Hi, Robert. These motor can not be wired for a reverse rotation, it will only rotate in a counterclockwise rotation.

?     Asked on 7/21/2017 by Mary Virginia Petty

We have a model number LEA-30 pump and would like to know what motor fits it

A  Answered on 7/21/2017 by InyoPools Product Specialist Robert M.

Hello Mary - The BN37 will work if you have a thru-bolt style 48Y frame 1HP 2-speed 115v motor. Check the specifications on your current motor to see if these match.

?     Asked on 6/5/2017 by Phil

I have a jacuzzi above ground pool filter unit with Magnetek 7-186654-01 1 HP 2 speed motor. When I searched on this model number, the present site came up but I don't see my model number listed. Would the BN37 be the correct replacement?

A  Answered on 6/11/2017 by InyoPools Product Specialist Patrick P.

Hi Phil, Yes this BN37 motor is the correct replacement motor for your Magnetek 7-186654-01 1 HP 2 speed motor.

?     Asked on 4/2/2017 by Laura

Need new motor/pump assembly for 24' round 52" pool. Old pump is Waterway, 2HP, 2-speed, Hi Flo SD 1502189245. We always run it on high to move 30 GPM in 8 hours. Low doesn't cut it; barely moves the water. We want our next model to be timer compatible. Looking at Hayward Power Flo Matrix. Need a pump with horizontal fixture. Is 2HP too much? Thinking dual speed, 1.5HP would be better. We got the 2HP our local store had on shelf. What do you recommend? Which timer do we need to match? Thx :)

A  Answered on 4/4/2017 by InyoPools Product Specialist Lennox H.

Hi, Laura. A 2HP pump could be too big depending on the size of your filter.

?     Asked on 7/5/2016 by Bob

The two speed pump motor switch broke where can i purchase a new switch.

A  Answered on 7/9/2016 by InyoPools Product Specialist Lennox H.

Hi Bob, The toggle switch may be available if you can provide the model of the toggle switch assy.

?     Asked on 6/7/2016 by George Clark

I need to replace a Proline SKP712.2 above ground 2 speed pump motor. The model # is PE71-III-H. It is an Emerson motor with a model # of C55CXKEF-4876. It doesn't give me the HP, but I expect it to be 1 HP. Its. 115 volt 2 speed. MFG #ME08C and is a 48Y frame motor. 16.0/4.8 amps. Do you have something that will cross to this?

A  Answered on 6/12/2016 by InyoPools Product Specialist Patrick P.

Hi George, Based on your amp draw you will need this BN50 1.5 HP Dual Speed 115V Replacement Motor I would also suggest replacing your shaft seal when you replace your motor and you would need the Proline PE71 Shaft Seal

?     Asked on 4/5/2016 by

I need to replace a Hayward Magnitek Dual Power 1 Hp Motor 115V Serial Number BN9-29. What should I be looking at?

A  Answered on 4/5/2016 by InyoPools Product Specialist Matt S.

We would need to know the part or catalog number from the motor label to ID the correct motor.

?     Asked on 12/29/2015 by Mike

I have a manga tech motor in my jacuzzi that has part number 7-177782-03. Can you tell me the replacement motor I need with this info? Thanks, Mike

A  Answered on 12/29/2015 by InyoPools Product Specialist Andy O.

Mike- Based off the part number you provided the BN37 would be the correct replacement motor.

?     Asked on 10/5/2015 by

i need to replace a Magnetek Century Electric laser xl spa motor. the P/N # is: SP 1510-Z-2-4XLE the part # is: 9-1-73632-02 HP 1.0 / .16, SF 1.00, RPM 3450 / 1725 , FR Y48Y , 115 volts, 10.3 / 3.1 amps, PH 1 Can you tell me which moter would be best replacement. My motor is about 11 3/4" long and won't fit if longer. thanks

A  Answered on 10/8/2015 by InyoPools Product Specialist Lennox H.

Hi, The 1 HP 2 Speed 115V Thru-Bolt Motor (BN37) would be the correct replacement motor.

?     Asked on 9/10/2015 by

This motor runs extremely hot in my hot tub. can you explain if this is normal. very hot to the touch.

A  Answered on 9/10/2015 by InyoPools Product Specialist Alex V.

Hello, The motors will run hot to the touch. If the thermal overload does not shut the motor off, it is within normal operating temperature.

?     Asked on 5/28/2015 by skip jacobs

I am in the market for a capacitor for the Magnetek Century a/c motor model 7-193077-01. If you could help, I would appreciate it. thanks

A  Answered on 5/28/2015 by InyoPools Product Specialist Patrick P.

Hi Skip, Your motor would require this Capacitor.

?     Asked on 5/17/2015 by Joe

I need to get a spa motor for our hottub, its BN37V1, and I also need a pump, but having a hard time finding one. Do you have any pumps to go with the motor? And what is the cost. I will need both. Thanks

A  Answered on 5/19/2015 by InyoPools Product Specialist Patrick P.

Hi Joe, Yes the AquaFlo Spa Pump has the BN37 Motor this would be the complete spa pump and motor.

?     Asked on 1/18/2012 by Guest

I'm trying to find a replacement motor for my pool pump but my model number doesn't match what you have listed as the model number. My model number begins with a C48 and yours begins with an SP. Please help.

A  Answered on 1/18/2012 by InyoPools Product Specialist Patrick P.

What we have listed on our chart pages is the pump model number. The model number you have will just identify the motor. If you look on the plastic housing on the pump there should be a sticker which will have the pump model number. You can usually find this by the discharge port on the pump. Once you locate it you can choose the correct replacement motor. Be certain to change the shaft seal and gaskets as needed. You can use our >How to guide if you need help.

?     Asked on 1/12/2012 by Guest

Why should I purchase a Tune Up Kit?

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.

?     Asked on 1/12/2012 by Guest

Why do I need to purchase a new shaft seal?

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.

?     Asked on 1/11/2012 by Guest

What is Service Factor?

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.

?     Asked on 5/16/2007 by Guest

Can you replace single speed pump motor with dual speed pump motor?

A  Answered on 5/16/2007 by InyoPools Product Specialist Patrick P.

Yes but you can't go with a higher HP than the single speed motor. For example if you have a 1 HP single speed you cannot go with a 1.5 HP dual speed motor; you would be able to use a 1 HP dual speed motor. Customer would need to purchase a toggle switch or timer to switch from high speed to low speed.
