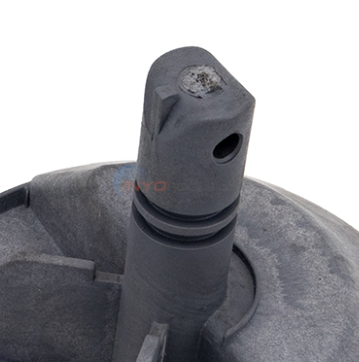

Diffuser, 2" Valve - E-11-S2

$38.99

IN STOCK
FREE SHIPPING

Part # 4600-1168

By Praher

  5 Average

Details

Top

Part # 4600-1168

Manufacturer Code E-11-S2

Dimensions 6.75" L x 6.75" W x 4.75" D

Alternate Part #'s 14971SM20E11, 16109308R, 271168, 873-E1011S2, 873E1011S2, E11S2

Product Description

 2" Valve Diffuser manufactured by Praher and used on a number of 2" valves from Jacuzzi, Sta-Rite, Pentair and Waterway.  Please note that the 5-spoke diverter gasket is sold separately.

This diffuser is included in the E-50-S2B 2" Valve Top Assembly.

Top

?     Asked on 7/25/2017 by Mike M

Does this replace the diverter on a Praher SM20-2? I broke the top of the diverter where the pin goes through. Would you suggest the whole assembly be replaced or is the diverter piece enough? I assume I can reuse the gaskets. Thanks
 Reply

A  Answered on 7/31/2017 by InyoPools Product Specialist Lennox H.

Hi, Mike M. This Diffuser will fit the SM20-2 valve. However, replacing the Valve Top Assy - E-50-S2 will be easier and more efficient. The Diverter Gasket - 271148 and the Cover O-ring - 271151 are not included.
 Reply


?     Asked on 9/17/2016 by walter

I rebuilt the Jandy SM20-2 top part and need to know how to align the handle with the hole in the diffuser.
 Reply

A  Answered on 9/29/2016 by InyoPools Product Specialist Stacey M.

Hello Walter, for clamping the  SM20-2 valve needs a special type clamp vice to make sure even amounts of pressure is on all sides or you could break/crack top assy.
 Reply


?     Asked on 5/12/2015 by jim bagley jr

I just the replaced the spoke gasket,spring and washers on the dial but the handle does not have any tension on it ,have any ideas
 Reply

A  Answered on 5/13/2015 by InyoPools Product Specialist Lennox H.

Jim, Replacing the handle for your SM20 multiport valve will be your next option.
 Reply
