Need to replace multi port valve for Sta-rite T-240BP.
The replacement you have, does it fit the old sand tank?
The photo of your replacement doesn't show outside threads to re attach the intake and return lines. Are the threads now on the inside?
Also does the replacement you have, have a screw to let out the air for priming?
Reply
That 4600-1186 would be the correct valve but it is different from the original. There are no outside threads any longer so the valve must be plumbed with male adapters instead of unions and the ports are a little different. This is the correct valve though. There is no air relieve on this valve but there was none on the original either.
Reply
Is part number 261186 (4600-1186) the correct replacement valve for the Aqua Tools AT3120 sand filter?
Reply
Yes, part number 261186 (4600-1186) is the correct valve for the Aqua Tools AT3120 sand filter. This will also work on the Aqua Tools models AT3115, AT3118, and AT3124. There will be some plumbing required to make this valve work because the ports are not in the same exact spots as the WC112-148A valve.
Reply
my sand filter has model at3123b. Will this value fit it?
Reply
Jason- Yes, the 1 1/2" clamp style valve part number 4600-1186 (261186) will work on the aquatools AT3115, AT3118, AT3120, and AT3124 Sandfilter. Unfortunately, I am unable to find the specific model you are looking to put this on.
Reply
I have an aqua tools sand filter. The top part (i guess it is the Valve) is cracked. What valve will fit the filter? Here is what is on there now.
part # is 272526
VLV SD 19/22 1.5" hiflo
Our filter is a AT3123
Reply
Jamie- The valve you are looking for on your aquatools filter is 4600-2506 (26256)
Reply
Looking for Aqua tools, at 3125. Is this the replacement?
Reply
Paula- The 4600-1186 (261186) 1-1/2" Top mount Valve would be the correct valve for your aquatools filter.
Reply
I need to replace top mount valve model WC112-147 which is a discontinued part for STA-RITE T-180WF sand filter. Can you confirm if there is an alternative. Several different part numbers have been referenced.
Reply
Hi Tami yes this valve 261186 would be the correct replacement for the WC112-147 valve being used on your sand filter.
Reply
looking to replace aqua tool model AT3118 clamp style. Is this the proper replacement. Are the internal gasket assemblies available?
Reply
Ray, This 1-1/2" Top Mt. Clamp Style Valve is the correct replacement valve for your Aqua Tool Filter model AT3118. Replacement parts are not available for this valve.
Reply
iS THIS THE REPLACEMENT TOP VALVE PORT FOR MY STA-RITE T-180WF SAND FILTER?
Reply
Yes this is the correct replacement valve for the STA-RITE T-180WF but please note that Sta-Rite made a change from the original valve which was on this filter so some re-plumbing is required.
Reply
Hi, I am looking for a replacement valve for a sta-rite sand filter, model number t-170bp-1. Is this the correct valve?
Reply
Nathan, The Top Mt. 1-1/2" Clamp Style Valve is the correct replacement valve for the Sta-Rite T-170BP-1 Sand Filter.
Reply
My sand filter is a aqua tools at3123
The valve has an sticker p/n 272526
Will this valve work on my tank ???
Reply
Hi Mike, yes the Aqua Tools AT3123 would use this valve and mount to your tank. Some re-plumbing will be required as the ports on this valve are in a different location then the original valve which was discontinued.
Reply
Looking for aquaview top valve 1709 024 what do you have that would work for a replacement for yhis valve.
Reply
Countrygurl586, The correct replacement valve would be the Praher 6-Way Valve (TM-12-L).
Reply
What is the replacement for a AT3123B
Reply
David, The 1-1/2" Top Mt. Clamp Style Valve (261186) will work on the AT3123 model not sure if it work on the AT3123B model. Is there any part numbers on the valve that you have?
Reply
Is this a replacement for Sat-Rite model T-210WF, if so what all would be required to change it out from the old top mount
Reply
Hi Victor, The 1-1/2" Top Mt. Clamp Style Valve (261186) will be the correct replacement valve, I would also recommend replacing the Tank/Valve Flange O-ring (U9-369).
Reply
Just to make 100% sure this does replace the AT3125 model? Mine just broke off and I want to make sure I'm not wasting my time...I need it asap!! And do I need anything else to go with this or is it that simple to just replace??
Reply
There is no actual AT3125 but there is the AT3124 if that is what you are referring to. If so then yes this is the correct valve as long as you have 1.5 inch plumbing going into it. The o ring is included so nothing else will be needed.
Reply
I have the Model T-240BP-1 and I need a O-Ring on the wc112-148A. The part # IS 35505-1228. Do you have something that will work?
Reply
Hi Steve, The Diverter O-ring (216) will be the correct replacement o-ring for p/n 35505-1228.
Reply
I have a AT3118 sand filter.
my valve is leaking after I backwash,& rinse. Keeps leaking out the waste outlet.
Would this vale fix my problem.
Or what would recommend for a replacement of a comparable filter tank & valve ?
Reply
Hi Ryland, this would be the replacement valve we would suggest for the AquaTools AT3118 sand filter and would fix the issues you are having. Please note that the the original valve on the AT3118 was a WC112-148 which was discontinued. This valve is the replacement for the WC112-148 valve however the plumbing port locations are in a different spot so there may be some minor re-plumbing.
Reply
I have a sand filter valve Aquatools at3124 mod. N- WC112-147 broken. the valve that you sell fit with this? If so do you can send the valve to Panama? Thank you
Reply
Hi Mauricio, This would be the correct valve for the Aqua Tools AT3124 filter. We can also ship this valve to Panama.
Reply
I have an Aquatools brand sand filter, the Multiport Valve is an AT9110- I need parts or a complete replacement head. I cannot find this part number, is it still available or is there an alternate number?
Reply
Hi Ed, The AT9110 is the model no. for the filter, if you have the original valve you locate replacement parts via the Sta-Rite Multiport 1 1/2" WC112 Series Parts of replace the entire valve with model no. 261186.
Reply
Is this a replacement part for AT3120C? Thanks.
Reply
Hello, The Valve, 1-1/2" Top Mt. Clamp Style (261186) is the correct replacement valve for your AT3210C filter.
Reply
we have a sta-rite sand filter need a replacement number for the valve the paper label came off the valve the sand filter has t-180wf model the valve cracked thanks so much
Reply
Patty,Yes, this is the correct replacement valve for the STA-RITE T-180WF but please note that Sta-Rite made a change from the original valve which was on this filter so some re-plumbing is required.
Reply
Will valve # 261186 work with out modification on a AT3115 Aquatools filter?
Reply
The original valve used on the AT3115 was the WC112-148 which was discontinued and replaced by the 261186, however when replacing with the 261186 valve you will need to do some re-plumbing.
Reply
What is the correct replacement part for the Sta-rite model T-150BP-1 valve?
Reply
This valve here 261186 is the correct replacement valve for the Sta-rite Cristal-Flo model T-150BP-1. The original valve that came with your filter is a WC112-148A which was discontinued, this valve does work as a replacement for that valve but the plumbing ports are in a different location so if you are using rigid pvc pipe you will have some re-plumbing. If you are using flexible pvc pipe then this should be easier.
Reply
I have a sta-rite filter and need to replace the valve assembly and the part # I have is 14965-0031 which is a top mount clamp style. Would your valve # 261186 be a replacement for my needs. The model filter is BHR 170. Hope you can help me, Thanks
Reply
Hi Gerald, I was unable to locate a BHR-170 filter. If you have the Sta-Rite WC112 Series Valve, this valve is the correct replacement.
Reply
I have the AT3120. Will this the right replacement for my sand filter. Also is the clamp and O ring included?
Reply
Hi Patrick, This Top Mt. Clamp Style Valve will fit the AT3120, it does not come with the Valve Flange O-ring (U9-369) or V-Clamp (WC19-87A).
Reply
I have a sta-rite sand filter model #T240BP-1 , need the top mount multi-port assembly, what part # in this value??
Reply
Hi Gerald, This 261186 valve is the current replacement for the T240BP-1 filter.
Reply
Good Morning!!
I have the sta-rite t-210wf and having a leak out of the back drain part. do I need new O-rings replaced? and if so, which ones and what item numbers?
Thanks
Reply
Hi Freddy, You will need to replace the gaskets however, we will need to know the exact model of the valve that you have in order to get the correct seals. Or you also have the option of replacing the entire valve which this 261186 will act as a replacement.
Reply
I just purchased a 30 diameter used pool using a Sta-Rite T180WF sand filter. The lower portion of the valve body has broken off where it clamps to filter. Is a replacement for the lower portion of the valve available? Or is buying the complete 261186 my only option, if that is the compatible valve body?
Is an owner's manual available which would provide assembly instructions?
Reply
Hi Mr.Bill, Unfortunately there is not just the lower assembly to your valve. Good news is that the complete 261186 valve will work on your T-180WF filter, please note that Sta-Rite did make a few changes from the original valve so some re-plumbing may be necessary. I'm sorry we don't have a manual on this valve, but if after you order the valve you have any questions about the install then feel free to call or email us for assistance with the installation.
Reply
this is not the original head, why is it different?
Reply
Hi. Correct, this is not the OEM valve. This is an aftermarket replacement because the manufacturer no longer makes the original valve.
Reply
this looks like my valve i just need to be sure if it will fit the top of my filter its about 6 or 7 inches i can go measure it if you need exact size im not worried about the replumbing just need to know if it will fit my filter hole
Reply
Hi, Rick. This valve resembles a few other valves that we carry. If you can provide us with the model # of your tank we can confirm if this valve will fit your tank.
Reply
The product description says the clamp and valve are included with this. What other parts do I need?
Reply
Lisa, Aside from the clamp valve, clamp and o-ring, you will need pvc fitting, pvc and glue to replumb the system.
Reply
We have a AquaTools AT3118 that needs a new interior gasket in the multiplex valve. Can we just buy the gasket and o-ring?
Reply
Hi, Laura. In order to locate the correct gasket and or o-ring, we will need to know the model of the actual valve that is currently on the filter.
Reply
What supplies do I need for plumbing when replacing sta rite t-210wf with 261186?
Reply
Hi, Brenda. You will need pvc adapters and or hose adapter depending on what type of water connections you're using.
Reply
What do all the settings on top do
Reply
Hi, John. The valve positions and their functions are as follows, 1. FILTER — Normal position during operation of the system. 2. BACKWASH — Position when operating the system to purge filter of accumulated debris. 3. RINSE — This position is only used with sand filters and is designed to flush stray sand from the system before returning to filter operation after backwashing. 4. CLOSED — Valve may be set in closed position when servicing filter tanks located below water level. 5. RECIRCULATE — This position permits pump to continue recirculating water (chemicals, heat, etc.) without flow through the filter. 6. WASTE — This position permits draining or lowering of pool water level.
Reply
My tank is model AT3123 - will this value fit my tank? The numbers on my valve have faded and unreadable.
Thanks
Reply
Hi George, yes the Aqua Tools AT3123 would use this valve and mount to your tank. Some re-plumbing will be required as the ports on this valve are in a different location than the original valve which was discontinued.
Reply
I have a SwimQuip Pantera P-70 sand filter, date coded H83, and it is 250 lbs, 3.1 ft^2, 62 gpm, 50 psi max. The stem where the pressure gauge goes is stripped or leaking and I was contemplating replacing the entire top of the sand filter. Will this unit fit?
Reply
Will this unit replace a sta-rite crystal flo t200-bp1 wc112-148
Reply
Yes, and it has been replaced with the model 261186 which is our part number 4600-1186.
Reply
What does the 1 1/2 inch on top mount clamp style 261186 refer too.
Reply
I have a Sta Rite Sand filter that is leaking at the discharge portal Model T 18WF is their a repair to this or do I replace with the 261186
Reply
Hi, MH. This is the correct replacement valve for your T180WF filter model. You will have to replumb your system once this valve is installed.
Reply
I have an old AquaTools AT3124 filter and need to replace the top valve since it is leaking. What is the correct part number that I need to order to replace it. Thanks
Reply
I have an old AquaTools AT3120 filter and need to replace the valve due to it numerous issues. What is the correct part number that I need to order to replace it or can use any part that fits. Thanks
Reply
Hi, Phil. This is the correct replacement valve for your model filter.
Reply
I have a WC112-147 that is in need of replacement, what is the difference between WC112-147 and WC112-148.
thanks
Ryan
Reply
The WC112-147 and WC112-148 were installed on the Crystal Flow filters. The Pentair 1-1/2" Top Mount Clamp Style Valve - 261186 AND WILL HAVE TO BE RE-PLUMBED, NOT THE SAME PORT ARRANGEMENTS AND DOESN'T HAVE UNION CONNECTIONS!! THE ORIGINAL VALVE KIT INCLUDED: (1) COMPLETE VALVE (1) U9-369 VALVE TO FILTER O-RING (1) WC19-87A VALVE TO FILTER CLAMP (1) WC36-22 CLAMP PLASTIC KNOB (1) 33600-0023T PRESSURE GAUGE THE REPLACEMENT VALVE, PART # 4600-1186, THE CLAMP AND VALVE TO FILTER O-RING ARE INCLUDED. REPLUMBING FOR THIS VALVE WILL BE REQUIRED IF REPLACING THE WC112-148 VALVE.
Reply
Hi,

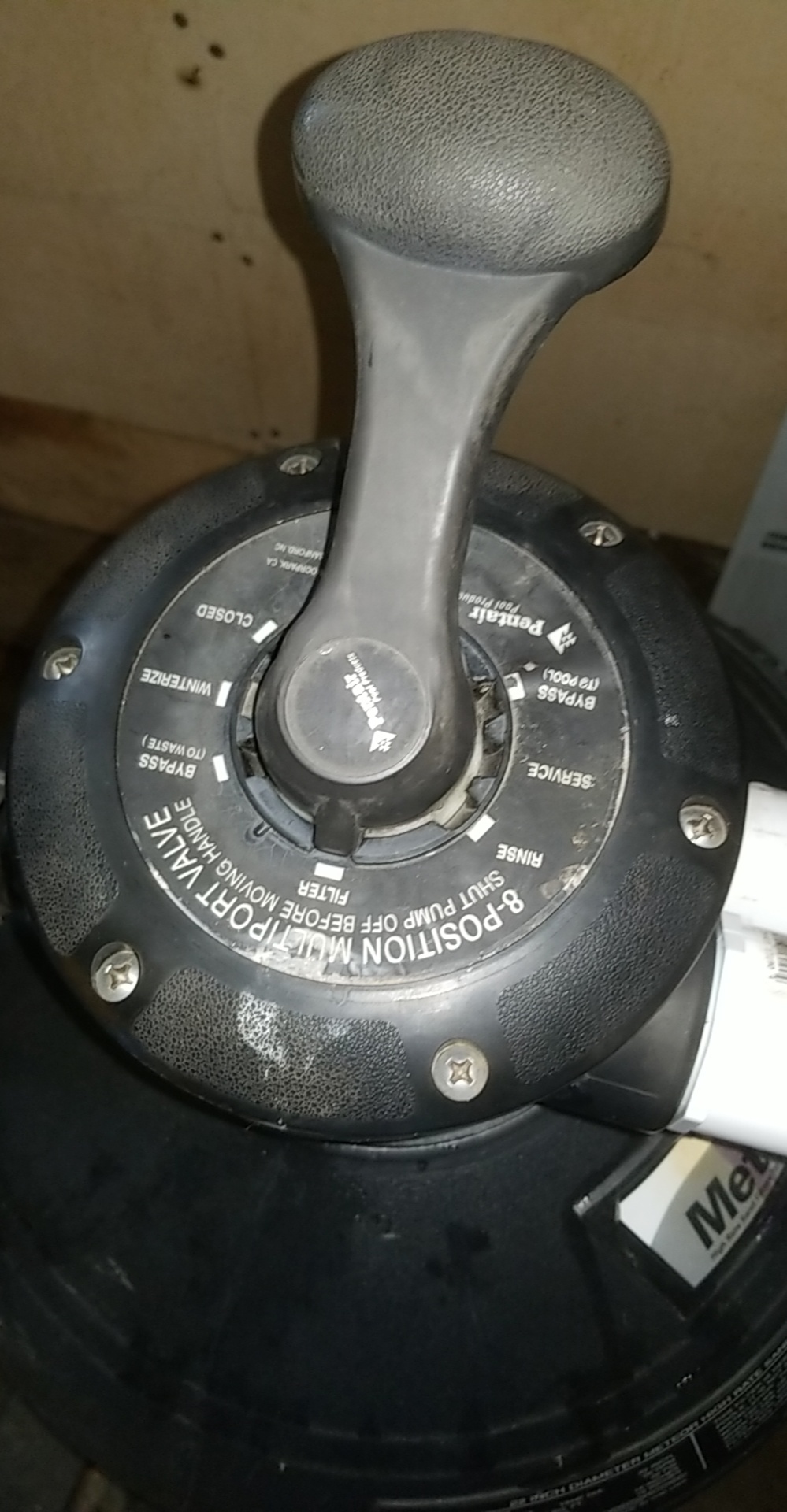

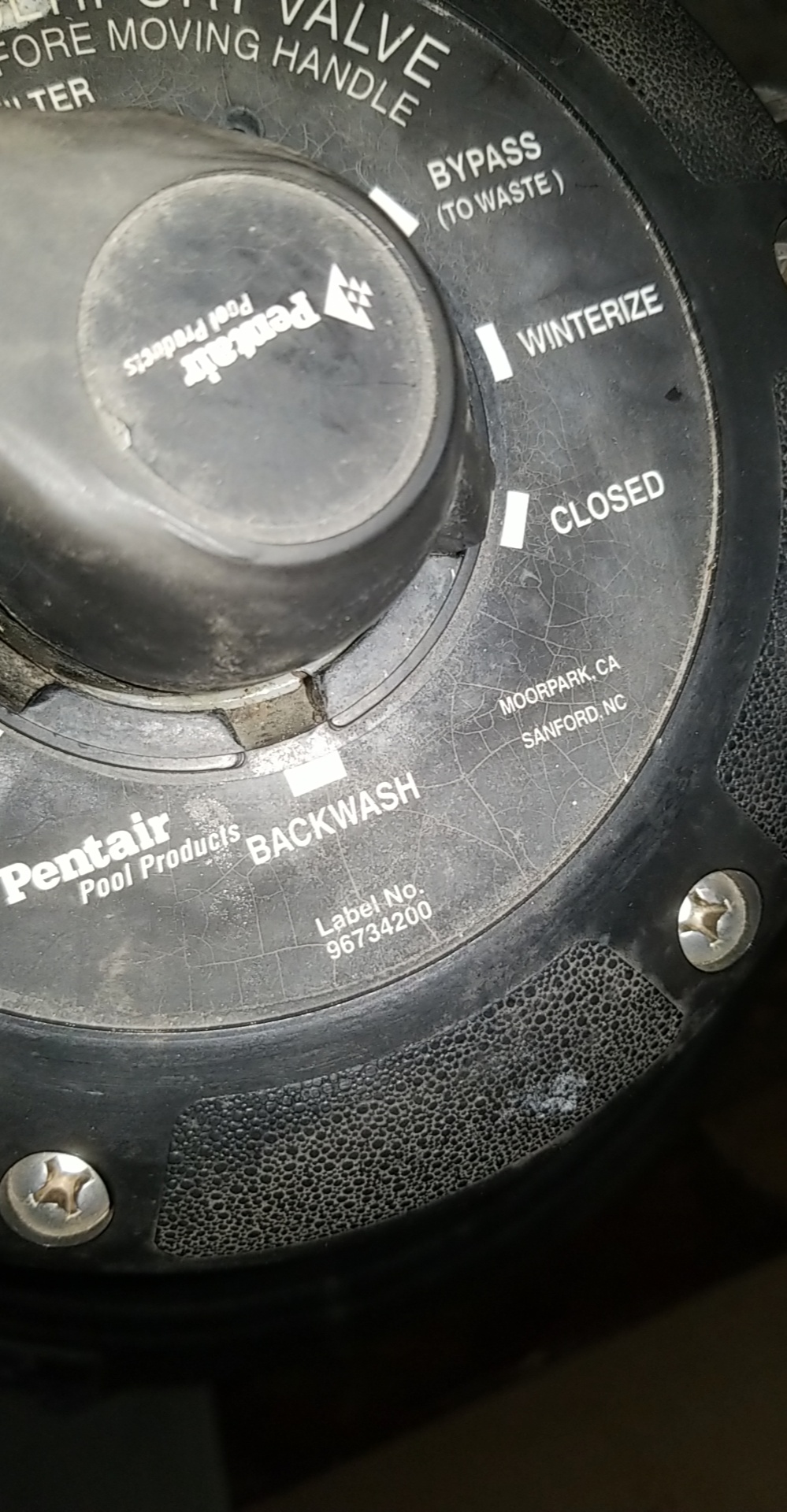

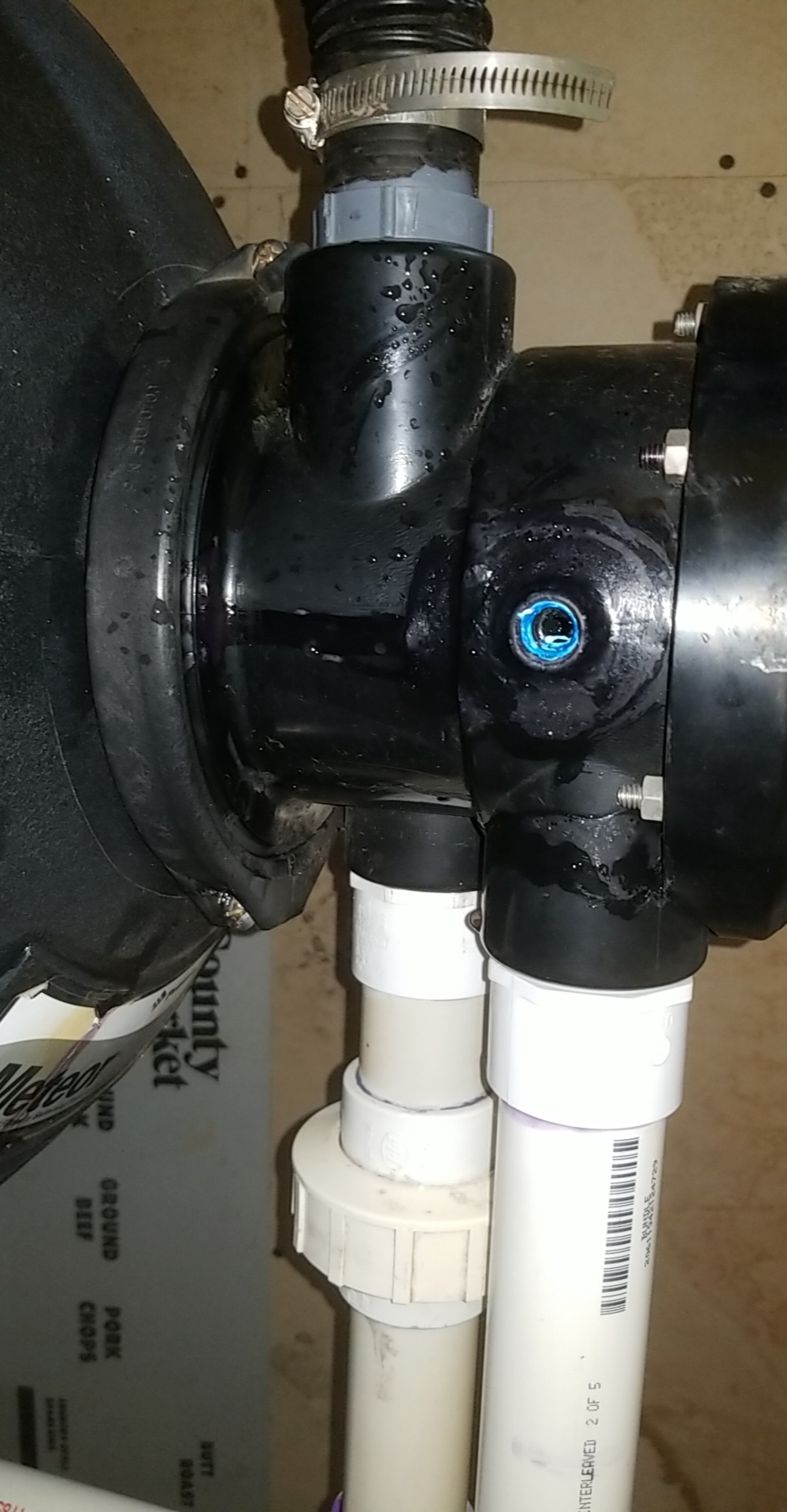

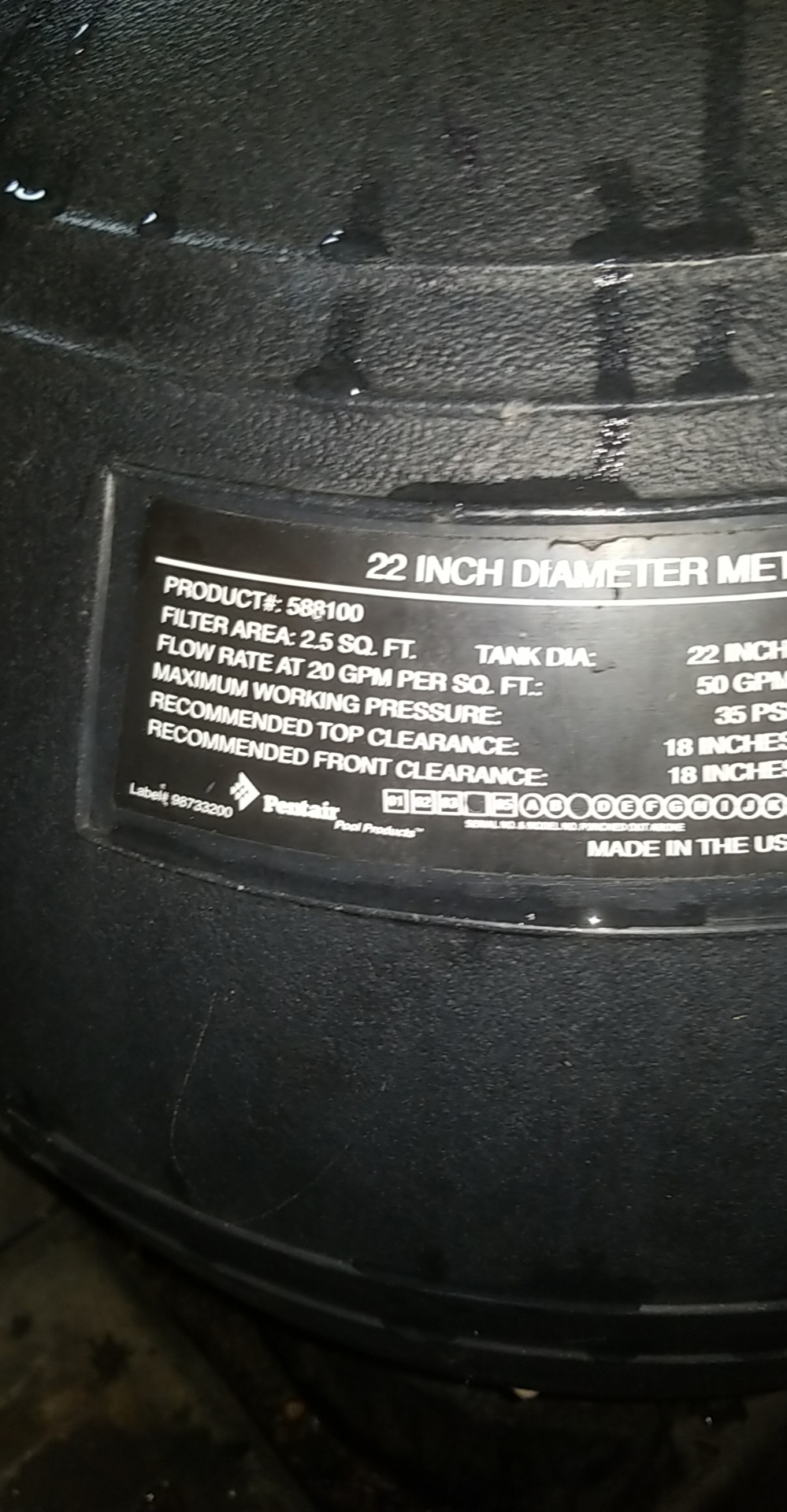

I have a 22 inch Meteor high flow product #: 588100 will this fit? I know my PVC that hooks up is 1 1/2" so I would assume so but yet the dimensions shown in your pictures is shown as 2"?
I have a Aquatools sand filter AT3118 that needs a new main valve head is there one that would fit this?
Reply
Is this the replacement part for the Aquatools AT3115? Thank you.
Reply
I need to replacement my multi- port WC112-148A on my Waterford JSAL 17 D/E/F sand filter. Same connections?
What options do you have?
Dan
Reply
Hello Dan. The Pentair 1-1/2" Top Mount Clamp Style Valve - 261186 is a compatible replacement multiport valve for the Sta-Rite WC112-148A.
Reply
