Hayward Logic Chlorine Generator / Control

The Pro Logic is designed with your ease and comfort in mind. Now you can have full control of all the functions of your pool and have all the benefits of an AquaRite chlorine generator at the touch of a button. With the new Pro Logic you can control your filtering times, pool lights, heater and two additional outputs. The possibilities are as varied as your pool requires. The best part is you can do all these things from inside your house. Now you can heat up your spa and turn on the jets before you even step outside.

PLP4PACK Includes - PLP4 Control, Chlorine Generator, 4 relays,3 valve outputs, no actuators, 8 position breaker panel, local remote from power supply, 2 temp sensors.

PLPS4PACK Includes - PLPS4 Control, Chlorine Generator, 4 relays, 4 valve outputs, 2 valve actuators, 8 position breaker panel, local remote from power supply, 2 temp sensors, 2 heater controls.

PLPS8PACK Includes - PLPS8 Control, Chlorine Generator, 8 Relays, 4 valve outputs, 2 valve actuators, 8 position breaker panel, local remote from power supply, 2 temp sensors, 2 heater controls.

PLPS16PACK Includes - PLPS16 Control, Chlorine Generator, 16 relays,4 valve outputs, 2 valve actuators, 8 position breaker panel, local remote from power supply, 2 temp sensors, 2 heater controls.

Indoor Control Panel, Spa Side Remote and Base Receiver are purchased separately.

The Pro Logic System has 4 different control options available.

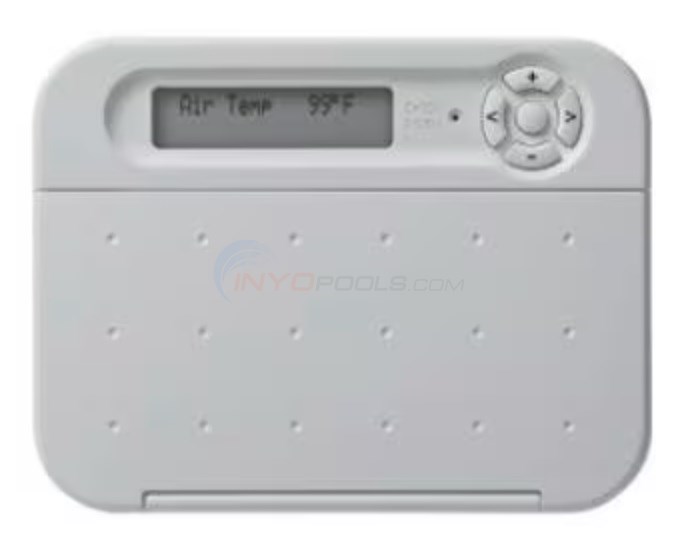

1. Wall Mounted Wired Remote - The wired remote requires 4 conductor wire to be ran from the equipment pad to the location in the house where the Wall Mounted Wired Remote will be hooked to the wall. You can Add Up to 3 Wired Remotes to your Pro Logic system. If you are adding the Pro Logic to an existing pool the wireless remote may be a better option.

2. Wall Mounted Wireless Remote -Pro Logic wireless remotes require a Wireless Base Receiver. Only 1 Base Receiver is needed to operate any combination of 4 wireless remotes. The Wall Mounted Wireless Remote does not require any connections from the remote to the equipment set. This makes the wireless option ideal for retrofit applications. Unlike Table Top Wireless Remotes that can be moved around the house this unit is mounted to the wall and plugged into a power outlet nearby.

3. Wireless Table Top Remote - Pro Logic wireless remotes require a Wireless Base Receiver. This portable display/keypad with rechargeable batteries allows the homeowner to control the system from anywhere around the pool area or inside the house. Designed for indoor or outdoor use but must be protected from direct rain contact. Only 1 Base Receiver is needed to operate any combination of 4 wireless remotes. The Table Top Wireless Remote does not require any connections from the remote to the equipment set. This makes the wireless option ideal for retrofit applications.

4. Wireless Spa Side Remote -A Base Receiver is required when using the wireless Spa Side Remote. Only 1 Base Receiver is needed to operate any combination of 4 wireless remotes. Control up to 6 functions in the comfort of your spa with the Wireless Spa Side Remote.

Automation and Chlorination at an Affordable Price

• Soft, Crystal Clear, Luxurious Water
• For Pools up to 40,000 gallons
• Generates "Free Chlorine" from a Small Amount of Salt
• Total Pool Control at the Touch of a Button
• 3 Year Warranty

Click here for more Salt Chlorine Generator
