A.O. Smith 1.5 HP Square Flange 56Y Full Rate Motor - B2858

$252.99

IN STOCK
FREE SHIPPING

Part # B858

By Century Motors

  4.95 Average

Details

Top

Part # B858

Warranty 1 Year

Manufacturer Code B2858

Dimensions 14.5" L x 9" W x 6.5" D

Alternate Part #'s 10-177476-20, 14728, 16-177476-28, 164654, 168454, 177081, 177476, 193987, 355342, 5KCR48UN2493X, 7-168454-24, 7-168454-25, 7-177081-24, 7-177476-20, 7-177476-26, 7-177476-28, 75235, 8-168454-25, 8-177081-40, 8-177476-20, B2858, C1307, EB858, P714, SQD15FL1, V14728

Product Description

A.O. Smith Centurion replacement motor for Pentair WhisperFlo and Challenger full rated pumps. Specifications: HP = 1.5, RPM = 3450, Voltage = 115/230, Amps = 22.4/11.2, Service Factor = 1.50, Frame = 56Y, Shaft = Threaded. *Please Note: This is the correct replacement motor for the Challenger 1.5 HP full-rated pump.

Note: NOT California Title 20 Compliant.

California Title 20 Compliant Options:

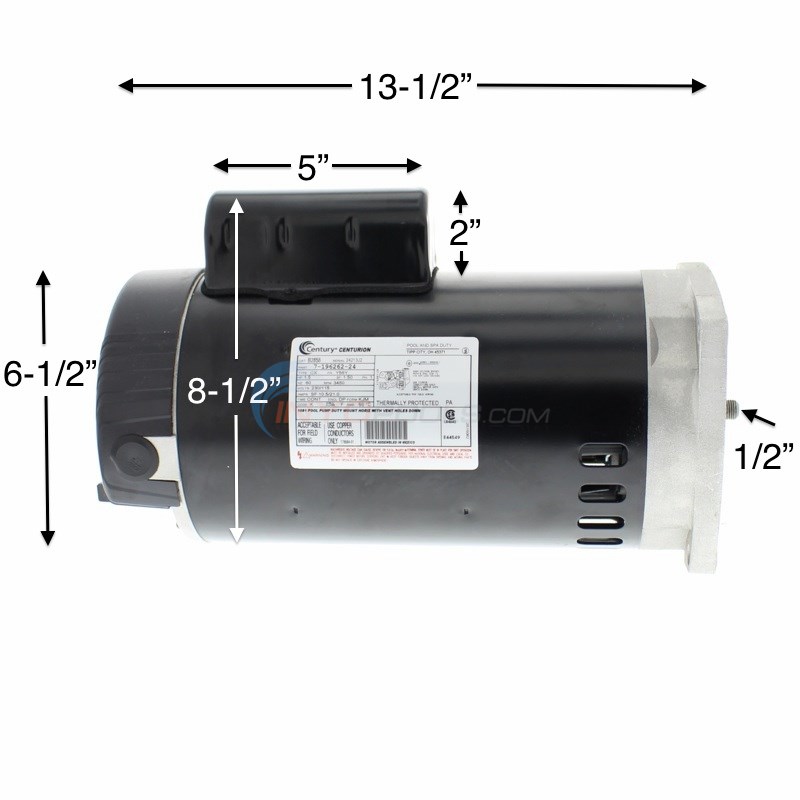

Motor Dimensions Motor Dimensions
Motor Image Motor Image

Product Specifications

Motor Name:
1.5 HP B858 & B2858 Replacement Pool Motor
HP:
1.5 HP
Speed:
Single
RPM:
3450 RPM
Volts:
230/115 V
Amps:
10.5/21 amp
Service Factor:
1.5
Total HP:
2.25 HP
Frame:
56Y
Stock #:
B858 or B2858
Shaft:
Threaded
Overload Protector:
Auto
Dimension Letter:
C
Dimensions:
14.4 in.
Commonly Used On:
Pentair WhisperFlo and Challenger
Notes:
NOT California Title 20 Compliant
Top

?     Asked on 11/3/2019 by Bruce

I have a pentair whisper flow motor 7 177451-03. What is the correct replacement
 Reply

A  Answered on 11/4/2019 by InyoPools Product Specialist Lennox H.

Hi, Bruce. The B2842 is the correct replacement. This B2858 can also be used along with the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT
 Reply


?     Asked on 8/3/2019 by Josh

Is the B2858 motor compatible with the WaterWay SVL56 pump?
 Reply

A  Answered on 8/5/2019 by InyoPools Product Specialist Matt S.

Yes, the B858 Square Flange motor is compatible with the Waterway SVL.
 Reply


?     Asked on 6/24/2019 by Rey

Hello. I have a waterway SMF-115. What Is the correct motor to replace it with?

 Reply

A  Answered on 6/24/2019 by InyoPools Product Specialist Lennox H.

Hi, Rey. The PL2854 motor is the correct replacement.
 Reply

  • Commented on 6/24/2019 by Product Owner

    Do I need anything else to replace it?
     Reply

    • Commented on 6/24/2019 by InyoPools Product Specialist Lennox H.

      Rey, You will need to replace the Pump Shaft Seal - PS-1000, Housing Gasket - 711-1400, Diffuser O-ring - 805-0238, and Lid O-Ring - 805-0436
       Reply


?     Asked on 6/24/2019 by sam

Hi, I'd like to know the correct motor/s part to replace my current one (Please see photos attached). Beleive it is a Centurion for PacFab but not sure about the HP since the sticker is missing. Thanks!

 Reply

A  Answered on 6/24/2019 by InyoPools Product Specialist Matt S.

Hello - the correct replacement motor for your 7-168453-24 pool pump motor is the 1.5 HP Square Flange 56Y Up Rate Motor - B2854
 Reply


?     Asked on 5/6/2019 by Kim

Hi, I'd like to know the correct motor/s part to replace my current one (Please see photos attached). Besides, is the replacement over this motor simple as only unbolting the 4 screws on the housing plus hooking up electrical wires? Are there also different choices of motors, like higher hp.. also fits my replacement AND with the same simple installation? Thanks!

 Reply

A  Answered on 5/6/2019 by InyoPools Product Specialist Patrick P.

Hi Kim, You would actually require the B2853 Replacement Motor along with a Pentair Super Flo Tune-Up Kit. The replacement is pretty easy and we have put together this Video on How to Replace a Pool Pump Motor which will show you how to tackle the project.
 Reply


?     Asked on 1/6/2019 by Mark

I am replacing a Centurion (for Pac-Fab) motor and would like to know the best replacement motor. The part number is 8-1684 ??? (the rest is unreadable). The Cust P/N is 35-5340. Looks like its a Y56 frame. Amps: 8.0/16.0 Serial BK4-224 Attached are some pictures. Please let me know what motor I would need. Thank you, Mark

 Reply

A  Answered on 1/7/2019 by InyoPools Product Specialist Hector F.

The replacement speed single speed motor is part number B854
 Reply


?     Asked on 11/3/2018 by Jay

My pool motor started making noise a while ago, and now just grinds when I try to turn it on. This is what I found on the side of the pump: Centurion switchless motor Challenger PAC-Fab 1 1/2 hp CHII-N1-1 1/2 1-04-K99 /34-5201 Self priming pump Part -168454-25 What do I need to order to replace it? Also the gasket kit? Ignore the photo below
 Reply

A  Answered on 11/6/2018 by InyoPools Product Specialist Lennox H.

Hi, Jay. You will need this B2858 motor along with the Challenger CH Series Tune Up Kit - GOKIT5.
 Reply


?     Asked on 10/21/2018 by buster

Need to replace Century B849, which motor would be best suited for a replacement.
 Reply

A  Answered on 10/25/2018 by InyoPools Product Specialist Hector F.

Technically you can use either one of these motors. They both have the same specifications.
 Reply


?     Asked on 9/2/2018 by Matt

I have a pentair WF-26 with motor #196239. I need to replace the motor. Will the B855 or the B854 work? Something else? Thank you!!
 Reply

A  Answered on 9/3/2018 by InyoPools Product Specialist Lennox H.

Hi, Matt. The Century B2854 or the Pureline PL2854 replacement motors will work. You will also need to get the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
 Reply


?     Asked on 7/8/2018 by jim hannahs

I have a ser.by-12 part#7 _177474_01 type cx fr p56y ph1volts 230/115 hz60 rpm3450 amps 7.1/14.2 cont encl dp form kjm 1!/2 hp do you have a replacement.should I get a new motor or a complete replacement? give me prices for both and your ideas.Thank You
 Reply

A  Answered on 7/8/2018 by InyoPools Product Specialist Hector F.

The correct motor replacement for your motor model 177474 is the B847. If the front pump housing is in good condition then most homeowners just replace the motor and seals. If it is in bad condition then please call in and a tech can discuss some options with you.
 Reply


?     Asked on 5/15/2018 by Dan

I have a Centurion pump 168454 I have looked it up and it says it is a 1.5 HP the sticker on the pump says 2hp can you clarify?
 Reply

A  Answered on 5/15/2018 by InyoPools Product Specialist Charlie R.

Dan, To calculate the total horsepower the motor has, you have to multiply the horsepower (HP) by the service factor (SF) rating on the motor label. In this case, the hp is 1.5 and the sf is 1.5 (1.5 x 1.5) equals 2.25 HP. So, actually, this motor pushes a little over 2hp.
 Reply


?     Asked on 11/26/2017 by wilson

I have a Pentair 7-177476-20 2 hp motor that overheated and won't turn on, what will be the possible cause and replacement part. I have a WF- 28 pump.
 Reply

A  Answered on 11/27/2017 by InyoPools Product Specialist Lennox H.

Hi, Wilson. Several things can cause a motor to overheat and shut off. You can read our Pool Motor Troubleshooting Blog for the top causes. This B858 motor is the correct replacement. You will also need to get the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT.
 Reply


?     Asked on 11/12/2017 by VERONICA

I need to replace my century centurion pump: Which pump do i need? Cat B2858 PART 7-196262-24 TYPE CX FR Y56Y HP 1.5 SF 1.50 PH 1 HZ 60 RPM 3450 VOLTS 230/115 AMPS SF 10.5/21.0 TIME CONT ENCL DP FORM KJM CODE K INSUL F AMB 50'C
 Reply

A  Answered on 11/13/2017 by InyoPools Product Specialist Lennox H.

Hi, Veronica. This Century B858 is the correct replacement motor.
 Reply


?     Asked on 10/1/2017 by smurray

Just received my motor B858. The wiring had 2 Red and 1 Green. I hooked the 2 Red to L1 & L2 then the green to the ground. When i turned the power back on all i get was a "humming" sound. Any help is greatly appreciated!
 Reply

A  Answered on 10/4/2017 by InyoPools Product Specialist Megan C.

Hello, Smurray. Please refer to our How To Wire A Pool Pump to correct. You may click here or copy and paste the link http://www.inyopools.com/HowToPage/how_to_wire_a_pool_pump.aspx
 Reply


?     Asked on 8/28/2017 by Jim

I am looking for a replacement motor for my Waterway Champion 56 Frame pool pump. Current motor is Century Centurion part 0-177216-24, Type CX, Y56Y frame, 1.5 HP, 1.1 SF, 3450 RPM, 230/115 volts. Is this the correct replacement motor? I am concerned about this motor having a 1.5 SF and my current motor having 1.1.
 Reply

A  Answered on 8/28/2017 by InyoPools Product Specialist Lennox H.

Hi, Jim. The Century B854 Motor is the correct replacement motor for Part #   0-177216-24.
 Reply


?     Asked on 6/27/2017 by e gonzales

I need to replace our jets motor and the old one is a Pentair 7-168454-25. pump is P/N 346201 PMP CHII N1 2A, SERIAL 0301212070108B. is this the right replacement for it? thanks!
 Reply

A  Answered on 6/28/2017 by InyoPools Product Specialist Stacey M.

Hello, Yes the 7-168454-25 is the 1.5 HP Standard Motor - Full Rate (B2858), I would recommend the gokit5 to replace your pump seal and gaskets.
 Reply


?     Asked on 6/12/2017 by Jim

I have a Pentair Pump Model No: SF-N1-1-1/2A/340039 Motor #196239 which is no longer working. Can you tell me what motor I can replace this with?
 Reply

A  Answered on 6/12/2017 by InyoPools Product Specialist Hector F.

The replacement motor for the original Superlflo that you have is part number B854.
 Reply


?     Asked on 6/6/2017 by peter

My current pool motor labeled as Pennair part 7-168454-25, FRY56Y Type CX RPM 3450, but another label on top of Pennair label indicates it's 2?? HP / 11 SF. Is this B2858 the right replacement as 1.5HP motor?
 Reply

A  Answered on 6/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Peter. The Century B858 Motor is the correct replacement for Part #7-168454-25. It has a total Ho of 2.25.
 Reply


?     Asked on 5/15/2017 by Dave

Trying to fix my pool pump. Motor runs but no water circulation. Not sure if I need to just replace motor or motor and pump. 16 yrs old. Also sure about replacement motor. I have a magnetek century centurion motor part number 10-177476-20. Think new motor would be B858? Is this the best replacement motor and what other items should be replaced seals, gaskets etc. Thanks
 Reply

A  Answered on 5/15/2017 by InyoPools Product Specialist Hector F.

There are a number of reasons as to why your pump may not be working very well. I would not begin replacing parts just yet but first try and pinpoint the issue. Please review the search results by clicking here for locating and or troubleshooting pool priming issues.
 Reply


?     Asked on 3/27/2017 by Carlos

Hello, How can I know the exact fit shaft seal for my pump, I'll buy this motor, but how can I know which is the correct shaft seal. Thanks
 Reply

A  Answered on 3/28/2017 by InyoPools Product Specialist Andy O.

Hello Carlos- The shaft seal is determined by your pump model number, not your motor. If you can get us the model information of your pump we can try to find the right seal for you.
 Reply


?     Asked on 2/15/2017 by Don Frohock

Is the B2858 the same as B842?
 Reply

A  Answered on 2/16/2017 by InyoPools Product Specialist Lennox H.

Hi, Don. The B2858 and the B2842 motors have the same total hp but the B2842 motor operates using fewer amps so it's considered an energy efficient version.
 Reply


?     Asked on 2/7/2017 by Mrs. Hobbs

I'm not sure what Pentair motor I had before however I have the Pentair Challenger 1.5 hp high performance pump. What I do have now is a US Motors 1.5 hp motor Cat No EB842, Model # K630XESE-4792 std square flange. This motor just went out after 2.5 years of use. I am needing to replace it and I'm unsure of what Pentair motor I need. Could you please advise me.
 Reply

A  Answered on 2/8/2017 by InyoPools Product Specialist Lennox H.

Hi, Mrs. Hobbs. We do not have a Pentair OEM motor but you can use the Century 1.5 HP Motor EE Full Rate Motor - B842 as a replacement for US Motor.
 Reply


?     Asked on 1/31/2017 by Wilfred

Hello, I have a Pentair # 196233 Motor. 208-230/115V, 60Hz, 3450 RPM. My motor is seized up and I need to get a motor asap. Please tell me what is a good \replacement motor so that I can order one right now.
 Reply

A  Answered on 1/31/2017 by InyoPools Product Specialist Scott W.

Please attach a picture of your complete pump so I can identify what model pump you currently have. The part number you provided does not pull anything up for me.
 Reply


?     Asked on 1/14/2017 by Kerry

Hello, I have a Pentair motor # 177475. Motor is still running but their is a louder than normal whinning noise occurring. Is that a indication that the bearings are going or could it be the capacitor? If the bearing or capacitor is the problem what would the replacement part # be? One last thing if I need a new motor do you recommend a single or dual speed, I have a 15,000 gallon pool? Thanks for your time
 Reply

A  Answered on 1/16/2017 by InyoPools Product Specialist Scott W.

It's most likely the bearings going bad which is part number 5270-31. If you decide to replace the motor instead I would need to know what model of Pentair pump you have. If you are not aware then you can attach a picture of your complete pump so I can identify it for you.
 Reply


?     Asked on 1/2/2017 by Ray

I have an Emerson 1.5 HP motor (square flange) on a Pentair SuperFlo pool pump. You have two 1.5 HP options: one by A. O. Smith (1.5 SF); and, one by Magnatec (1.1 SF). They mention both for "Pentiar WisperFlo" pumps, among others. Please advise. Thank you
 Reply

A  Answered on 1/3/2017 by InyoPools Product Specialist Adam Y.

Good afternoon Ray, You would want to get a pump with the same service factor. This is multiplied with your hp giving you a total horse power. You want to replace with the same or as close as possible.
 Reply


?     Asked on 12/5/2016 by Patrick La Luz

Is there a picture of the wiring of the panel. The plastic where the wires are connected broke and I need to rewire. The pump part number is 7-177476-20 2hp. Thanks
 Reply

A  Answered on 12/5/2016 by InyoPools Product Specialist Lennox H.

Hi, Patrick. We do not have a wiring diagram for the terminal board other than how to field wire the motor which is also on the motor label.
 Reply


?     Asked on 9/14/2016 by

pump wont spin impeller when seal shaft is placed. Will only spin when everything from shaft is removed. Is the issue the motor or the seal?
 Reply

A  Answered on 9/15/2016 by InyoPools Product Specialist Scott W.

If you have the incorrect shaft seal or if the shaft seal is not installed correctly it could cause the shaft not to turn. If the shaft spins with nothing on it, it is not the motor.
 Reply


?     Asked on 9/12/2016 by Ron P

My pump is running but is very loud, and running hot. THink it's a bad bearing. Which is the best option: 1. Replace Bearings 2. Replace Motor only, and if so, which part is needed for WhisperFlow WF-26 / PN 011773 1.5 HP Model 177475. Also, would you recommend replacing the seal plate as well, since the noise does have a rhythm to it. 3. Replace the entire pump unit (not just the motor)
 Reply

A  Answered on 9/12/2016 by InyoPools Product Specialist Megan C.

I best recommend replacing the Motor B854 and Tune-up kit. You may need to replace the Impeller and Diffuser if you are hearing some type of rhythm. If the pump is 10-years old or greater I would invest in a new pump, the Whisperflo Pump 1 1/2 HP - WF-26 may be found by clicking here.
 Reply


?     Asked on 9/12/2016 by Robert

Does the new motor also come with the capacitor?
 Reply

A  Answered on 9/12/2016 by InyoPools Product Specialist Scott W.

Yes, it comes with the capacitor.
 Reply


?     Asked on 8/22/2016 by Tom

does this motor comes with the scew to connect to the electric wires on the back.
 Reply

A  Answered on 8/22/2016 by InyoPools Product Specialist Alan M.

The motor comes with the screws to hold the wires on to the terminals. The motor does not come with the that its on to the outside of the motor where you feed your wires through.
 Reply


?     Asked on 7/20/2016 by Merle Redger

My pump Model No. is: SF-N1-1-1/2A/340039, the Motor # is 177475. My motor made quite a bit of noise already last year and now it has been getting worse. Now it is having a hard time to start when I turn it off to back wash etc. Since it is the time of year that it is I am thinking I should replace the motor, as the pump works fine. I can't afford to take it apart and then have to order a new one anyway. Is this the correct motor to replace the one I have?? Please advise.....Merle Redger
 Reply

A  Answered on 7/23/2016 by InyoPools Product Specialist Lennox H.

Hi Merle, The B854 is the correct replacement motor for your pump. You will also need to replace the Pump Shaft Seals (354545), Diffuser Gasket (355030), Housing O-ring (355619) and the Lid O-ring (357255) which can be found on the Pentair Superflo Parts page.
 Reply


?     Asked on 7/17/2016 by Sue Bidigare

Replaced 177476 (doesn't show HP/SF on label) with USQ1152 shows HP of 1.5 and SF 1.1 from pool store at their recommendation. I have a WhisperFlo pump shows HP of 1.5/SF 1.47.The motor keeps overheating and shuts down. Pool store offers various reasons. Lastly they replaced motor "must be bad" New motor does same thing. In reading it seems this is the wrong pump. THP for this needs 2.2 THP not 1.65 on this pump. Is it possible this is why the motor is shutting down? Very costly-two motors now.
 Reply

A  Answered on 7/22/2016 by InyoPools Product Specialist Lennox H.

Hi Sue, You're experiencing issues because you were sold the wrong size motor. This B858 or SQ1152 motor can be used as the correct replacement.
 Reply


?     Asked on 7/9/2016 by shelby

will this motor replace the superflo #196239 and fit the same ?
 Reply

A  Answered on 7/13/2016 by InyoPools Product Specialist Lennox H.

Hi Shelby, I was not able to cross reference p/n 196239  to a specific motor, if you can please provide the model number of the Superflo pump we can locate the correct motor.
 Reply


?     Asked on 6/26/2016 by Ry

Have a WF-28 pump that the motor won't run (no hum or sound). I Can hear the relay click in the control box when I turn on the switch to the pump so I now there is power. Motor shaft turns easy. Also, when it first would not start up, I flipped the switch many times and it started. Worked a few days then would not start. again. Replaced DPST switch and tried. Same problem. Would the run capacitor cause the motor not to turn on? Thanks
 Reply

A  Answered on 7/2/2016 by InyoPools Product Specialist Lennox H.

Hi Ry, A bad capacitor can cause the problem you're experiencing. If you get us the specs off of the capacitor we can locate the correct replacement to see if that will get the motor operational again. If that does not work then you will have to replace the motor which the B858 will work.
 Reply


?     Asked on 6/25/2016 by Steve Kraus

I have a Jandy SHPM 1.5 pool pump. Which pumps are compatible replacements?
 Reply

A  Answered on 6/26/2016 by InyoPools Product Specialist Alex V.

Steve, You can find the replacement pump here: http://www.inyopools.com/Products7/02600001005614.htm
 Reply


?     Asked on 6/21/2016 by

Is there an up rated version of this motor and does it ship with gaskets
 Reply

A  Answered on 6/21/2016 by InyoPools Product Specialist Alan M.

Hello, The B854 A.O. Smith 1.5 HP, 56Y Frame, Up-Rate Motor would be the Up-Rated motor. These motors do not come with gaskets. You will need to identify the pool pump in order to make sure we match the correct pump seal for you.
 Reply


?     Asked on 6/15/2016 by Warren Mead

Replacement pump for Pentair Superflo #340043, 1.5 HP Dual speed, 230 volt. I bought this in 2013 did not last long, thanks
 Reply

A  Answered on 6/19/2016 by InyoPools Product Specialist Matt S.

Warren, Do you need a whole new replacement pump or just the motor?
 Reply


?     Asked on 6/4/2016 by Glenn

I have a WhisperFlo WF-28. The motor is Centurion part 7-177476-20, 230/115 volts, 11.2/22.4 amps, single phase,56Y frame, type CX with no catalog number or HP rating on the motor label. The 2 HP and 1.1 SF is shown on the Pentair WF-28 model label above the motor label. An old AO Smith document shows the part number 177476 as a B858 but the Pentair specs would indicate it should be a B859. Do I currently have a full rate motor? Is this the correct replacement pump or do I need the B859?
 Reply

A  Answered on 6/9/2016 by InyoPools Product Specialist Lennox H.

Hi Glenn, You currently have a 2 hp up-rate motor. So you can use either the B859 (up-rate) or B858 (full-rate) motor. I would also recommend getting the Pentair/Purex Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT
 Reply


?     Asked on 6/1/2016 by k. schebera

What is the difference between a full rate motor and one that has a service factor. Is a motor that has a service factor of 1.5 actually a smaller HP motor and the service factor bring it up to the stated HP or is it actually a bigger motor?
 Reply

A  Answered on 6/7/2016 by InyoPools Product Specialist Lennox H.

Hi K. Schebera, The difference between a full rate and an up rate is the service factor. Full rate motors has a higher service factor and a higher total hp than what it's rated for while up rate motor has a lower service factor and are rated at rated hp. Yes, a motor with a S.F. of 1.5  will have a higher total hp so it will be bigger.
 Reply


?     Asked on 5/23/2016 by Sam

What the deferent between fr 56z & 56y?
 Reply

A  Answered on 5/23/2016 by InyoPools Product Specialist Patrick P.

Hi Sam, The 56 refers to the barrel diameter of the motor so both 56Z & 56Y are the same in that regard (6-3/4" barrel diameter). The Z refers to a flattened shaft where the Y indicates a threaded shaft.
 Reply


?     Asked on 5/9/2016 by Adam Curtis

Does this pump come with warranty?
 Reply

A  Answered on 5/10/2016 by InyoPools Product Specialist Andy O.

Adam- The B858 1.5 HP Standard Motor - Full Rate (B2858) comes with a 1 year manufacturer's warranty.
 Reply


?     Asked on 4/26/2016 by

I have the 168454, stopped working and shaft fees loose. I was making loud sounds on startup, I thought it was cap but since the shaft feels loose maybe a bearing. Either way, it is very hot and doesn't tun. I heard AO SMITH B858 is for replacement? Is there a better option? Can I replace myself if I am good with tools and electronics?
 Reply

A  Answered on 4/26/2016 by InyoPools Product Specialist Lennox H.

Hi, The B858 motor will be the correct replacement motor. The B2983T will be a better option, it's a dual speed motor with controller which will cut back on operational cost by providing you with a lower speed for filtration. You can install either motor yourself.
 Reply


?     Asked on 4/18/2016 by Stefan John

I have Franklin Electric motor ( pool pump) Model: 1104375402 HP 1 1/2 PH 1 Volt: 115/230 RPM 3750 Max Amp 22.0/11.0 HZ 60 KVA CODE K SF 1.3 FR 56C INS B CAT 12034 what model is the correct replacement ? Thank You. Stefan
 Reply

A  Answered on 4/19/2016 by InyoPools Product Specialist Lennox H.

Hi Stefan, The SK1152 will be the correct replacement motor base off of the info provided.
 Reply


?     Asked on 9/17/2015 by RAF

I have a Challenger 8-168454-25 motor with a bad capacitor. The original capacitor was replaced by our pool service and I suspect it is not the correct rating for the motor. What is the correct PN for the capacitor?
 Reply

A  Answered on 9/21/2015 by InyoPools Product Specialist Lennox H.

Hi, RAF, The 8-168454-25 motor uses the 30MFD 370 V Run Capacitor (5VR0303).
 Reply


?     Asked on 8/25/2015 by Hipolito Cirino

The back cover of my motor housing has broken off. The plastic peace that attaches to the motor with a screw is broken. Also the motor is very noisy. It is still working fine.
 Reply

A  Answered on 8/28/2015 by InyoPools Product Specialist Lennox H.

Hi Hipolito, If the cap screw is broken of into the motor and can not be extracted and the loud noise indicated that the bearings are going bad in that motor you would be better off replacing the entire motor.
 Reply


?     Asked on 7/21/2015 by

Need to replace Pentair pump motor #355393S. Is this correct replacement part?
 Reply

A  Answered on 7/21/2015 by InyoPools Product Specialist Matt S.

The 355393S is an energy efficient 1.5 HP full rated motor; the correct motor replacement is the B842 made by AO Smith. The B858 would work, but it is a standard efficiency meaning it would cost more to run.
 Reply


?     Asked on 7/15/2015 by Rick

I need to replace the motor on a Pentair Whisperflo WF-6 1 1/2 HP pump. The current motor part # is 8-177476-20. Can you confirm that the B2858 is the correct replacement?
 Reply

A  Answered on 7/15/2015 by InyoPools Product Specialist Hector F.

Yes the B2858 is the correct replacement motor.
 Reply


?     Asked on 6/9/2015 by Bill

What is the difference between the SQ1152 and the B2858? I have an old pac fab challenger pump and have always bought the SQ1152 as a replacement but this seems to say that the B2858 should be used. The only real difference seems to be the frame 56Y vs 48Y. Not sure what that is. From the picture the pumps look the same. The SQ1152 is cheaper so that would be my first choice unless the B2858 is a much better pump.
 Reply

A  Answered on 6/9/2015 by InyoPools Product Specialist Patrick P.

Hi Bill the main difference between these motor is the frame as you have noted. The 56Y frame motor has a larger barrel (i.e. it is a wider motor) and the 48Y has a narrow barrel. Both motors can be used interchangeably as there is a rubber spacer which comes with the motor which allows for either type of motor to be installed on your pump. If you have been using the SQ1152 motor then I would stay with the SQ1152 motor as you won't need to worry about using the spacer. The performance of both motors would be exactly the same.
 Reply


?     Asked on 2/16/2012 by Guest

I just finished replacing the shaft seal on my booster pump. As soon as I turned the pump on water was leaking from the shaft seal. Is it defective or am I doing something wrong?
 Reply

A  Answered on 2/16/2012 by InyoPools Product Specialist Patrick P.

Depending on the model, the installation of a booster pump shaft seal can be slightly different than a pool pump shaft seal. Some booster pump and pool pump shaft seals require that a silicone sealant be used on the outer areas of the metal seat of the shaft seal. The seal will need to be lightly hammered into the body of the pump. You can use a 1 inch PVC coupling or a piece of 1 1/4 inch PVC pipe and a rubber mallet. This procedure will apply to any pool pump or booster pump using a >PS-1000 style shaft seal.
 Reply


?     Asked on 1/19/2012 by Guest

I'm trying to replace the motor on my pool pump but all these numbers and abbreviations on the motor label are really confusing me. What do they mean?
 Reply

A  Answered on 1/19/2012 by InyoPools Product Specialist Patrick P.

Replacing a pool pump motor is not as difficult as it seems. You can try looking here. If you need help figuring out what the information on your label means. If you are still having difficulty figuring it out you can call us at our toll free number or you can send us a photo of your motor label here.
 Reply


?     Asked on 1/12/2012 by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/12/2012 by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/11/2012 by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


Top

Review Summary

 (Average 4.95  out of 5 stars)
17 Rating
5 star:

(16)
4 star:

(1)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Helpful Review


The Most Recent Reviews
