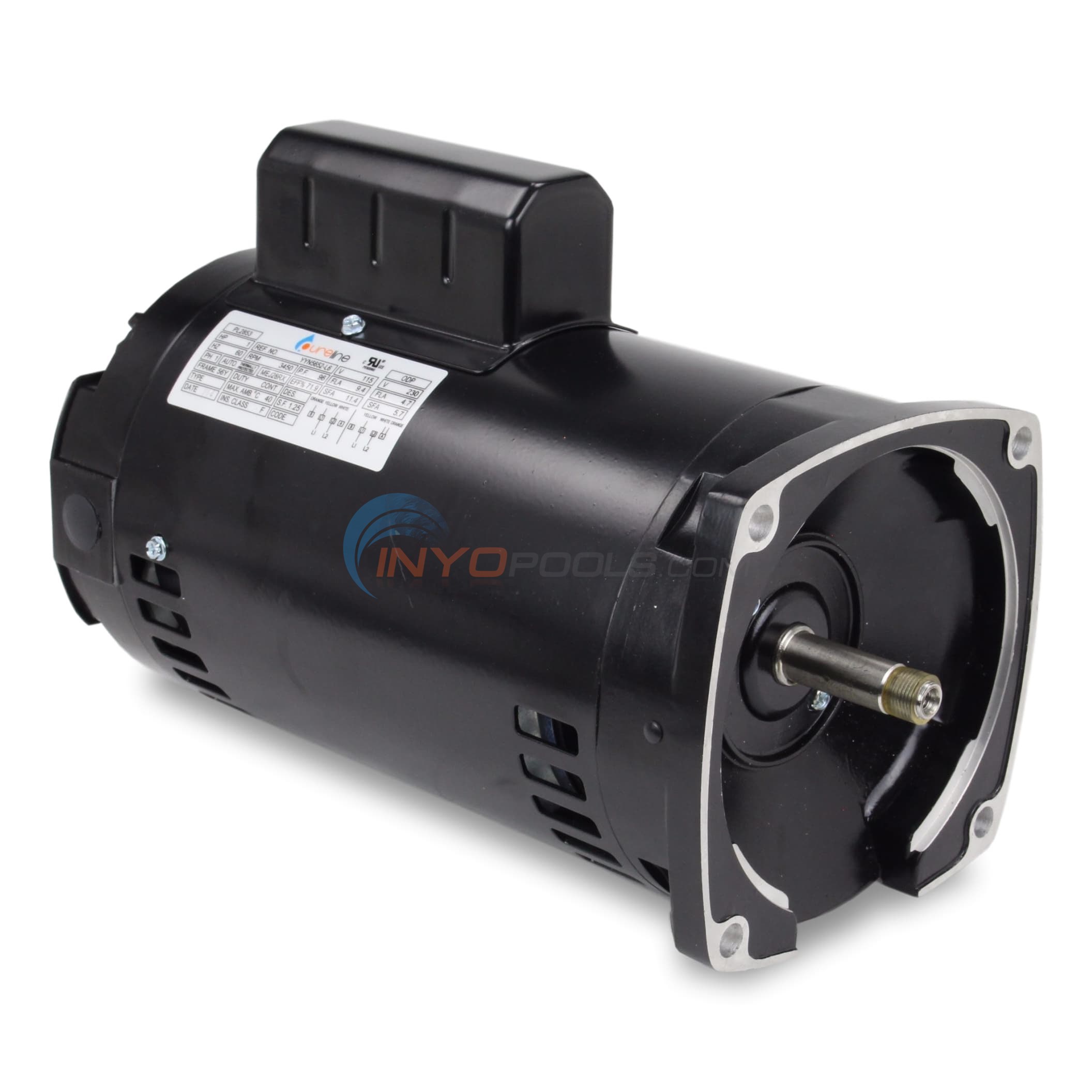

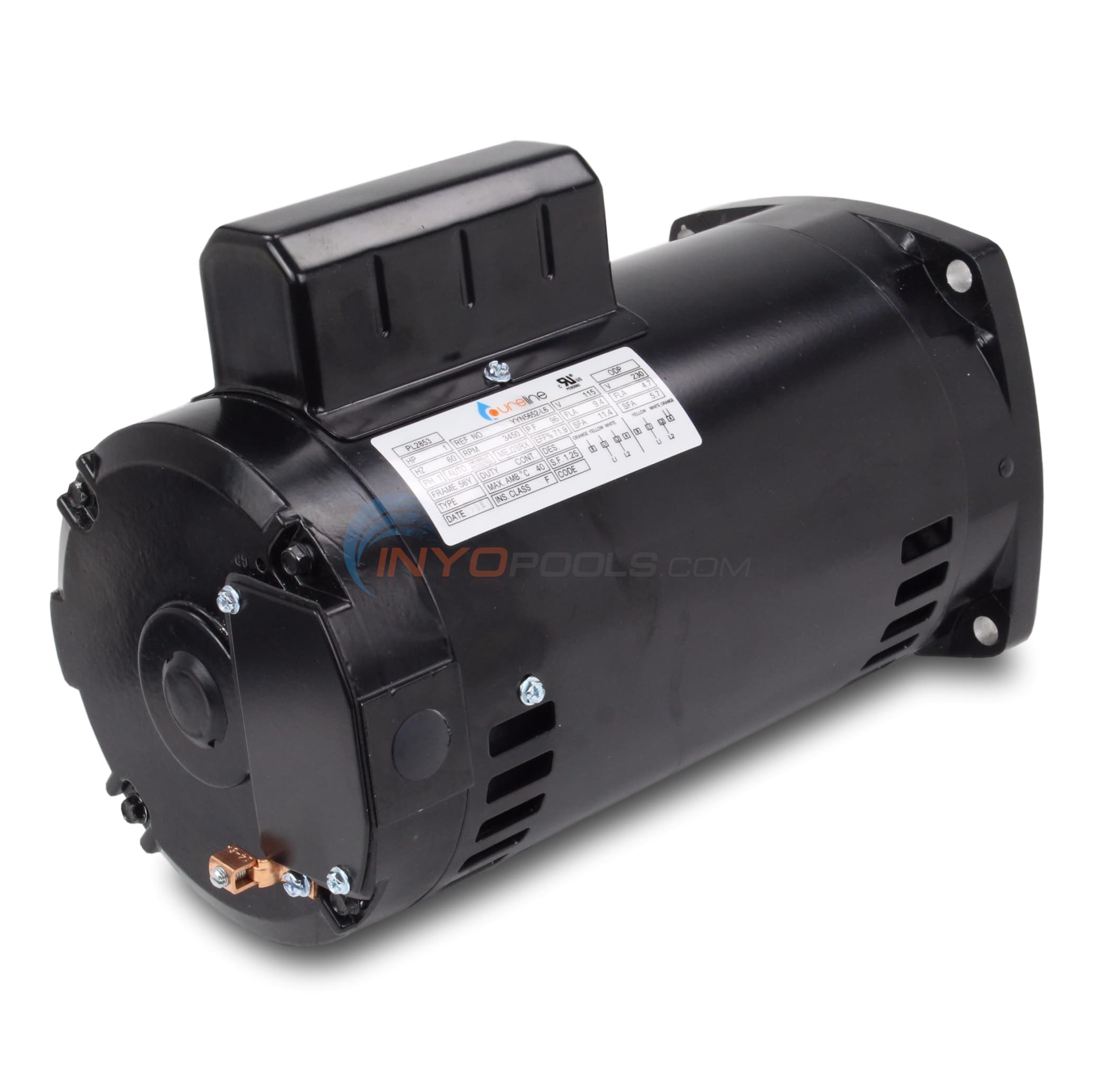

1 HP Square Flange 56Y Up Rate Motor (Out of Stock) - PL2853

THIS PRODUCT IS OUT OF STOCK FOR THE SEASON

Part # PL2853

By PureLine

  5 Average

Details

Top

Part # PL2853

Warranty 2 Year

Alternate Part #'s B1245, B2853, B853

Product Description

PureLine 1 HP Replacement Pool Motor for Pentair & Jandy brand pool pumps

Is your pool pump motor running loud, leaking or humming? These are all signs that it’s time to be replaced. The PL2853 PureLine Replacement motor is designed as a drop-in replacement motor for some of the most popular 1 HP pool pumps like the Pentair Whisperflo, Pentair Challenger, Pentair Super Flo, Jandy Stealth and many more.

The PureLine replacement motor is made of the highest quality components like sealed ball bearings, which means it is an ultra quiet motor. Because of its high-quality construction, the PureLine replacement motor is backed by a full 2-year warranty.

When it comes to replacing your motor Inyo has you covered. We have created a ton of resources to make this project a snap, like our Video on How to Replace a Pool Motor. This video walks you through all the steps to replace your motor. Most of our customers decide to tackle this project on their own, and by following our video they complete the project in about an hour.

When replacing your motor we highly recommend a tune up kit which includes all the seals and gaskets for your pump. Many times when you use your old seals you may have leaking. Seal leakage is one item which will void the motor's warranty so make sure to protect your investment with a tune-up kit. Below we have listed the tune up kits for some of the most popular pool pumps.

Don't Forget Your Tune Up Kit

Pentair Whisperflo Tune Up Kit
Pentair Challenger Tune Up Kit
Pentair Superflo Tune Up Kit

Note: NOT California Title 20 Compliant.

California Title 20 Compliant Options:

Product Specifications

HP:
1 HP
Amps:
11.4/5.7 amp
Volts:
115/230 V
Service Factor:
1.25
Frame:
56Y
Total HP:
1.25 HP
Model:
Whisperflo & Challenger
Pump Model:
WF-24 & CFII-NI-1A
Top

?     Asked on 11/13/2019 by Zebbie J. Probst

Is this Motor a Replacement for the 1 HP that is on The Pentair Model #340038 ?????
 Reply

A  Answered on 11/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Zebbie. Yes, this PL2853 motor can be used with the Pentair SuperFlo model 340038. However, this motor is not currently available. You can use the B2853 along with the SuperFlo Tune Up Kit - GOKIT78.
 Reply


?     Asked on 10/29/2019 by Dwight Strawser

will the PL 2853 work on a flotec at251001-01 and pump no c48j2pa105c2 at 5.7 amps why is it less expensive than uqc 1102
 Reply

A  Answered on 10/30/2019 by InyoPools Product Specialist Lennox H.

Hi, Dwight. Yes, you can use this PL2853 motor with the Flotec AT251001-01 model pump. The brand name is the main reason for the price difference.
 Reply


?     Asked on 10/22/2019 by James Taylor

Is this the correct motor I need? It's a sta-rite pump, square flange. thank you

 Reply

A  Answered on 10/22/2019 by InyoPools Product Specialist Lennox H.

Hi, James. Yes, this PL2853 is the correct replacement motor. You will need the Sta-Rite Dura-Glas & Max-E-Glas Tune Up Kit GOKIT6 (Pre-1998-Requires Cone Insert) or GOKIT54 (1998-Current).
 Reply


?     Asked on 9/17/2019 by

I need a replacement motor for a Challenger pac-fab pump
 Reply

A  Answered on 9/17/2019 by InyoPools Product Specialist Hector F.

So if you type in your motor model, part or catalog number in our search for an item part on the top of our web site your motor options should come up as results. You can then select your motor and confirm that your model, part or catalog number is listed in the products alternate part number list in the product details.
 Reply


?     Asked on 9/11/2019 by CHARLES A STYLES JR

Will this motor replace an AO Smith 1 hp sq flange 56y B2840-B848 ?
 Reply

A  Answered on 9/12/2019 by InyoPools Product Specialist Joe S.

Yes, based on the info provided the PureLine 1 HP Square Flange 56Y Up Rate Motor would be the correct motor.
 Reply


?     Asked on 9/7/2019 by Pat

What is the expected life of a challenger pump? My motor has seized up and the unit was installed 11 years ago so debating on replacing the whole pump/motor assembly.
 Reply

A  Answered on 9/19/2019 by InyoPools Product Specialist Hector F.

So that will really vary on maintenance, however, I would say on the average of about 15-20 years. If the housing isn't warped from heat, cracked or leaking then they can last a very long time.
 Reply


?     Asked on 9/5/2019 by Ed Williams

My pool motor is defective and stuck in the seal plate. I also need to figure out what Horse power my current motor outputs, .please see attached photos for part numbers. Please confirm part numbers for motor, seal plate and other parts to reassemble my pump.

 Reply

A  Answered on 9/5/2019 by InyoPools Product Specialist Lennox H.

Hi, Ed. The motor you have has a Total HP of 1.24 which this PL2853 motor can be used as a replacement. You will also need the Seal Plate - V38-131, and the Ultra Flow Tune Up Kit - GOKIT20
 Reply


?     Asked on 9/2/2019 by Rose Anne

Need to know correct motor for the picture of our old motor

 Reply

A  Answered on 9/4/2019 by InyoPools Product Specialist Lennox H.

Hi, Rose. This PL2853 is the correct replacement motor.
 Reply


?     Asked on 8/16/2019 by Margaret J Grant

Do I need to order a bearing and seal kit with this motor?
 Reply

A  Answered on 8/16/2019 by InyoPools Product Specialist Hector F.

You will not need a bearing with this motor but we do recommend replacing the seals and gaskets but we would need to know the model name or number of the front pump housing that the motor attaches to. If you are not sure of that you can email images of that to upload@inyopools.com so we can further advise.
 Reply


?     Asked on 8/15/2019 by Joe Merle Jones

Will I need a seal kit? I know when I replace a Hayward or a Pentair I always use a seal kit. Thanks Tony
 Reply

A  Answered on 8/15/2019 by InyoPools Product Specialist Hector F.

Yes, we recommend using a seal kit and in order to confirm the correct one we would need the model name or number of the pump housing that the motor is attached to. If you are not sure of this you can email images of that to upload@inyopools.com so we can confirm and further advise.
 Reply


?     Asked on 7/15/2019 by

I have Pentair Super Flo Pump with AO Smith 177474. Is this motor suitable as replacement?
 Reply

A  Answered on 7/15/2019 by InyoPools Product Specialist Hector F.

Yes, this would be a compatible single speed replacement motor for your model 177474 motor.
 Reply


?     Asked on 7/14/2019 by Walt Plageman

I need a replacement motor for Pentair Superflo series 34-0038 Self Priming Pump Serial #1/11/B08

 Reply

A  Answered on 7/14/2019 by InyoPools Product Specialist Lennox H.

Hi, Walt. This PL2853 motor can be used as a replacement. You will also need the SuperFlo Tune Up Kit - GOKIT78.
 Reply


?     Asked on 7/10/2019 by

Will this motor fit a STA-RITE pump model PHK2RA6E-102L?
 Reply

A  Answered on 7/10/2019 by InyoPools Product Specialist Matt S.

Yes, the PL2853 1-HP Square flange is compatible with the Super Max 1HP Pump - PHK2RA6E102L.
 Reply


?     Asked on 7/9/2019 by Al

Need to replace a CFII-N1-1A/343233 Pentair. What model do you offer? Motor only. Thank you
 Reply

A  Answered on 7/9/2019 by InyoPools Product Specialist Hector F.

You can use this PL2853 or the B2853
 Reply


?     Asked on 7/5/2019 by

Need to replace pool motor. Not sure of replacement. P/N is 355023S. MTR PKG 1 HP 1.5 A
 Reply

A  Answered on 7/8/2019 by InyoPools Product Specialist Joe S.

Hello, based on 355023S you would need A.O. Smith 1 HP Square Flange 56Y Full Rate Motor - B2848.
 Reply


?     Asked on 7/3/2019 by Kevin

I have a Sta-Rite Super Max pump model PHK2RA6E-102L and I need a compatible replacement motor. Can you point me in the right direction?

 Reply

A  Answered on 7/9/2019 by InyoPools Product Specialist Joe S.

Hello Kevin, yes based on PHK2RA6E-102L the PL2853 would be the correct motor. We also would recommend when changing the motor to purchase the Tune Up Kit Sta-Rite Dyna-Glas & Dyna-Max - GOKIT47
 Reply


?     Asked on 7/2/2019 by Cassandra Baker

Hi I need to replace my 1 hp motor would this be a proper replacement?

 Reply

A  Answered on 7/2/2019 by InyoPools Product Specialist Lennox H.

Hi, Cassandra. The replacement motor you will need is P/N B2848 or 355022S
 Reply

  • Commented on 7/2/2019 by Product Owner

    Thank you!
     Reply

    • Commented on 7/4/2019 by InyoPools Product Specialist Patrick P.

      You're welcome Cassandra
       Reply


?     Asked on 6/24/2019 by Pat

what gasket kit do I need for PL2853, my pump model # is 2P28A5F-1811
 Reply

A  Answered on 6/24/2019 by InyoPools Product Specialist Lennox H.

Hi, Pat. You will need the Sta-Rite Dura-Glas Tune Up Kit - GOKIT54
 Reply


?     Asked on 6/13/2019 by Kevin N.

My motor recently started running quite a bit louder than normal. It's a Century Model #193985XCN/Jandy Pro Series. I think this is the proper replacement pump (this one or or the AO B2853). I also think you would recommend the Jandy Shaft Seal (Jandy Part #5020-087) but just want to make sure I am looking at all of this correctly. Thanks for your help! Kevin

 Reply

A  Answered on 6/13/2019 by InyoPools Product Specialist Lennox H.

Hi, Kevin N. This PL2853 motor is the correct replacement. However, I'm unable the confirm if the Pump Shaft Seal 5/8" OEM - R0479400 would fit without knowing the pump housing model and serial number.
 Reply

  • Commented on 6/13/2019 by Product Owner

    Thank for the quick response! It looks like a Jandy FloPro FHPM1.0. Thanks again for you help.

     Reply

    • Commented on 6/24/2019 by InyoPools Product Specialist Lennox H.

      Kevin, The Pump Shaft Seal you will need is P/N R0479400 (OEM) or PS-4280 (Heavy Duty).
       Reply


?     Asked on 6/12/2019 by Hany

I have a A.O. Smith Century B2853 1HP 115/230V Square Flange Up-Rate Pool Motor PHK2RA6E, that starts to be very noisy, does your PL2853 will be a direct fit if I purchase it? also, what tuning kit will fit the PL2853? Is the Amp difference between B2853 (SF 6.6/13.2) & PL2853 (5.4/11.4) will cause malfunctioning? Thank you
 Reply

A  Answered on 6/12/2019 by InyoPools Product Specialist Matt S.

Yes, the PL2853 is a direct replacement for the B2853. This is your gasket kit: Pentair SuperFlo/Sta-Rite SuperMax - GOKIT78
 Reply


?     Asked on 6/8/2019 by Rich

I need to replace my pool pump motor. It is 2 speeds ,but i never use the low speed. It is a Sta Rite Supermax Pump #PHK2RAY 6E 102L 1hp AO Smith motor230V RPMs 1725/3450 Square Frame.Can u give me a replacement motor .Possibly Purline PL2853. Will that motor work?
 Reply

A  Answered on 6/8/2019 by InyoPools Product Specialist Lennox H.

Hi, Rich. If you reside outside the state of California, you can replace your dual speed motor with this Pureline PL2853 motor. You will also need the SuperMax Tune Up Kit - GOKIT78
 Reply


?     Asked on 6/3/2019 by Tim

What is the difference between the Pureline PL2853 (139.99) & the AO Smith B2853 (157.99) motors? I see one has a 2 yr warranty vs 1 yr on the other and there is a difference in amps. What does a lower amp rating, PL is 5.7/11.4 and the AOS is 6.6/13.2, mean in regards to operation of the motor?
 Reply

A  Answered on 6/11/2019 by InyoPools Product Specialist Matt S.

Essentially they are the same motor style, the B2853 but made by two different manufacturers. The lower amp rating means it costs less to operate.
 Reply


?     Asked on 5/21/2019 by Chris

I have a .75 HP Pentair Whisperflow pump that is dying. I've never been satisfied with the suction on the skimmer furthest away from the pump and would like to replace my .75HP motor with a 1 HP motor. Besides having to upgrade the impeller would the rest of the pump housing be compatible? Current motor: 071313 Current Empeller: 073127
 Reply

A  Answered on 5/22/2019 by InyoPools Product Specialist Patrick P.

Hi Chris, Since your current motor is a Full Rated 3/4 HP which has the same True HP as a 1 HP Uprated motor, this would mean you need to upgrade to a 1.5 HP Up-Rated Motor to see an increase in power for your pump. This would mean you would require the PL2854 1.5 HP Up Rated Replacement Motor and this 1.5 HP Up Rated / 1 HP Full Rated Whisper Flo Impeller and this Whisperflo Seal Kit. This would be all you need to upgrade the HP. We put together this Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 5/21/2019 by John Medina

I need to replace my Hayward electric motor on my pool pump, the model # is C48K2H143B1, can you give me info. on which one i need with price. Thanks in advance.
 Reply

A  Answered on 5/21/2019 by InyoPools Product Specialist Patrick P.

Hi John, That part # is not pulling up in our system. Could you click the reply link below and supply the information from the motor label like... HP, Amps, Frame, SF, Volts, RPM, etc.. Also if you could let us know the make and model of the pump common names are Hayward Super Pump, Power Flo, Matrix, Max Flo, Tri-Star, etc.. Or if you want to send us a few photos they are always helpful, one close up photo of the motor label and a second wider shot showing the complete pump including where the pipes go in and out of the pump. To supply the photos simply click on the reply link below.
 Reply


?     Asked on 5/17/2019 by William Gorski

I would like to order a replacement Motor for my Jandy 1hp PlusHP pool pump. The following is all the info I have: P/N 7-193985-04 RPM: 3450 Frame: P56Y Volts: 230/115 AMPs: SF 7.1/14.2 Enc: DP Time: Cont 1081 Pool mount Horz with vent holes down. Mod: # 193985 CPN: #A0582907 Ser: 08516H2ML050000414 (Century Centurion) Can you Help Me? I would like to order today if possible (Free Shipping?) Please email info asap Thank you so much and warm regards. Bill

 Reply

A  Answered on 5/17/2019 by InyoPools Product Specialist Patrick P.

Hi William, This is the correct motor for your pump, we would also suggest this Jandy Shaft Seal when you replace your motor. If you order right now and reply back with your order # we will try our best to get your order shipped out today.
 Reply

  • Commented on 5/17/2019 by Product Owner

    Thank you for your prompt reply. Yes, I would like to order today. How much is the shaft seal? Maybe I do need one, but the current seal shows no sign of leakage, but may be good to have on hand.... so, how do I order? Thank you - again warm regards - Bill
     Reply


?     Asked on 5/15/2019 by tony

trying to replace marathon inground pool motor model #5kc38sn6084 amp 50,cat#c1245 rpm 345,sf125,hz60,se#109j2,v115/230,code m,thank you tony
 Reply

A  Answered on 5/16/2019 by InyoPools Product Specialist Lennox H.

Hi, Tony. This PureLine PL2853 can be used as a replacement for your Marathon motor.
 Reply


?     Asked on 5/14/2019 by Alan Bradbard

Searching for replacement motor and seal for in-ground pool. Original motor. Hayward. SP2800X Series - Max-Flo 1hp. Model SP2807X10. Motor SPX1607Z1M. Current motor. 1 HP GI Maraton Motor and 201 Seal.
 Reply

A  Answered on 5/14/2019 by InyoPools Product Specialist Steve M.

Alan, the PL2853 will not work as a replacement for your SPX1607Z1M. The PL2853 is a square flange motor your SPX1607Z1M is a round flange. Yor replacement for the SPX1607Z1M, would be the A.O. Smith 1 HP Round Flange 56J Up Rate Motor - UST1102. The shaft seal for your SP2807X10 pump would be the Pump Shaft Seal 3/4", Generic - PS-201
 Reply


?     Asked on 5/8/2019 by Melinda

I am ordering this pump but need a new compression elbow for the wiring. Can you tell me if you have an elbow that will fit this and 1/2 flexible conduit.
 Reply

A  Answered on 5/9/2019 by InyoPools Product Specialist Lennox H.

Hi, Melinda. We do not carry those conduit elbows. You can purchase one at your local hardware store.
 Reply


?     Asked on 5/7/2019 by John

I need to replace the motor on my Pentair Superflo. Would this motor work as a replacement?
 Reply

A  Answered on 5/7/2019 by InyoPools Product Specialist Patrick P.

Hi John, This is the proper motor for a Pentair Superflo but we would need to get a photo of your motor label to make sure that you are getting the proper HP. To send a photo simply click on the reply link below to upload your photo(s).
 Reply


?     Asked on 5/6/2019 by Tony

My motor is humming and won’t kick on. It’s 7 years old so needs to be replaced. What motor do you recommend? Thanks!

 Reply

A  Answered on 5/6/2019 by InyoPools Product Specialist Hector F.

You can use this PL2853 or the B2853 as single speed motor replacement options.
 Reply


A  Answered on 5/7/2019 by PureLine

Hi Tony, Yes this PL2853 motor would be the proper replacement motor for your motor in the picture. When replacing your motor we would also suggest a Tune-Up Kit but to be able to suggest the proper Tune-Up Kit we would need a photograph your entire pump, a wide shot showing where the plumbing goes in and out of the pump. To send us photos simply click on the reply link below and upload your photos.
 Reply

  • Commented on 5/7/2019 by Product Owner

    Here is the full pump

     Reply

    • Commented on 5/7/2019 by InyoPools Product Specialist Patrick P.

      Tony thank you for that photo it was quite helpful. You have a Pentair SuperFlo and you will also require this SuperFlo Tune Up Kit
       Reply

      • Commented on 5/7/2019 by Product Owner

        Thanks so much! So I don’t need to buy a new pump and all that? This other company is trying to tell me I need the whole thing. I’m just going to buy the motor and the tune up parts. Don’t see need to buy whole pump and motor.
         Reply

        • Commented on 5/7/2019 by InyoPools Product Specialist Patrick P.

          Hi Tony, No you don't need the complete pump. The humming is a bad capacitor in the motor and a motor replacement with Tune Up Kit will get you back up and running. Here is a Video on How to Replace a Pool Motor which should be helpful when you tackle this project. The only side note is that if you live in California you will need a variable speed motor if you live any other state than this single speed motor will be fine.
           Reply


?     Asked on 5/6/2019 by Barry Painter

Why would you need to change to 115 volt
 Reply

A  Answered on 5/6/2019 by InyoPools Product Specialist Patrick P.

Hi Barry, You would have no need to change to 115V this motor just has the option to wire 115V or 230V based on whichever power is available to you at the equipment site.
 Reply


?     Asked on 5/5/2019 by Barry Painter

Can you tell me what motor and tune up kit I need to replace this motor on my Pentair whisperflo pool pump

 Reply

A  Answered on 5/5/2019 by InyoPools Product Specialist Lennox H.

Hi, Barry. This PL2853 motor along with the Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT are the parts you will need for your model pump.
 Reply


?     Asked on 4/11/2019 by John

Was looking at this pump to replace the one in attached picture but have no idea what brand pump I have. Stickers have faded too much. Can you tell from the picture so I can order the correct trim kit.?

 Reply

A  Answered on 4/11/2019 by InyoPools Product Specialist Lennox H.

Hi, John. This PL2853 motor is a direct replacement for your Pentair / Pac Fab Challenger Pump
 Reply


?     Asked on 3/31/2019 by Joe Walters

Reply would not let me add photo

 Reply

A  Answered on 4/1/2019 by InyoPools Product Specialist Patrick P.

Hi Joe, Could you post one more photo of a close up photo of the silver model # label located at the top of the black round seal plate near the band clamp. The way you posted this picture will be fine. Also if you could supply the model information from that label in text format in your reply that would be very helpful. I think this should be the last piece of information we need to make the proper reccomendation.
 Reply


?     Asked on 3/31/2019 by Joe Walters

I need to replace our old Marathon pump motor (model #5KC38SN6C84AX). I have attached a photo, but the tag is weathered. Also, what tune-up kit would be appropriate?

 Reply

A  Answered on 3/31/2019 by InyoPools Product Specialist Patrick P.

Hi Joe, Could you also supply a photo of a wide shot showing the entire pump including where the pipe goes in and out of the pump? Simply click the reply link on this page and upload the photos.
 Reply


?     Asked on 3/29/2019 by Chris

I have a Jandy FHPM 1.0 single speed pump working at 1.00x1.24=1.24 total motor HP. Will this motor mate up and work correctly? Thanks
 Reply

A  Answered on 3/31/2019 by InyoPools Product Specialist Patrick P.

Hi Chris, Yes this is the proper replacement motor for your Jandy FHPM 1.0 single speed pump
 Reply

  • Commented on 3/31/2019 by Product Owner

    Thanks
     Reply


?     Asked on 3/27/2019 by Joe

Is this the correct replacement pump motor (see attached photo). Also, can you tell me what is the correct tune-up kit.

 Reply

A  Answered on 3/28/2019 by InyoPools Product Specialist Patrick P.

Hi Joe, Yes this is the correct replacement motor for the B2853 motor in your photo. Could you confirm the make and model of your pump so we can suggest the proper tune up kit? Common pump names would be Pentair Whisperflo, Jandy Stealth, etc.. It looks like you may have a Whisperflo and if so the tune up kit is this Pentair Whisperflo Tune Up Kit.
 Reply


?     Asked on 3/18/2019 by Pool pump motor

Will this motor work to replace the one in the photo?

 Reply

A  Answered on 3/18/2019 by InyoPools Product Specialist Lennox H.

Hi. This PL2853 motor or the PL2102 motor can be used as the replacement.
 Reply


?     Asked on 3/9/2019 by Pump replacement

Can you tell me if this motor will work as a replacement for attached pic?

 Reply

A  Answered on 3/10/2019 by InyoPools Product Specialist Patrick P.

You will actually need the PL2854 1.5 HP Up Rated Replacement Motor as you current motor is a 1 HP Full Rated Motor which is equivalent to a 1.5 HP Up Rated motor. To explain this it easiest to show the math which I will do so here 1 HP Full Rate x 1.65 Service Factor = 1.65 True HP. 1.5 HP Up Rate x 1.15 Service Factor = True HP of 1.65
 Reply


?     Asked on 1/27/2019 by Pump motor

Can you tell me if this motor will work as an a replacement for attached pic?

 Reply

A  Answered on 1/28/2019 by InyoPools Product Specialist Lennox H.

Hi. Unfortunately, this PL2853 - 1 H.P Pool Motor Square Flange 56Y Up Rate will NOT work as a replacement. The Century B2842 is the correct replacement.
 Reply


?     Asked on 10/23/2018 by Kris

Need to replace polaris booster pump motor. It says: 3/4hp, 3450 rpm, 230/115 volts, sf 1.65, model # c55cxkrl-2079 & flange/frame 48y. Do you have one that will be an exact match, or an energy efficient model that will fit my current plumbing?

 Reply

A  Answered on 10/24/2018 by InyoPools Product Specialist Lennox H.

Hi, Kris. The SQ1072 (Standard) or the QC1072 (EE) motors are the replacement options for your booster pump.
 Reply


?     Asked on 9/26/2018 by jeff

i have an aqua tools pump motor 1 hp that i need to replace part # AT2310210 i cant find one . is there a replacement for this
 Reply

A  Answered on 10/18/2018 by InyoPools Product Specialist Lennox H.

Hi, Jeff. This motor will not fit your pump model. If you can provide a picture of the motor label I will be able to locate the correct replacement motor.
 Reply


?     Asked on 8/21/2018 by Danielle

Hi, my pentair whisperflo is working but making a screeching noise. I guess I have to replace the motor. Will this work to replace wfe-4 011513 motor-#177450 OR is there at 1.5 HP motor that would be compatible? Thank you!
 Reply

A  Answered on 8/21/2018 by InyoPools Product Specialist Lennox H.

Hi, Danielle. This PL2853 will not work as a replacement, you will need the B2841V1. You will also need the Pentair/Purex Whisperflo Tune Up Kit - GOKIT32 or GOKIT32SALT
 Reply


?     Asked on 8/14/2018 by Jerry Anderson

Will this motor work for a Sta-Rite Supermax, Pump model number PHK2RA6E-102L? It is a 1.0 hp / 1.25 SF motor with a square flange. The motor number is 196249. Thanks!
 Reply

A  Answered on 8/17/2018 by InyoPools Product Specialist Lennox H.

Hi, Jerry. Yes, this PL2853 motor will work with the Sta-Rite Supermax - PHK2RA6E-102L model. You will also need to get the SuperMax Tune Up Kit - GOKIT78
 Reply


?     Asked on 7/28/2018 by Thomas A McCoy

My motor hums but does not start. Any suggestions other than replacement? If I need to replace a Pentair model SF-n1-1a part #340038. What are the choices and what is the advantage of each? Thanks
 Reply

A  Answered on 8/2/2018 by InyoPools Product Specialist Lennox H.

Hi, Thomas. You will need to test the capacitor using our How to Test a Pool Pump Capacitor. If the capacitor fails, then it will need to be replaced. If it's okay, then you can check the windings using our How To Use a Multimeter to Test a Pool Pump Motor - Winding Resistance. Your options for replacing the motor is this PL2853 (standard), B2853 (standard) or B2661 (energy efficient). You will also need the Super Flo Tune Up Kit - GOKIT78
 Reply


?     Asked on 6/19/2018 by Steve

By the way, my current pump motor is WFE 3, 3/4HP and service factor is 1.25. So which 3/4 HP motor fits my current one with a higher service factor ?my another concern is How to wire the motor with current wiring ? Thank you.
 Reply

A  Answered on 6/19/2018 by InyoPools Product Specialist Megan C.

The 3/4 H.P Pool Motor Square Flange 56Y Up Rate (B852, B2852) and the 1 H.P Pool Motor Square Flange 56Y Up Rate - B853 are comparable motors. Please view our How To Understand True Pump Horsepower - Up Rated vs Full Rated guide. Please do not forget the Tune Up Kit Pentair/Purex Whisperflo Saltwater - GOKIT32SALT or the shaft seal when replacing the motor. The How To Wire A Pool Pump will walk you through the wiring.
 Reply


?     Asked on 6/14/2018 by toby c

Hello, I have a Pentair motor nubmber 196238 it is a one horsepower motor for an inground pool. I was wondering which motor you have that I would need to replace it. Thanks.
 Reply

A  Answered on 6/14/2018 by InyoPools Product Specialist Andy O.

Hello Toby- You can replace your motor with a couple of options such as Part # 355020SPL2853, or B2853.
 Reply


?     Asked on 6/2/2018 by Trent

Our Jandy Shpf1.0 pool motor just recently started screaming. Would this motor work for our application? Thank you in advance
 Reply

A  Answered on 6/3/2018 by InyoPools Product Specialist Lennox H.

Hi, Trent. This PL2853 motor will not work, you will need to use the PL2854 (Up Rate) or B2848 (Full Rate) motor.
 Reply


?     Asked on 5/30/2018 by

looking for a replacement motor Pentair model # WF-24 1HP part # 7-177474-01 which replacement motor and seal kit should I buy
 Reply

A  Answered on 5/30/2018 by InyoPools Product Specialist Patrick P.

This PL2853 is the correct replacement and you will need this Pentair WhisperFlo Seal Kit
 Reply


?     Asked on 5/29/2018 by Philip Workman

I need a pool pump. The one I have now is: Century Centurion CAT: B2853 SERIAL: 10814CH TYPE: CX FRAME: P56Y HP: 1.0 SF: 1.25 PH: 1 Additional Information: 1081 Pool Pump, Duty Mount Horiz with Vent Holes Down What should I replace it with???? Would it be better to buy one with more HP?..
 Reply

A  Answered on 5/29/2018 by InyoPools Product Specialist Lennox H.

Hi, Philip. You can use this PL2853 or the Century B2853 as a replacement.
 Reply


?     Asked on 5/20/2018 by Joe Gurung

I need a pool pump, which one should I buy? My previous pump was a Century Centurion with CAT: BPA449, 1.25 Horsepower, PH 1, VOLTS: 208-230/115, AMPS 6.0-5.6/11.2, TYPE: CX, HZ: 60, RPM: 3450. Thank you.
 Reply

A  Answered on 5/20/2018 by InyoPools Product Specialist Lennox H.

Hi, Joe. You can use this PL2853 as an alternate replacement. However, the Century B2661 will be the direct replacement.
 Reply


?     Asked on 5/11/2018 by Lawrence Schroeder

I have Centurion motor part 7 -168452-04 FR P56Y AMPS 7.1/14.2 RPM 3450 Which motor do I need
 Reply

A  Answered on 5/11/2018 by InyoPools Product Specialist Kevin G.

Hello, yes this motor will work for you.
 Reply


?     Asked on 4/20/2018 by Stephen

Is this a 2 speed or single speed pump?
 Reply

A  Answered on 4/20/2018 by InyoPools Product Specialist Joe S.

PL2853 1 H.P Pool Motor Square Flange 56Y Up Rate will be a single speed unit.
 Reply


?     Asked on 4/19/2018 by Greg

I have a Whisperflow (WFE-4). The current motor PN is 011513. Is this the correct replacement motor?
 Reply

A  Answered on 4/20/2018 by InyoPools Product Specialist Patrick P.

Hi Greg, Your motor is a Full Rate 1 HP motor which is equivalent to a 1.5 HP up rate motor, so you would require the PL2854 Replacement 1.5 HP Up Rate Motor we would also suggest a Whisperflo Tune Up Kit when replacing your motor. Finally here is a Video on How to Replace a Pool Pump Motor which you may find helpful when you tackle this project.
 Reply


?     Asked on 4/7/2018 by

Sf-n1-1a. Is this correct motor for pentair superflow. Model number196238
 Reply

A  Answered on 4/9/2018 by InyoPools Product Specialist Patrick P.

Hi, Your pump is actually a 1 HP Full Rate Pump which is equivalent to a 1.5 HP uprate motor so you would need the PL2854 1.5 HP Up Rate Replacement Motor We do show where you purchased the 1 HP up rate motor would you like for us to bill your credit card the difference and ship out the 1.5 HP Up Rate Motor, also we would suggest this Super Flo Tune Up Kit when replacing your motor. Finally here is a Video on How to Replace a Pool Motor which you may find helpful when tackling this project. We will put your order on hold until we hear back from you on how you would like to proceed.
 Reply


?     Asked on 11/11/2017 by Eric

I need to replace my pool pump motor for my salt pool. Is PL2853 the correct one? I have a Pentair 7-177474-01, Frame 56Y, Hz 60, Amps 7.1/14.2, Phase 1, Volts 230/115, HP (just shows ----), SF (also shows ----). It is attached to a Whisperflo WF-24 part number 011772. And is the GOKIT32SALT the correct tune up kit? Thank you.
 Reply

A  Answered on 11/13/2017 by InyoPools Product Specialist Hector F.

Yes, that motor and seal kit is the correct replacement parts.
 Reply


?     Asked on 1/12/2012 by Guest

Why should I purchase a Tune Up Kit?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

A Tune Up Kit includes all of the essential replacement seals and gaskets for the pump. The seals and gaskets should be replaced when installing a new motor on your pump. New seals will prevent the pump from leaking water or losing the prime. A Tune Up Kit will protect your motor and ensure that the pump is working efficiently.
 Reply


?     Asked on 1/12/2012 by Guest

Why do I need to purchase a new shaft seal?
 Reply

A  Answered on 1/12/2012 by InyoPools Product Specialist Patrick P.

We strongly recommend replacing the shaft seal. The purpose of a shaft seal is to prevent water from running down the shaft of the motor and into the motor housing. Water will damage the bearings and cause the motor to fail. A new shaft seal should be installed whenever a motor is replaced. The motor manufacturer can deny the warranty if the motor fails to due to water damage from a faulty shaft seal. To find your shaft seal you will need to visit our Pool Pump Parts Page or the Spa Pump Parts Page and select your make and model.
 Reply


?     Asked on 1/11/2012 by Guest

What is Service Factor?
 Reply

A  Answered on 1/11/2012 by InyoPools Product Specialist Patrick P.

Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

My Customer had a Locked up Motor and Needed Replacement.

Written on 6/4/2019 by Guest

Disconnect motor from power.
Separate pump motor from pump.
Remove diffuser plate and impeller assembly.
Remove old motor and put new pump motor in place.
Carefully remove and replace mechanical seal.
Replace diffuser and impeller assembly.
Replace any worn or damaged rubber seals.
Reattach pump motor to pump housing.
Return power to new motor.
Check wiring and inspect system before turning on.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Adjustable Wrench, HEX key

0     1

"Screaming" Pool Pump

Written on 4/10/2019 by Guest

1) I shut off the breaker in the panel for POOL.
2) I took off the cover for wires, unhooked them.
3) I used a ratchet to separate motor from the pump.
4) I used a hex key to separate the "flange" from the motor, that has an impeller.
5) I cleaned the gasket recess, lubricated it, and inserted the new gasket.
6) I cleaned up all of the impeller, housing, etc.
7) I attached the flange and impeller to the motor.
8) I attached the motor assembly to the pump.
9) I attached the wires to the motor, using a new wiring "clamp."
10) I primed the pump with about a gallon of water.
11) I reset the pool breaker, and NO more screaming motor/pump = purrs.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Nut Drivers, Socket Set

Old Motor Was Bad

Written on 2/13/2019 by Guest

Replaced old motor with the new one.

Were these instructions helpful?


Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Nut Drivers, Pliers, Socket Set, Wrench Set

My factory installed pentair pump quit working.

Written on 6/30/2018 by Guest

Finding the right pump eas easy! I emailed inyopools, gave them the motor number from the factory pentair motor, and they replied back in a couple hours with three different options. I chose one and it was delivered in about 5 days.
I ordered the bearing and seal kit with my motor for an extra $30. Overall I saved $200 from purchasing at my local pool store and an additional $130 saved by doing it myself.
Install was easy and straight forward. I followed the instructions on the YouTube video from inyopools on YouTube. The only issue i had was when re installing the the impeller it is necessary to hold the shaft still with a screwdriver or pair of pliers. The motor from inyopools had a small rubber plug covering the back of the shaft that appeared to be part of the metal plate covering the back of the motor. It took some searching and experimenting to discover it. It would have been handy to have some kind of diagram or instructions in the box for that reason.

Were these instructions helpful?


Top

Review Summary

 (Average 5  out of 5 stars)
4 Rating
5 star:

(4)
4 star:

(0)
3 star:

(0)
2 star:

(0)
1 star:

(0)

The Most Helpful Review


The Most Recent Reviews
