Pureline Replacement T-15 Cell for AquaRite (2 Year Warranty) - PL7106

$399.99

IN STOCK
FREE SHIPPING

Part # PL7106

By PureLine

  5 Average

Details

Top

Part # PL7106

Warranty Two Year Warranty

Product Description

Pureline Replacement T-15 Cell for AquaRite (Replaces GLX-CELL-15 & T-CELL-15)

Inyo Pools now offers an affordable replacement for the Hayward AquaRite Salt Cell GLX-CELL-15 & T-CELL-15.

Our After Market AquaRite Replacement Cell is an exact replacement for your original Hayward Goldline Aquarite T-CELL-15 salt cell and performs the same exact functions. It is guaranteed to be compatible with any Aquarite T-CELL-15 or T-CELL-9 system.

Worried about the installation? Don' be.... Check out how easy it is to replace your Aquarite Salt Cell by watching our Video on How to replace your AquaRite Salt Cell

On average you can save roughly $180 by replacing your Aquarite salt cell with an After Market Aquarite salt cell from INYOpools.com. At INYOpools.com we strive to carry the highest quality products at the best value, and we have found the After Market Aquarite salt cell to have the same quality as the OEM Hayward / Goldline Aquarite salt cell but at a fraction of the price.

Typically after 3-5 years you will need to replace the salt cell on your chlorine generator, this cell is designed to work on the Aquarite 40,000 gallon system and is comparable to Hayward / Goldline controls part # TCELL-15 or GLXCELL15 Our After Market replacement cell comes with a 2 year manufacture warranty.

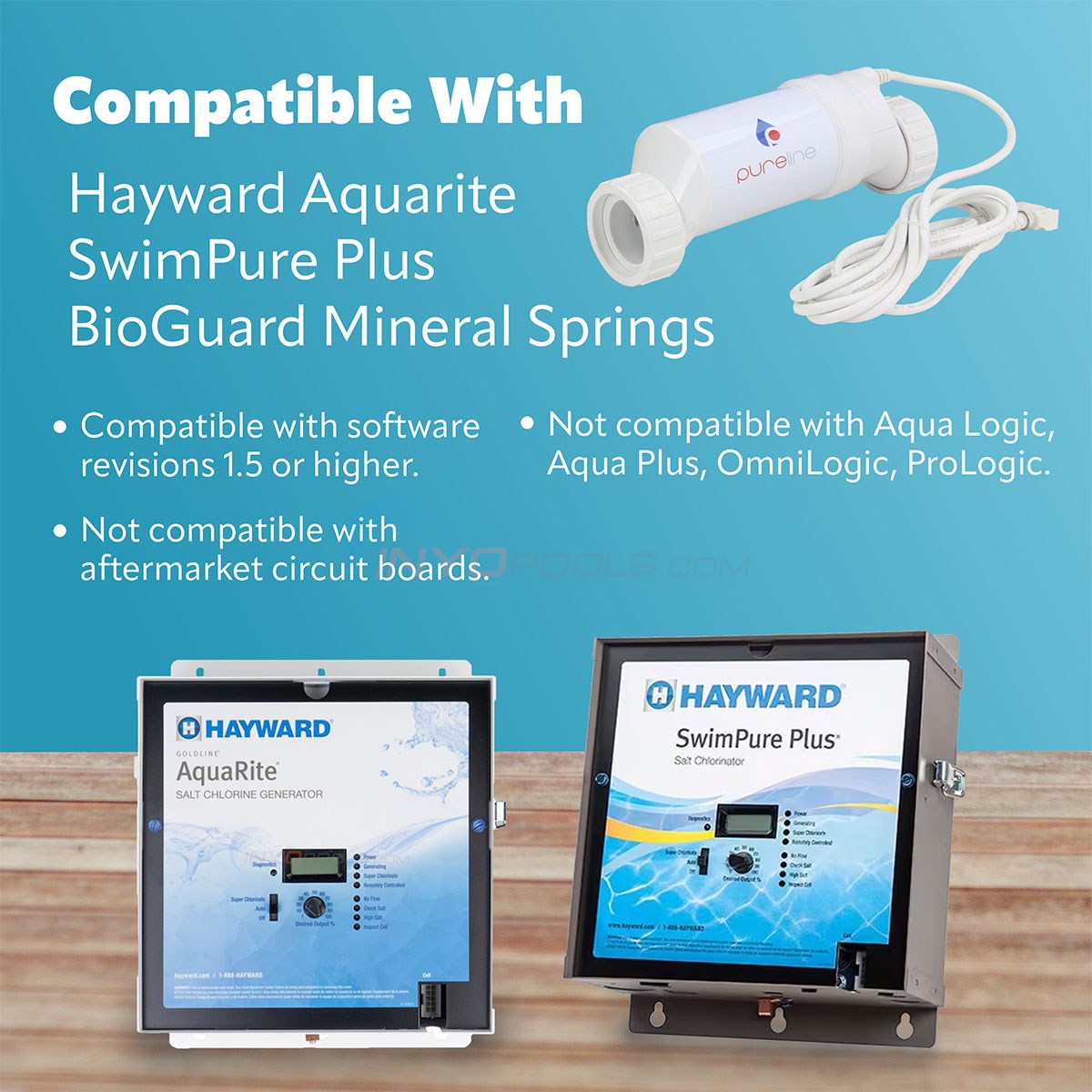

Compatibility:

  • Hayward AquaRite (T-CELL-15 & T-CELL-9 Models)
  • Goldline Aquarite (T-CELL-15 & T-CELL-9 Models)
  • BioGuard Mineral Springs
  • SwimPure Plus
  • Replaces the Hayward GLX-CELL-15 Salt Cell
  • Compatible with Aquarite Software Rev. 1.5 and higher. Press the diagnostic button 7 times to see your Software Version
  • Rev. 1.5 was released late 2008

Product Specifications

Treatment Capacity:
40,000 gal.
Warranty:
2 yrs
Type:
After Market
Top

?     Asked on 9/21/2019 by Lou Kassen

My control box Main Software is Revision 2.91.The present Salt cell is a Hayward T-15. Will your replacement T-15 work with my software?
 Reply

A  Answered on 9/25/2019 by InyoPools Product Specialist Steve M.

Lou, yes the PureLine Pureline Replacement T-15 Cell for AquaRite (2 Year Warranty) will work as a replacement for your existing Hayward OEM T-15 cell with revision 2.91.
 Reply


?     Asked on 8/6/2019 by Randall Cameron

Does this cell work for any/all AquaLogic systems? I see firmware requirements for AquaRite - what about Logic? Thanks!

 Reply

A  Answered on 8/7/2019 by InyoPools Product Specialist Joe S.

Good day, at this time the Hayward Automation units will not be able to read the Pureline cells firmware.
 Reply


?     Asked on 7/19/2019 by Adalbert Kopec

have an aquarite t15 cell with the opposite coupling that is shown in your picture how do I speciify which types of connection is needed?
 Reply

A  Answered on 9/18/2019 by InyoPools Product Specialist Hector F.

Those are referred to as the tailpieces, however, are unfortunately not sold separately from the part number 2807-22
 Reply


?     Asked on 7/17/2019 by Joe Hanley

I have an Aqua Rite with a digital reading of Cold bit the water is warm any ideas
 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Lennox H.

Hi, Joe. The temp sensor in the cell is bad in which the entire cell will need to be replaced.
 Reply


?     Asked on 6/29/2019 by Richard Koons

Which cell of yours will replace the Hayward swim pure plus T-cell-15-swp. I purchased the board that was compatible from your company about 1year ago. Also is the new cell the same dimensions so it will replace on pipes without new piping

 Reply

A  Answered on 6/29/2019 by InyoPools Product Specialist Lennox H.

Hi, Richard. This Pureline T-CELL 15 Cell is compatible with your controller
 Reply


?     Asked on 6/24/2019 by Bill Signa

I am currently running a t-cell-15 with my Naturesoft system rev 1.40. I assume this will work? Also, is the warranty pro-rated?
 Reply

A  Answered on 6/24/2019 by InyoPools Product Specialist Patrick P.

Hi Bill, This cell is Compatible with Aquarite Software Rev. 1.5 and higher. Rev. 1.5 was released in late 2008. If you do have rev. 1.4 then you will require the O.E.M T-Cell15 Replacement Cell the warrany is not pro-rated.
 Reply


?     Asked on 6/19/2019 by jim

what direction is the flow
 Reply

A  Answered on 6/21/2019 by InyoPools Product Specialist Lennox H.

Hi, Jim. This cell does not have a specific flow direction.
 Reply


?     Asked on 6/13/2019 by Mark

I have an Aqua Rite with Software Rev. 1.33. What are my T-15 cell replacement options with Rev. 1.33?
 Reply

A  Answered on 6/13/2019 by InyoPools Product Specialist Lennox H.

Hi, Mark. Based on the info provided you will need the T-CELL-15 OEM cell. This Pureline cell is not compatible.
 Reply


?     Asked on 6/10/2019 by Chris Short

I have a Aqua Logic AQL-P-4 that uses the Hayward T-15. Will this work in its place?

 Reply

A  Answered on 7/17/2019 by InyoPools Product Specialist Aidan F.

Chris, This cell will replace your T-15 for use with the Aqua Logic automation system.
 Reply


?     Asked on 5/12/2019 by

Do you offer wholesale pricing for a larger quality of this cell as I am in the pool repair business?
 Reply

A  Answered on 5/12/2019 by InyoPools Product Specialist Hector F.

We do not, but a business owner please check back with us if you have created an order history and we can review.
 Reply


?     Asked on 5/11/2019 by Will

Does this work as a replacement for the Goldline TurboCell T-Cell 15?
 Reply

A  Answered on 5/11/2019 by InyoPools Product Specialist Lennox H.

Hi, Will. Yes, this PureLine - PL7106  can be used as a replacement for the T-CELL-15.
 Reply


?     Asked on 3/19/2019 by Eric

I'm not sure if I need a new cell or a new main board. A couple days ago, my Aqua Rite SWG stopped generating chlorine, and only the "Power" light is on (all other lights are off). My display readings are as follows: Salt level: 2600 30.9 volts 0.00 amps Instant salinity: -0 AL-5 r1.33 If I need a new cell, do you sell an aftermarket one for Aqua Rite Software Rev. 1.33? Thanks for your help!

 Reply

A  Answered on 4/16/2019 by InyoPools Product Specialist Joe S.

Good afternoon, yes based on your readings you would need to order the PureLine Pureline Replacement T-15 Cell for AquaRite. This unit would work with any Hayward system that needs a T-Cell15 replacement.
 Reply


?     Asked on 3/17/2019 by

How often do the cells are a saltwater pool have to be replaced
 Reply

A  Answered on 3/17/2019 by InyoPools Product Specialist Lennox H.

Hi. Most cells are to be replaced 3-5 years if your pool runs year round and longer if seasonal.
 Reply

  • Commented on 3/17/2019 by Product Owner

    Confirm that 1 initial cost to go to salt $1259 for 40,000 gallon pool plus some misc parts plus 2 pool start up each year you add 25 bags of #40 salt to the water or $150 additional @$6/bag/year 3 the inline salt T device replacement every 3-5 years for $579 4 year 1 = $1259 + $150 +$100 misc or $1500 ish so if I move to salt factoring the initial cost averages 500 per year for first 3 years then the replacement inline T cost $579 seems a lot
     Reply

    • Commented on 3/20/2019 by InyoPools Product Specialist Lennox H.

      Hi, Eric. They are other advantages of switching to a salt pool, it is gentler on the eyes and skin, reduce storing and handling of unsafe chemicals, over chlorinating your pool, and softer-feeling water.
       Reply


?     Asked on 3/3/2019 by Ben

Hi, can you respond to this Hayward marketing language: "Beware of Imitations With other replacement cells, you get what you pay for: lower quality and shorter operating life. Through independent tests by the leading authority in electrolytic cells, some generic cells have been shown to have 75% less operating life than a Genuine Hayward T-CELL-15." Also, if you state that the typical cell lasts 3-5 years, why only offer a 2 year warranty?
 Reply

A  Answered on 3/5/2019 by PureLine

Hi Ben we do agree with Hayward that there are some After Market salt cell which are of very low quality. The reason being is that many manufacturers use a low quality material for the cell blades inside of the salt cell. The cell blades are what make your chlorine, when the cell blades go bad is when the salt cell needs to be replaced. The blades are titanium and then coated with a material called ruthenium. The cell blades used in the PureLine after market cell are made in the U.S.A and are made to the same quality as the Hayward blades. Other after market cells have the blades made in China and the quality is lower. The cell will last for 7,000 hours so if someone rruns the cell 24-7 365 days per year then this would be 10,000 hours per year. An average pool owner would run the system 4 hours per day at 365 days or 1,500 hours per year. This is why we have set the warranty at 2 yrs which we feel is strong compared to other salt cells.
 Reply


?     Asked on 10/29/2018 by Berry

I need to replace my salt cell T-15. My software version is 1.4. Is it possible to up date the software version?
 Reply

A  Answered on 10/30/2018 by InyoPools Product Specialist Lennox H.

Hi, Berry. You can update the software by replacing the Main PCB - GLXPCBRITE
 Reply


?     Asked on 10/26/2018 by ed

I have a T-CELL-15 with a Goldline Aqua Rite controller. I believe this was installed in 2006. Do I still need to worry about the revision level on the controller or will this unit work with what I have? Current cell is 5E0505-2192325
 Reply

A  Answered on 10/26/2018 by InyoPools Product Specialist Lennox H.

Hi, Ed. You will have to make sure that your controller has a software rev. of 1.5 and higher. Press the diagnostic button 7 times to see your Software Version.
 Reply


?     Asked on 8/20/2018 by

will cell # show up on control board for 158 series
 Reply

A  Answered on 8/23/2018 by InyoPools Product Specialist Lennox H.

Hi. If your PCB has a software revision of 1.50 or higher, you will be able to select a different cell size.
 Reply


?     Asked on 7/8/2018 by Gary Prager

Does this need to be installed by a certified tech to validate warranty?
 Reply

A  Answered on 7/8/2018 by InyoPools Product Specialist Lennox H.

Hi, Gary. This cell does not have to be professionally installed to validate warranty.
 Reply


?     Asked on 6/20/2018 by steve Mason

will this cell replace my older model cell #5E06062109322
 Reply

A  Answered on 6/20/2018 by InyoPools Product Specialist Lennox H.

Hi, Steve. This Pureline Aqua Rite Replacement Cell can be used to replace your cell. Your controller must have a software revision of 1.5 or higher.
 Reply


?     Asked on 6/5/2018 by

Hi...do I assume correctly that this replacement cell unit does not come with the couplings? I already have the couplings on my plumbing...thanks.
 Reply

A  Answered on 6/5/2018 by InyoPools Product Specialist Hector F.

These come with the couplings and not the tailpiece which is already glued to your existing plumbing.
 Reply


?     Asked on 6/5/2018 by

I have a 6 year old Hayward Pro Logic System PL-PS-4 with a Hayward Turbo Cell T-Cell-15 salt generator that I think is wearing out. Is this generic salt cell replacement compatible with my Pro Logic system? It is not listed on the list of compatible systems. And are specs on this unit exactly the same as the Hayward OEM in all respects? Thanks
 Reply

A  Answered on 6/20/2018 by InyoPools Product Specialist Andy O.

Hello- The Aqua Rite Salt Cell Replacement T-15 (2 Year Warranty) - PL7106 does not work with the Pro logic systems. It is only compatible with the Hayward AquaRite (T-CELL-15 & T-CELL-9 Models)Goldline Aquarite (T-CELL-15 & T-CELL-9 Models)BioGuard Mineral SpringsSwimPure PlusReplaces the Hayward GLX-CELL-15 Salt CellCompatible with Aquarite Software Rev. 1.5 and higher. Press the diagnostic button 7 times to see your Software VersionRev. 1.5 was released late 2008.
 Reply


?     Asked on 6/4/2018 by Bill T

My hayward T-15 cell is 12 1/4 long. ( cell only ) Your cell is 13 1/4 long. I think that this is the measurment form the cuplings. can you check on this ? Before I purchase this cell?
 Reply

A  Answered on 6/5/2018 by InyoPools Product Specialist Patrick P.

Hi Bill, Yes the 13-1/4" measurement is from coupling to coupling. The cell itself is 12-1/4" long
 Reply


?     Asked on 5/26/2018 by

will this work with a pentair Intellichlor power supply? (Overall pentair set-up) How does it compair to the Pentair salt cell?
 Reply

A  Answered on 5/26/2018 by InyoPools Product Specialist Patrick P.

I'm sorry this does not work with a Pentair Intellichlor. You would need one of the these Pentair Intellichlor Replacement Salt Cells
 Reply


?     Asked on 5/15/2018 by

Many suppliers of replacement cells specify that the Aqua Rite controller needs to be running software version 1.50 or higher. Does the PL7106 have any such requirement? Also, is the 2-year warranty prorated or non-prorated?
 Reply

A  Answered on 5/16/2018 by InyoPools Product Specialist Andy O.

Hello- The Aqua Rite Salt Cell Replacement T-15 (2 Year Warranty) - PL7106 does require controller firmware version 1.5 or higher. The warranty on the PL7106 is a two-year full warranty.
 Reply

  • Commented on 5/21/2019 by Product Owner

    how do you know what firmware you have
     Reply

    • Commented on 5/22/2019 by InyoPools Product Specialist Patrick P.

      Hi Chuck, By repeatedly pressing the small diagnostic button on your AquaRite one of those readings will be your software revision, I believe it should be the 7th press. The software will be displayed in a format like this on your display Software revision level (r1.xx) the .xx needs to be .50 or higher
       Reply


?     Asked on 5/12/2018 by Jeff Johnson

The only numbers I see on my T-15 cell (aqua Lite) are: *1E0801-4014185*. Is the PL7106 a compatible replacement? Will I have to change the cell setting on my motherboard which is currently set at T15? please email me & you can also post on your Q&A site.
 Reply

A  Answered on 5/12/2018 by InyoPools Product Specialist Patrick P.

Hi Jeff, this would be the replacement cell that you need and you would not need to change the cell setting on your power supply.
 Reply


?     Asked on 4/16/2018 by Junior Ingram

Where do I find T-15 on my cell? I am trying to find replacement for my Heyward "Aqua Collection" serial # 3E1011-2079537, I have a photo
 Reply

A  Answered on 4/16/2018 by InyoPools Product Specialist Lennox H.

Hi, Junior. The Aqua Collection Series only use the T-15 Cell based on the info I've found. If your cell has the gallon capacity size, you can also use that to determine what cell size you have.
 Reply


?     Asked on 3/29/2018 by donald m wolfeld

have the aquarite t 15 cell 40 thousand gallon cell is there a less expensive one on market just as good or better the one i have now only has a one year warrenty and cost over 540 dollars
 Reply

A  Answered on 3/29/2018 by InyoPools Product Specialist Patrick P.

Hi Donald, This PL7106 AquaRite Replacement Cell would be the cell for you as it is $399 and comes with a 2-year warranty. This cell is just as good as the Hayward original as the titanium cell blades are made from the same material supplier as the Hayward original.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

HandT-15 Cell was not indicating the correct salt level.

Written on 8/19/2019 by Mack

1. Turn off pool pump and salt system controller.
2. Unplug original T-15 Cell from the salt system controller.
3. Unscrew the 2 collars on each end of the original T-15 Cell.
4. Remove the original T-15 Cell.
5. Position the new Pureline Replacement T-15 Cell where the original Cell was located.
6. Hand tighten the 2 collars on both ends of the new Cell (ensure that the 2 gaskets are in place before tightening).
7. Plug in the new Cell into the salt system controller.
8. Turn on the pool pump and check for leaks (if no leaks then turn on the salt system controller).
9. Compare the salt cell controller reading for salt ppm with a salt level test result (they should be very comparable).

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Adjustable Wrench

T15 Cell was out, needed replacement

Written on 6/24/2019 by Guest

Shut down power to pump, control panel, lights, ancillary breakers.
Locate salt cell, loosen unions if possible by hand.

In my case they had been overly tightened on the unions so I used a pair of Channel Locks (large) to loosen the unions.

Unions on salt cells from Hayward always have opposite turning. one end is lefty loosy other end is righty loosy.

Gently loosen and then use hands to remove salt cell. trace wire to plug on control panel/aquarite system and unplug.

Lubricate o rings if necessary.

Install New Pureline replacement,
plug wire into control panel/aquarite

Flip breakers on.

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Adjustable Wrench

Salt water filter

Written on 6/21/2019 by Guest

First I had to unplug the old filter from the housing box, then used a adjustable wrench to loosen up the nuts to get the old filter off, then put the new one on and plugged it into the housing box.

Were these instructions helpful?
