Model # SP1023S

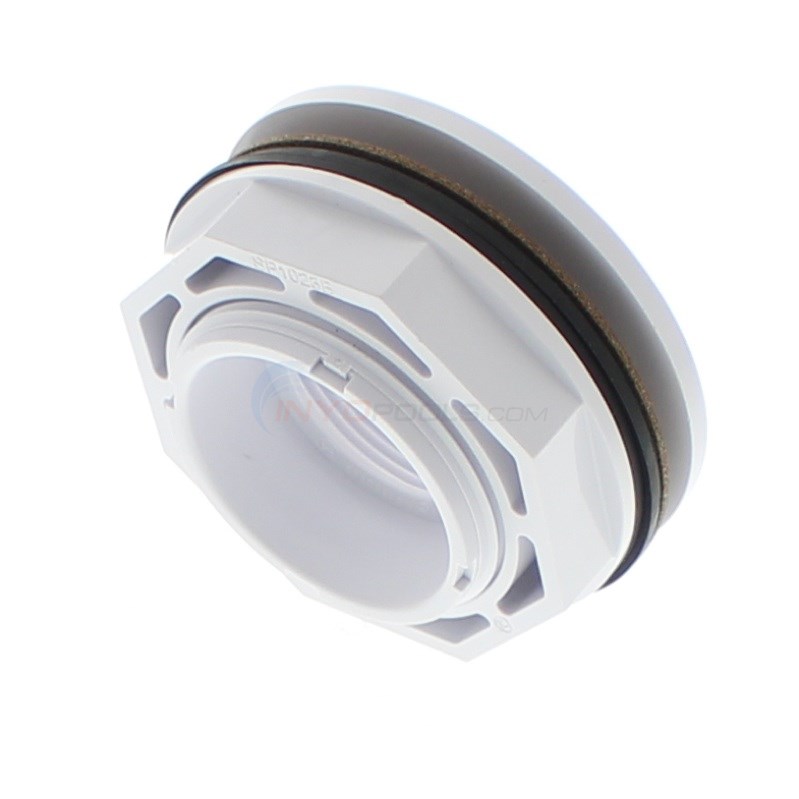

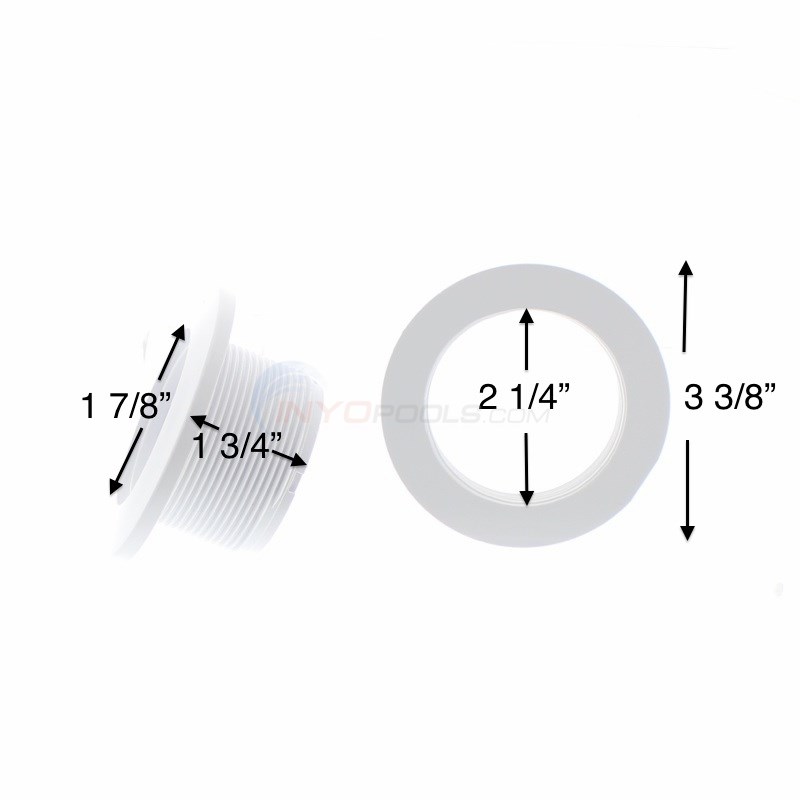

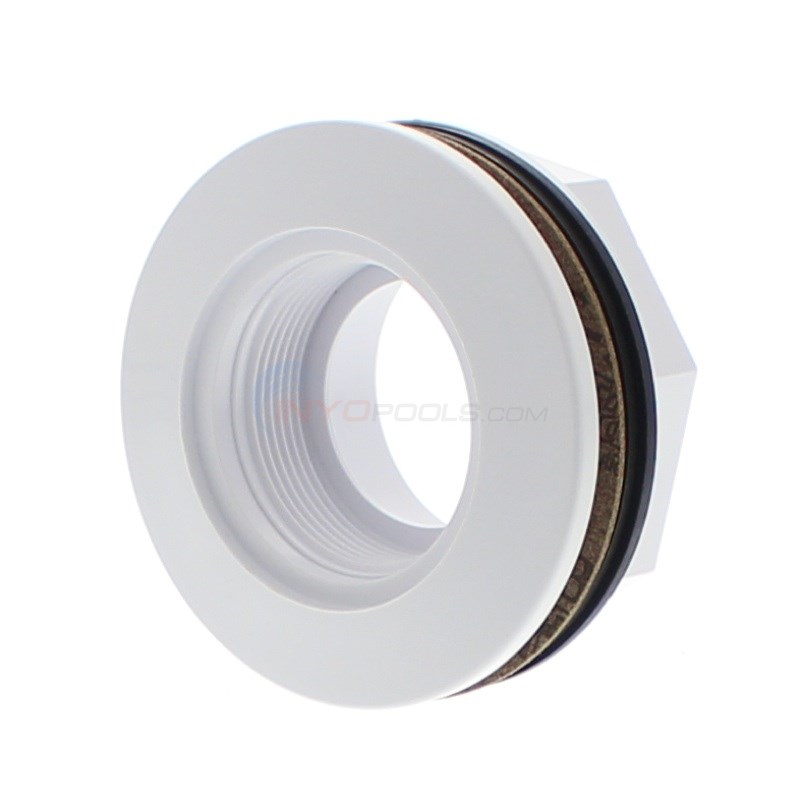

Fiberglass Lens Housing SP1023S - Accepts 1.5" Pipe
Inside the Pool (water side):
First black rubber gasket goes between the return fitting flange (faceplate) and the inside wall of the pool.
This gasket makes the watertight seal on the interior side.
Pool Wall (fiberglass)
Outside the Pool Wall:
Cork gasket goes directly against the outside of the fiberglass wall.
Cork compresses well and conforms to surface imperfections of fiberglass — it acts as a secondary moisture barrier.
Second black rubber gasket goes between the cork gasket and the locking nut (the large threaded nut that tightens the fitting).
This protects the cork from wear and creates an additional seal.
Do you have anything which shows which order does the gaskets go in?
Reply

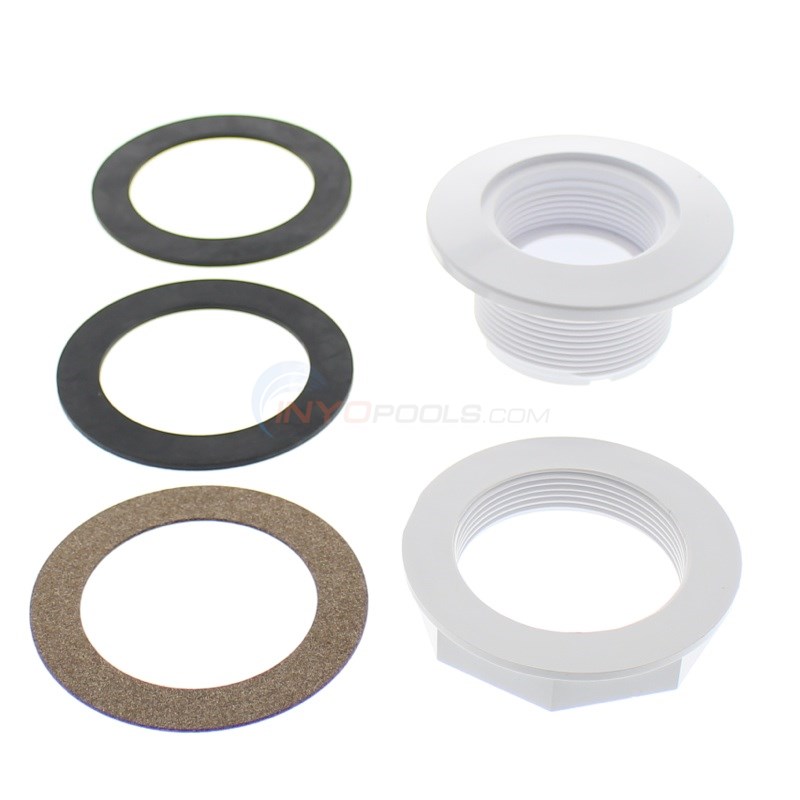

This image here should help show you the order of the gaskets http://www.inyopools.com/images/poolparts/110/1/SP1023.jpg
Reply
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Curt from Atlanta, Texas ()
Pros: Works very well with existing or new construction!
Cons: None
I got this to install 4 Savi Notes in our pool remodel...Works great and no leaks!
