Part # NL102

Manufacturer Code PNP192XL

Alternate Part #'s PNP192L, GAD-75-6170

Product Description

Pool Cove 48" Section - Peel N' Place Closed Cell Foam

4" tall, 3" deep, 48" long.  The color may be white or blue.

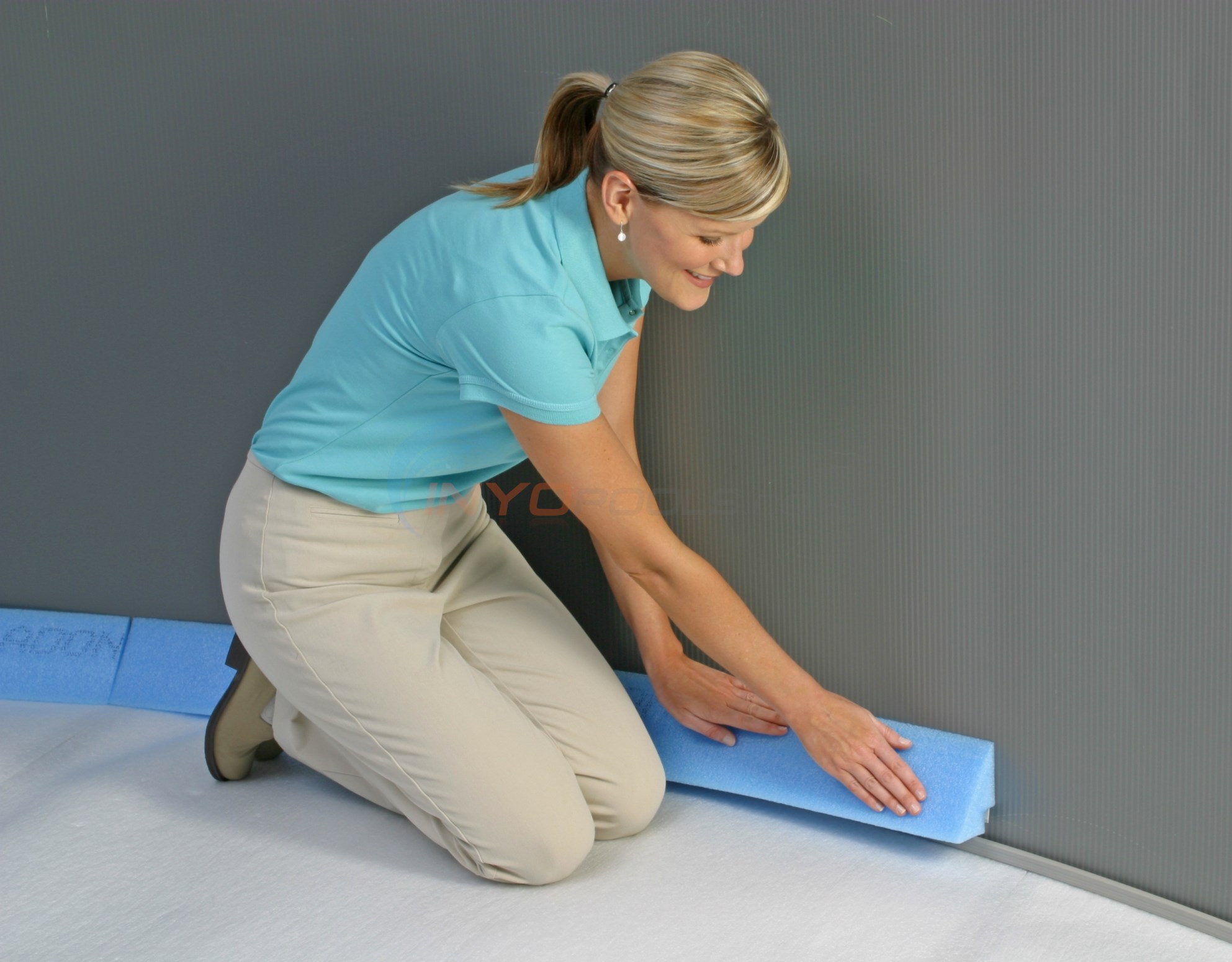

Much easier to install and more dependable than sand coves, Peel & Stick Pool Cove has an adhesive backing for quick, easy installation and will extend the life of your liner for years!

A cove is needed to keep the weight of the water in the pool liner from causing it to balloon out under the bottom of the pool wall. Previously, pool cove had to be hand-built using tons of sand or dirt. Liner failures due to cove washout were all too common. Corrosion occurred rapidly where metal components, at the bottom of the pool, came in contact with moisture in the sand or dirt.

*48" Sections
*Extends Pool Life
*Installs in Minutes
*Can not be washed out
*Helps prevent corrosion
*Eliminates liner failures due to cove washout

  • Also available in Clip Cove style with clip that snaps onto track


Click on Your Pool Size Below to Save On Complete Cove Packages

 # of Cove Strips Needed for Full Set
Pool Size # of Strips Required
12' Round 10
15' Round 12
18' Round 14
21' Round 17
24' Round 19
27'-28' Round 22
30' Round 24
33' Round 26
12'x16' Oval 13
12'x20' Oval 14
12'x24' Oval 16
15'x24' Oval 16
15'x25' Oval 17
15'x26' Oval 18
15'x30' Oval 19
16'x26' Oval 18
16'x32' Oval 21
18'x33' Oval 22
18'x40' Oval 26
21'x41' Oval 27

?     Asked on 5/19/2008by Guest

What is the heigth dimmension of the cove and far does the cove stick out into the pool?

A  Answered on 5/19/2008 by InyoPools Product Specialist Patrick P.

The pool cove is 4 inches tall and sticks out into the pool 4 inches.

?     Asked on 8/7/2012by Guest

Will this pool cove work on an above ground rectangular pool as well?

A  Answered on 8/7/2012 by InyoPools Product Specialist Patrick P.

Yes pool cove will work on an above ground rectangular pool.

?     Asked on 4/12/2015by louise

Is the coving made by Gladon please?

A  Answered on 4/13/2015 by InyoPools Product Specialist Robert M.

Hello Louise - The coving is manufactured by Gladon.

?     Asked on 5/12/2015by troy

how many do i need for a 24 round pool?

A  Answered on 5/12/2015 by InyoPools Product Specialist Lennox H.

Troy, For your 24ft round pool you'll need 19 of the Peel and Stick Pool Cove.

?     Asked on 5/26/2015by Matt Riley

When installing the Peel and Stick Pool Cove, do I need to seal it using tape to the Gorilla floor?

A  Answered on 5/27/2015 by InyoPools Product Specialist Patrick P.

Hi Matt, This cove does have an adhesive strip on the back of the cove which would secure it to the pool wall. No tape or adhesive would be needed on the bottom of the cove to secure to Gorilla floor.


Est. Repair Time

Less than 1 hr

Tools Needed


3     0

Old cove was worn

Written on 5/28/2018 by Guest

We purchased this foam cove and installed it quickly.

Were these instructions helpful?


Est. Repair Time

More than 8 hrs

Tools Needed

Screwdriver, Nut Drivers, Socket Set

3     0

I was going to use these on existing pool; not sticking

Written on 11/10/2017 by Guest

I was and have replaced the liner but the peal and stick even after cleaning didn't stick.
The pool ordinarily had a dirt cove. Perhaps since the metal was not new cause an issue. I went back to dirt cove. Unfortunately you only have 30 day from order not recipe to return. If anyone wants to buy them they are brand new in the box. I'm trying to think of uses such as wall bumpers for kids or parking stops for cars in a garage.

Were these instructions helpful?
