User Interface Off-Board Mounting Kit - 2512723-001

$174.99

IN STOCK
FREE SHIPPING

Part # 2512723-001

By Century Motors

  5 Average

Details

Top

Part # 2512723-001

Alternate Part #'s AOS2512723-001

Product Description

User Interface Off-Board Mounting Kit - 2512723-001

For added convenience, the V-Green 270 user interface can be remotely mounted. Kit includes all the necessary components to mount the 270 user interface to a wall, deck post, or other surfaces, including accessories to seal the controller unit to protect against the elements.

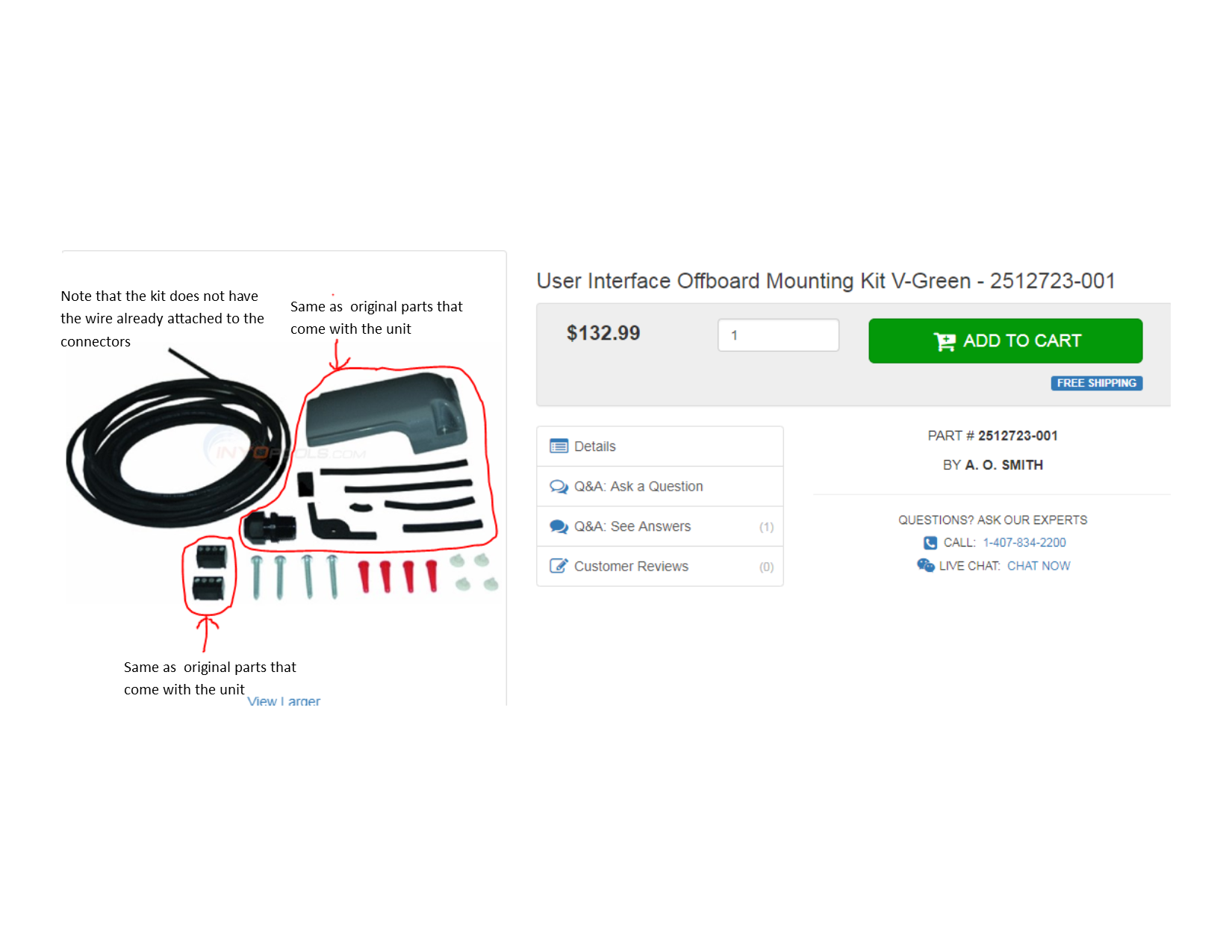

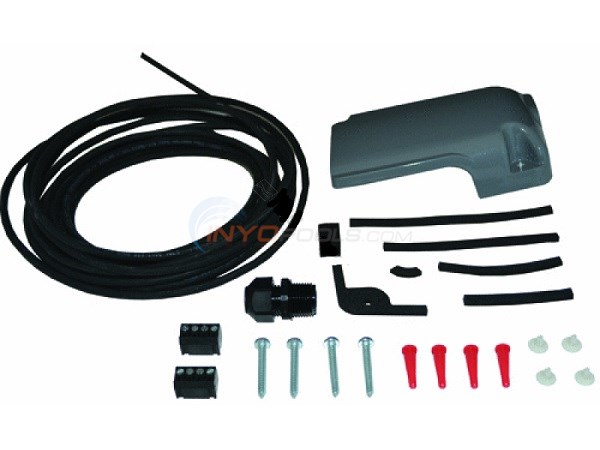

Kit Includes:

  • Lead Cable
  • Terminal Box Cover Assembly
  • Gasket
  • Conduit Fitting
  • Plugs
  • Screws
  • Anchors
  • Instructions
Top

?     Asked on 11/21/2018by Darrell

If I mount the user interface remotely, use a longer wire and the existing connectors that come with the pump as suggested in the manual (page 31,32), will that void the warranty? Page 33, says while an optional kit is offered to mount the interface remotely "it is not mandatory to purchase this kit to mount the User Interface remotely." and it does not say here you will void the warranty if you do. The previous answer says you can use a different wire if a longer run is needed.

 Reply

A  Answered on 11/21/2018 by InyoPools Product Specialist Hector F.

If you need to use a longer wire from the interface terminals then yes you can but if you are splicing the wires from the motor to use a longer wire for mounting the controls then that would void the warranty on the motor.
 Reply

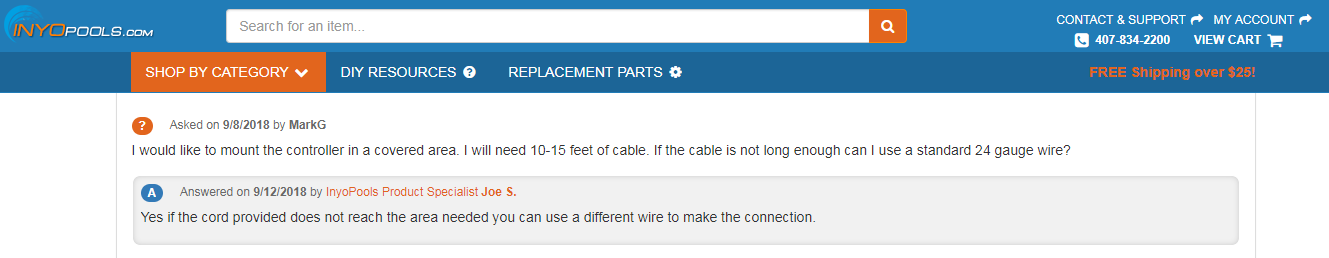

?     Asked on 9/8/2018by MarkG

I would like to mount the controller in a covered area. I will need 10-15 feet of cable. If the cable is not long enough can I use a standard 24 gauge wire?
 Reply

A  Answered on 9/12/2018 by InyoPools Product Specialist Joe S.

Yes if the cord provided does not reach the area needed you can use a different wire to make the connection.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers

1     0

Off board mount without kit not needed. Remote mount with two inexpensive parts

Written on 11/22/2021 by Guest

Parts needed:
4 conductor 22 gauge cable of required length
1/2 inch cable gland

Remove user interface from motor.
Disconnect existing cable from connectors
Remove plug from motor housing and replace with cable gland
Feed new cable through gland and tighten
Connect new cable to connectors
Plug connectors into user interface and motor
Mount user interface where desired
