By Aqua Cal

Details

Top

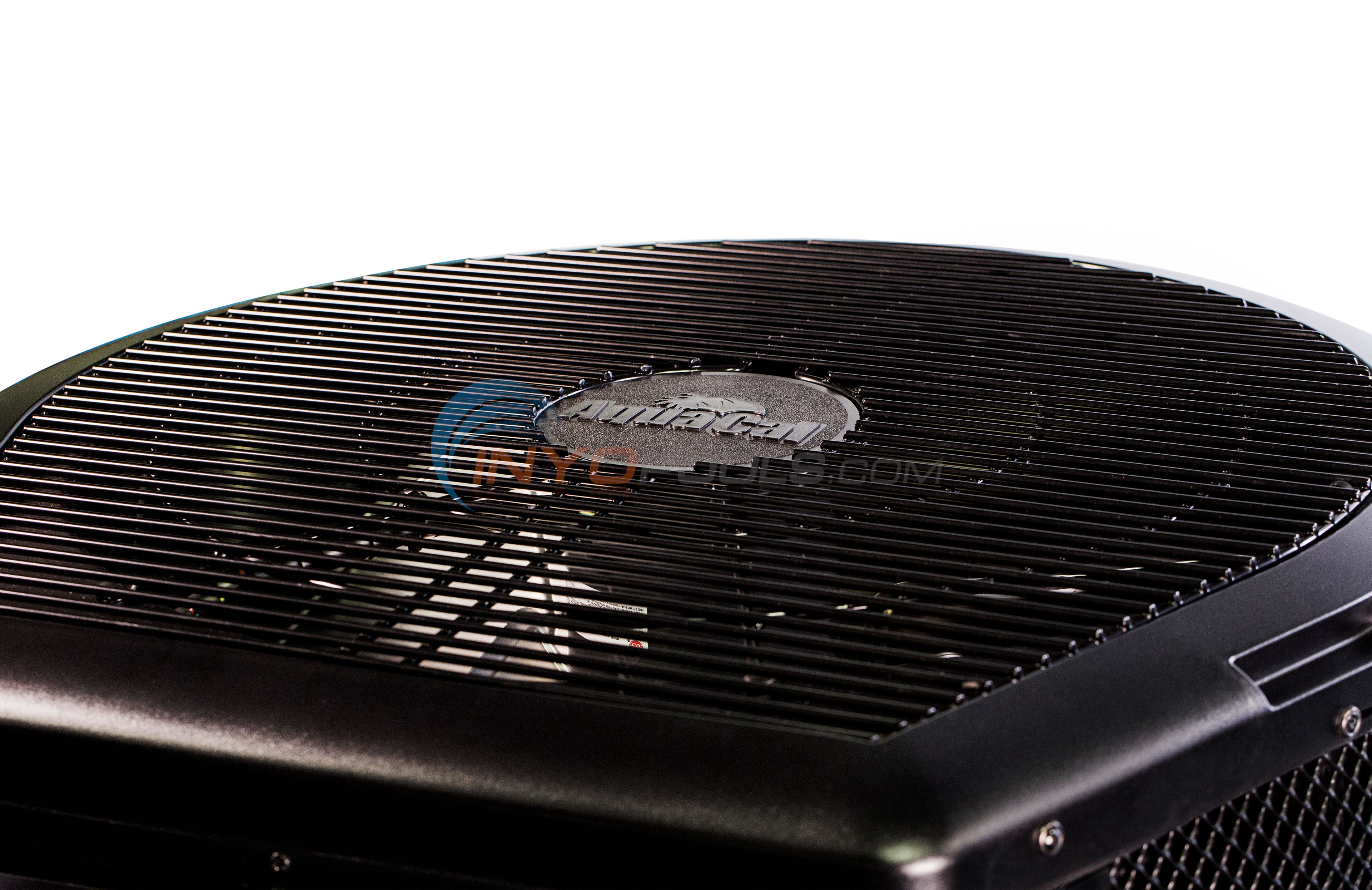

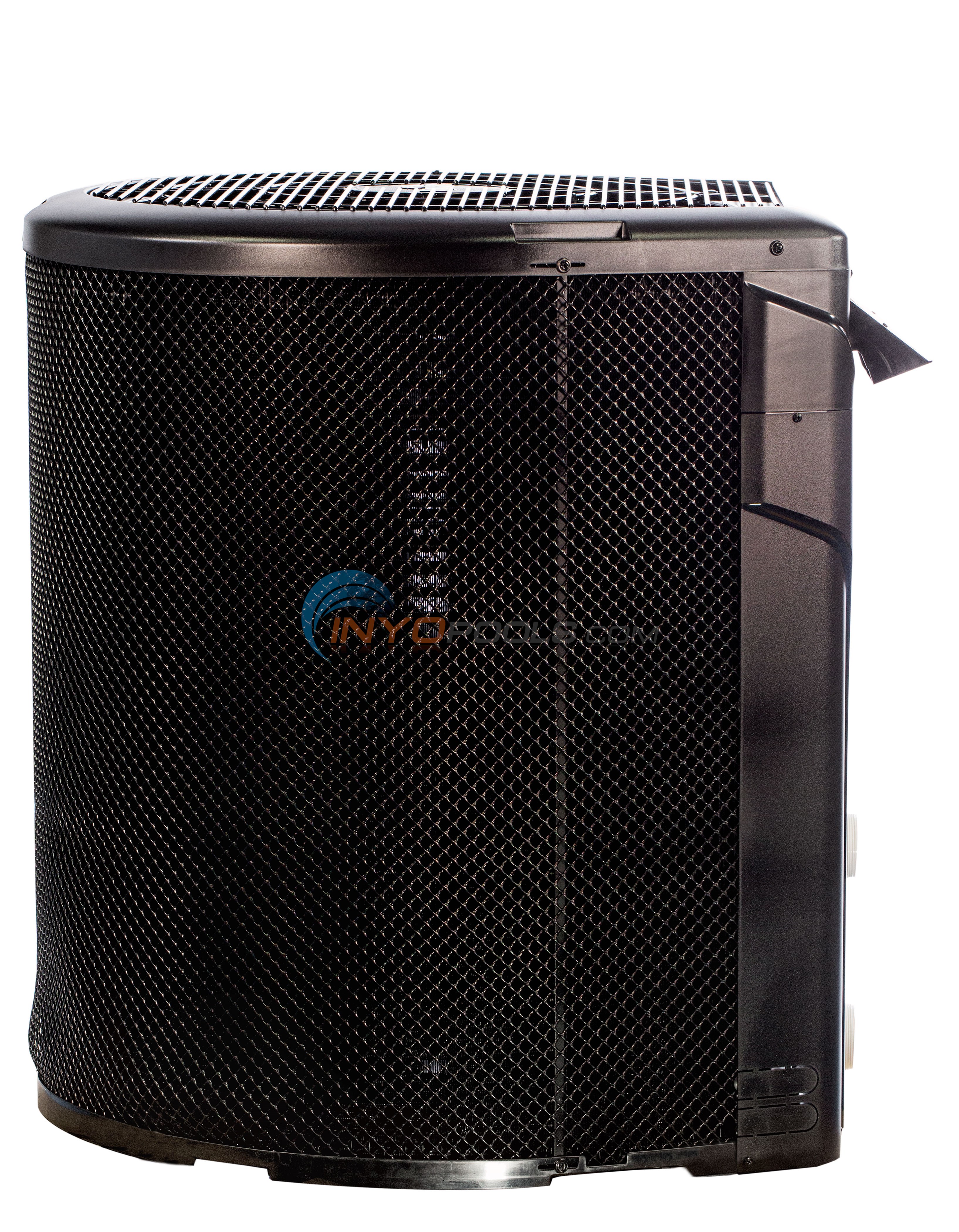

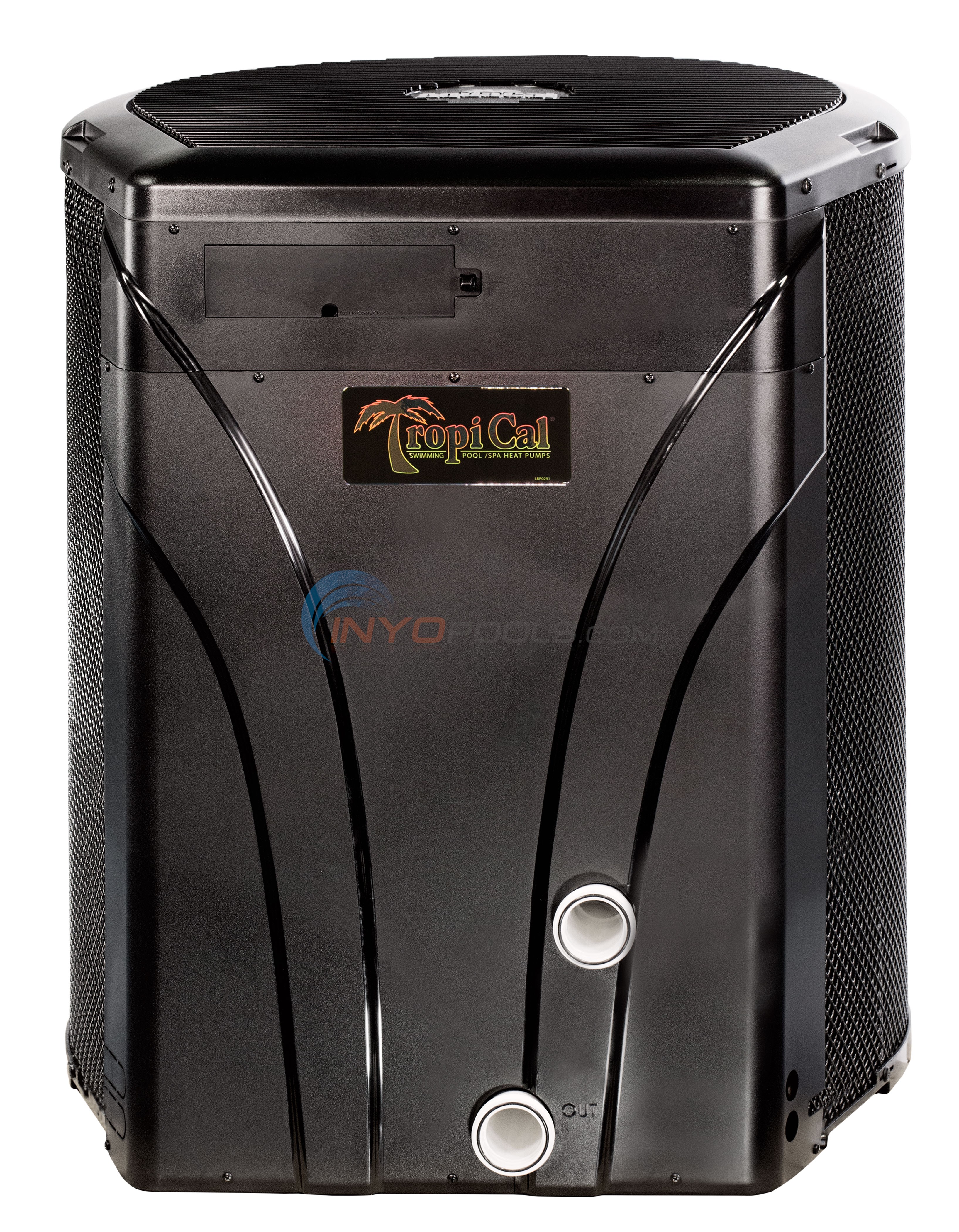

Part # T90

Alternate Part #'s T090AHDSBDRF

Product Description

  • TropiCal®   is quality heat pump designed to fit any budget.

    • High performance titanium heat exchanger
    • Microprocessor controlled defrost cycle allows operation down to mid to low 40s °F
    • Lockable, flip-out control panel protected against sun and weather
    • Built-in drain pan for condensate management
    • Impact resistant, rust and fade proof cabinet
    • Quieter than conventional heat pumps

    Rated in accordance with ARI standard 1160. Specifications subject to change.

    *BTUs based on 80/80/80 (water temp/ambient air/relative humidity)


Product Specifications

BTU:
96,000 BTU
Heat Exchanger:
Titanium
Volts:
208v-230v
Hz:
60 Hz
Phase:
1
Minimum Circuit Ampacity:
40.2
Recommended Breaker Size:
60
Min Flow Rate:
30 GPM
Max Flow Rate:
70 GPM
Dimensions:
34" L x 34" W x 39" H
Weight:
255 lbs.
Refrigerant:
R410A
Manufacturer:
AquaCal
Heater Type:
Heat Pump
Top
Ask A Question

?     Asked on 11/11/2017by Robert Zollo

What size wire is required for a AqualCal Model T90. Wire size #8 gage or #6 gage, and what size breaker amp. Thank you Bob
 Reply

A  Answered on 11/13/2017 by InyoPools Product Specialist Lennox H.

Hi, Robert. This T90 unit requires a 60 amp breaker. The wire size is based on the distance from the breaker to the unit. A licensed electrician will determine the wire size.
 Reply
