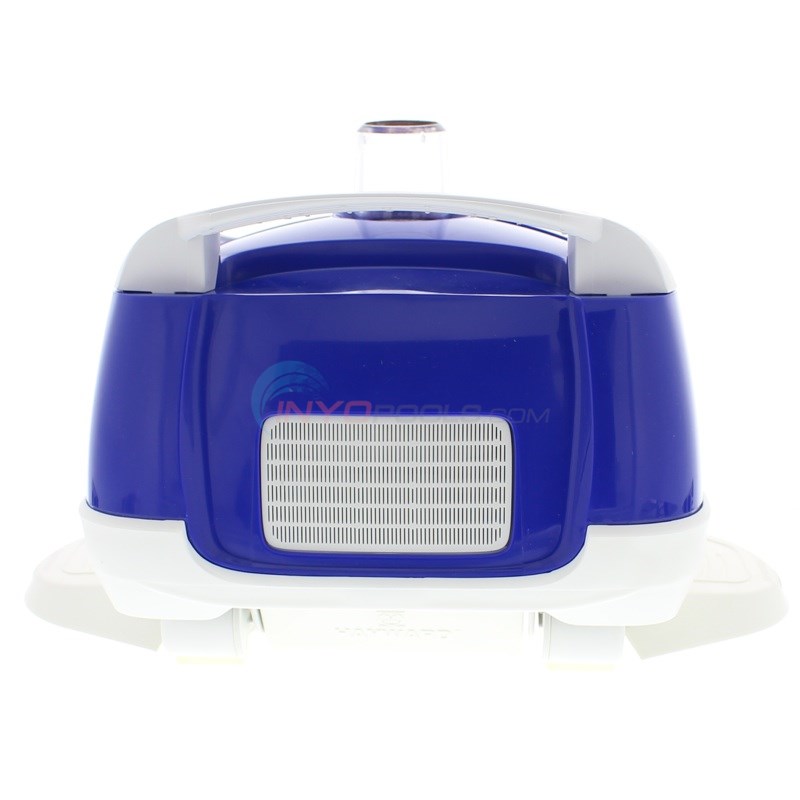

Hayward Navigator Pro Concrete Cleaner - W3925ADC



Model # W3925ADC

By Hayward Pool Products

  4.6 Average



Model # W3925ADC

Dimensions 14" x 12"

Alternate Part #'s 521282, HAY-20-575, HAY925ADC, HAY-20-1012, HAYW3925ADC

Product Description




The all new Hayward Navigator Pro introduces Exclusive SmartDrive® technology which makes the Navigator Pro faster and more efficient than any random style pool cleaner. Navigator Pro moves in a predetermined series of right and left turns to systematically provide more thorough coverage of your pool's surfaces. It is the smart choice for all types of in-ground pools. Discriminating pool owners will value Navigator Pro's ability to clean their pool in an intelligent manner. Compared to other suction cleaners, Navigator Pro's technology allows for a silent operation. You can enjoy a pleasant and peaceful pool environment even when the Navigator Pro is hard at work.

Navigator Pro gives you easy, trouble-free operation. And because it's powered by your existing filtration system, you don't have the expense of an energy-consuming booster pump. You won't waste time emptying or replacing debris bags. Getting that sparkling clean pool is easy and effortless. When you install your new Navigator Pro as part of the Totally Hayward® System, you get the assurance of knowing you have a complete system, designed to work together for the best automatic operation and the cleanest pool possible.

Add a leaf canister to your Hayward pool cleaner so debris does not collect in your pump basket. The leaf canister fits between 2 sections of the pool cleaners hose, debris is now collected in the leaf canister rather than your pump basket.

Q: What is the difference between the Hayward Pool Vac and the Hayward Navigator?

A: The only difference between the Pool Vac and the Navigator is the shape of the head of the cleaner. The head of the Navigator is square or flat and the Pool Vac is more rounded. Both cleaners use the exact same internal compnents and the same hose, so if you ever need to replace parts in the future the parts for both cleaners would be the same. Some people say the rounded design on the Pool Vac performs a little better in the corners of the pool.


  • In-ground residential pools (Gunite / Tile)


  • Exclusive SmartDrive – Pre-programmed steering to effectively clean any residential pool
  • Advanced Suction Technology – Uses pool's existing filtration system no additional equipment required
  • Silent Operation – No pulsating hoses or noisy parts, for a peaceful pool environment
  • Easy to use – Connects in less than 10 minutes to skimmer or suction port

Product Specifications

Concrete or Vinyl Pool:

?     Asked on 5/8/2021 by Joseph E Olson

I have a variable speed pump, 3400 down to 1700 rpm with a 1 min change over delay that stopes the pump for 1 min before going to the next lower speed. Will this affect the cleaner from working and flouting to the top between speed changes?

A  Answered on 5/10/2021 by InyoPools Product Specialist Robert M.

The cleaner would not float to the top of the pool in between speed changes. It would stay on the bottom of the pool. The rare exception might be if the pump switched speeds exactly when the cleaner breaches the water as it climbs to the tile line.  Even in that case, the cleaner should fall back to the floor of the pool.

?     Asked on 2/13/2021 by James G. Donelson

Are there any Hayward mfg Rebates available on any of the cleaners you sell?

A  Answered on 2/15/2021 by InyoPools Product Specialist Hector F.

Hi James, yes there are a few cleaners that currently offer rebates through Hayward under their listed terms. Please see Haywards rebate center to review the models and terms for qualifying models.

?     Asked on 1/21/2021 by

Do you sell the genuine factory supplied hose replacement? I had developed pin holes in my original hose due to age (probably 10+ years old) and bought a universal replacement. The universal replacement does not float as well, is stiff and has developed a coil which can not be un-done which has rendered the cleaner useless. I would dearly like to get the genuine factory hose for my Nav Pro to restore it's operation.

A  Answered on 1/22/2021 by InyoPools Product Specialist Joe S.

Hello Tim, we do carry the Hayward Single Light Grey Connector Hose (V109LG) - 3259D1.

?     Asked on 6/3/2020 by

is this for vinyl or concrete

A  Answered on 6/3/2020 by InyoPools Product Specialist Patrick P.

Hi this is for concrete.

?     Asked on 4/28/2020 by john kaiser

does this vac come with hose?

A  Answered on 4/28/2020 by InyoPools Product Specialist Patrick P.

Hi John, Yes hose is included.

?     Asked on 1/13/2020 by

925ADC won't move anymore wing won't flip up/down---please advise!

A  Answered on 1/14/2020 by InyoPools Product Specialist Joe S.

suction cleaners like the Hayward Pool Vac are sensitive to changes in flow rate. A few of the top causes for a dip in pump suction are the skimmer basket, pump strainer, and filter need cleaning; skimmer vac plate is not sealing; pump hoses have pinhole leaks that pull in air.

?     Asked on 11/6/2019 by Frank Orsino

What is the difference between the 925ADC and W3925ADC? Thank you.

A  Answered on 11/6/2019 by InyoPools Product Specialist Lennox H.

Hi, Frank. The units are identical, however, the W3925ADC models are specifically for online retailers. This will let Hayward know if you purchased your unit online or at a retail store.

?     Asked on 10/2/2019 by Mary Ann

When will you be getting the Navigator V-Flex in stock, and price?

A  Answered on 10/2/2019 by InyoPools Product Specialist Megan C.

The Navigator Flex is designed for Trade-Grade sales only, we are unable to offer this cleaner online. Please contact Hayward at (908) 355-7995.

?     Asked on 3/31/2018 by

Cleaner keeps getting stuck in corners and stays there. Seems like it no longer will turn.

A  Answered on 4/3/2018 by InyoPools Product Specialist Lennox H.

Hi. They are several things that you can do to try to resolve this issue. They're listed on page 17 of the Hayward Navigator Pro/XL Owner's Manual

?     Asked on 2/22/2018 by Licet

Will this work in a fiberglass pool? THank you!

A  Answered on 2/22/2018 by InyoPools Product Specialist Kevin G.

Hello, I would recommend going with the Hayward Pool Vac XL Vinyl/Fiberglass Cleaner. This is ready to be used for your fiberglass pool right out of the box. The Navigator that you are referencing will require these pod shoes in order to be used in your fiberglass pool.

?     Asked on 5/19/2017 by Mike

He will only go in a circle. Do the drive feet wear out and if so can they be replaced

A  Answered on 5/20/2017 by InyoPools Product Specialist Hector F.

These model cleaners running in circles can be caused by a number of issues such as, worn shoes/feet, worn pods, a bad gear box, worn a-frame bearings or even simply being clogged. Here is the parts diagram that you can see all of the replacement parts including those feet. Also here is a general guide for how to service the inside of a Hayward Navigator Suction Cleaner. If you do not have any luck then I would advise having a technician physically inspect the cleaner.

?     Asked on 5/9/2017 by michael stokes

why does my vavigator/ get stuck in corner

A  Answered on 5/9/2017 by InyoPools Product Specialist Hector F.

There are a number of possible reasons why the cleaner would get stuck in a corner. It could be shoes, pods, suction issue or even the gear box is clogged or bad. I would advise having a local technician inspect the unit for it does have many moving parts.

?     Asked on 8/23/2016 by fish

is the navigator pro designed for use on tiled pools and is this an Australian web site

A  Answered on 8/23/2016 by InyoPools Product Specialist Scott W.

Yes the navigator pro can work on the tile, would recommend one that has a brush, but the navigator pro will vacuum the tile. And this is a United States company but we do ship to Australia.

?     Asked on 7/21/2016 by kc

what is the difference between the 925 and the 2025

A  Answered on 7/22/2016 by InyoPools Product Specialist Alan M.

The 925ADC model is the Navigator and the 2025ADC is the Pool Vac XL . They both function exactly the same, contain the same hoses, and are almost identical. The only noticeable difference is shell of the cleaner.

?     Asked on 6/1/2016 by

Does it climb the walls and clean them?

A  Answered on 6/2/2016 by InyoPools Product Specialist Patrick P.

The cleaner has the ability to climb the walls and clean them, but this is really dependent if you are getting good suction from your pump. If you are getting good suction the cleaner will go up the walls if your suction is poor then the clean may not go as high up on the walls.

?     Asked on 5/11/2016 by Rosanne balsa

Hello I just bought a navigator pro ..what do I need to mail in order to get the rebate ?? The saler says that there something in the box that I need to mail ..what it is?

A  Answered on 5/12/2016 by InyoPools Product Specialist Alan M.

You will need 3 things to receive your rebate: 1) The filled out rebate form from online or the retailer. 2) a copy of the sales receipt. and 3) The original warranty form. The warranty form is inside the instruction manual. It will need to be cut out, filled out and sent in. All three components will need to be mailed to the address listed on the rebate form.

?     Asked on 9/6/2015 by Tom

What do you do when the navigator stops moving?

A  Answered on 9/9/2015 by InyoPools Product Specialist Lennox H.

Hi Tom, You can try cleaning out your filter. If that does not work you can inspect the cleaner to see if something is stuck in the unit preventing it from moving. If there is nothing in the cleaner then you can take it to you local pool supply store to have it checked out. You can also use the Hayward Navigator Pro, Pool Vac XL Navigator, Pool Vac Ultra Troubleshooting Guide to diagnose what is wrong with your cleaner.

?     Asked on 4/6/2015 by

Is this model 925ADC for gunite pools?

A  Answered on 4/7/2015 by InyoPools Product Specialist Robert M.

The Hayward 925ADC is designed for gunite pools.

?     Asked on 1/22/2015 by

What is the warranty on this unit?

A  Answered on 1/22/2015 by InyoPools Product Specialist Sharon F.

Hayward has a 1-year limited warranty.  For more details, please review the Navigator Pro owner's manual.

?     Asked on 5/22/2013 by Guest

Can the Hayward Navigator Pro be used for above ground pools?

A  Answered on 5/22/2013 by InyoPools Product Specialist Patrick P.

According to Hayward, the Hayward Navigator Pro is used on in-ground residential pools.

?     Asked on 5/2/2013 by Guest

What is the difference between a Hayward Pool Vac Classic and the Navigator Pro model?

A  Answered on 5/2/2013 by InyoPools Product Specialist Patrick P.

Simply put the Hayward Pool Vac Classic is an older model and only available for concrete pools while the Navigator Pro is available for vinyl, fiberglass and concrete. Other than the shape of the units all the internal mechanisms are the same.

  • Commented on 12/17/2019 by Product Owner

    I bought a Arneson Pool Vac (aka Hayward Pool Vac Classic) in April 1992. In 2016. I bought a new Hayward Navigator V Flex pool vac. and I put the 1992 vac in a box in the garage. A month ago the 2016 model started slowing down so I pulled the cover off to see the plastic around the propeller axle had worn out and the propeller had shifted and wore a hole in the vac housing. I then pulled the 1992 model out of the garage and hooked it back up and after almost 28 years it is still running great,


?     Asked on 4/21/2013 by Guest

Does the Hayward Navigator come with the hose?

A  Answered on 4/21/2013 by InyoPools Product Specialist Patrick P.

The Hayward Navigator comes with 40 feet of hoses to connect to the skimmer.

?     Asked on 2/28/2013 by Guest

What is the warranty on the Hayward Navigator Pro?

A  Answered on 2/28/2013 by InyoPools Product Specialist Patrick P.

The Hayward Navigator Pro is covered by a 2 year limited manufacturer's warranty.

?     Asked on 4/3/2012 by Guest

How many feet of hose are included with this cleaner?

A  Answered on 4/3/2012 by InyoPools Product Specialist Patrick P.

40' of hose is included with the cleaner.
