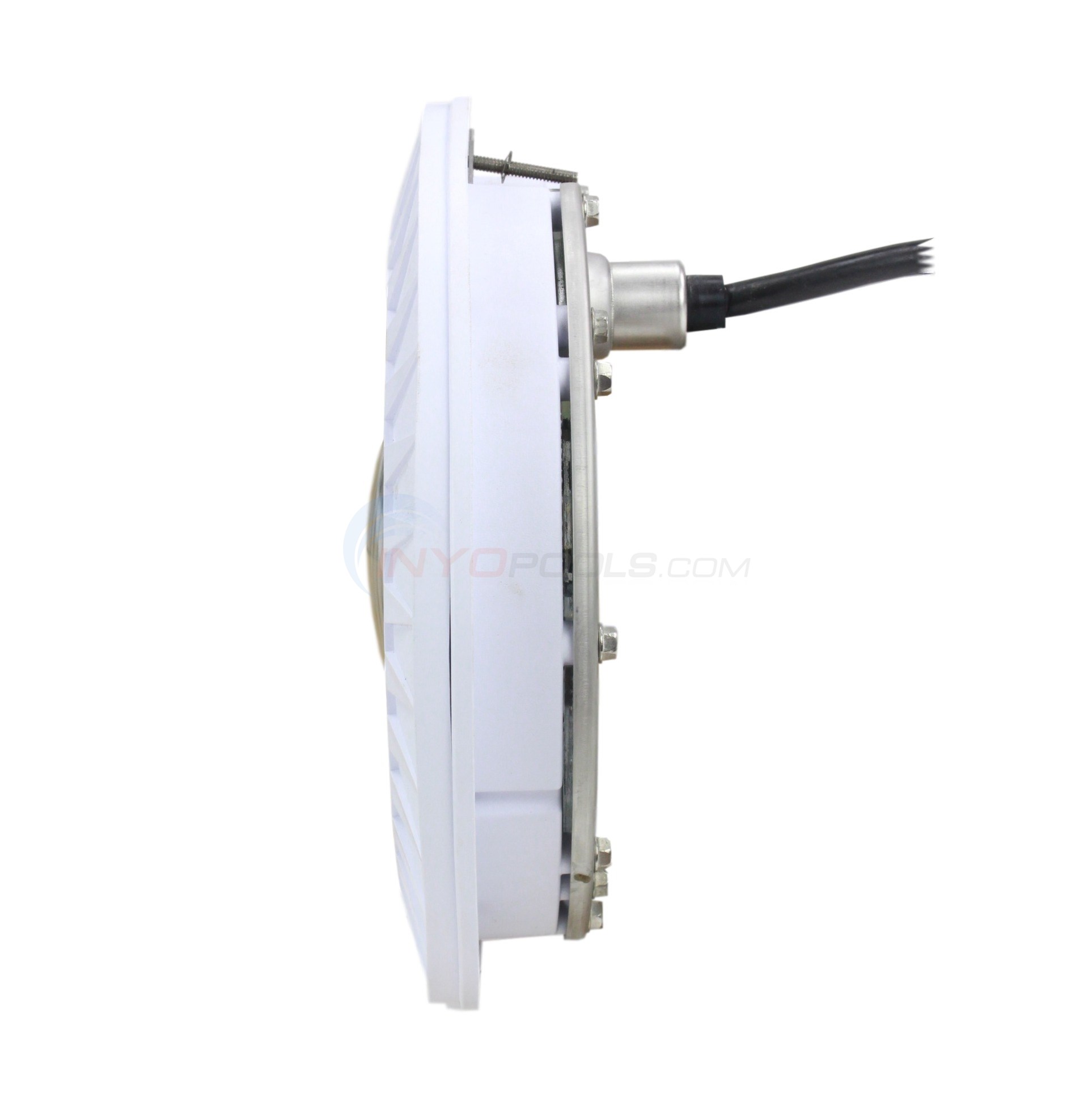

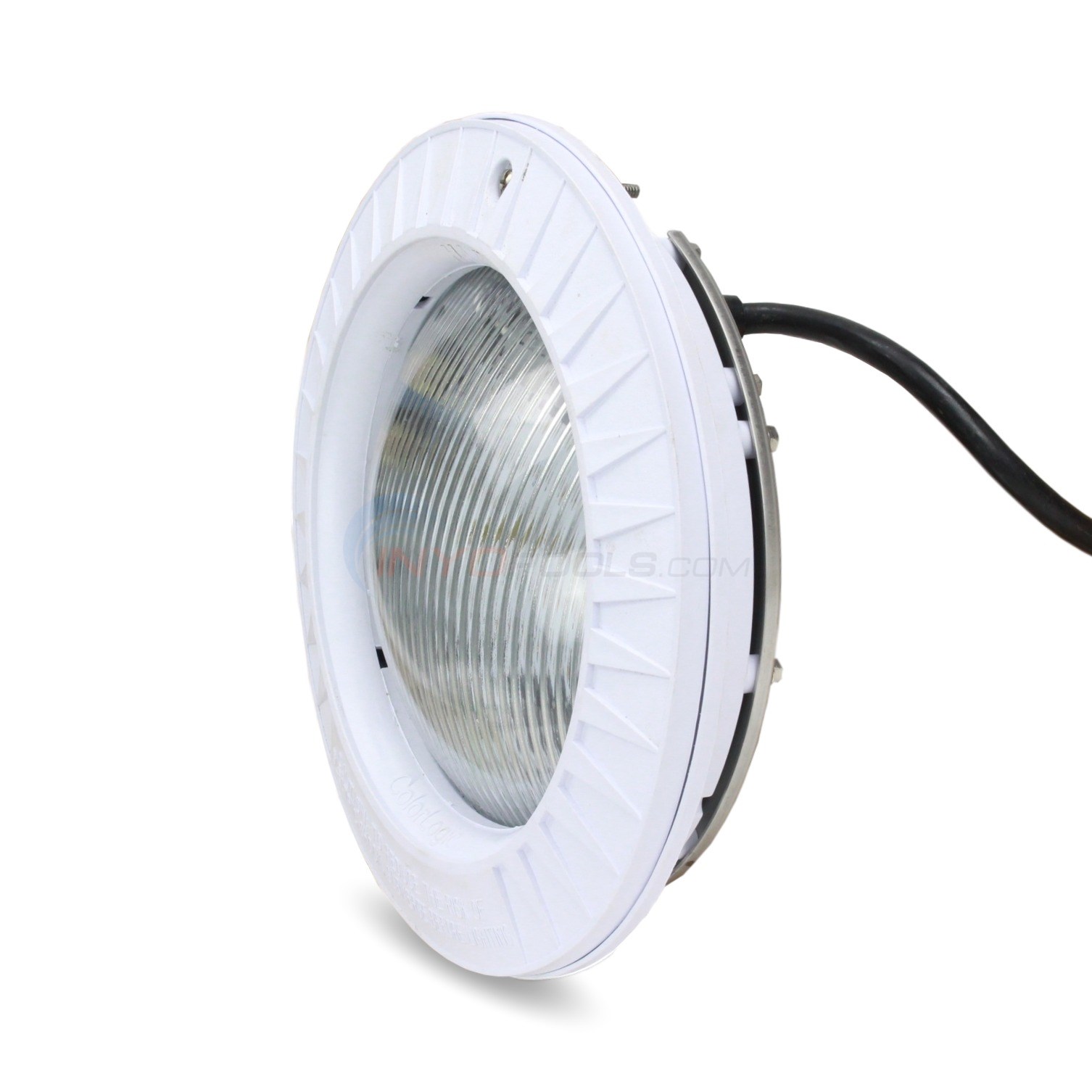

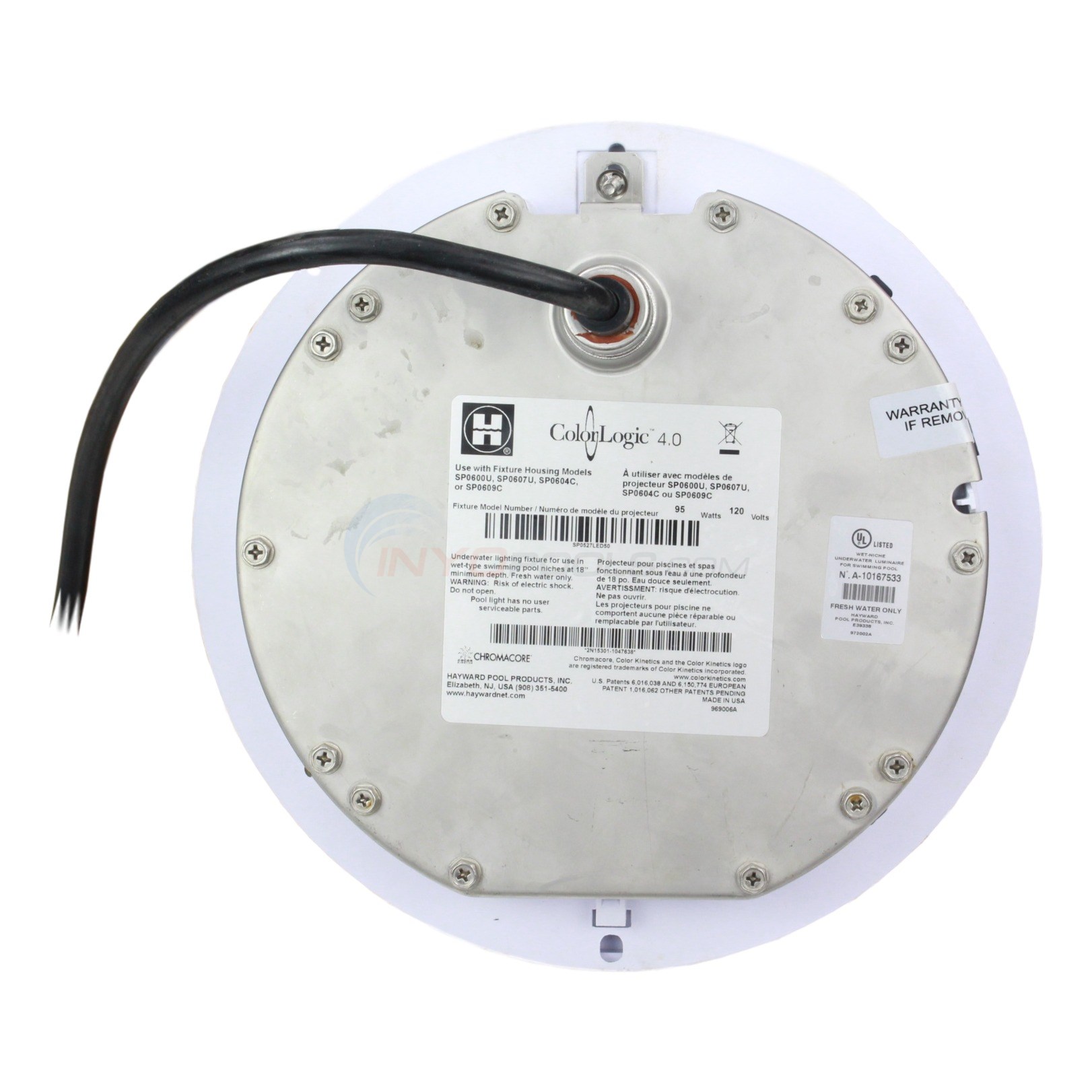

By Hayward Pool Products



Model # SP0527LED50

Alternate Part #'s HAY-30-6143, HAYSP0527LED50, SP527LED50

Product Description


Hayward ColorLogic Pool Lights

Nothing makes water more vibrant than light and color. But what separates ColorLogic 4.0 from any other lighting system is its ability to take light and color to a whole new level. ColorLogic 4.0 starts with five fixed colors that can be enhanced with seven color-changing shows. Integrate it with Pro Logic's Network Module, and you get four additional shows with adjustable speed, motion and brightness control and a brilliant spectrum of 101 adjustable colors. It is a color palette and synchronization that is as unequaled as it is inspiring.

LED technology makes ColorLogic 4.0 the brightest and most responsive lighting system ever, so your pool comes alive. LEDs are extremely efficient and can save up to 79% on energy costs when compared to traditional pool lighting. The streamlined, sealed units are watertight and easy to install. There are no bulbs to change, no color wheels, and no moving parts for noiseless and service-free operation.

Key Bonus Features when integrating ColorLogic 4.0 with Pro Logic

  • Four new shows for a total of 16 which include 5 fixed colors
  • Customize the 5 fixed colors with up to 101 different color tones to match a theme or activity
  • Speed adjustments allow light shows to be controlled with 9 different settings
  • Motion control puts the lights in action to add excitement and patterns in pool and spa
  • Brightness control sets the intensity of the lights from 20% to 100%
  • Power line communication technology built into every light allows communication between single and groups of lights with no additional relays or wiring required
  • All white light override feature for added safety

Due to the timing of shows and sequencing of lights, ColorLogic 4.0 is NOT compatible with ColorLogic® Gen 2.5 lights.

Be Dazzled with four additional shows with ColorLogic 4.0.

Eleven Exciting Color Shows:

Twilight: A constantly changing 1536 colors create a relaxing and sophisticated mood for evening entertainment.

Voodoo Lounge: When it's time to really get the party going, over 1500 colors uncork your pool.

Tranquility: Set the mood for a relaxing evening with this serene show of calming blues and white.

Gemstone: Vibrant blue, green and magenta make this show a jewel of a choice for any pool party.

USA! Show your patriotic spirit on the Fourth of July or any time with this star-spangled red, white and blue show.

Mardi Gras: Kids and adults alike will love the 36 fast-changing colors and atmosphere created by this cheerful show.

Cool Cabaret: Hit the disco and turn your pool into a nighttime hot spot with this vibrant shows featuring 36 different colors.

Harmony: Blue and green cross fade of colors

Rainbow: Slow roll through color spectrum Green, Blue, Magenta, and White

Custom Fade: Slow fade through Five user selected colors providing a show customized to your party or sports theme

Custom Chase: Watch the five user selected colors chase each other around the pool creating excitement and awe for your guests

Five Enticing Fixed Colors that can be set to 101 different tones:

Afternoon Skies:
Your evening pool, with middle-of-the-day blue..

Deep Blue Sea:
Rich, saturated color makes you feel like you’re swimming in the ocean.

Give your pool the alluring magic of gemstones.

The romance of Madrid, with a dash of fiesta.

Cloud White:
Show off your pool’s crystal-clear water by illuminating with Cloud White.

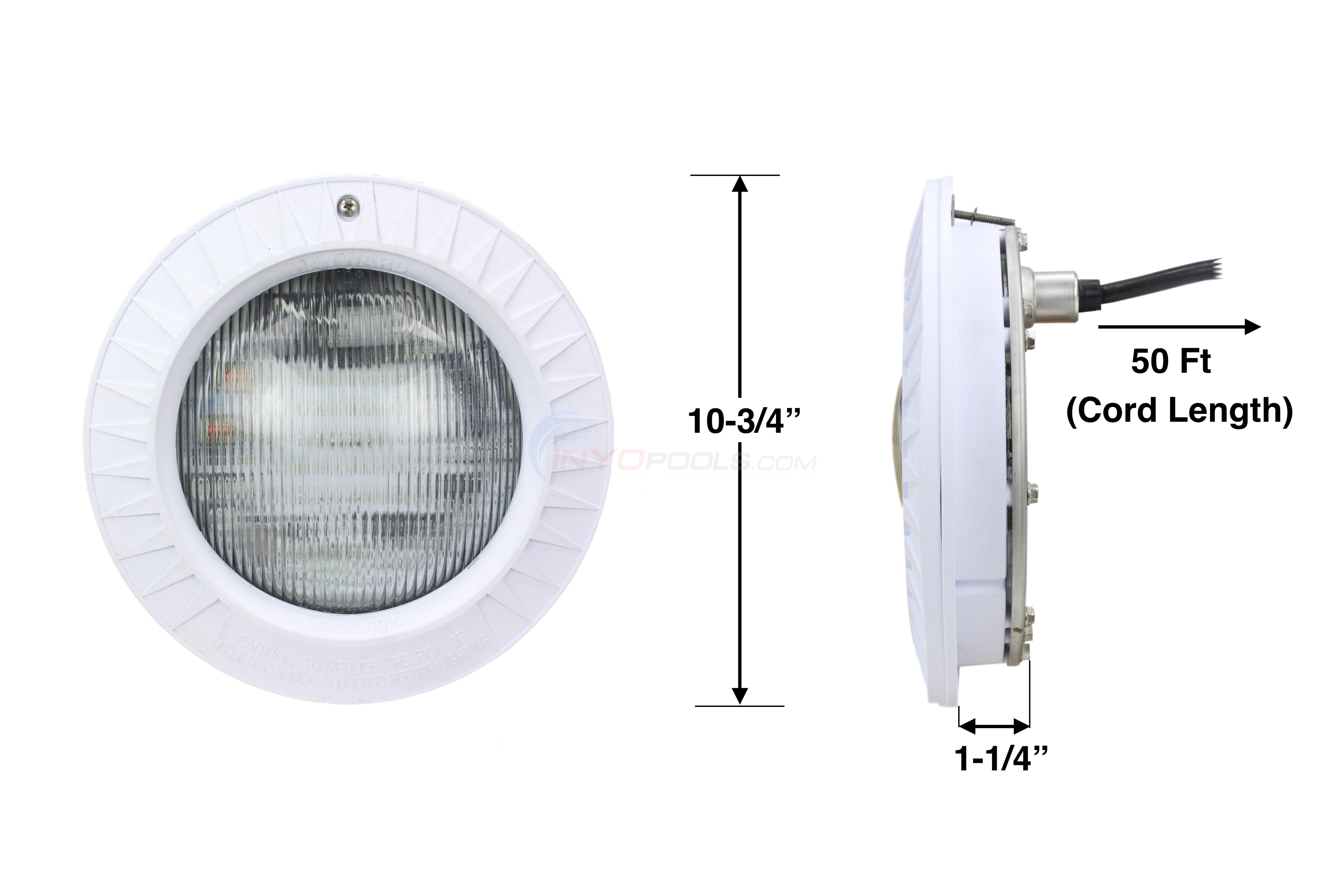

Product Specifications

120 V
Cord Length:
50 ft.
Face Ring:
White Plastic

?     Asked on 8/7/2009by Guest

What is the ColorLogic Network Module designed for?

A  Answered on 8/7/2009 by InyoPools Product Specialist Patrick P.

The ColorLogic network module is designed to be used with the new ColorLogic 4.0 lights and the ProLogic System. When used together the ColorLogic lights will display 101 color tones, 16 themed shows, while controlling light brightness, speed and movement. The 4.0 ColorLogic Lights can be seen here The ProLogic Systems & ColorLogic Modules can be seen here

?     Asked on 8/30/2009by Guest

Do i just need the light and my current prologic controller which runs my pool filter and spa etc.. or do i have to have a separate controller for the colorlogic led pool light?

A  Answered on 8/30/2009 by InyoPools Product Specialist Patrick P.

You can use just the ProLogic to control the ColorLogic light but you will only be using a fraction of the overall control capabilities. To get the complete control capabilities you would need to order the ColorLogic Gen. 4.0 light here along with the ColorLogic Communication Module here using the ColorLogic Communication Module with the ProLogic the ColorLogic lights will display 101 color tones, 16 themed shows, while controlling light brightness, speed and movement.

?     Asked on 1/20/2012by Guest

For a color-changing LED light, how do I switch between the different settings with just a standard light switch?

A  Answered on 1/20/2012 by InyoPools Product Specialist Patrick P.

The LED lights are designed to move to the next programmed setting each time you turn the switch on and off.  This will toggle through the different color settings and shows.

?     Asked on 1/29/2013by Guest

I currently have a ColorLogic version 2.5 pool light. Can I install version 4.0 in the same niche?

A  Answered on 1/29/2013 by InyoPools Product Specialist Steve M.

Yes,both the 2.5 and 4.0 versions of the Hayward ColorLogic lights will fit in the same niche.  Please note that the two versions will not synchronize with one another.  So if you have second version 2.5 ColorLogic light in your pool or one in your spa, it will not be on the same color rotation as the 4.0.

?     Asked on 10/8/2013by Guest

How bright are the Colorlogic lights?

A  Answered on 10/8/2013 by InyoPools Product Specialist Patrick P.

The accepted comparison is that the color shows are equivalent to 225 watts and the white mode is comparable to 300 watts.


Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, Pliers, electricians lube

Original Light Kept Tripping Breaker and Would Not Come On

Written on 1/25/2019 by Guest

Turn power off to light, usually a breaker near the pool or wherever your pool light breaker is.
Open junction box where wires come up through the ground. Take a picture of your connections if unsure how to reconnect.
Disconnect wires.
I connected my fish tape to the end of the old wire I disconnected with electrical tape. Make sure the tape is secure and the wire will not pull off.
Put electrician's lube on the wire that is exposed that you're going to pull through the conduit to the pool. Also, put it on the tape where you connected the fish tape.
Get in the pool and take old light out - it's one screw on the top.
There should be plenty of cord so set old light on the pool deck.
My wife helped me with this part.
One person is in the pool and one person near the junction box.
You may need to pull back and forth until the wire comes through smoothly. It will come through.
Once old wire is pulled through remove fish tape from old wire and discard old light.
Attach new wire to fish tape and lube wire with electricians lube, put a generous amount on the wire you will be pulling through.
Guide the wire back through while your partner is pulling the other end. Be careful and guide it through. Have a pair of goggles so you can dive down and make sure everything looks okay if anything gets stuck.
Pull only the amount you need and coil the rest up in the light housing when pulled through.
Attach wires in the junction box and look at the picture if you're unsure.
Coil wires up in light and attach the screw.
Check all connections again and close junction box.
Turn breaker on and test the light.

Was an easy job, but things can get stuck pulling the wire so take your time.

Were these instructions helpful?


Review Summary

 (Average 4.75  out of 5 stars)
