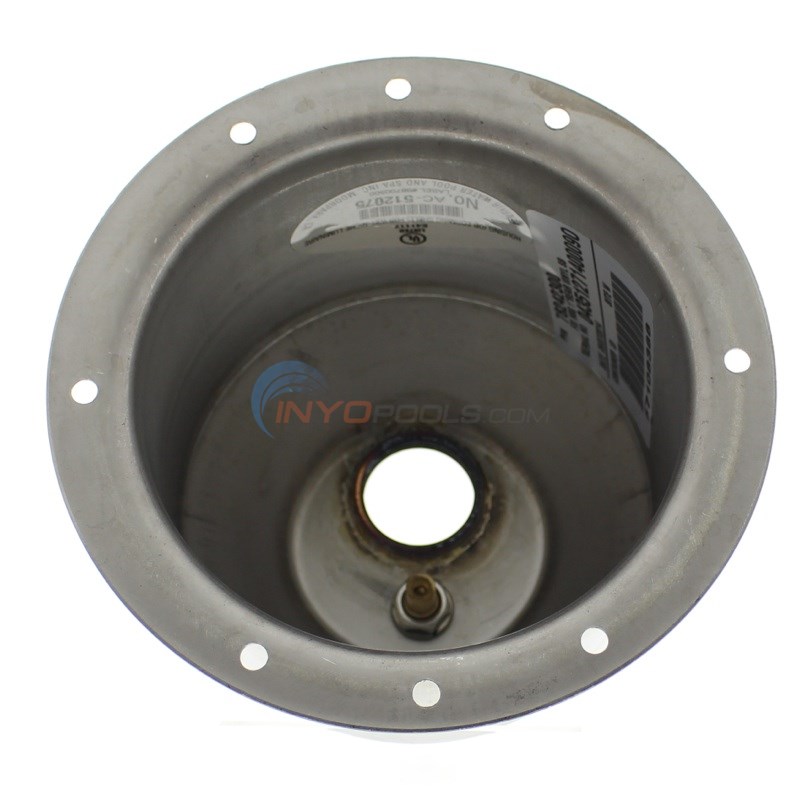

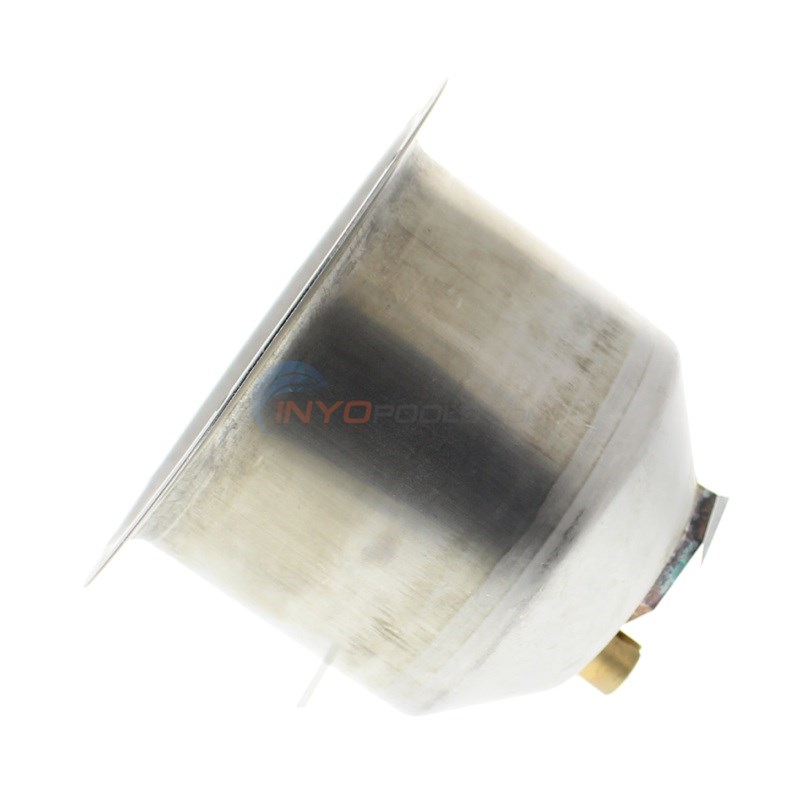

Pentair Small Stainless Steel Niche, 1" Rear Hub, for Fiberglass and Vinyl Pools - 78242300



Part # 78242300

By Pentair Pool Products

  5 Average



Part # 78242300

Alternate Part #'s AMP-30-714, PEN78242300

Product Description

Stainless Steel Niches for Swimming Pools and Spas

Niches are formed of stainless steel with brass fittings. All niches have internal and external grounding lugs and can be used with either metal or PVC conduit.

Additional features include:

  • Stainless steel housing
  • Brass hub; 1/2, 3/4, or 1 in.
  • Internal/external bonding lugs
  • Vinyl niches with chrome/brass sealing rings
  • Niches for all installations
  • Sandwich gasket for vinyl
  • Powder coated sealing ring (optional)

Product Specifications

Surface Type:
Manufactured Spas
Hole Size:
1 in.
Pool / Spa Type:
Hub Size:

?     Asked on 6/1/2021by Robert PEER

I have a Pentair 7883xx series inground vinyl liner pool light fixture . Want to replace the entire fixture with a multi color replacement led fixture any suggestions

A  Answered on 6/1/2021 by InyoPools Product Specialist Patrick P.

Hi Robert, We show that the 7883xx is a 12V 300 Watt light, you may want to double-check just to confirm. If so then I would suggest this J&J LED Light Fixture Replacement this is the complete light fixture with color-changing LED bulb that will fit into your current niche. This light comes with 100' of cord and is in stock.

?     Asked on 4/30/2021by Inyo Visitor

Does this niche fit to Pentair Intellibrite color LED Spa light (640131)?

A  Answered on 5/1/2021 by InyoPools Product Specialist Patrick P.

Yes a Pentair Intellibrite color LED Spa light (640131) will fit into this niche.

?     Asked on 4/29/2021by Alex

Hi, looking for 6.5 inch gasket for my spa niche. Thanks


A  Answered on 4/29/2021 by InyoPools Product Specialist Patrick P.

Hi Alex, Please click this link for the Spa Niche Gasket that fits the niche in the photo you posted. Also here is a link to the Exploded Parts Diagram for Your Spa Niche which may find helpful.

?     Asked on 11/18/2020by Sheldon

Can you tell me what kind of seal goes on the back of the niche to seal the cable that goes through the niche?

A  Answered on 12/1/2020 by InyoPools Product Specialist Hector F.

Hi Sheldon, those seals are unfortunately not replaceable as they are fabricated with the light fixture itself. This is likely due to code requirements.

?     Asked on 4/3/2020by Shawn Leenhouts

We currently have multiple Pentair Spabrite # 78109100. With current situation, spa have been drained for awhile and the gaskets are bad. Can I just order gaskets and what would the part be. The niche is #78242300.

A  Answered on 4/3/2020 by InyoPools Product Specialist Patrick P.

Hi Shawn for your SpaBrite Light you will require this SpaBrite Lens Gasket we would also suggest getting some of this Gasket Lubricant which will prevent your gaskets from drying out and cracking.

?     Asked on 6/23/2017by Bob

Is this niche compatible with the Pentair PL5860 in a vinyl tub?

A  Answered on 6/24/2017 by InyoPools Product Specialist Hector F.

Yes, but these are not currently in stock.

?     Asked on 6/3/2017by Greg

Last week I purchased your Pentair SpaBrite light fixture 78106200. When I went to install it I noticed that my Pentair Niche 78241xxx/78242xxx has a metal tab on the top that the light fixture screws into is broken. Do I need to replace the niche? I think so because I don't see how else I can connect fixture as that is a grounding screw for the fixture. This would be going into a fiberglass pool/spa. I am trying to replace my spa light with the correct parts.Thanks for your guidance.

A  Answered on 6/9/2017 by InyoPools Product Specialist Patrick P.

Hi Greg, you would not want to replace the entire niche as this would be a major construction project. I would suggest this Light Wedge Repair Kit which is designed for your exact situation where the tab on the light niche breaks off.

?     Asked on 5/2/2017by John W

What Pentair intellibright 5G color underwater LED 12 volt light goes with this niche?

A  Answered on 5/2/2017 by InyoPools Product Specialist Lennox H.

Hi, John. The Intellibright 5G Spa Lights are compatible with this Spa Niche - 78242300.

?     Asked on 5/25/2016by patrick

The ss ring that the pilot screw goes into is broken. Can I just replaced that ring or do I have to replaced the whole Niche? Can I buy just the ring?

A  Answered on 5/25/2016 by InyoPools Product Specialist Patrick P.

Patrick, Is this for a small spa light or a larger pool light? This will help us determine the correct part for you.

?     Asked on 10/8/2013by Guest

What is the difference between a niche and a light?

A  Answered on 10/8/2013 by InyoPools Product Specialist Patrick P.

A niche is a housing that is permanently mounted in the pool wall, while the light is a “fixture” that is secured into the niche.
