Variable Speed Drive Assy Kit Discontinued Alternate Replacement Option 356879Z - 353251

Part # 353251

By Pentair Pool Products

Details

Top

Part # 353251

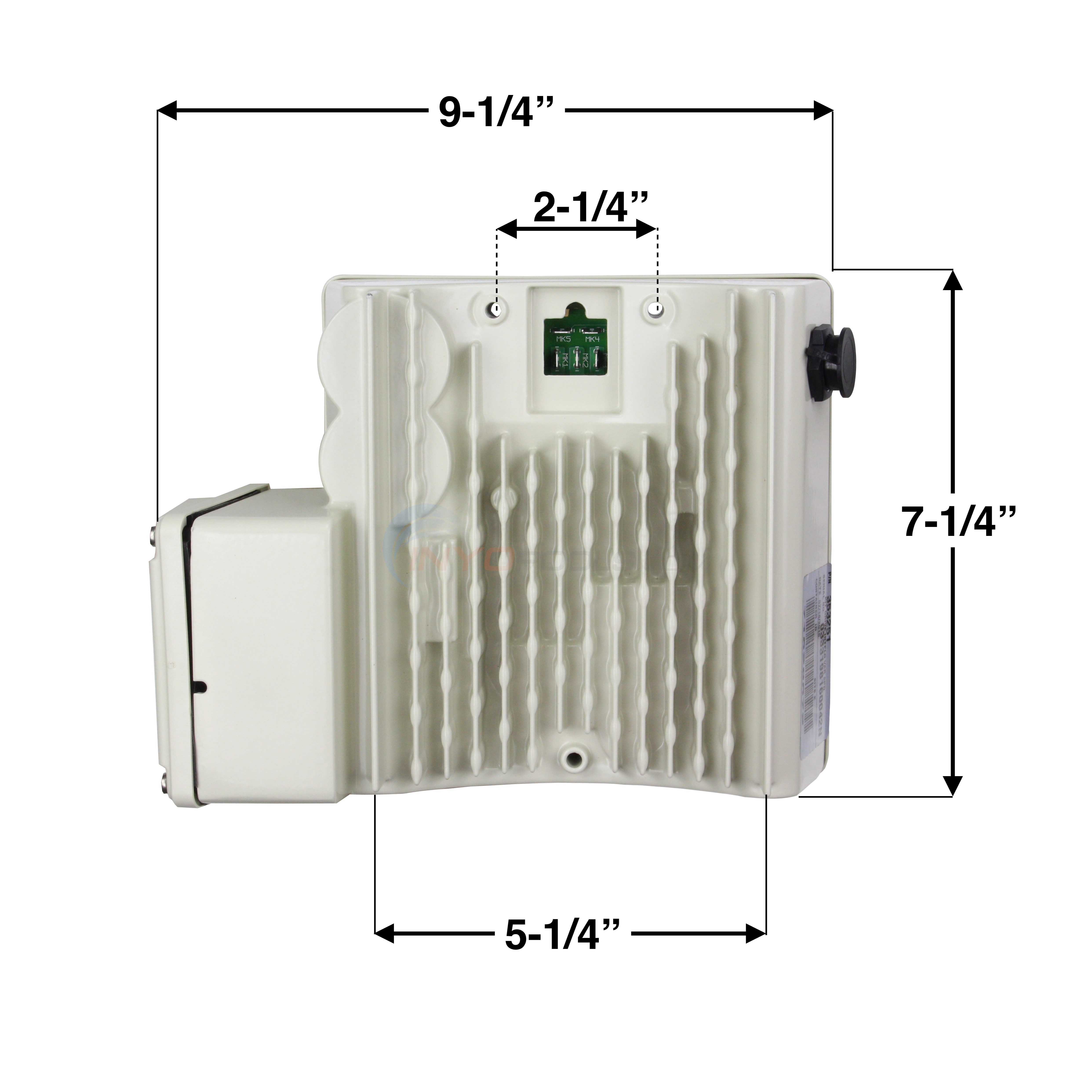

Dimensions 9-1/4" x 7-1/4"

Alternate Part #'s 350921, PEN353251, 35-110-2032

Product Description

Includes an LED screen allowing programming directly from the pump

For IntelliFlo 011018 VS+ models and IntelliFlo 011017 VS+SVRS models

Top
Ask A Question

?     Asked on 8/24/2021by Lana

I have the Pentair Intelliflo Variable Speed model 011018 and the key pad stopped working, looks like it has moisture in it. The schedule still runs, but I cannot do a quick clean or any other functions. What is the replacement part for the keypad?

 Reply

A  Answered on 11/9/2021 by InyoPools Product Specialist Stephen B.

Thank you for contacting Inyo Pools IntelliFlo VS/i1/2VST Drive Kit w/ Keypad - 356879 Is the correct replacement but it is currently out of stock.
 Reply


?     Asked on 7/4/2021by Inyo Visitor

We need to replace part # 358289. What is the current replacement part for this?
 Reply

A  Answered on 7/4/2021 by InyoPools Product Specialist Patrick P.

Hi, We are showing that the 356879Z is the current replacement, unfortunately, we are currently out of stock on that item.
 Reply


?     Asked on 12/15/2020by Joseph Morris

I have a 2010 Pentair intelliflo vs + svrs pool pump and I believe the drive kit has fried. What part number and kit do I replace it with. The drive kit say 351700?

 Reply

A  Answered on 12/17/2020 by InyoPools Product Specialist Joe S.

Hello Joseph, based on the information given you would need to order the IntelliFlo VS/i1/2VST Drive Kit w/ Keypad - 356879Z.
 Reply


?     Asked on 10/28/2020by Inyo Visitor

I have a intelliflo vf 011012 will 356879z work on this pump?
 Reply

A  Answered on 10/29/2020 by InyoPools Product Specialist Joe S.

Hello Bob, yes the THE OLDER STYLE DRIVE ASSEMBLIES P/N 350921 AND 353251 HAVE BEEN REPLACED WITH THE NEWER INTELLIFLO DRIVE KIT w/ KEYPAD - 356879Z. PART # 5074-50
 Reply


?     Asked on 8/9/2019by Inyo Visitor

I have a Pentair Intelliflo pump from 2009. The drive is damaged. The drive part number is 351700 but is obsolete. Will this new drive, Variable Speed Drive Assy Kit - 353251 work as a replacement on my pump? Thank you for your help with this.
 Reply

A  Answered on 10/18/2019 by InyoPools Product Specialist Michelle B.

We show the correct part number as a 356879Z
 Reply


A  Answered on 8/9/2019 by Industry Professional

We show the correct part number as a 356879Z
 Reply


A  Answered on 8/9/2019 by Industry Professional

We now show the 353251 as discontinued & replaced by mfg # 356879Z ( 35-110-2036 )
 Reply


?     Asked on 6/16/2019by miguel

this is the part number for my pool pump p/n :358289 it look the same will it fit my pump
 Reply

A  Answered on 6/19/2019 by InyoPools Product Specialist Matt S.

Yes, this is the compatible control for your pool pump model.
 Reply


?     Asked on 7/11/2018by Tim

My LED screen has faded. Is the LED available as a separate component?
 Reply

A  Answered on 7/11/2018 by InyoPools Product Specialist Hector F.

These screens are unfortunately not sold individually. They come with the drive assembly.
 Reply


?     Asked on 7/7/2018by Inyo Visitor

the on and off button was worn out and need to replaced
 Reply

A  Answered on 7/7/2018 by InyoPools Product Specialist Lennox H.

Hi. You will have to replace the entire Drive Assy Kit. The membrane or PCB is not available as a separate replacement part.
 Reply
