By Waterway



Part # 34212211A

Dimensions 17" L x 8" W x 9" D

Alternate Part #'s 3421221-1A, 3421221-1AHZN, 34-270-3562, WW34212211A

Product Description

When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.

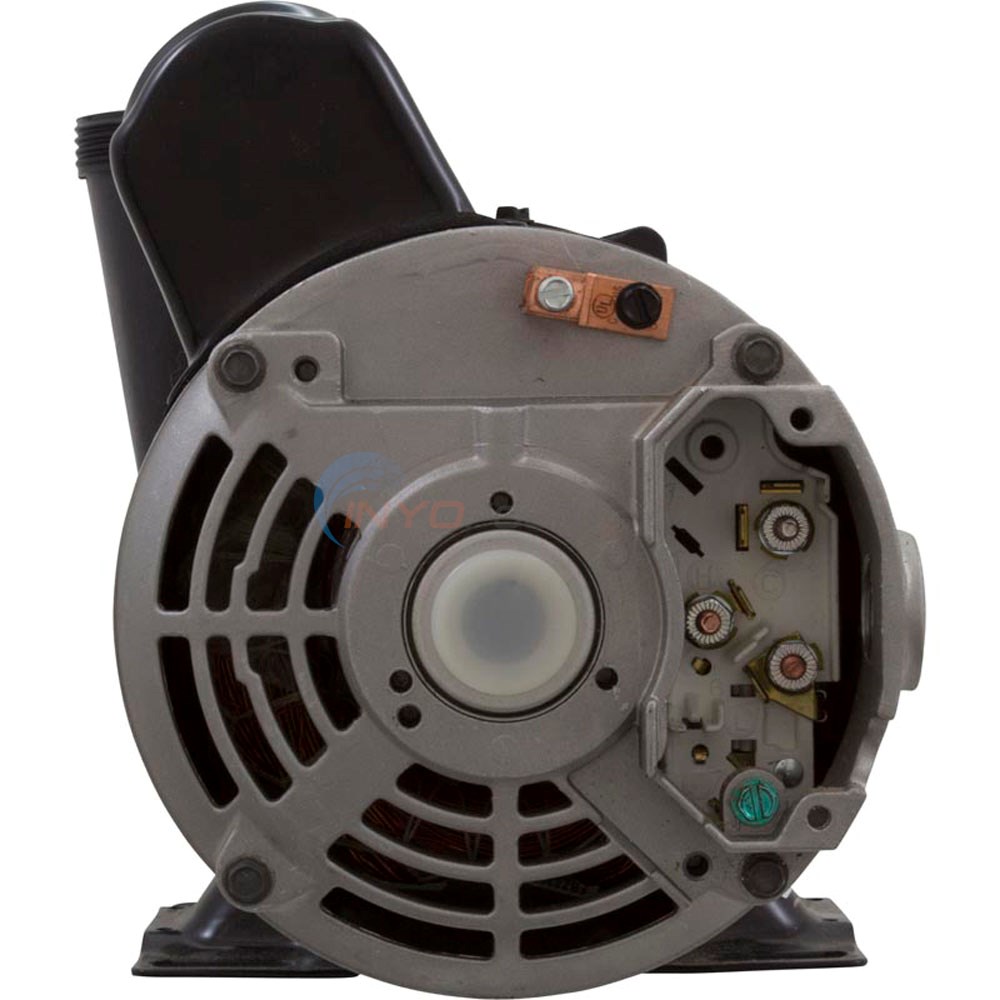

The Waterway Executive 48 pump is thermally protected to extend the life expectancy of the motor with a highly versatile wet end.

Spa Pump Features:

  • Executive wet end designed specifically for 48-frame motors
  • Large 6-1/2" diameter wet end for higher head pressure
  • 2" intake and discharge
  • Wet end can be rotated for easy installation
  • Thermally protected to extend life expectancy of motor
  • Dimensions (H x W x L): 8.34" x 8.13" x 13.95"
  • Available in 1 to 4.5Hp and in single or dual-speed
  • California Title 20 Compliant
Manufacturer Waterway
Pump Model Executive
Speed 2 Speed (2-Spd)
Motor Voltage 230v
Drain Plug Location 3,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 3.0hp
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 8.4A/2.6A


Waterway, a leader in spa, bath, and pool products, provides the reliable Executive 48 frame pump for a great value. Executive 48 spa pumps are energy efficient and provide very reliable performance. The wet end of each pump has the ability to rotate, offering an easy, no hassle installation.Specifications

  • Motor: 3 HP - 2 Speed
  • Port Size: 2" Intake and Discharge
  • Voltage: 230V

Product Specifications

3.0 HP
230 V
Discharge Location:
Intake Port:
2 in.
Discharge Port:
2 in.

?     Asked on 4/28/2020by Thomas Jones

I have a Sundance Theramaxx pump/motor or motor that I need to replace on an early 2000's Sundance Cameo. The model # is 6500-261. Most exact match pumps are extremely expensive. Would this pump work in it's place or do you have a suggestion? Photos attached.


A  Answered on 4/30/2020 by InyoPools Product Specialist Patrick P.

Hi Thomas We would suggest the LX pumps that Sundance/Jacuzzi has gone to & these are much less expensive then the original OEM pumps and they are $319 each. These would be 2speed pumps and for your single speed pumps and for your single speed pump you would just end up using the high speed. If you would like for us to send you a quote please let me know and I will need your zip code.

?     Asked on 4/15/2016by Robert

What are the high speed and low speed RPMs? What amps does this pull?

A  Answered on 4/16/2016 by InyoPools Product Specialist Lennox H.

Hi Robert, At high speed (3450 rpms) the amps are 8.5 and at low speed (1725 rpm's) the amps are 2.8.

?     Asked on 10/25/2015by Rick

Does the wet side come with this motor? The pump is included with the electrical motor is what i am seeing, Is this correct. Thank You

A  Answered on 10/26/2015 by InyoPools Product Specialist Hector F.

Yes this is a complete pump which includes the motor and wet end.
