Product Description

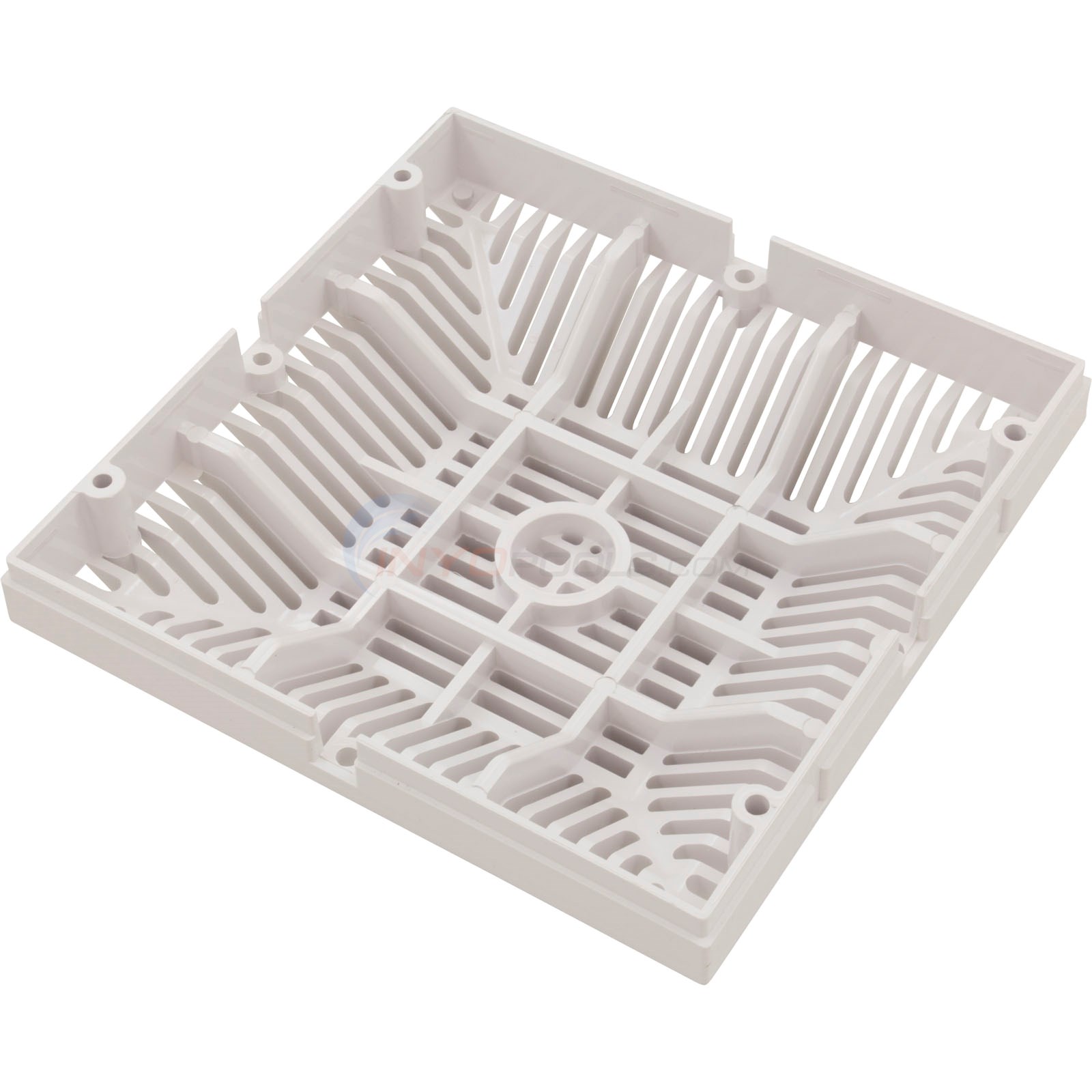

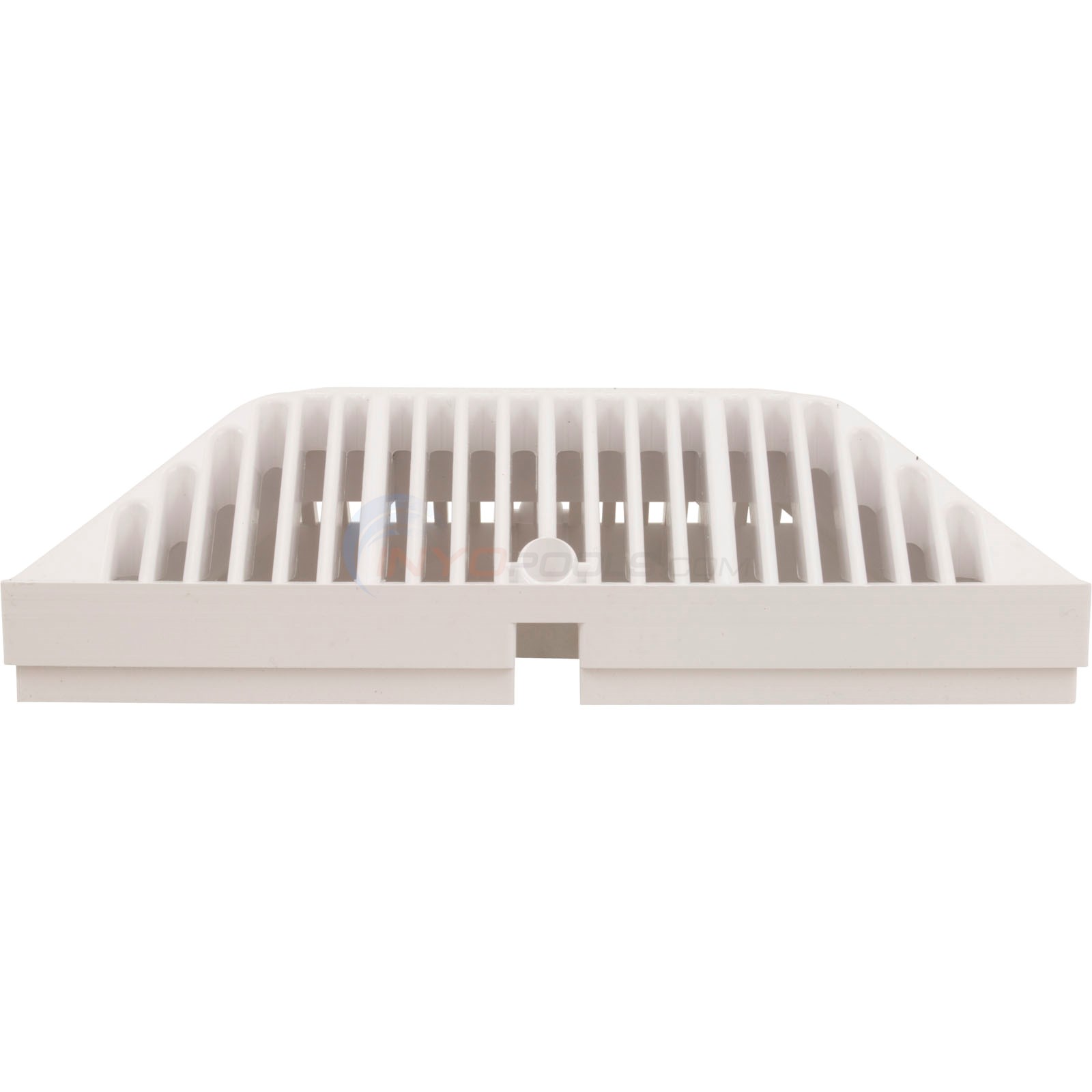

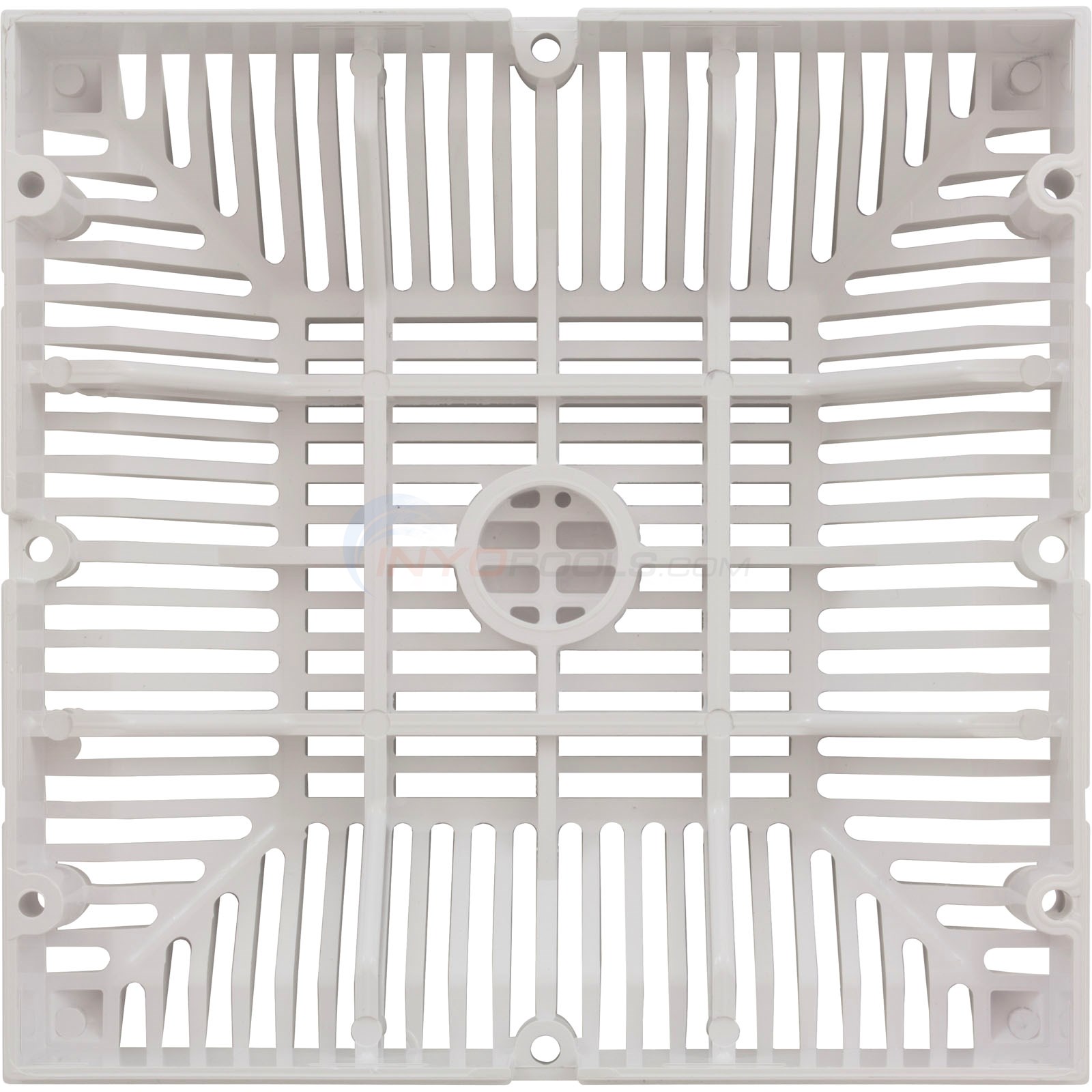

Waterway® 9" x 9" Square Grate – White

Part No.: 642-4790V

Genuine Waterway® 9" x 9" square grate for pool and spa applications. Designed for high flow rates while maintaining safety compliance, this grate is ideal for both floor and wall installations.

Why this grate?

✅ High flow capacity – supports large volume water movement
✅ Versatile mounting – for floor or wall use
✅ Durable construction – chemical- and UV-resistant materials
✅ OEM fit – exact replacement for compatible Waterway® frames

Specifications

• Total Open Area: 43.6 sq. in.

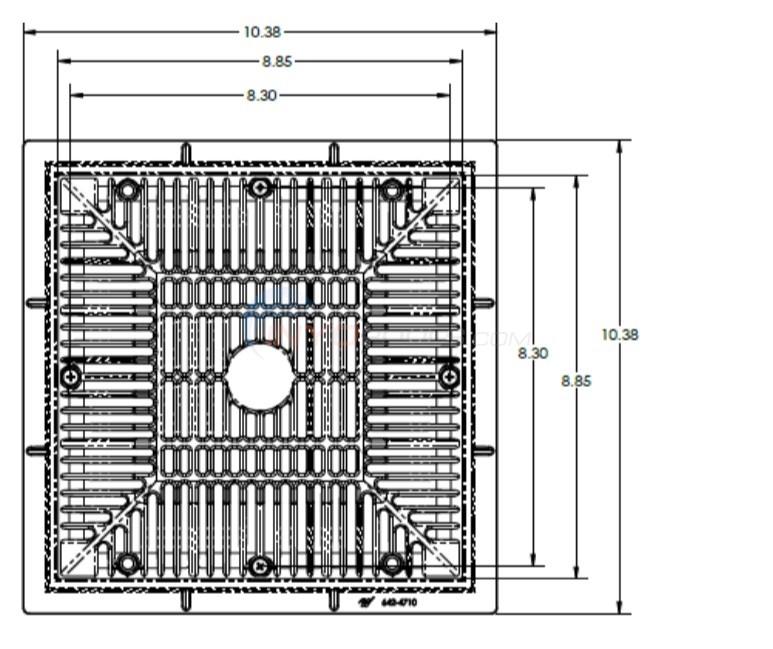

• Frame Size: 10.375" x 10.375"

• Floor Flow Rate: 240 GPM (3" plumbing)

• Wall Flow Rate: 208 GPM (3" plumbing)

• Flow Rate @ 1.5 ft/sec: 203 GPM

Compatibility

✅ Fits Waterway® frames designed for 9" x 9" grates
⚠️ Verify dimensions before ordering to ensure proper fit with your existing frame

What’s included

(1) ✅ 9" x 9" square grate – white

Install notes

➜ Follow manufacturer’s instructions for secure mounting in frame
➜ Ensure grate is seated properly and all screws are tightened
⚠️ Always replace damaged or missing grates immediately to maintain safety compliance
