$159.49

Qty:

By Zodiac


Details

Top

Part # 6202-32

Manufacturer Code R0367100

Dimensions 4.75" L x 1.25" W x 0.75" D

Alternate Part #'s MODEL 601, MODEL601, R0367100, W00425, 47-295-2524, JDYR0367100, LAR-151-3671

Product Description

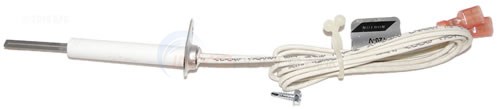

includes; hot surface igniter

Top

?     Asked on 4/30/2013by Guest

What is the length from the mounting bracket to the tip of the igniter?
 Reply

A  Answered on 4/30/2013 by InyoPools Product Specialist Patrick P.

The length is 4 inches.
 Reply


?     Asked on 12/19/2015by Rufus

What is the input voltage for the ignitor?.
 Reply

A  Answered on 12/21/2015 by InyoPools Product Specialist Lennox H.

Hi Rufus, According to the Lite2 Pool and Spa Heater Installation and Operation Manual this Igniter and some terminals of the power distribution board utilize 115V or 230V power and require appropriate servicing precautions.
 Reply


?     Asked on 4/12/2016by Steve

I have a Teledyne Laars pool heater model LLD 400N and I need to replace the igniter. I am not sure if this is the replacement part for that model?
 Reply

A  Answered on 4/12/2016 by InyoPools Product Specialist Lennox H.

Hi Steve, The LLD Ignitor (R0317200) will be the correct replacement ignitor for the LLD400N unit.
 Reply


?     Asked on 6/7/2019by Bryan

Hi, will this fit as a replacement for the Pilot Electrode (W0040000) on a Laars Lite 2 please ?
 Reply

A  Answered on 6/11/2019 by Industry Professional

Yes, it is correct
 Reply


?     Asked on 6/21/2019by Steve

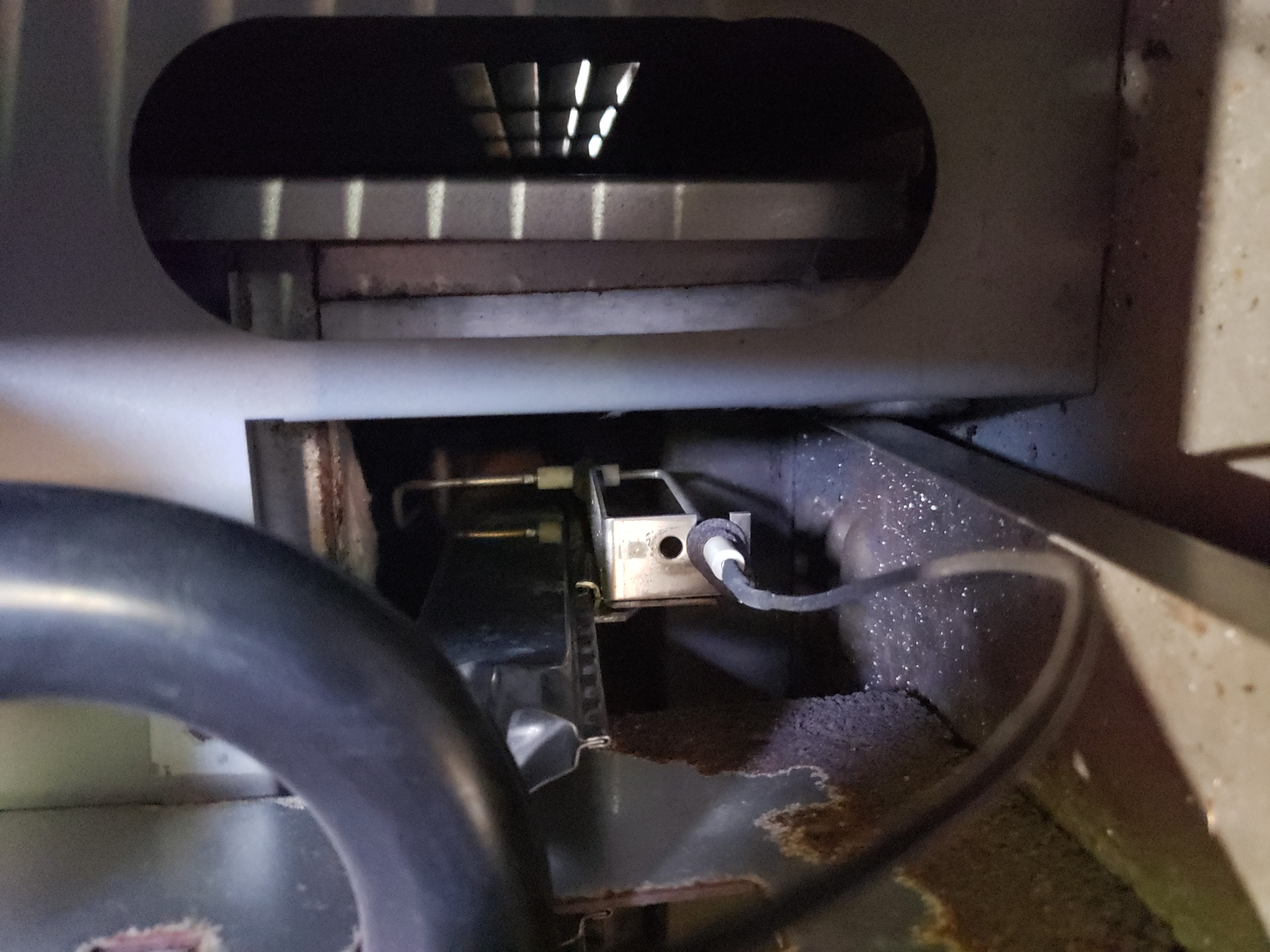

I have an LJ250N and think the ignitor needs replacement. FL4 error. My ignitor has a 90' bend on the top so it goes across the burner/gas. Is there a different solution I should use?

 Reply

A  Answered on 6/25/2019 by InyoPools Product Specialist Lennox H.

Hi, Steve. The item in the picture provided is of the Flame Sensor Kit - R0334300, not the igniter.
 Reply
