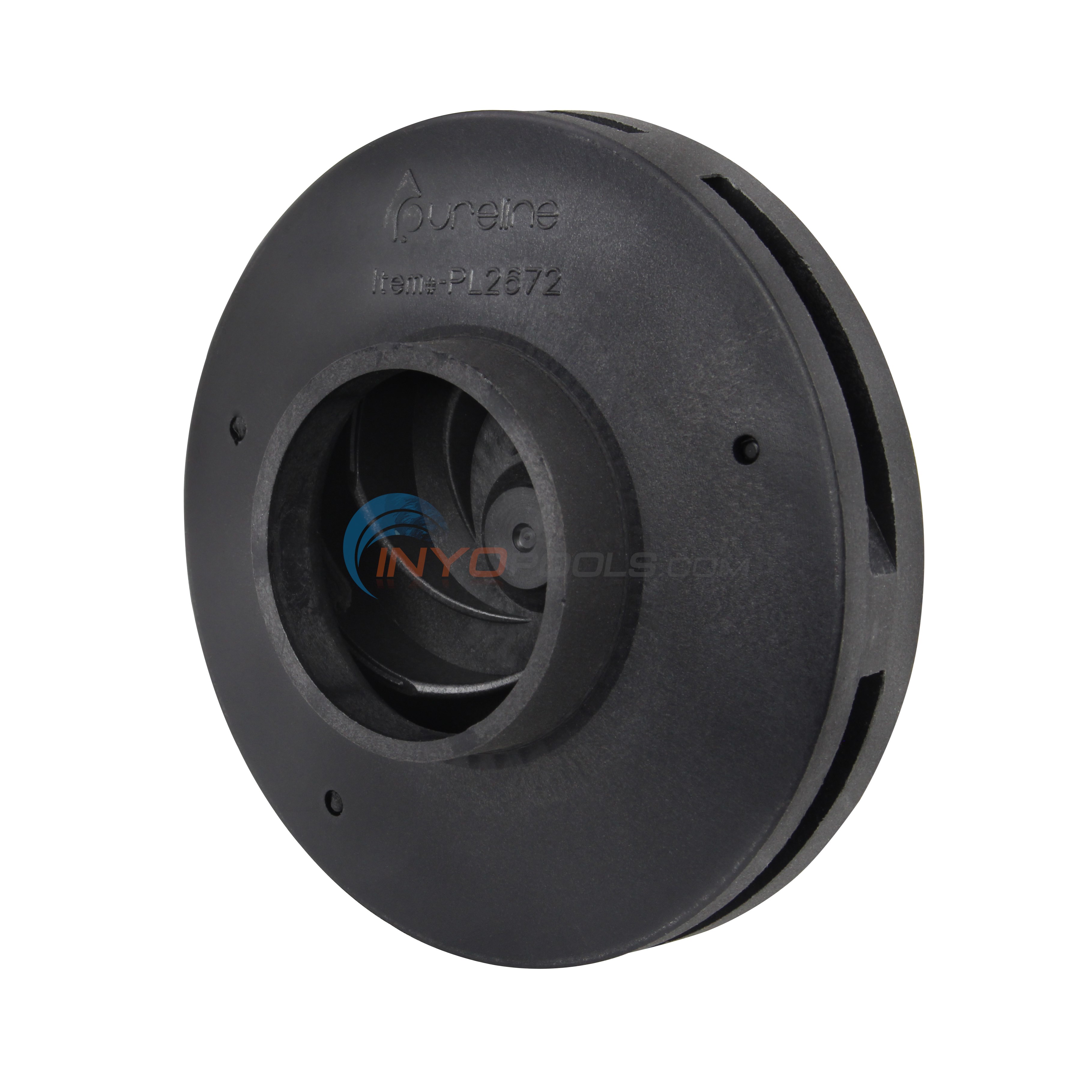

Part # PL2672

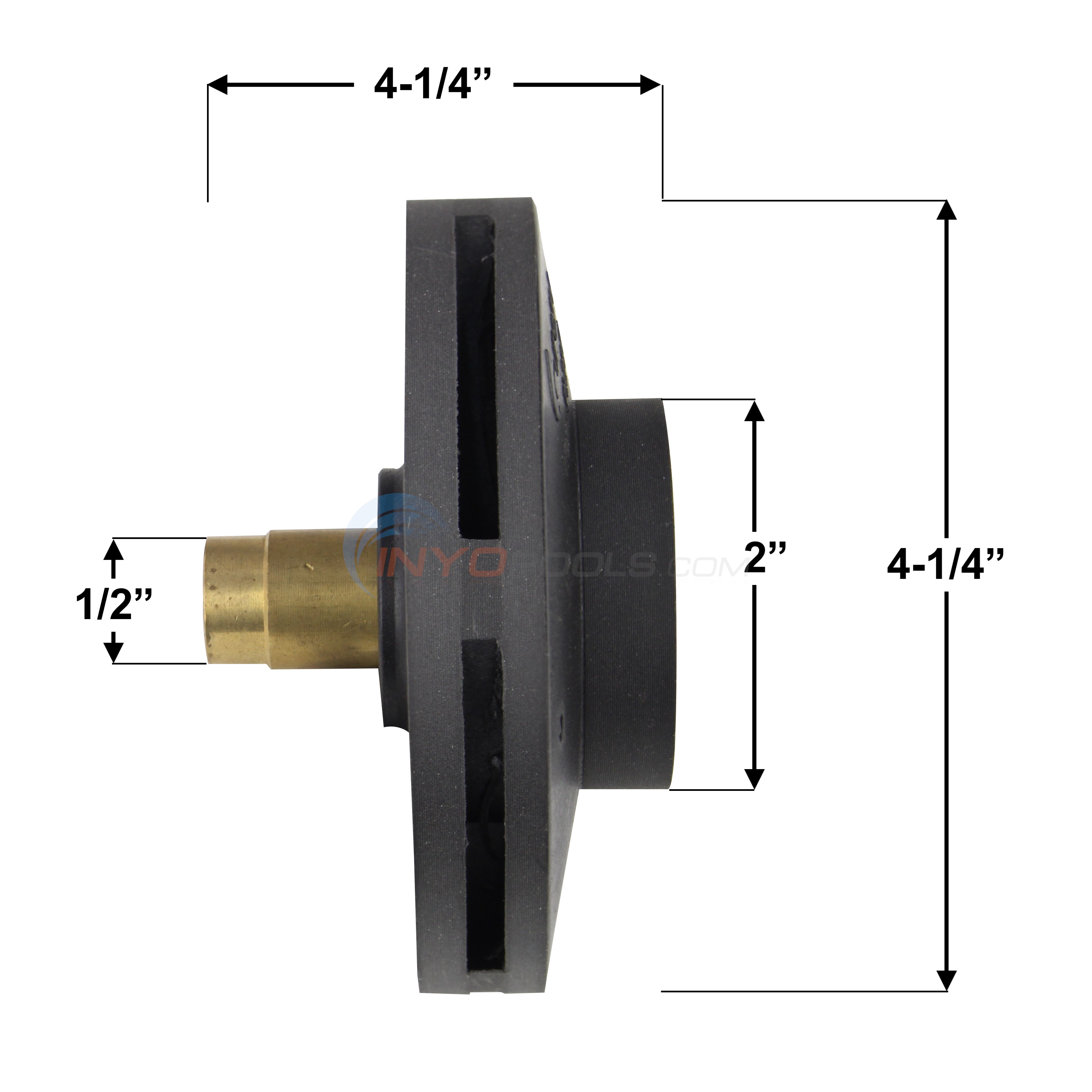

Dimensions 4.4" X 0.7"
Alternate Part #'s 25305-610-000, 351502460, 5110-10DA, HAY1012054, SP-2610-C, SP2610C, SPX2610C
This is an Aftermarket Replacement Impeller For the Hayward® Super Pump™ 1.5 T.H.P (Total Horse Power) and not the Hayward® original O.E.M Impeller.
Impeller for 1.0 HP full rate and 1.5 HP up rate pumps. Used on several Hayward® pumps including the Max-Flo, Super Pump, Power Flo II and Power Flo III as well as Leslie's® Hydramax pump.
Easy Homeowner Installation
Watch How To Replace A Pool Pump Impeller
Disclaimer:
All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.
I am upgrading from 1 to 1.5HP. Comparing the upgrade kits (p/n 5110-52 & p/n 5110-53), the only difference is the impeller, so that is all I buying, plus the 1.5HP motor and seal. The impeller description (p/n 5110-10DA) says this:
"Impeller for 1.0 HP full rate and 1.5 HP up rate pumps. Used on several Hayward pumps including the Max-Flo, Super Pump, Power Flo II and Power Flo III as well as Leslie's Hydramax pump."
Will I get better flow with this over my 1HP?
Reply
Hello Corey. Generally speaking, the circulation flow rate should increase with the transition from a 1.0 Hp Impeller and Motor to a 1.5 HP Impeller and Motor. Attached please find Super Pump Performance Data. A 1.0 HP model is rated at 50gpm with 50 Feet of Head. A 1.5 HP model is rated at 65gpm with 50 Feet of Head. Hayward Super Pump Please note: the maximum flow rate through 1 1/2" pipe is 60gpm, 2" pipe is 100gpm. The GOKIT3 contains the parts required for the motor change. In addition to the motor shaft seal, replacing the seal plate gasket and diffuser o-ring is highly recommended. GOKIT3
Reply
I'm having trouble finding the right shaft seal that fits on the impeller of my SP-1610-Z1-M pump. I have a new pump shaft seal 3/4" PS-201 but the two small ledge things on the shaft do not let the spring part of the seal slide all the way.
Reply
Hello Narciso. The Motor Shaft seal PS-201 is the correct shaft seal for the Hayward Super Pump 1600 Series Pool Pump. Please be certain to remove all pieces of the previous shaft seal from the backside of the impeller. At times, the metal sleeve that runs through the center core of the graphite end does not come off when pulling the old shaft seal off the impeller. Other times, the small rubber ring that sits inside the metal sleeve remains behind on the impeller shaft when removing the old seal. Examine the bottom of the new shaft seal (the end opposite the graphite) for a visual of the small rubber ring.
Reply
will this fit my haywood sp2607x10?
Reply
The PL2672 would only work if you upgraded the motor on your SP2607X10 to a 1.5HP. The correct impeller for your pump is part number PL2671.
Reply
which impeller is the correct one for a A.O. Smith B2983T 2Green 230V 2-Speed Motor with Timer 1.5HP Square Flange
Reply
Could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
Photos wont load, keep getting error message. Pump Housing #343234 Motor #B2983T Century
Reply
Hi John, For your pump housing and motor combination you will need this 1.5 HP Full Rate Challenger Impeller and not the impeller on this page. When replacing your impeller we would also suggest this Pentair Challenger Seal Kit.
Reply
Hello. Replacing motor on SB1607Z1M with UST1102. WIll this impeller fit/work? Thanks.
Reply
Hello KB, yes the Impeller for 1.0 HP full rate and 1.5 HP up rate pumps would work on that unit. It is also used on several Hayward pumps including the Max-Flo, Super Pump, Power Flo II and Power Flo III as well as Leslie's Hydramax pump.
Reply
I have a sp2610-c impeller and just replaced motor to the century vgreen variable speed, just ordered 2 different impeller rings and neither fit any options?
Reply
Hi Mindy, could you send us a few photos of your pump and motor? Please take a close up shot of the motor label as well as a wide shot of the complete pump to include the pipes going in and out of the pump. To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
Reply
WILL THIS FIR A CENTURY USQ1152 1 1/2 HP PUMP
Reply
Hello, no that impeller would not cross reference into the usq1152
Reply
and which impeller should I used for my USQ1152?
Reply
Hi Eduardo, in order to cross-reference the correct impeller that you will need we will need to know the model name or number of the front pump wet end housing that the motor attaches to. You can upload an image of the complete pump here if you need as well.
Reply
Hi, If i was mistakenly using a SPX2610C impeller on a SP2607X102S dual speed pump, Could this be the reason my pump overheats and shuts off on high speed but works normally on low speed?
Reply
Hi, Shane. Yes, that will explain why your pump is overheating on high speed. The impeller is too larger for the motor. You will need to either increase the motor to STS1102RV1 or decrease the impeller to SPX2607C.
Reply
I'm replacing my 1.5 horsepower motor on my system and want to also replace any parts that may need replacing. The impeller is part number SB2610-C and the existing one looks good but I can't easily turn it by hand. Does that mean it is ready to be replaced?
Reply
Hello,You would only need to change the motor.
Reply
I recently purchased this impeller. the pump motor is a 3/4 HP. I see that this impeller is rated for 1HP. Could using this impeller cause the motor to overheat?
Reply
Hi, Lou I. In order to use the SP2610C impeller you would need a Full Rate 3/4 HP Motor, not an Up-Rate 3/4 HP that's why the motor is overheating. You will need the SP2607C Impeller.
Reply
Hi, If i was mistakenly using a SPX2610C impeller on a SP2607X102S dual speed motor, could this be the reason my motor would overheat and shut off on high speed and function normally on low speed?
Reply
Hi, Shane. Yes, that will explain why your pump is overheating on high speed. The impeller is too larger for the motor. You will need to either increase the motor to STS1102RV1 or decrease the impeller to SPX2607C.
Reply
pump will not flow, lost prime
Reply
There are number of reasons that can cause a pump to lose prime. A clogged line, dirty or old filter, air in the lines, suction air leak at a line or valve, clogged impeller, or even a bad glue at a suction or pressure pump fitting. In any regard either going through the process of elimination testing each possibility or getting a technician to the site would be the next course of action.
Reply
1 to 2 hrs
5/16 Allen wrench
I replaced the original impeller in the Hayward Super Pump 2600 to match with the high RPM variable speed pool pump motor I installed. I was not difficult to install but did require the purchase of a 5/16th Allen wrench. My set that IO've had forever, largest size was 1/4. Maybe could have used it, as all you need it for is stabilizing the motor shaft to hand tighten the impeller. But I did not want to mess anything up so I bought a new set of Allen Wrenches that included a 5/16th Allen wrench. I'll give my old set to my Son.
Less than 1 hr
Wrench Set
1 0
Upon inspection I discovered the old impeller broke therefore no water was being pumped. Ordered a new impeller for my Hayward Sp and installed it myself. Problem solved. No high cost parts or installation. All DIY and Inyo pools had the best prices.
The Most Helpful Review
4 0
(5 out of 5 stars) Hayward Super Pump Impellor
Reviewed By: Robert R. ()
FINALLY!! Hayward finally made the threaded shaft out of brass. Hopefully it will outlast their pump. Prior to this improvement it had a plastic shaft that wore out from fatigue they cracked and broke. Hayward pumps would be ideal if they would make the commitment to make them waterproof and out of materials that lasted....like this improved part.
Was this review helpful to you?
The Most Recent Reviews
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
OE quality fitment!! Could not be happier!!
Was this review helpful to you?
(5 out of 5 stars) Great
Reviewed By: Inyo Customer ()
Great
Was this review helpful to you?
(5 out of 5 stars) INYO how-to videos are the best
Reviewed By: Inyo Customer ()
Works great and easy to install. INYO how to videos are the best.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Good product easy to install
Was this review helpful to you?
1 0
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
When I removed the old Impeller the shaft on it had 2 cracks in it, the shaft was made of plastic. This new impeller has a brass shaft attached so no way it's going to crack.
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Inyo Customer ()
Perfect fittment for my part t placement
Was this review helpful to you?
(5 out of 5 stars) Hayward Impellar
Reviewed By: Larry B. from Venice, FL ()
Pros: none
Cons: none
Impeller broke and was not providing any suction. Ordered new pool pump, and this, installed, works great.
Was this review helpful to you?
