  5. 6234-96

$85.49

Qty:
 ADD TO CART

By Raypak

Recommended Alternatives

Details

Top

Part # 6234-96

Manufacturer Code 006723F

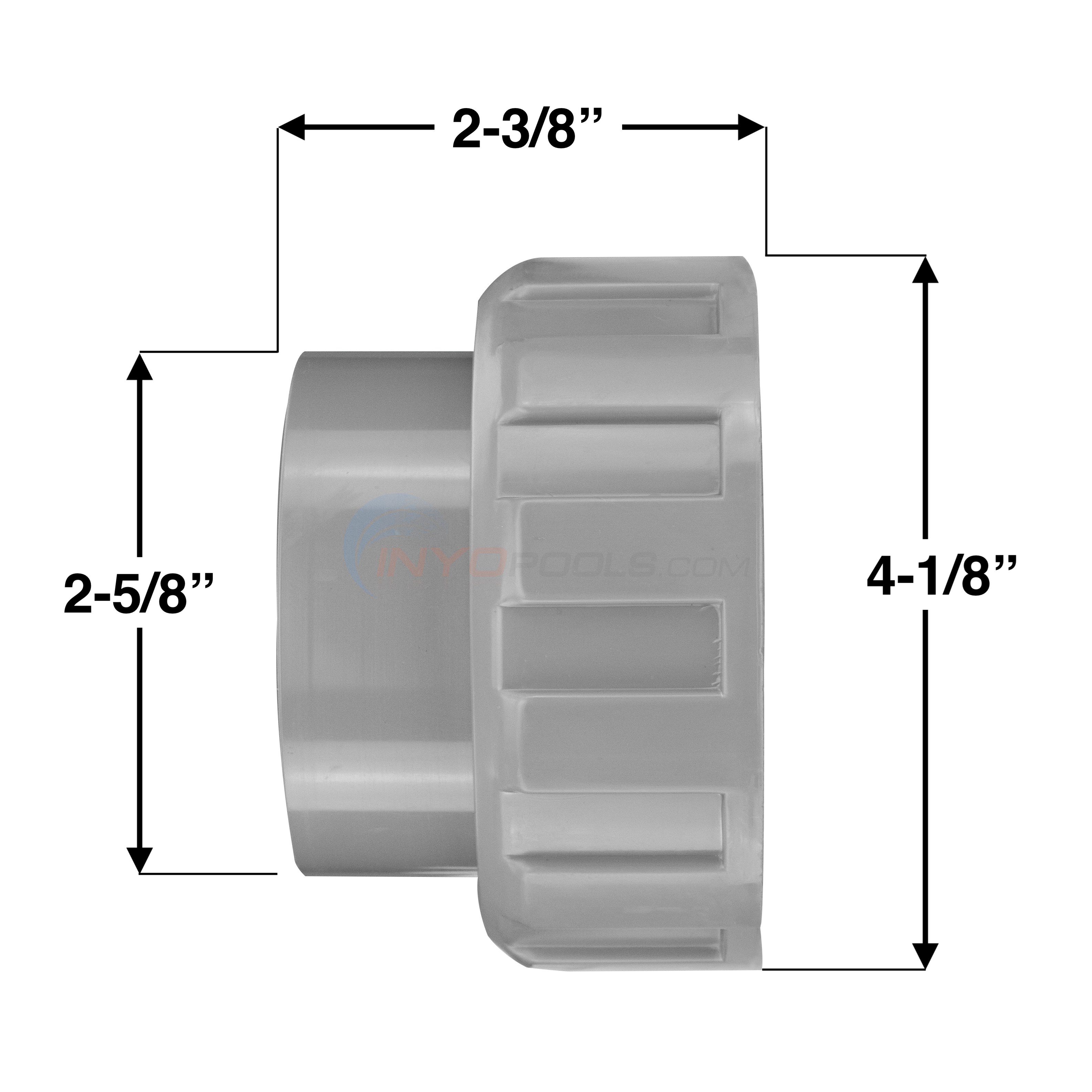

Dimensions 7" L x 4" W x 2" D

Alternate Part #'s 006723F, 21063-801-000, 47-197-1748, RAY-151-3715, RAY006723F

Product Description

CMP Union Kit for Raypak Heaters - 21063-801-000

Hi-Temp Unions (Set of 2)

  • High Temperature Noryl Material
  • Self-Sealing
  • No Teflon Tape or Pipe Dope Required
  • T-Gasket for Better Sealing
Top
Ask A Question
?     Asked on 6/26/2015 by Inyo Visitor

I have a Raypak model # P-R130A-EN-C heater. One of the connectors is leaking. I believe it is your part #6234-96. Can I get one at a reduced cost vs. the 2 piece cost?
 Reply

A  Answered on 6/28/2015 by InyoPools Product Specialist Lennox H.

Hi, The RayPak PVC Unions (006723F) is only sold in a set of 2, unable to sell just one out of the pack.
 Reply


?     Asked on 4/10/2016 by Pilar Buendia

Will this fit Ray pak PR406A EN we need them in order to install it
 Reply

A  Answered on 4/11/2016 by InyoPools Product Specialist Lennox H.

Hi Pilar, This PVC Connector will fit the Raypak PR406AEN unit.
 Reply


?     Asked on 4/12/2016 by Pilar buendia

These parts connect where the water comes in and out, right?
 Reply

A  Answered on 4/12/2016 by InyoPools Product Specialist Alan M.

Hello Pilar, Yes these are the in and out connectors you connect to your existing plumbing.
 Reply


?     Asked on 5/23/2019 by Shawn

Are the o-rings included?
 Reply

A  Answered on 5/24/2019 by InyoPools Product Specialist Lennox H.

Hi, Shawn. Yes, the o-rings are included.
 Reply


?     Asked on 7/9/2019 by John P. Callan

Are there genuine RayPak P/N 006723F Unions, which are CPVC, or PVC substitutes? Waterway Plastics makes the component for RayPak, and the same CPVC parts are available from them for drastically less than RayPak's retail union part price. I have no problem with parts sourced outside of RayPak as long as they are in fact CPVC.
 Reply

A  Answered on 7/9/2019 by InyoPools Product Specialist Lennox H.

Hi, John. These are OEM Raypak unions. There is an alternate option by CMP which is P/N 21063-801-000.
 Reply



Read all Q&A’s
Top
Write A DIY Story
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Wrench Set

I moved the heater and needed new 2” connectors.
Written on 7/13/2023 by Guest

I ordered the Raypsk 2” connectors to fit my heater. I glued them to the existing pipe and connected them to the heater. Was the right size.

Were these instructions helpful?


Top

Review Summary

 (Average 5  out of 5 stars)
3 Rating
(0%) 0 of 3 customer would recommend this product to a friend.
5 star:

(3)
4 star:

(0)
3 star:

(0)
2 star:

(0)
1 star:

(0)
Write A Review

The Most Recent Reviews

 (5 out of 5 stars)  Quality connectors for Raypak

Reviewed By:  Inyo Customer ()

Raypak replacement connector from Raypak themselves. Worked as expected.


Was this review helpful to you?


 (5 out of 5 stars)

Reviewed By:  Inyo Customer ()

Easy to use and install


Was this review helpful to you?
