Part # 25913-204-850
Manufacturer Code 4720
Dimensions 4.5" L x 2.4375" W x 2.25" D
Alternate Part #'s CMP25913-204-850, CMP25913204850

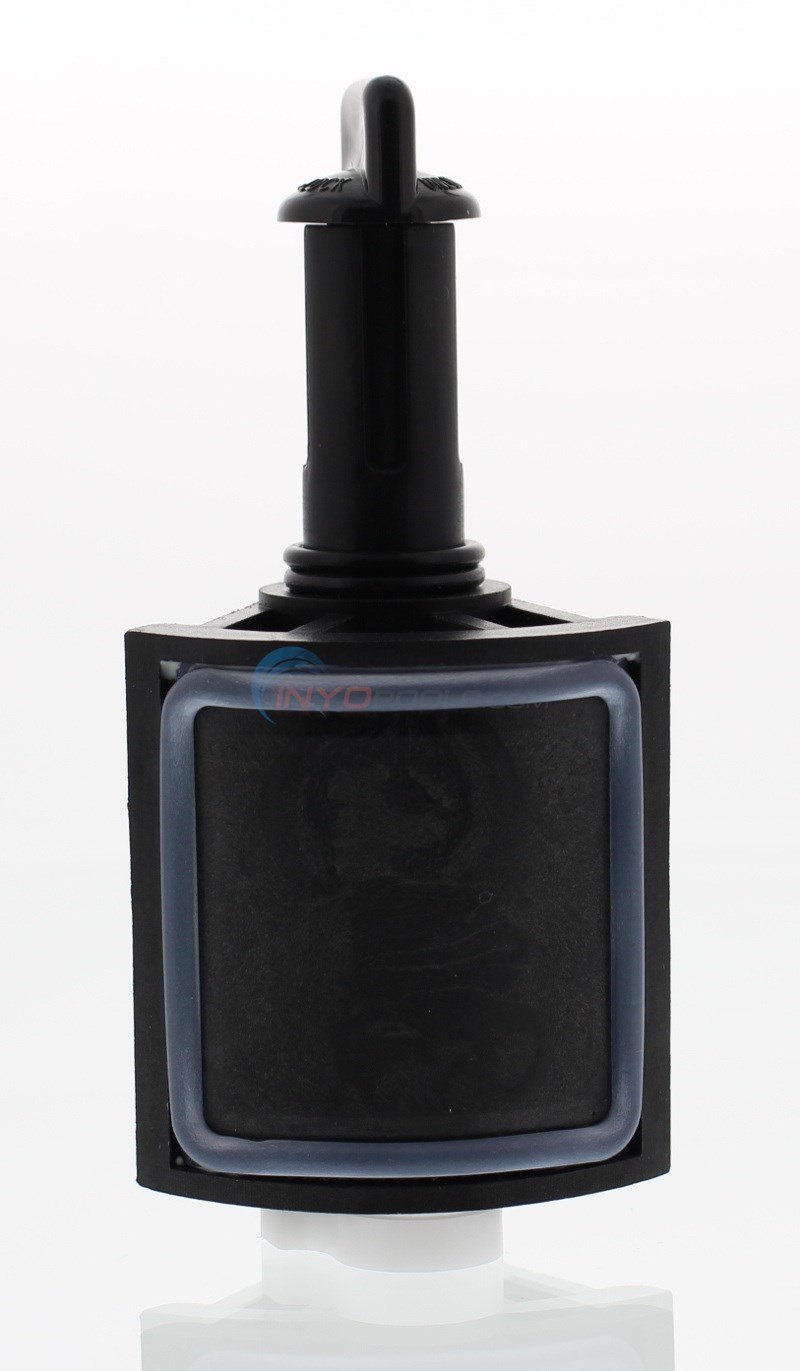

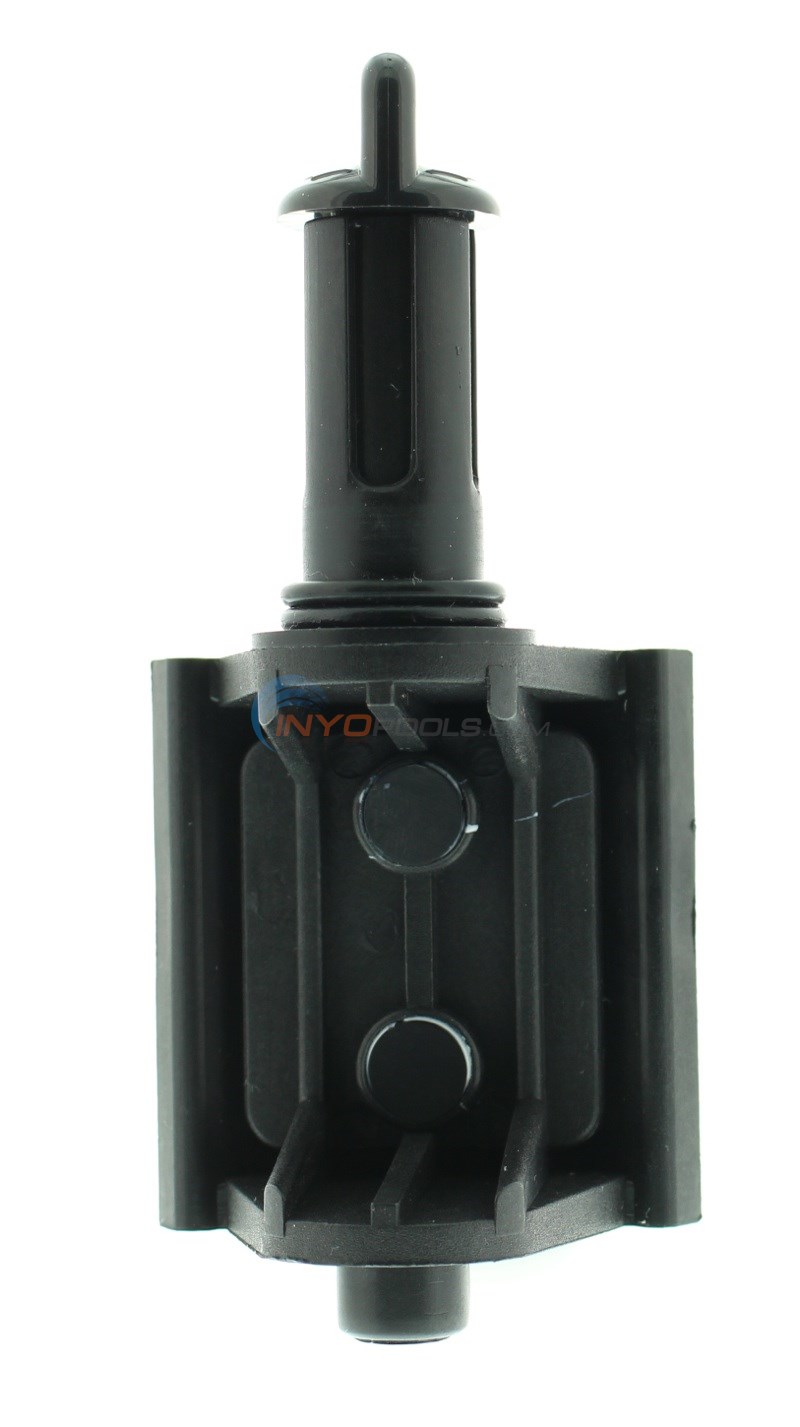

Generic replacement diverter for the Jandy Neverlube valve. Replaces Jandy part number 4720.
Manufactured by Custom Molded Products and also fits their HydroSeal CPVC diverter valves.

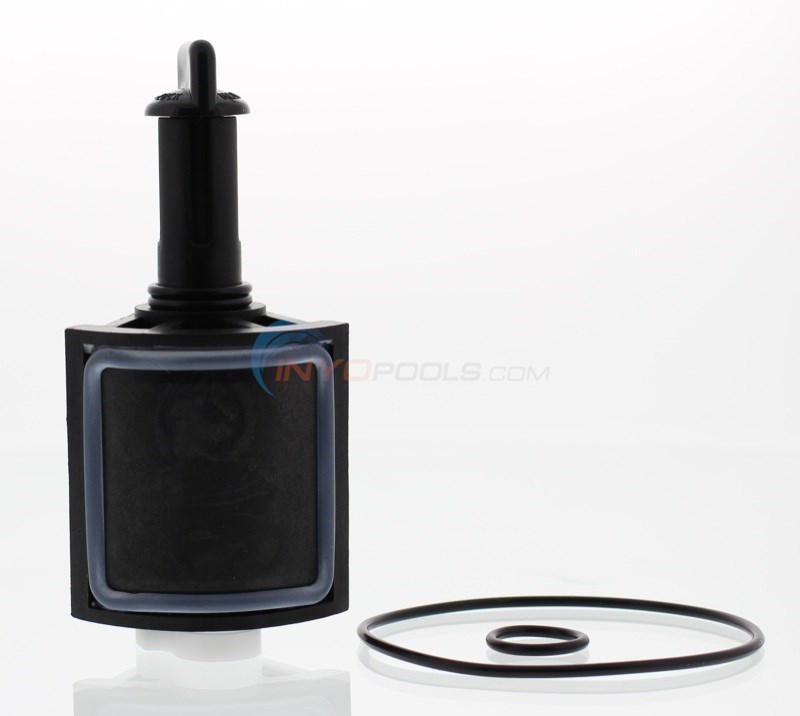

Includes o-rings. DOES NOT INCLUDE 1/8" RED PLUG!
Commonly Used On:
Would this work for a 2-way handy space saver valve? I didn’t see a more specific part # on the valve or diverted assy.
Reply
Hello Timothy, the Jandy space saver valve does not use this kit however please click here to view the parts diagram for your valve series.
Reply
Small leak at this diverter, would this cause a the suction to be decreased at skimmer?
Reply
Hello Rosita. If the small leak you are referring to is on a suction side valve then it is possible that suction would be reduced at the skimmer. The other obvious symptom, in that case, would be air bubbles coming out of the return jets. If you are observing water coming out of the top of the valve, then the valve is on the pressure side of the pump and would not be related to a loss of suction at the skimmer. Other possibilities include: A dirty filter - this would cause resistance to water flowing back to the pool which would impact the suction at the skimmer. The pump's impeller is partially clogged or clogged. The valve controlling water flow from the skimmer has been altered. The pump basket is dirty - this would have a negative effect on the pump's ability to move water.
Reply
Any chance this diverter could be used to replace the "bottom diverter assembly (black)" of a Jandy 8034J Neverlube valve?
Reply
Hi, Bruce. This is the same Diverter used with the Jandy Neverlube Backwash Valve - 8034J.
Reply
have jandy 2 way diverter valve the grease fitting broke off the valve is not leaking but is stiff to turn and must turn off the pump to turn easily. Would the generic diverter work in this valve and is there a plug for the grease valve. See the photo attached. Thank you
Hi, Will this fit Jandy Pro 4719 Series 3? Thanks
Reply
Yes, this diverter assembly will fit the Jandy Neverlube 4719.
Reply
How do I know what model Jandy diverter valve I need? All it says is Jandy Never Lube Valve. I don't see a part number.
Reply
If you click here you will be directed to the neverlube parts diagram and key number 10(1st and last) are the options for your valve diverter parts. Also if you are referring to the complete valve please click here to view your options for the complete neverlube valves. The number of ports and the diameter of the plumbing going into them determines which one that you need.
Reply
I don’t know where to find the part number for my Jandy valve and what size diverter I need I know that 2” pvc sch 40 is glued directly into it and it is gray with lube fitting
Reply
Hi Shawqi, Based on the information you provided this would be the correct replacement diverter for your valve.
Reply
How can I tell which Jandy diverter I have?
Reply
Hello Chuck, There would be a part number on the unit of the diverter. There is a parts breakdown Jandy Standard & Never Lube Valve Parts if you need any replacement parts.
Reply
I need a repair kit for a 3-port 1-1/2" Jandy valve. The valve is marked SPACE SAVER JANDY VALVE and the only number on it is a patent #4,601.307
Will your kit work for me?
Reply
Good afternoon, You will find what you need here.Jandy Standard & Never Lube Valve Parts
Reply
Will this fit with the grid controls v3000? A inyopools rep tagged this part as a compatible part but it's not referenced on the details.
Reply
Jody, This will only fit the Jandy and HydroSeal valves. Unfortunately, this will not fit your application.
Reply
What is the purpose and location for the RED PLUG? I have a grey Jandy and wish to replace the diverter to a NEVER LUBE type in the existing grey housing.
Reply
Bob, The purpose and location of the red plug on a Jandy valve is to cap off the grease cap for the non-positive valve if you're going to use the never lube diverter. You can replace your current non-positive diverter with the never lube diverter assy.
Reply
my diverter is a "DIV-20" is there a generic? How much?
Reply
Edwin, There is not a generic diverter assy that will replace your DIV-20, you will need to replace it with the Diverter Assy (270056) or the Diverter Assy (270094) depending on what size valve you have.
Reply
Less than 1 hr
Screwdriver
1 0
Less than 1 hr
Screwdriver, silicon lube for the o-rings.
2 0
1. I searched the problem on Inyo's website. Comments and video's I found there directed me to a solution. The divertor assembly in the control valve was worn and leaking.
2. Ordered the generic replacement from Inyo- it arrived on time and as-described. Followed the video installation instructions without a hitch. I do suggest taking pictures of the assembly and insert position as you dissasemble the valve- makes re-assembly a breeze.
3. Spa water level is now stable- mission accomplished!
The Most Helpful Review
3 0
(5 out of 5 stars) Diverter Assembly
Reviewed By: Carl C. from Punta Gorda, FL ()
Product was as described; ordering was easy; fast delivery \; shipment well packaged.
Was this review helpful to you?
The Most Recent Reviews
0 1
(3 out of 5 stars) Three Stars
Reviewed By: Inyo Customer ()
Three stars
Was this review helpful to you?
(5 out of 5 stars)
Reviewed By: Bruce F. ()
????
Was this review helpful to you?
(5 out of 5 stars) Valve Insert Replacement
Reviewed By: Andrew G. ()
Item arrived on time as described. Installation was easy and it functions flawlessly.
Was this review helpful to you?
(5 out of 5 stars) Great generic parts
Reviewed By: Rando from Houston, FL ()
Pros: Fit, price, delivery
Cons: none
Great customer service. Product arrived the Next day!!! The generic valve was an exact fit and I will order this type of product again.
Was this review helpful to you?
1 0
(5 out of 5 stars) Neverlube Jandy replacement Valve
Reviewed By: Fred from Florida ()
Pros: Price, detailed drawings, instructions, chat process with quick answers
Cons: none
Great price, almost half of what pool store wanted. Great information on the site with detailed drawings and parts list as well as installation instructions. I have been living with a spa/pool water level problem for months and was able to fix it for $30 and 15 minutes of my time.
Was this review helpful to you?
1 0
(5 out of 5 stars) Generic means it's the same Part!
Reviewed By: Captron from Joplin, MO ()
Pros: Same Specifications
Cons: None
Generic only means you are not paying for a name! It is by specifications the same only better on the wallet! Replace your next Diverter with Generic!
Was this review helpful to you?
1 0
(5 out of 5 stars) Good Generic Diverter
Reviewed By: Richard K. ()
Pros: Cost
Product shipped on time and was as described
Was this review helpful to you?
