By J & J Electronics



Part # LPL-P2-RGB-12

Warranty 3-Year

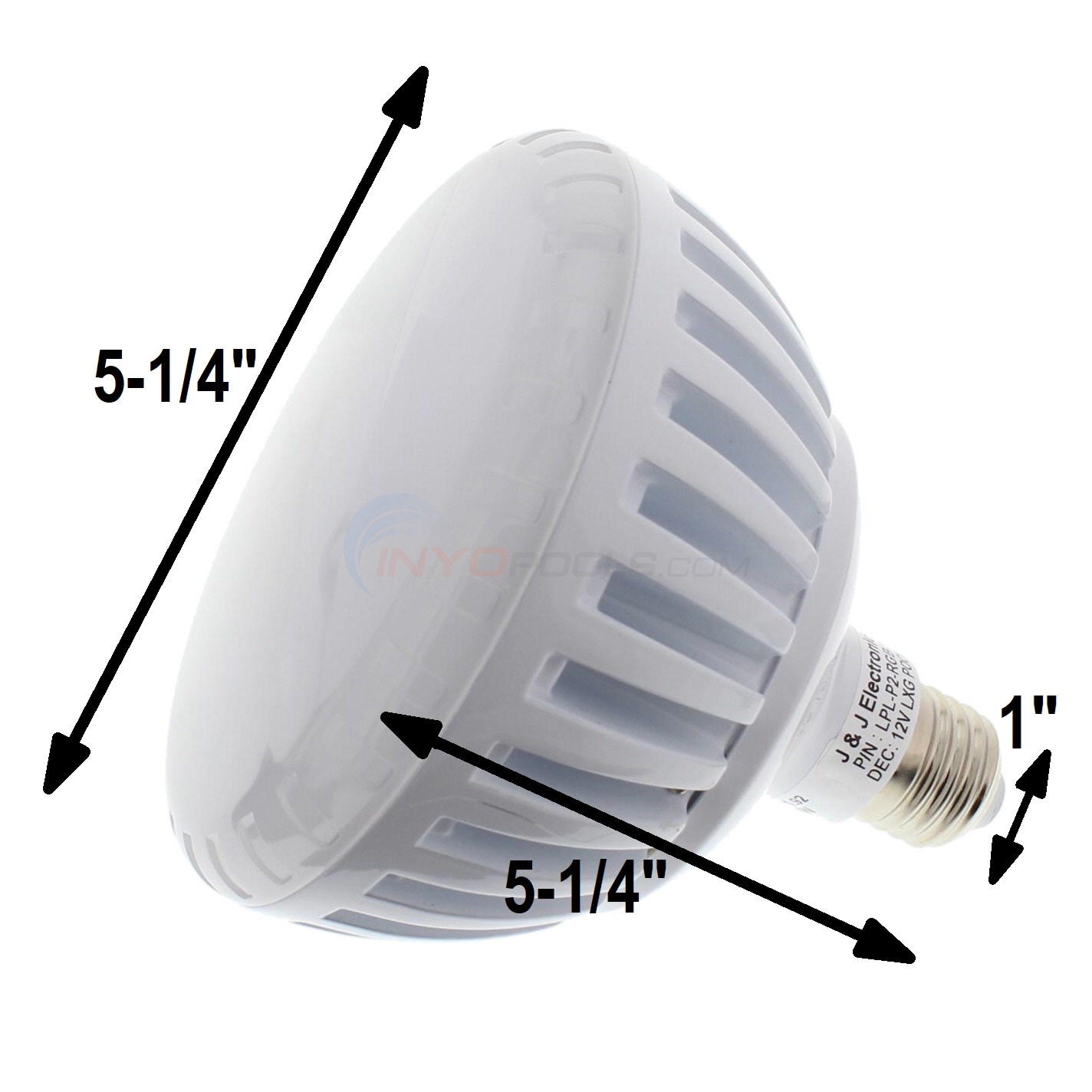

Dimensions 5-1/4" x 1"

Alternate Part #'s ELELPL-P2-RGB-12, LPLP2RGB12

Product Description

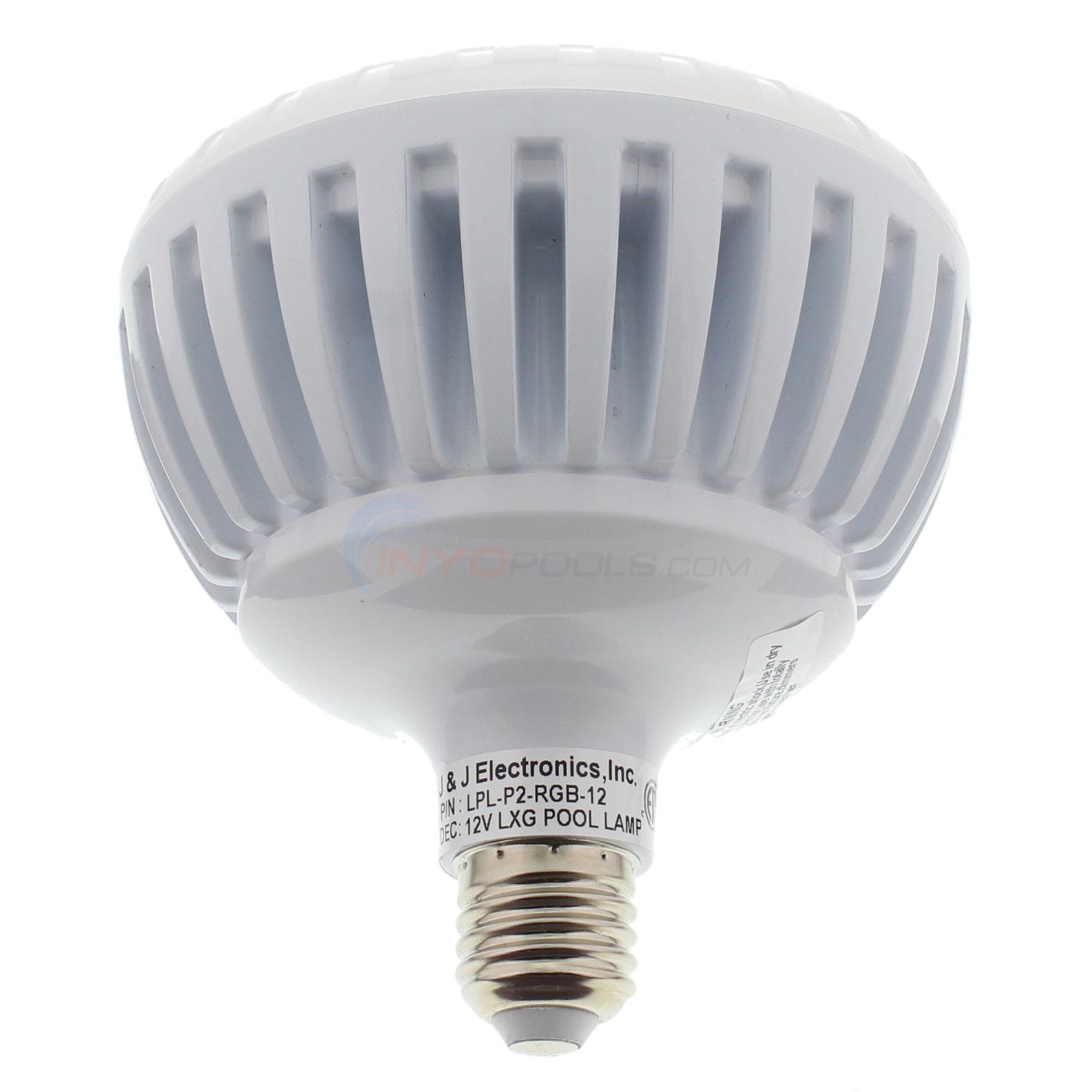

ColorSplash®LXG Multi-Color In-Ground Pool and Spa Lamps

J&J's ColorSplash® LXG Replacement Multi-Color In-Ground Pool and Spa Lamps offer a variety of lighting modes that instantly transform any in-ground pool into a custom illuminated oasis. Whether the pool is used for playing, relaxing or entertaining, the advanced ColorSplash LXG Series with its multiple colors and light shows create the ideal pool and spa ambiance. The LXG pool lamp features our Zero Pixilation optical diffuser lens resulting in fuller, richer and more even color throughout the water. It can also be used side-by-side with existing XG Series light fixtures. This replacement for traditional light bulbs installs in minutes and provides immediate energy cost savings over incandescent lights

ColorSplash LXG Advantages:

  • Operates effectively with most automation systems*.
  • Edison base light. Compatible with most manufacturers fixtures.
  • Synchronizing. Multiple lamps operate in unison to harmonize your pool and spa lighting.
  • Able to synchronize with J&J's XG Series fixtures.

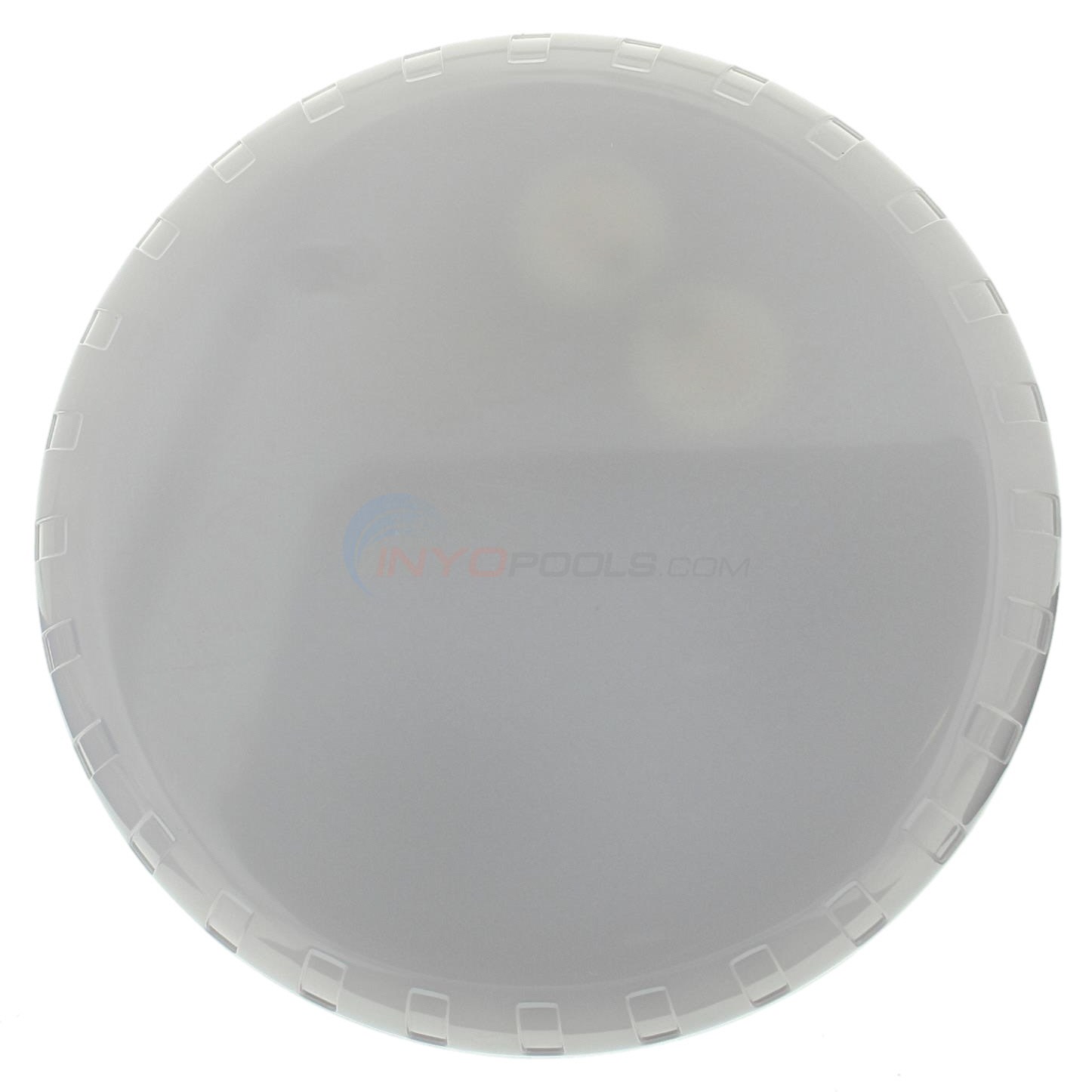

  • Optical Diffuser Lens. Fuller, richer "zero" pixilation color throughout the water. (pool light only).
  • Color Lock and Show Lock functionality.
  • LED Technology. Maximizes lifespan up to 50,000 hours.
  • Energy efficient lamps. Reduce consumption up to 90% compared to incandescent.
  • Industry leading 3-year warranty. Quality you can rely on for years.

Fixture Compatibility: Hayward® Astrolite SP058 Series; Jacuzzi® Full Moon; Jandy® Pro SeriesWhite; Pentair® Amerlite 784 Series; Sta-Rite® SwimQuip

ETL  Yes
 Footnotes 1  RGB plus PureWhite
 Footnotes 2  Works with J & Js XG Controller
 Footnotes 3  Synchronizes with J & Js XG fixtures and LXG lamps.
 Footnotes 4  Zero Pixelation Lens, enhances the uniformity of light intensity.
 Footnotes 5  Advanced Mirco-Processor, Hi-speed performance delivers seamless color transitions.
 Maximum Ambient Temperature (C)  105
 Minimum Starting Temperature (C)  33F
 Prod Code  LPL-P2-RGB-12
 UL  Yes
 Weight (lbs)  1.90

                 White Fixture Callout

Product Specifications

Color Changing
Pool / Spa Type:
12 V
23 W
3 yrs

?     Asked on 7/8/2017by John

Yes, do you have any candelabra bulbs for a pentair pool light?

A  Answered on 7/10/2017 by InyoPools Product Specialist Joe S.

At this time there are no LED's that will fit in a Candelabra based unit.

?     Asked on 9/28/2018by Dan

Does this bulb also have a white option?

A  Answered on 9/28/2018 by InyoPools Product Specialist Lennox H.

Hi, Dan. There is an Arctic White color available.

?     Asked on 7/22/2020by Kevin Sweeney

Can this be used to replace a 120V 500W bulb if a 12V transformer is added to the other side of the existing wiring?

A  Answered on 10/28/2020 by InyoPools Product Specialist Hector F.

Hi Kevin, unfortunately, this bulb will need to be installed in a fixture designed for 12 volts. Please see the bulb product details to also confirm the few compatible light series it is compatible with.

?     Asked on 10/15/2020by Charley

how does this light compare to the PENTAIR® AMERLITE® 16 COLOR LED UPGRADE

A  Answered on 2/5/2021 by InyoPools Product Specialist Hector F.

Hi Charley, these J & J Colorsplash LED bulbs have become quite known and widely used in the swimming pool industry in comparison to the Pentair LED lights and bulbs. They also carry a fair warranty as well.

?     Asked on 11/12/2020by James Liddil

So I bought LED Pool Bulb Color Changing 12V 35W PL5808 2 years ago. It is now flaking out. Looking to next poll season and a replacement. The Chat rep said this J&J bulb is the replacement. I am wondering is the more reliable? I'm not spending $300 to have this thing die after 2 or three swim seasons.

A  Answered on 11/13/2020 by InyoPools Product Specialist Hector F.

Hi James, I would say that it is fair to say that the J & J Colorsplash light bulb could potentially last longer as this manufacturer has been in the industry for quite a number of years fabricating pool light products.


Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Adjustable Wrench

4     0

My pool LED color light needed to be replaced

Written on 5/4/2020 by Guest

I removed the light housing from the pool. Only needed a phillips screwdriver for one screw. Set it on the deck. Removed the gasket and cover, replaced the light and new gasket, put everything back together and it works perfectly!

P.S. I'm female lol
