Pureline Replacement Electrode, Compatible with Compupool® CPSC16 Electrode Only - PL7790

$308.99

IN STOCK
FREE SHIPPING

Part # PL7790

By PureLine

  4.6 Average

Details

Top

Part # PL7790

Warranty 2 Year warranty

Alternate Part #'s CPSC16AMCELL, JD363130B, RE-CPSC16

Product Description

Save 30% by replacing your CompuPool® Salt Cell with INYOpools.com

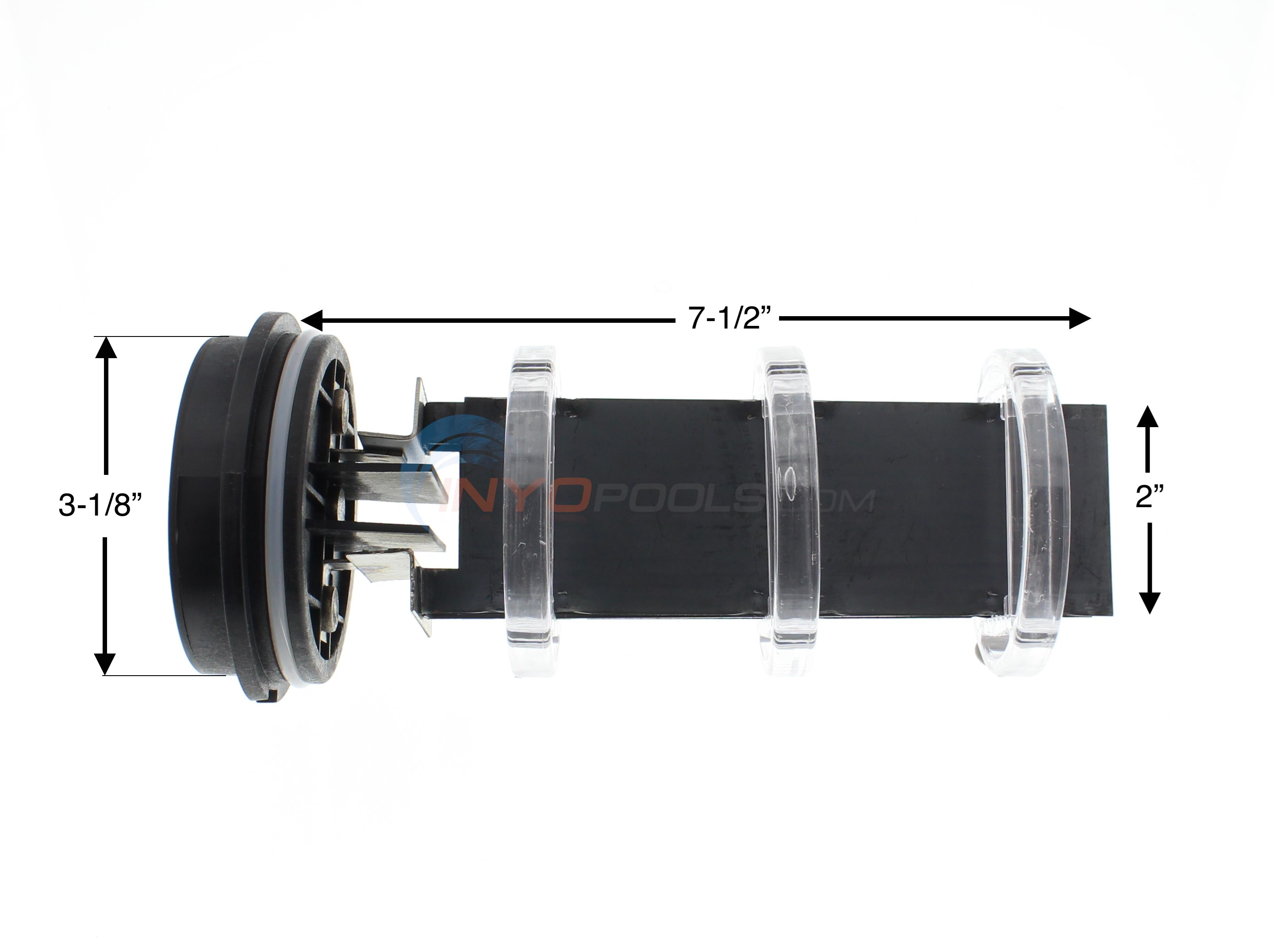

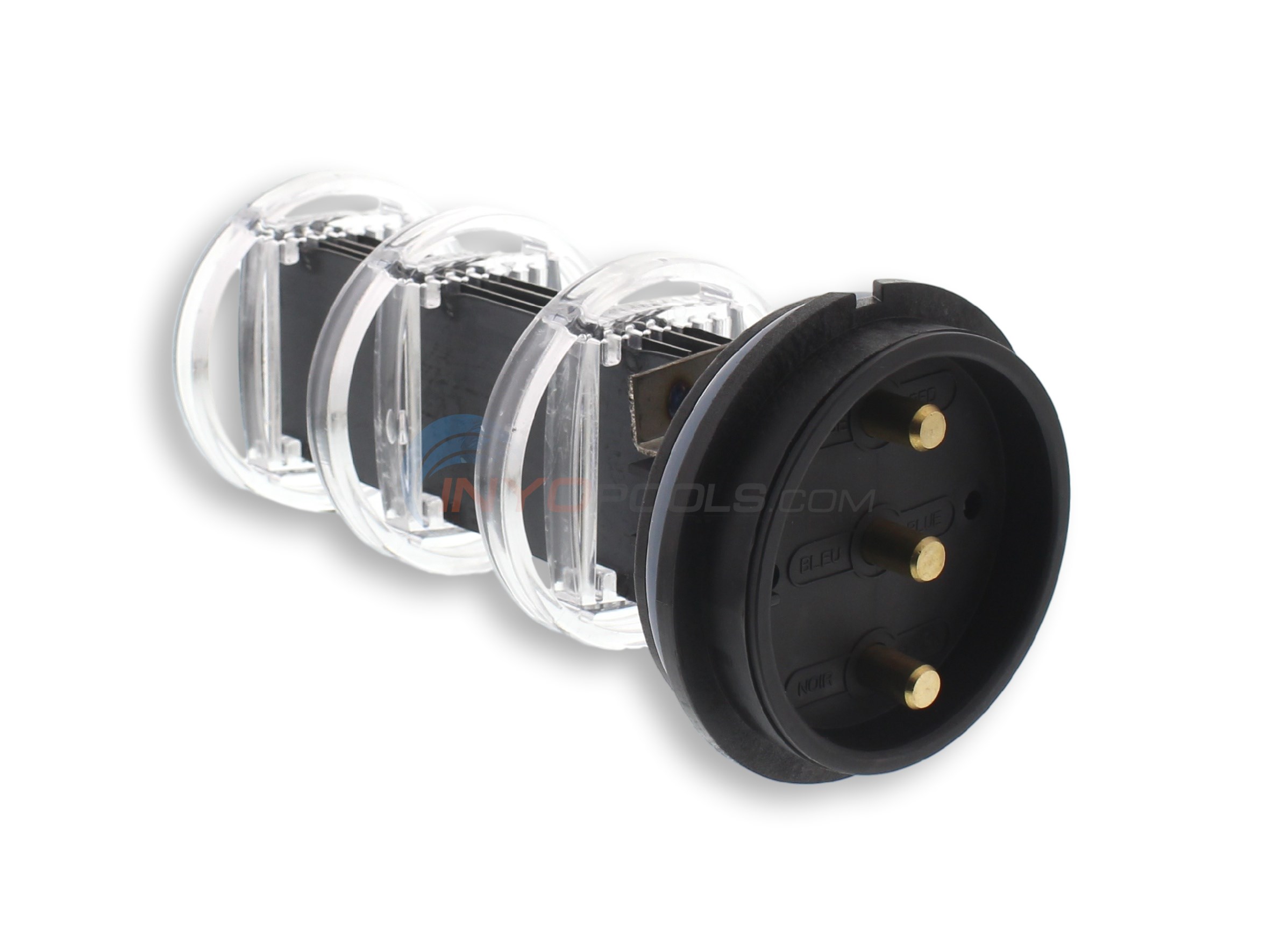

The PL7790 is an after-market replacement electrode only for the CompuPool® CPSC16 salt chlorine generator. CompuPool® systems are economically designed so you can replace the electrode without replacing the clear blue housing. This is an after-market salt cell by Pureline and not the original salt cell by Compupool. This salt cell is compatible with the Compupool® CPSC16 model.

  • Chlorine output: 1.0 Ib / day (0.45 kg / day)
  • Electrode for CPSC16 model only (for pools up to 20k gallons)

Disclaimer:

All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Product Specifications

Manufacturer:
Pureline
Treatment Capacity:
20,000 gal.
Top

?     Asked on 7/29/2019by Inyo Visitor

We currently have a compu pool cpsc 16. Is it possible to move up to the CPSC 24 with only changing the cell or does it require and entirely new system or housing? It seems like we are always running at 100% and our cells never last more than 1.5 -2 years.
 Reply

A  Answered on 7/29/2019 by InyoPools Product Specialist Lennox H.

Hi. You can replace the CPSC16 with the CPSC24 electrode. You will just have to reprogram the controller tp the CPSC24 setting.
 Reply


?     Asked on 7/2/2019by Heather

My Compupool generator has gotten a brown film on the inside of the plastic protector. What causes this and how do I clean it?
 Reply

A  Answered on 10/15/2019 by InyoPools Product Specialist Michelle B.

Hello, You would need to clean the cell. Here is a great article on how to do so. http://www.inyopools.com/HowToPage/how-to-correct-compupool-cpsc-problems.aspx
 Reply


A  Answered on 9/30/2019 by Industry Professional

http://www.inyopools.com/HowToPage/how-to-correct-compupool-cpsc-problems.aspx
 Reply


?     Asked on 6/9/2019by T. Jeff

How do you clean the CPSC16 electrode? I lost my booklet. Our pool has been down for about 1 1/2 yrs. Kept it dry while down. Would like to try different things before buying a new one.

 Reply

A  Answered on 6/10/2019 by InyoPools Product Specialist Patrick P.

Hi T. Jeff, Thanks for the photo! Please follow this Video on How to Clean a CompuPool Salt Chlorine Generator
 Reply


?     Asked on 4/26/2019by Gavert Davis

My Compupool CPSC16 has the Water Fault light on but water is flowing through the cell and it is clean. Water temp is 69F. What could cause the light to be on? Thanks. G. Davis
 Reply

A  Answered on 4/30/2019 by InyoPools Product Specialist Patrick P.

Hi Gavert, Here are the common solutions if your Water Fault Light is on... WATER FAULT LIGHT ON - The Water Fault Light will illuminate on several conditions. Check the following:a - Salt just added - The Water Fault light may turn on if salt was added but not completely dissolved before the CPSC unit was turned back on.b - Salt level too low - The Water Fault light will illuminate if the salt level is below 2500 ppm.c - Inadequate flow - Check the filter, skimmer and pump strainer baskets to make sure nothing is restricting water flow. Also check the settings of your diverter valves to make sure they are not cutting off all or most flow.d - Loose cell plug - Make sure the cell plug is attached tightly. See Step #15.e - Loose wire connections - Crimp the female connections slightly to tighten the fit around the connection terminals.
 Reply


?     Asked on 1/11/2019by Nadine Ellingson

I have a Circupool RJ20 Series Salt System purchased in 2012. Do you have any replacement cells that fit this unit. It looks a lot like the picture of JD363130B, but I'm not sure if that would fit . Thanks for your help.
 Reply

A  Answered on 1/16/2019 by InyoPools Product Specialist Michelle B.

Hello, They are not compatible. Circupool and Compupool do not have interchangeable parts.
 Reply


?     Asked on 7/15/2018by Toby MacDonald

I have a CPSC16 cell for our 30 foot pool 54" high. It is reading water fault. We have checked the connections. We took the cell out and cleaned it, it actually was quite clean. You can see it producing on and off. In your opinion do you think we need a new cell. And are they interchangeable with other cells. As when I was doing some reading I think the individual who installed out pool did no put in an adequate cell? Do you have any suggestions for us?
 Reply

A  Answered on 7/20/2018 by InyoPools Product Specialist Lennox H.

Hi, Toby. If you've confirmed that you have adequate water flow, and salinity level the cell will need to be replaced. You can replace your electrode with a higher capacity electrode.
 Reply


?     Asked on 6/4/2018by DICK JOHNSON

I HAVE A COMPUPOOL CPS-C36; I DON'T SEE WHERE YOU HAVE A REPLACEMENT CELL FOR THIS UNIT, WOULD ANOTHER ONE FIT?
 Reply

A  Answered on 6/5/2018 by InyoPools Product Specialist Patrick P.

Hi Dick, We do have the CPSC36 Replacement Cell in Stock Here - CPSC36 Replacement Cell
 Reply


?     Asked on 7/28/2017by Chris

I can see "fizz" coming off my cell, but I keep getting a Zero reading for chlorine level and it is set at 60%. I clean it regularly. Will a new one cure this issue?
 Reply

A  Answered on 7/29/2017 by InyoPools Product Specialist Lennox H.

Hi, Chris. Replacing the electrode may resolve the low chlorine level that you're experiencing. However, you may also need to check the CYA level of your pool's water.
 Reply


?     Asked on 6/2/2017by Betty

I have a Compu Pools CPA Series salt water chlorine generator and I need to replace the the cell my Manuel says that a genuine replacement cell for the Compu-Pool CPA150 is what I need to replace it, I have not been able to find this part, do you carry it or can it be replaced with a different one.
 Reply

A  Answered on 6/3/2017 by InyoPools Product Specialist Lennox H.

Hi, Betty. We do not carry the OEM Compupool electrode, you can use this Pureline CPSC16 replacement electrode.
 Reply


?     Asked on 3/31/2017by Patrick gonsaeles

Do you sell the cell CPSC18?
 Reply

A  Answered on 3/31/2017 by InyoPools Product Specialist Scott W.

We sell the CPSC16 and CPSC24 but not the CPSC18.
 Reply

  • Commented on 3/21/2019 by Product Owner

    Bonjour, j'ai la CPSC18 mais ne la trouvant pas puis je la remplacer par la CPSC24 s'il vous plaît ?
     Reply

    • Commented on 3/23/2019 by InyoPools Product Specialist Lennox H.

      Salut Caroline. Oui, vous pouvez remplacer votre électrode CPSC18 par un CPSC24 si votre contrôleur vous permet de modifier la configuration de la cellule.
       Reply


?     Asked on 9/27/2016by Roseann

Hi, I have the Compupool CPA Series 150/ CPA300. I need to replace the Cell do you sell them? Or is there something that I can use instead?
 Reply

A  Answered on 9/29/2016 by InyoPools Product Specialist Scott W.

The JD363130B would be the inside replacement for your cell, which is what you need.
 Reply


?     Asked on 5/25/2016by fabien garcia

I have a CPSC 18 COMPU-CHLOR II. is it possible to adapt a CPSC16 or similar reference on mine ?
 Reply

A  Answered on 5/25/2016 by InyoPools Product Specialist Dennis R.

Hi Fabien, I am not familiar with a CPSC 18 system but if you currently have a CPSC16 cell, this electrode will replace it.
 Reply


?     Asked on 5/24/2016by Deloris counselman

How much is complete assembly, housing & electrode?
 Reply

A  Answered on 5/24/2016 by InyoPools Product Specialist Patrick P.

Hi Deloris, there is not a complete assembly with housing pre-assembled. We do carry the CompuPool Inner Electrode Housing for $99 and the outer housing for $74, you may view all of these parts on our CompuPool Salt System Parts Diagram Page
 Reply


?     Asked on 5/19/2016by Dick Kruse

My salt cell system is named "Comfort-Chlor" but the salt cell itself is numbered CPSC16.... SN 038054 would your CPSC16 cell be a direct slide in replacement ?
 Reply

A  Answered on 5/23/2016 by InyoPools Product Specialist Lennox H.

Hi Dick, If you currently have an CPSC16 Cell, this electrode will replace it.
 Reply


?     Asked on 7/27/2015by Inyo Visitor

I have a Compupool CPSC16 chlorinator, my salt level is at 3500. I get the salt level is low message. The system is at least 5yrs old. I cleaned the electrode but no change. I was told to replace the electrode. Could this be the problem?
 Reply

A  Answered on 7/29/2015 by InyoPools Product Specialist Lennox H.

Hi, You can try Calibrating Salt Readings on CompuPool Salt System  using the instruction provided by the link. If that does not work you can then replace the cell.
 Reply


?     Asked on 7/22/2015by Inyo Visitor

What is the average life expectancy for the electrode
 Reply

A  Answered on 7/22/2015 by InyoPools Product Specialist Hector F.

If maintained well they can last at least the 2 years they are warrantied for. Potentially even double that. Pool chemistry and cell maintenance play vital roles in the life expectancy of these electrodes.
 Reply


?     Asked on 6/2/2015by Glenn

My CPSC16 has been running fine for 3 years, recently I'm getting a water fault reading, clearly there is water going through the system as always, even changed out the filter sand, what could be the reason.
 Reply

A  Answered on 6/3/2015 by InyoPools Product Specialist Patrick P.

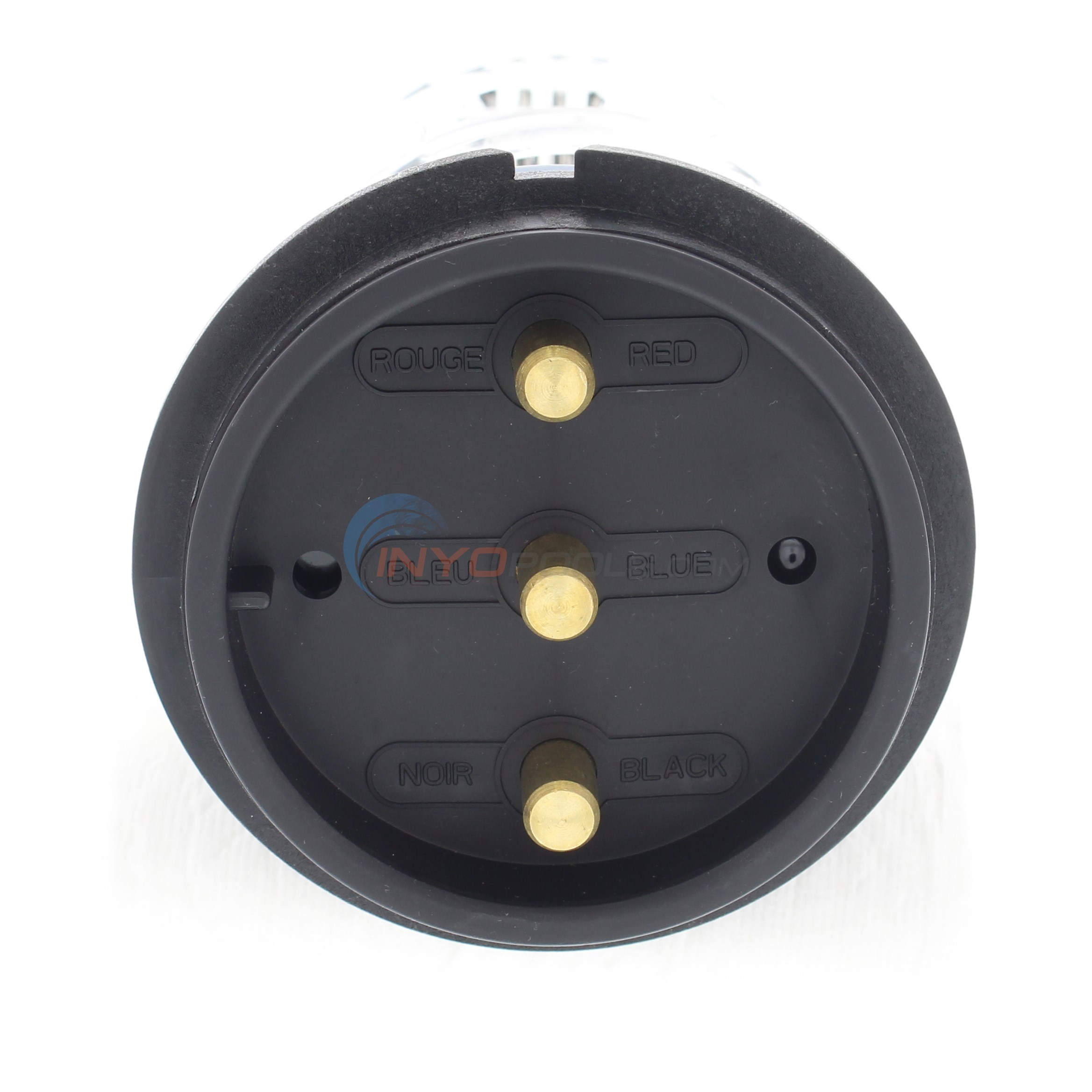

A common problem on these CPSC units is lose connections on the cell side of the cable. Crimp the female leads SLIGHTLY that attach to the end of the cell so that the terminal connections are tight. Also check the salt level. If the salt level is below 2500 ppm, the Water Fault light will illuminate.  And the light will also illuminate if salt has just been added and not dissolved completely.
 Reply


?     Asked on 7/7/2011by Guest

Do you sell the housing for the compupool CPSC24?
 Reply

A  Answered on 7/7/2011 by InyoPools Product Specialist Steve M.

Yes we do sell the housing which is the same for all of the CompuPool CPSC units, this housing can be purchased here >http://www.inyopools.com/Products/16401352060535.htm
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

My pools salt cell stopped working after only 4 years.

Written on 7/24/2018 by Guest

I had trouble finding a replacement cell until i saw your website and sesrched for it, there it was the same model i needed , so i ordered one and it was very easy to change myself. I simply unplugged the old one and plugged in the new one and BAM! Two days later clear beautiful water ready to swim in and making salt water really nice.Thank you so much even though u don’t actually talk to someone because everything is online , just keeping it simple and very helpful i cannot thank u enough, Many family bbq’s and partys had this early summer so far. Thank You Again , Vince Gonzales, Whittier,Ca

Were these instructions helpful?


Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

LOW SALT LIGHT ON AND NOT PRODUCING ANY CHLORINE

Written on 6/25/2018 by Guest

CHECKED SALT LEVEL FOUND SALT LEVEL OK ORDERED NEW SALT CELL FROM INYO POOLS ARRIVED QUICKLY FOUND THE QUALITY OF THE CELL FROM INYO POOLS TO BE 100 PERCENT BETTER THEN THE ORIGINAL FROM COMPUPOOL AND THE FIT TO BE GREAT. INSTALLED SALT CELL AND LOW SALT LIGHT IS NOW OUT AND PRODUCING SALT AT A BETTER RATE THEN IT EVER HAS IN 4 YEARS THAT WE HAVE HAD THIS SYSTEM. WE ALWAYS HAD TO RUN THE SYSTEM AT 100 PERCENT NOW WE RUN IT AT 30 / 40 PERCENT WOW THANKS INYO POOLS WILL BE ORDERING MORE OF YOUR QUALITY EQUIPMENT AGAIN
