Pureline Prime Digital Dual Speed Pool Pump 1.4 HP - PL2607

Part # PL2607

By PureLine

  5 Average

Details

Top

Part # PL2607

Warranty 12 Month Warranty

Product Description



Maximize your savings with the new PureLine Prime Digital Dual Speed Pump.

The PureLine Prime Digital Dual Speed Pump utilizes Century’s 2Green motor, delivering premium energy efficiency and program flexibility with an integrated user interface. The PureLine Prime Digital Dual Speed Pump is an exact replacement to the Hayward® Super Pump, making it quick and cost efficient to replace.

The main benefit of a dual speed pump is that you can run your pump at a high horsepower (HP) or a low HP. The majority of the time your pool is operating you will run your pump at the low HP which saves you 58% over the high HP. If you need to run your cleaner, spa or your pool is getting a bit dirty then simply switch over to the high HP for some serious cleaning. Another great benefit to the PureLine Prime Dual Speed Pump is that it is the only pump on the market which has digital controller mounted directly on the motor, this means easy installation and simple programming. For most dual speed pumps additional controllers with complex wiring are required which can be very expensive, that is not the case with the PureLine Prime Digital Dual Speed Pump.

PureLine Prime Pump Application:

  • In-ground pools of all types and sizes
  • In-ground spas

PureLine Prime Variable Speed Pump Benefits:

  • Drop in Replacement for the Hayward® Super Pump
  • Up to 58% energy savings over single speed pumps

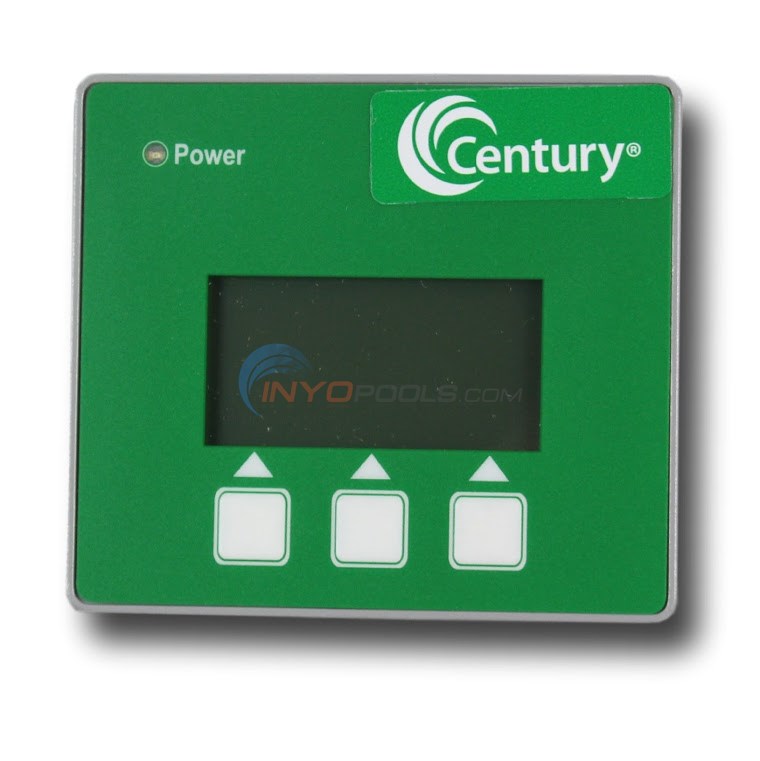

  • Digital Controller Included
  • Easy Installation
  • Same dimensions as the Hayward® Super Pump means no realigning of plumbing significantly reducing the time it takes to swap out your pump
  • Paired with a Century® Motor. The most reliable pool motor in the world.
  • Same quality as Hayward®, Pentair®, Sta-Rite®, Jandy® and Waterway®
  • Costs 30% Less than Hayward® Super Pump
  • Noise reduction design
  • Large 2” ports
  • Quick Disconnect Unions included ($40 Value)
  • 1 year warranty
  • Self-priming (the pump can be placed up to 10' above water level)
  • Quick & Easy basket removal, with swing aside hand knobs
  • Clear Lexan® cover makes it easy to see when basket needs cleaning
  • Large capacity basket
  • Basket design ensures free flow of water
  • All components made of corrosion proof plastic
  • Heavy-duty, high performance motor for quieter, cooler operation
  • Easy access to all internal parts for servicing

Pump Curve



Disclaimer:

All manufacturers’ names, brand names, trademarks, images, symbols, descriptions, and part numbers are used herein for reference purposes only.

Product Specifications

Manufacturer:
Pureline
HP:
1.0/.12 HP
Speed:
Dual
Volts:
230
Amps:
6.3/2.3
Port Size:
2 in.
Union Connectors:
2 inch included
Service Factor:
1.4
Top

?     Asked on 4/9/2019by AC

The LCD on my pump , less than a year old looks to be retaining moisture. Should I RMA for a return?
 Reply

A  Answered on 4/10/2019 by InyoPools Product Specialist Michelle B.

Hello, We can submit this for a warranty. Can you please send a picture of the LCD screen?
 Reply


?     Asked on 3/17/2019by Shelby

I currently have a Whisperflo Model WF-24 C Serial No 1-18-A99. I would like to replace with a dual speed pump. Will this pump work as a replacement? Will I need to make any wiring changes as this model is rated at 230 volts and my current model is 115/230 volts.
 Reply

A  Answered on 3/18/2019 by InyoPools Product Specialist Lennox H.

Hi, Shelby. This Prime Digital Dual Speed Pool Pump is not a good replacement for a Whisperflo model pump. I would recommend the Pentair Whisperflo Dual Speed Up Rate 1 HP Pump - WFDS-24.
 Reply


?     Asked on 6/1/2018by Chuck

I would like to replace my Hayward super pump. Will this pump need much re-plumbing?
 Reply

A  Answered on 6/1/2018 by InyoPools Product Specialist Lennox H.

Hi, Chuck. It will not need to be re-plumbed. This is a drop in replacement, you will just need to make the adjustment to account for the 2" Unions included with this pump.
 Reply


?     Asked on 3/28/2018by Mark

I need to replace my 2 speed pump, and I have a SWG. It is set up now, that my SWG will not come on until I power up the pump. Can this one just be installed by using the same wiring I have now. I have two black wires and one green coming to the pump (220v). Does the timer pad on this pump interfere with this setup? Thanks!!
 Reply

A  Answered on 3/28/2018 by InyoPools Product Specialist Lennox H.

Hi, Mark. Unfortunately, this pump will work independently from your current system. It will require 230 volts but will not require a timer.
 Reply


?     Asked on 6/12/2017by Bob

Currently running SPX2607X102S, 1.5" pipe, Ozonator hooked into front of this pump, Pump controlled by Sun Touch Solar controller for the two speeds. Can ozonator be hooked to this pump? how will Sun Touch controller effect the pump controller? especially switching the speeds when controller programmed for water temp for pool motor to switch to low speed and run the ozonator.
 Reply

A  Answered on 6/17/2017 by InyoPools Product Specialist Lennox H.

Hi, Bob. This pump can be used with an ozonator, however, the SunTouch will not be able to control this pump because of the built in controller and based on your configuration you will need a pump that does not have a built-in controller.
 Reply


?     Asked on 6/11/2017by Inyo Visitor

Can this pump be used with a sand filter?
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Alex V.

Hello, This in ground pump can be used with a sand, cartridge or d.e. filter.
 Reply


?     Asked on 5/23/2017by Travis R Burba

can you recommend an adapter to transfer 2 inch ports to 1.5 inch?
 Reply

A  Answered on 5/23/2017 by InyoPools Product Specialist Patrick P.

Travis you would require two of this 2" x 1.5" Reducer Bushing.
 Reply


?     Asked on 5/22/2017by patrick

Will this work to replace a Hayward 3400 vsp with having to make modifications to the plumbing ?
 Reply

A  Answered on 5/27/2017 by InyoPools Product Specialist Lennox H.

Hi, Patrick. The Hayward Ecostar Pump is a much higher performance pump that this Prime Pump. In order to find out if this Pureline Prime pump will meet you pool needs, I would recommend following the steps in our How To Size a Pool Pump  guide and the info provided in the product description.
 Reply


?     Asked on 5/20/2017by Gary

I currently have a 1HP Hayward Maxi Flo II that I need to replace. Our pool is a Doughboy (13000 gal.) above ground that we have installed in the ground. The pump has to be self priming and run on 110 volts. Lift from skimmer is 4-5 ft. I'd like a pump that will match the plumbing for the Hayward. I wish I could get a variable speed since we have a salt water pool. Please give me your best recommendation. Thank you, Gary PS I'm already on your mailing list
 Reply

A  Answered on 5/21/2017 by InyoPools Product Specialist Alex V.

Gary, The PL2607 runs on 230v. The only 2 speed pumps we have  that are 115/120v are above ground pool pumps but they are not self priming.
 Reply


?     Asked on 5/8/2017by Steve

I am replacing a Hayward Super Pump with a single speed 1 hp motor. I do not have any time of timer controlling this pump. I just have an on off switch on the wall. 1. Do I need to add a timer to the PL2607? 2. Can I just turn the PL2607 off at the switch without a problem? 3. Can I leave power to the PL2607 on and will the controller turn it on and off as programmed? Thank you.
 Reply

A  Answered on 5/8/2017 by InyoPools Product Specialist Lennox H.

Hi, Steve. A separate timer is not needed for this pump. Yes, you can turn the unit off or leave it on to allow the pump to follow the set on/off times.
 Reply


?     Asked on 9/15/2016by Roz

Is this a replacement for the Pinnacle Pentair 342351?
 Reply

A  Answered on 9/15/2016 by InyoPools Product Specialist Stacey M.

Hello Roz, the PL2607 is a duel speed 1.4hp with 230 volts. What you have is a Pinnacle 1HP 115/230 volts that is singles speed. I would recommend Pentair Challenger 1 HP 115/230V UR Pump - 343233.
 Reply


?     Asked on 6/15/2016by steve

Will this work for a 23000 gallon fiberglass pool with 1 1/2" pipe. Current set up is a Hayward S244T sand filter (thinking of upgrading to a cartridge filter) and a Pentair inline chlorinator. Current pump is a Hayward Super II Pump paired with a Emerson K63CXEPZ - 4767, 1.5 HP motor on 115V with Intermatic Timer. The only return is through the skimmer. The equipment is inside a third car garage. Really looking at saving some money on utilities.
 Reply

A  Answered on 6/15/2016 by InyoPools Product Specialist Patrick P.

Hi Steve, this would be a great pump for the set up you explained. The only issue I see is that you are set up for 115V and this pump is 230V only.
 Reply


?     Asked on 6/7/2016by chuck

wire on 230, how many amps does this draw at each speed
 Reply

A  Answered on 6/8/2016 by InyoPools Product Specialist Patrick P.

Hi Chuck, At the high speed the pump draws 6.3 amps and at the low speed it draws 2.3 amps.
 Reply
