Allure 15'x26' Oval (Steel Top Rail, Steel Upright) Parts

PALL_YM52PPPSSB1

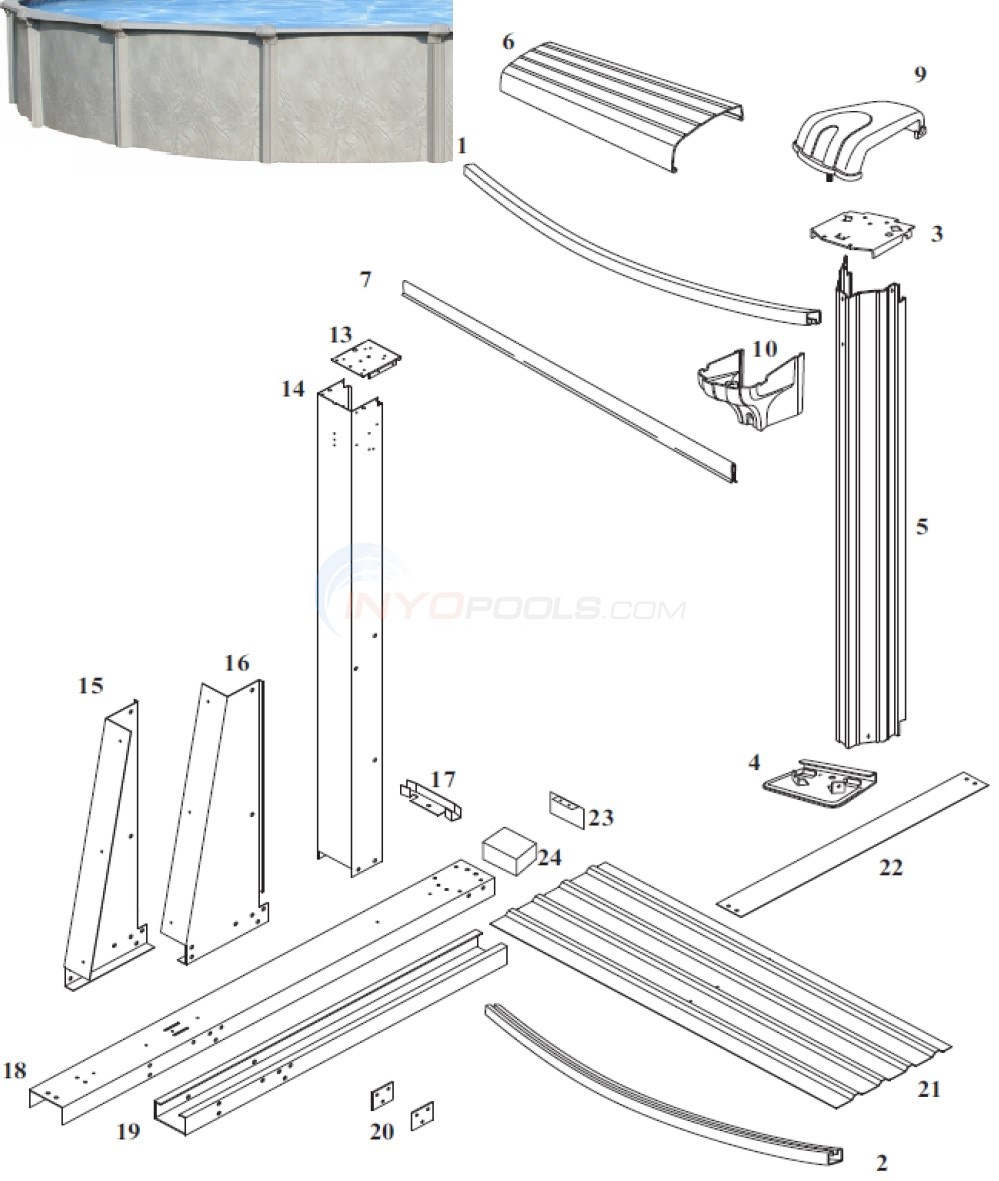

Allure 15'x26' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	15' x 26' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 53.25" (Single)
2	Bottom Rail Steel 49-3/8" (Single)
2	Bottom Rail Steel Straight Side 37-3/4" (4-PACK)
3	Top Plate 5.5" W/U-Shape GF (Single)
4	Steel Bottom Plate
5	Upright 51-13/16" Steel (Single)
6	Top Rail Curved Side Allure (Single)
7	Plastic Coping 48" (Single)
9	Top Cap Outer Allure (Single) Sand (used with 18616)
10	Top Cap Inner (Single)
13	Top Plate Oval 4" (Single)
14	Up Right 51 13/16” (Single)
15	Yardmore Gusset Right (Single)
16	Yardmore Gusset Left (single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 40-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
*Liner	15' x 26' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 53.25" (Single)
2	Bottom Rail Steel 49-3/8" (Single)
2	Bottom Rail Steel Straight Side 37-3/4" (4-PACK)
3	Top Plate 5.5" W/U-Shape GF (Single)
4	Steel Bottom Plate
5	Upright 51-13/16" Steel (Single)
6	Top Rail Curved Side Allure (Single)
7	Plastic Coping 48" (Single)
9	Top Cap Outer Allure (Single) Sand (used with 18616)
10	Top Cap Inner (Single)
13	Top Plate Oval 4" (Single)
14	Up Right 51 13/16” (Single)
15	Yardmore Gusset Right (Single)
16	Yardmore Gusset Left (single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 40-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Available Parts:

15' x 26' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1526ASO

15' x 26' 48"-54" Depth All Swirl Overlap Standard Gauge

$490.43

15' x 26' 48"-54" Depth Country Stone Overlap

Part # FC1526OVOL

15' x 26' 48"-54" Depth Country Stone Overlap

$362.79

Inner Stabilizer Steel 53.25" (Single)

Part # 38502

Inner Stabilizer Steel 53.25" (Single)

$46.94 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$10.35 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Rim 37 " (Single) Xylon Black

Part # 38511

Rim 37 " (Single) Xylon Black

$43.62 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$29.09 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

38502 Resin Stabilizer Upgrade Kit for 15' x 26' Oval Pool

Part # 38502-1526-RESKIT

38502 Resin Stabilizer Upgrade Kit for 15' x 26' Oval Pool

$1229.38 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Rail Steel 49-3/8" (Single)

Part # 14950

Bottom Rail Steel 49-3/8" (Single)

$45.72 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Bottom Rail Steel Straight Side 37-3/4"

Part # 16713

Bottom Rail Steel Straight Side 37-3/4"

$42.68 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Bottom Rail Steel Corner 39-1/4"

Part # 16714

Bottom Rail Steel Corner 39-1/4"

$39.99 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

14950 Resin Bottom Rail Upgrade Kit for 15' x 26' Oval Pool Oval Pool

Part # 14950-1526-RESKIT

14950 Resin Bottom Rail Upgrade Kit for 15' x 26' Oval Pool Oval Pool

$533.56

Quantity Per Pool 1

Quantity Per Pool 1

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

Part # 16713-PACK4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

$115.34 IN STOCK

Qty:

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

Part # 16713-PACK8

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

$341.45

Bottom Rail Steel Corner 39-1/4" (4-PACK)

Part # 16714-PACK4

Bottom Rail Steel Corner 39-1/4" (4-PACK)

$115.34 IN STOCK

Qty:

Bottom Rail Steel Corner 39-1/4" (8-PACK)

Part # 16714-PACK8

Bottom Rail Steel Corner 39-1/4" (8-PACK)

$158.91

Top Plate 5.5" W/U-Shape GF (Single)

Part # 10135

Top Plate 5.5" W/U-Shape GF (Single)

$14.87 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Steel Bottom Plate

Part # 11491

Steel Bottom Plate

$17.90 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Upright 51-13/16" Steel (Single)

Part # 19925

Upright 51-13/16" Steel (Single)

$55.52 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Rail Curved Side Allure (Single)

Part # 19919

Top Rail Curved Side Allure (Single)

$79.47

Quantity Per Pool 10

Quantity Per Pool 10

Top Rail Straight Side Allure (Single)

Part # 19924

Top Rail Straight Side Allure (Single)

$78.36 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$12.31 IN STOCK

Quantity Per Pool 19

Quantity Per Pool 19

Qty:

Top Cap Outer Allure (Single) Sand (used with 18616)

Part # 18615

Top Cap Outer Allure (Single) Sand (used with 18616)

$23.44 IN STOCK

Quantity Per Pool 18

Quantity Per Pool 18

Qty:

Top Cap Inner (Single)

Part # 18616

Top Cap Inner (Single)

$19.71 IN STOCK

Quantity Per Pool 12 Side Curved

Quantity Per Pool 12 Side Curved

Qty:

Top Cap Inner (Single)

Part # 18635

Top Cap Inner (Single)

$13.42 IN STOCK

Quantity Per Pool 6 Side Straight

Quantity Per Pool 6 Side Straight

Qty:

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$12.48 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Up Right 51 13/16” (Single)

Part # 35738

Up Right 51 13/16” (Single)

$91.79

Quantity Per Pool 6

Quantity Per Pool 6

Yardmore Gusset Right (Single)

Part # 35741

Yardmore Gusset Right (Single)

$76.12

Quantity Per Pool 6

Quantity Per Pool 6

Yardmore Gusset Left (single)

Part # 35740

Yardmore Gusset Left (single)

$76.12

Quantity Per Pool 6

Quantity Per Pool 6

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$38.24 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

Part # 16539

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

$118.67

Quantity Per Pool 6

Quantity Per Pool 6

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$35.00

Quantity Per Pool 6

Quantity Per Pool 6

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$85.28 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Strap Section 40-11/16" (Single)

Part # 16725

Strap Section 40-11/16" (Single)

$50.37

Quantity Per Pool 9

Quantity Per Pool 9

Oval Top Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Top Channel End Cap (Single)

$11.43 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Part # 29917

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

$4.47 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:
