American Products Americana Parts

AMERICANA & AIRWICK DYNAFLO

American Products Americana Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit American-Americana
*	Protective Pool Motor Cover
1	Motor 1/2 HP Full Rate
2	Slinger, Water
3	Screw, 1/4-20 x 1-1/2"
4	Nut, S.S. 1/4"-20
5	Washer, S.S. 7/16"ID x 7/8" OD
6	Bolt, Cap 3/8"-16 x 3/4"
7	Bracket
8	Square Ring, Seal Plate
9	Shaft Seal, Pump 3/4" PS-201
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
10	Impeller, 1/2 HP
11	Volute
12A	Basket, Pump (After OCT. 1987)
13	O-ring, Lid
14A	Lid (After OCT. 1987)
15	Clamp Assembly w/ Knob
16	Drain Plug w/ O-ring
17	Pot
18	Washer, 1/4-20
19	Gasket, Pot To Volute
20	T-Bolt, Clamp
21	Washer, 1/4-20
22	Knob, Clamp 1/4-20
23	Screw, 10-24 x 5/8"
24	Bolt, S.S. 20 x 1-3/4"
25	Pot, Upgrade 2" Kit, Ivory

View Parts List

Diagram #	Part Title
**	Tune Up Kit American-Americana
*	Protective Pool Motor Cover
1	Motor 1/2 HP Full Rate
2	Slinger, Water
3	Screw, 1/4-20 x 1-1/2"
4	Nut, S.S. 1/4"-20
5	Washer, S.S. 7/16"ID x 7/8" OD
6	Bolt, Cap 3/8"-16 x 3/4"
7	Bracket
8	Square Ring, Seal Plate
9	Shaft Seal, Pump 3/4" PS-201
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
10	Impeller, 1/2 HP
11	Volute
12A	Basket, Pump (After OCT. 1987)
13	O-ring, Lid
14A	Lid (After OCT. 1987)
15	Clamp Assembly w/ Knob
16	Drain Plug w/ O-ring
17	Pot
18	Washer, 1/4-20
19	Gasket, Pot To Volute
20	T-Bolt, Clamp
21	Washer, 1/4-20
22	Knob, Clamp 1/4-20
23	Screw, 10-24 x 5/8"
24	Bolt, S.S. 20 x 1-3/4"
25	Pot, Upgrade 2" Kit, Ivory

Available Parts:

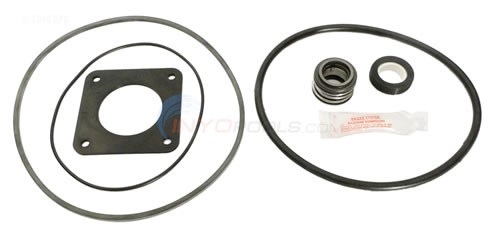

Tune Up Kit American-Americana

Part # GOKIT16

Tune Up Kit American-Americana

$42.36 IN STOCK

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

Motor 1/2 HP Full Rate

Part # ST1052 Mfg # ST1052

Motor 1/2 HP Full Rate

$265.00 IN STOCK

Service Factor 1.6 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.6 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

Motor 3/4 HP Full Rate

Part # ST1072 Mfg # ST1072

Motor 3/4 HP Full Rate

$261.25 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

Motor 1.0 HP Full Rate

Part # ST1102 Mfg # ST1102

Motor 1.0 HP Full Rate

$279.02 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Qty:

Motor 1.5 HP Full Rate

Part # ST1152 Mfg # ST1152

Motor 1.5 HP Full Rate

$365.75 IN STOCK

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.8 Frame 56J

Qty:

Motor 2.0 HP Full Rate

Part # ST1202 Mfg # ST1202

Motor 2.0 HP Full Rate

$397.10 IN STOCK

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Qty:

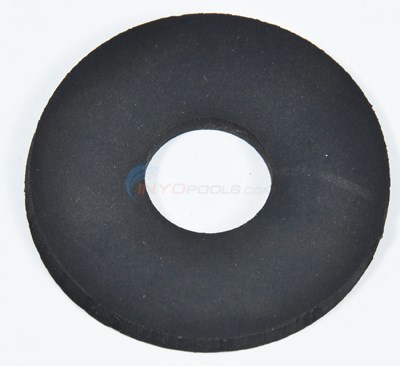

Slinger, Water

Part # 5105-02 Mfg # O-73

Slinger, Water

$10.90 IN STOCK

Qty:

3

Screw, 1/4-20 x 1-1/2"

Mfg # 98203600

Screw, 1/4-20 x 1-1/2"

NOT AVAILABLE

Nut, S.S. 1/4"-20

Part # 6930-0 Mfg # 14072508R

Nut, S.S. 1/4"-20

$11.90 IN STOCK

Qty:

Washer, S.S. 7/16"ID x 7/8" OD

Part # 6982-0 Mfg # 072184

Washer, S.S. 7/16"ID x 7/8" OD

$3.32 IN STOCK

Qty:

Bolt, Cap 3/8"-16 x 3/4"

Part # 6916-0 Mfg # U3072SS

Bolt, Cap 3/8"-16 x 3/4"

$10.65 IN STOCK

Qty:

7

Bracket

Mfg # 39302500

Bracket

NOT AVAILABLE

7

Seal Plate

Mfg # 39501400

Seal Plate

NOT AVAILABLE

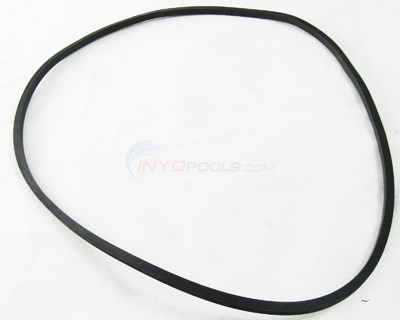

Square Ring, Seal Plate

Part # 5105-08 Mfg # O-300

Square Ring, Seal Plate

$18.11 IN STOCK

Qty:

Shaft Seal, Pump 3/4" PS-201

Part # 5250-102 Mfg # PS-201

Shaft Seal, Pump 3/4" PS-201

$9.19 IN STOCK

Qty:

Shaft Seal, Pump 3/4" PS-3868 Extra Heavy Duty

Part # 5250-235 Mfg # PS-3868

Shaft Seal, Pump 3/4" PS-3868 Extra Heavy Duty

$17.65 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$6.11

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97

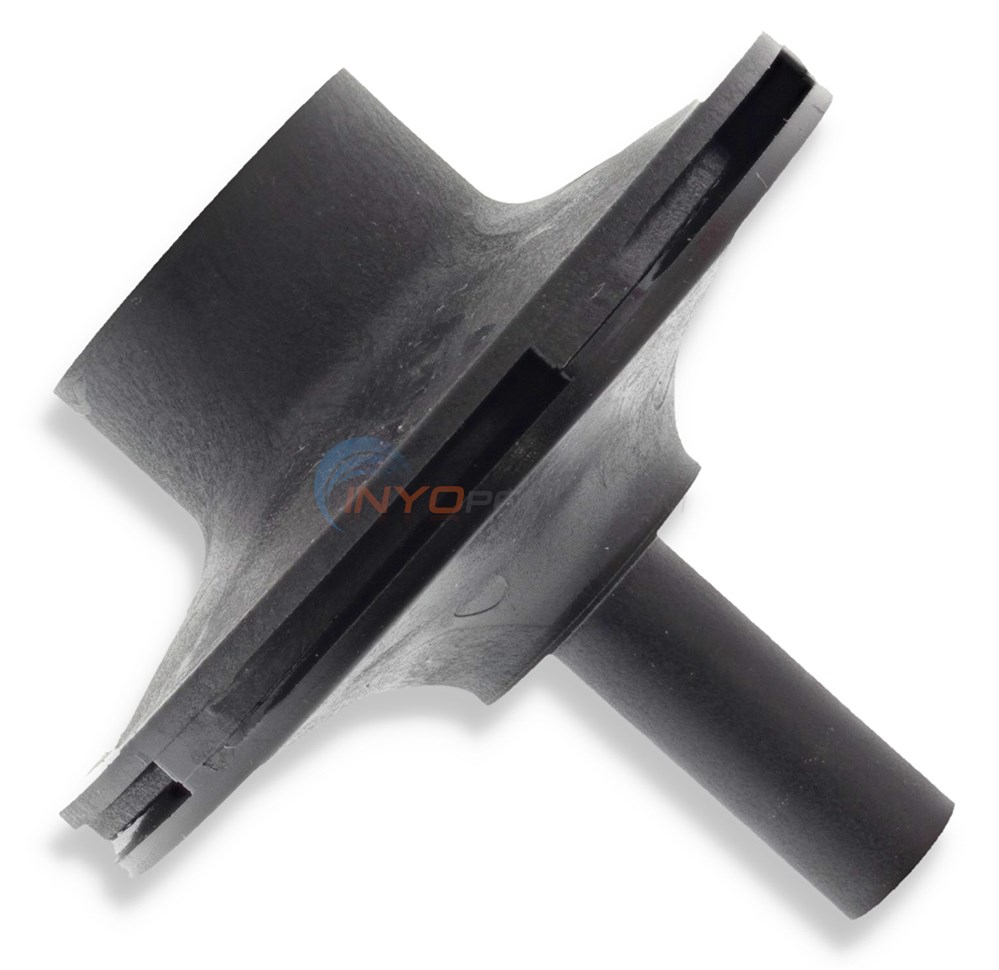

Impeller, 1/2 HP

Part # 5105-10A Mfg # V38-179

Impeller, 1/2 HP

$158.85

Impeller, Val-Pak, Generic, American Products Bronze, 0.75hp

Part # V38-180

Impeller, Val-Pak, Generic, American Products Bronze, 0.75hp

$172.85

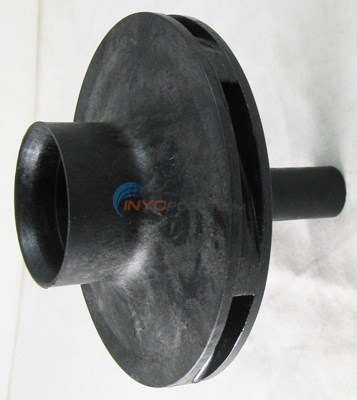

Impeller, 1.0 HP

Part # 5105-10C Mfg # V38-181

Impeller, 1.0 HP

$107.67

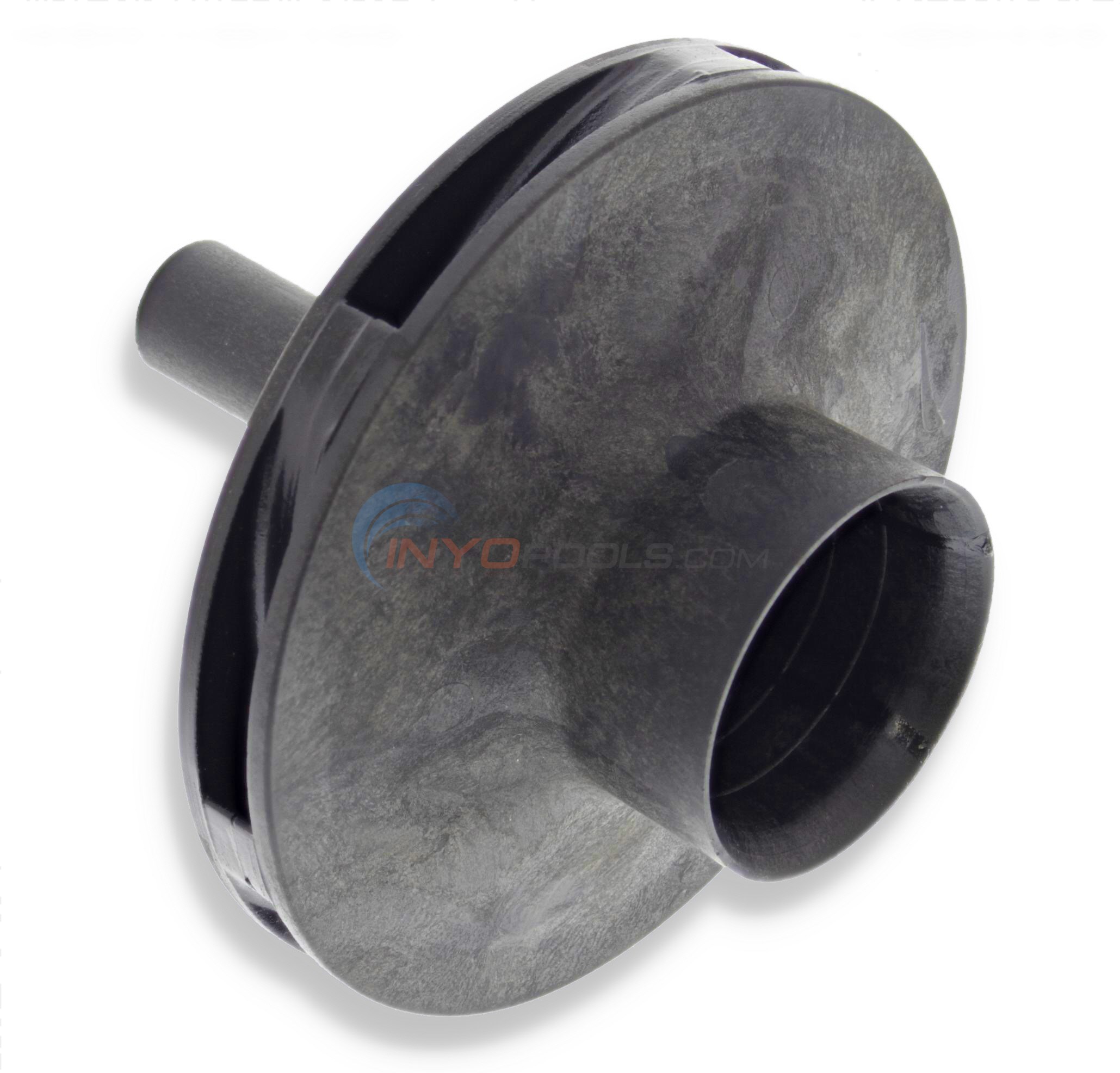

Impeller, 1.5 HP

Part # 5105-10D Mfg # V38-182

Impeller, 1.5 HP

$114.21

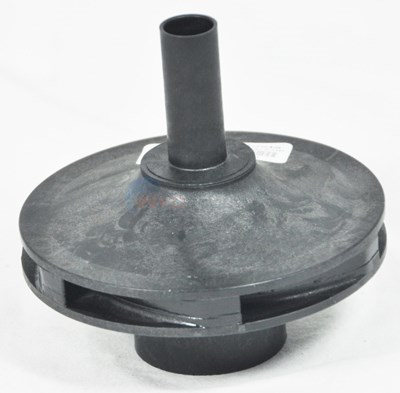

Impeller, 2.0 HP

Part # 5105-10E Mfg # V38-183

Impeller, 2.0 HP

$116.20 IN STOCK

Qty:

11

Volute

Mfg # 39501100

Volute

NOT AVAILABLE

Basket, Pump (After OCT. 1987)

Part # 5106-07 Mfg # 39303500

Basket, Pump (After OCT. 1987)

$59.80 IN STOCK

Qty:

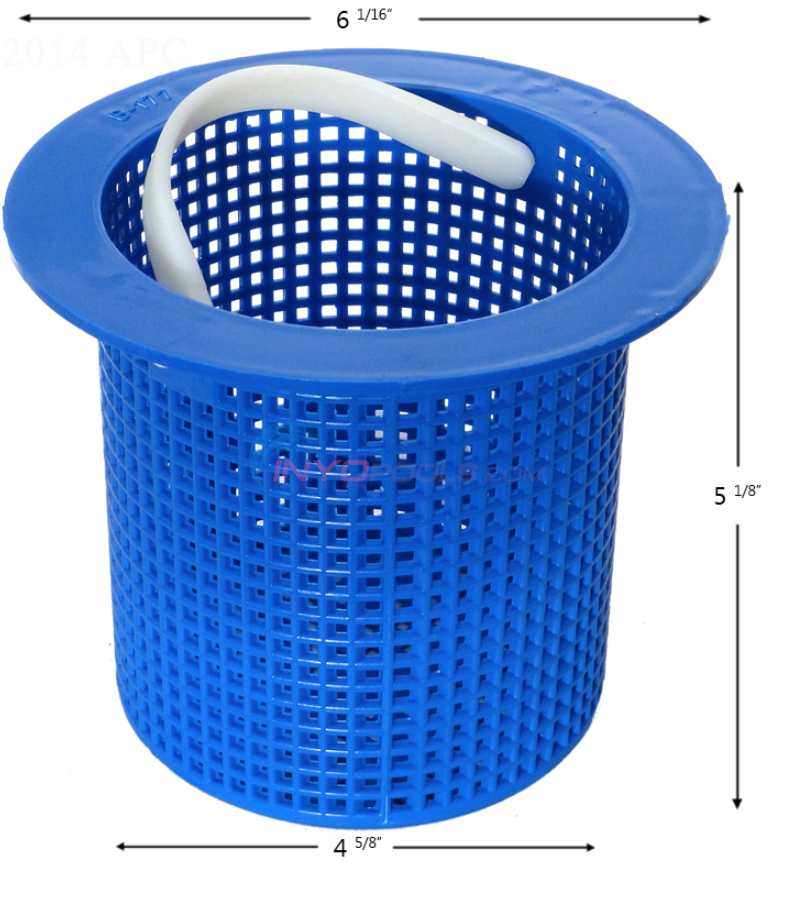

Basket, Pump (Before OCT. 1987)

Part # 5400-B177 Mfg # B-177

Basket, Pump (Before OCT. 1987)

$37.30 IN STOCK

Qty:

O-ring, Lid

Part # 5105-13 Mfg # 39300300

O-ring, Lid

$15.61 IN STOCK

Qty:

Lid (After OCT. 1987)

Part # 5105-14 Mfg # V38-160

Lid (After OCT. 1987)

$105.43 IN STOCK

Qty:

Lid (Before OCT. 1987)

Part # 35-110-1270 Mfg # 39301600

Lid (Before OCT. 1987)

$109.84 IN STOCK

Qty:

Clamp Assembly w/ Knob

Part # 5105-15 Mfg # 39303000

Clamp Assembly w/ Knob

$148.19 IN STOCK

Qty:

Drain Plug w/ O-ring

Part # 5105-16 Mfg # 98206400

Drain Plug w/ O-ring

$11.71

17

Pot

Mfg # 393018/393019

Pot

NOT AVAILABLE

17A

Pot, 1-1/2"

Mfg # 39307300

Pot, 1-1/2"

NOT AVAILABLE

17B

Pot, 2"

Mfg # 39007100

Pot, 2"

NOT AVAILABLE

Washer, 1/4-20

Part # 4670-26 Mfg # 072183

Washer, 1/4-20

$11.43 IN STOCK

Qty:

Gasket, Pot To Volute

Part # 5105-19 Mfg # G-97

Gasket, Pot To Volute

$15.55 IN STOCK

Qty:

T-Bolt, Clamp

Part # 5105-20 Mfg # 98206600

T-Bolt, Clamp

$30.90 IN STOCK

Qty:

Washer, 1/4-20

Part # 4670-26 Mfg # 072183

Washer, 1/4-20

$11.43 IN STOCK

Qty:

Knob, Clamp 1/4-20

Part # 5105-22 Mfg # 39302700

Knob, Clamp 1/4-20

$32.01 IN STOCK

Qty:

23

Screw, 10-24 x 5/8"

Mfg # 98203300

Screw, 10-24 x 5/8"

NOT AVAILABLE

Bolt, S.S. 20 x 1-3/4"

Part # 4677-20B Mfg # 070979

Bolt, S.S. 20 x 1-3/4"

$11.71

25

Pot, Upgrade 2" Kit, Ivory

Mfg # 39202010

Pot, Upgrade 2" Kit, Ivory

NOT AVAILABLE

* NOT SHOWN
** O-RING/GASKET TUNE UP KIT
