American Products Eagle Parts

AMERICAN EAGLE

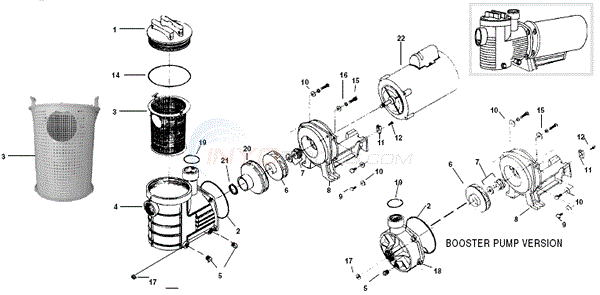

American Products Eagle Diagram

Click to zoom in

Diagram #	Part Title
**	Tune Up Kit - Eagle
1	Lid
2	O-ring, Body
3	Basket
4	Pot & Volute 2"
5	Drain Plug w/ Oring
6	Impeller, 2 HP
7	Shaft Seal, Pump 5/8" PS-1000 (Standard)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
8	Seal Plate
9	Bolt, Cap 3/8"-16 x 3/4"
10	Washer, S.S. 7/16"ID x 7/8" OD
11	Motor Support
12	Screw, High/Low 13-16 x 3/4"
14	O-ring, Pump Lid
15	Bolt, Cap 3/8-16 X 1 1/4"
16	Washer, Lock 3/8"
17	Nut, 3/8-16
18	Volute, Booster
19	Ring, Reinforcing S.S.
20	Diffuser
21	Gasket, Diffuser
22	Motor 1/2 HP Full Rate
***	Protective Pool Motor Cover

View Parts List

Diagram #	Part Title
**	Tune Up Kit - Eagle
1	Lid
2	O-ring, Body
3	Basket
4	Pot & Volute 2"
5	Drain Plug w/ Oring
6	Impeller, 2 HP
7	Shaft Seal, Pump 5/8" PS-1000 (Standard)
*	U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack
8	Seal Plate
9	Bolt, Cap 3/8"-16 x 3/4"
10	Washer, S.S. 7/16"ID x 7/8" OD
11	Motor Support
12	Screw, High/Low 13-16 x 3/4"
14	O-ring, Pump Lid
15	Bolt, Cap 3/8-16 X 1 1/4"
16	Washer, Lock 3/8"
17	Nut, 3/8-16
18	Volute, Booster
19	Ring, Reinforcing S.S.
20	Diffuser
21	Gasket, Diffuser
22	Motor 1/2 HP Full Rate
***	Protective Pool Motor Cover

Available Parts:

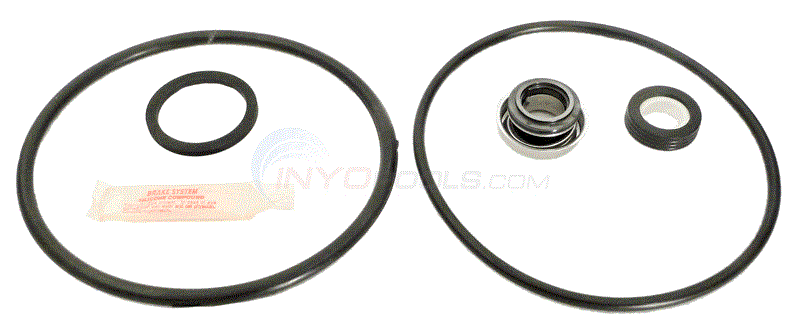

Tune Up Kit - Eagle

Part # APCK1015

Tune Up Kit - Eagle

$19.00 IN STOCK

Qty:

1

Lid

Mfg # 39200200

Lid

NOT AVAILABLE

O-ring, Body

Part # 4662-02 Mfg # 360

O-ring, Body

$22.37 IN STOCK

Qty:

3

Basket

Mfg # 39200100

Basket

NOT AVAILABLE

4

Pot & Volute 2"

Mfg # 39201700

Pot & Volute 2"

NOT AVAILABLE

Pot & Volute 1-1/2"

Part # 5107-04A Mfg # 39202100

Pot & Volute 1-1/2"

$311.32

Drain Plug w/ Oring

Part # 5105-16 Mfg # 98206400

Drain Plug w/ Oring

$11.71

6

Impeller, 2 HP

Mfg # 39200900

Impeller, 2 HP

NOT AVAILABLE

6

Impeller, 1.5 HP

Mfg # 39200800

Impeller, 1.5 HP

NOT AVAILABLE

6

Impeller, 1.0 HP

Mfg # 39200700

Impeller, 1.0 HP

NOT AVAILABLE

6

Impeller, 3/4 HP

Mfg # 39200600

Impeller, 3/4 HP

NOT AVAILABLE

6

Impeller, 1/2 HP

Mfg # 39200500

Impeller, 1/2 HP

NOT AVAILABLE

Shaft Seal, Pump 5/8" PS-1000 (Standard)

Part # 5250-106 Mfg # PS-1000

Shaft Seal, Pump 5/8" PS-1000 (Standard)

$8.39 IN STOCK

Qty:

Shaft Seal, Pump 5/8" PS-3865 (Heavy Duty)

Part # 5250-225 Mfg # PS-3865

Shaft Seal, Pump 5/8" PS-3865 (Heavy Duty)

$17.65 IN STOCK

Qty:

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

Part # LUBE-PP

U.S. Seal Manufacturing Sealube- Water Based Lubricant 1CC Pillow Pack

$6.11

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

Part # LUBE-10ML

U.S. Seal Manufacturing Sealube- Water Based Lubricant 10ML Tube

$31.97

8

Seal Plate

Mfg # 39201000

Seal Plate

NOT AVAILABLE

Bolt, Cap 3/8"-16 x 3/4"

Part # 6916-0 Mfg # U3072SS

Bolt, Cap 3/8"-16 x 3/4"

$10.65 IN STOCK

Qty:

Washer, S.S. 7/16"ID x 7/8" OD

Part # 6982-0 Mfg # 072184

Washer, S.S. 7/16"ID x 7/8" OD

$3.32 IN STOCK

Qty:

11

Motor Support

Mfg # 39201300

Motor Support

NOT AVAILABLE

Screw, High/Low 13-16 x 3/4"

Part # 5107-12 Mfg # 98203000

Screw, High/Low 13-16 x 3/4"

$12.78 IN STOCK

Qty:

O-ring, Pump Lid

Part # 5107-14 Mfg # O-161

O-ring, Pump Lid

$11.71 IN STOCK

Qty:

Bolt, Cap 3/8-16 X 1 1/4"

Part # 6903-0 Mfg # 070430

Bolt, Cap 3/8-16 X 1 1/4"

$5.74 IN STOCK

Qty:

Washer, Lock 3/8"

Part # 5000-0002 Mfg # 98220600

Washer, Lock 3/8"

$10.90 IN STOCK

Qty:

Nut, 3/8-16

Part # 6932-0 Mfg # 071403

Nut, 3/8-16

$9.12 IN STOCK

Qty:

18

Volute, Booster

Mfg # 39201100

Volute, Booster

NOT AVAILABLE

19

Ring, Reinforcing S.S.

Mfg # 39204600

Ring, Reinforcing S.S.

NOT AVAILABLE

20

Diffuser

Mfg # 39204700

Diffuser

NOT AVAILABLE

Gasket, Diffuser

Part # 5107-21 Mfg # G-370

Gasket, Diffuser

$11.71 IN STOCK

Qty:

Motor 1/2 HP Full Rate

Part # ST1052 Mfg # ST1052

Motor 1/2 HP Full Rate

$265.00 IN STOCK

Service Factor 1.6 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.6 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

Motor 3/4 HP Full Rate

Part # ST1072 Mfg # ST1072

Motor 3/4 HP Full Rate

$261.25 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 11.0/5.5 Frame 56J

Qty:

Motor 1.0 HP Full Rate

Part # ST1102 Mfg # ST1102

Motor 1.0 HP Full Rate

$279.02 IN STOCK

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Service Factor 1.5 Voltage 115/230 Max Amps 18.6/9.3 Frame 56J

Qty:

Motor 1.5 HP Full Rate

Part # ST1152 Mfg # ST1152

Motor 1.5 HP Full Rate

$365.75 IN STOCK

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.4 Frame 56J

Service Factor 1.5 Voltage 115/208-230 Max Amps 19.6/10.4-9.4 Frame 56J

Qty:

Motor 2.0 HP Full Rate

Part # ST1202 Mfg # ST1202

Motor 2.0 HP Full Rate

$397.10 IN STOCK

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Service Factor 1.3 Voltage 208-230 Max Amps 12.6-11.4 Frame 56J

Qty:

Protective Pool Motor Cover

Part # 3050-38 Mfg # R221016

Protective Pool Motor Cover

$36.03 IN STOCK

Qty:

*** Not Shown
** O-RING/GASKET REPAIR KIT
