Aqua Heat Plus Pump Parts

HAS 2" UNION THREADS
THESE MEASURE 3 1/16" OUTSIDE DIAMETER

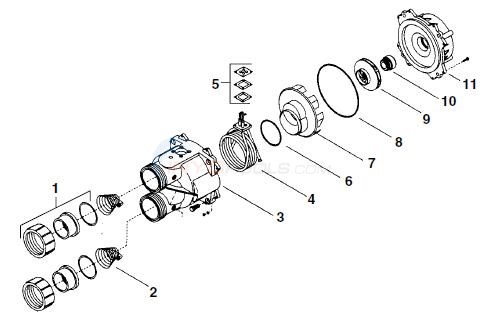

Aqua Heat Plus Pump Diagram

Click to zoom in

Diagram #	Part Title
1	UNION, PUMP, 2" NUT X 2" SLIP (400-5570)
2	LTD QTY CURRENT COLLECTOR 2"
3	"PUMP HOUSING, AQUA HEAT PLUS"
4	SPECIAL ELEMENT AQUA HEAT
5	"ELEMENT GASKET KIT, AQUA HEAT"
6	O-RING
7	"GRAY DIFFUSER, AQUA HEAT PLUS"
8	O-RING, FACEPLATE
9	"IMPELLER, 2HP, AQUA HEAT PLUS"
10	GENERIC SHAFT SEAL (REPLACES 1090-A)
11	LTD QTY BACK PLATE - AQUAHEAT
*	2 HP 230/115V Thru-Bolt Motor

View Parts List

Diagram #	Part Title
1	UNION, PUMP, 2" NUT X 2" SLIP (400-5570)
2	LTD QTY CURRENT COLLECTOR 2"
3	"PUMP HOUSING, AQUA HEAT PLUS"
4	SPECIAL ELEMENT AQUA HEAT
5	"ELEMENT GASKET KIT, AQUA HEAT"
6	O-RING
7	"GRAY DIFFUSER, AQUA HEAT PLUS"
8	O-RING, FACEPLATE
9	"IMPELLER, 2HP, AQUA HEAT PLUS"
10	GENERIC SHAFT SEAL (REPLACES 1090-A)
11	LTD QTY BACK PLATE - AQUAHEAT
*	2 HP 230/115V Thru-Bolt Motor

Available Parts:

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

Part # 9175-03 Mfg # 400-5570B

UNION, PUMP, 2" NUT X 2" SLIP (400-5570)

$8.52 IN STOCK

Qty:

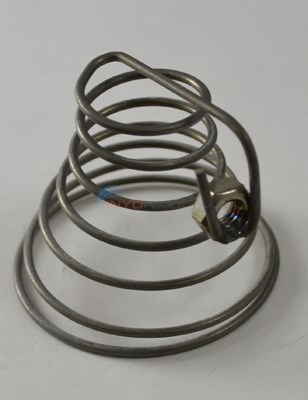

LTD QTY CURRENT COLLECTOR 2"

Part # 5171-09 Mfg # 795-AP2

LTD QTY CURRENT COLLECTOR 2"

$42.64

"PUMP HOUSING, AQUA HEAT PLUS"

Part # 5171-02 Mfg # 1109

"PUMP HOUSING, AQUA HEAT PLUS"

$344.37

SPECIAL ELEMENT AQUA HEAT

Part # 5170-20 Mfg # 345

SPECIAL ELEMENT AQUA HEAT

$213.23

"ELEMENT GASKET KIT, AQUA HEAT"

Part # 5170-21 Mfg # 385

"ELEMENT GASKET KIT, AQUA HEAT"

$100.21

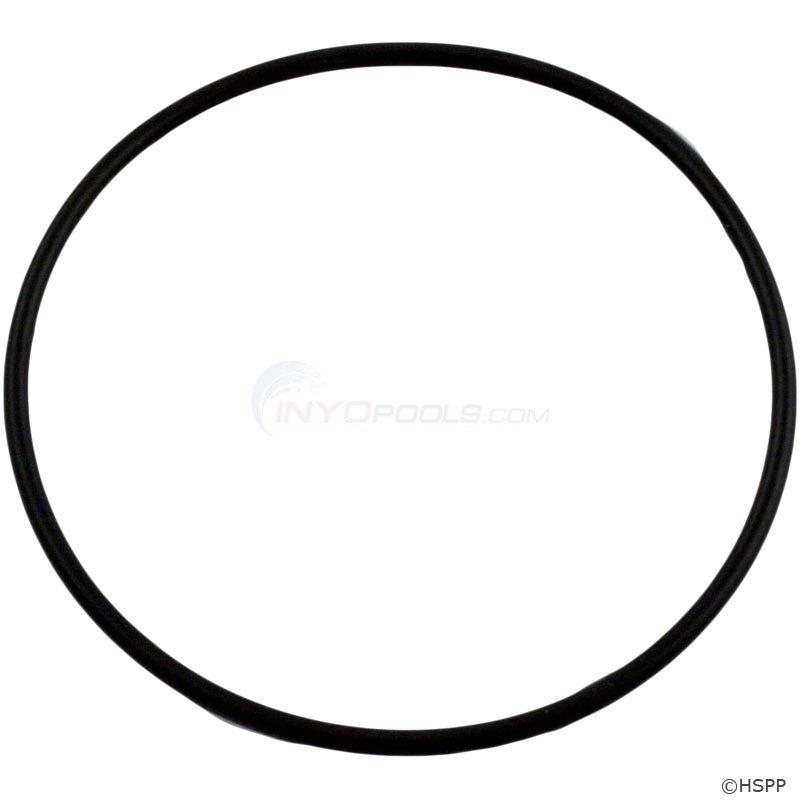

O-RING

Part # 5170-03 Mfg # 1081

O-RING

$76.76

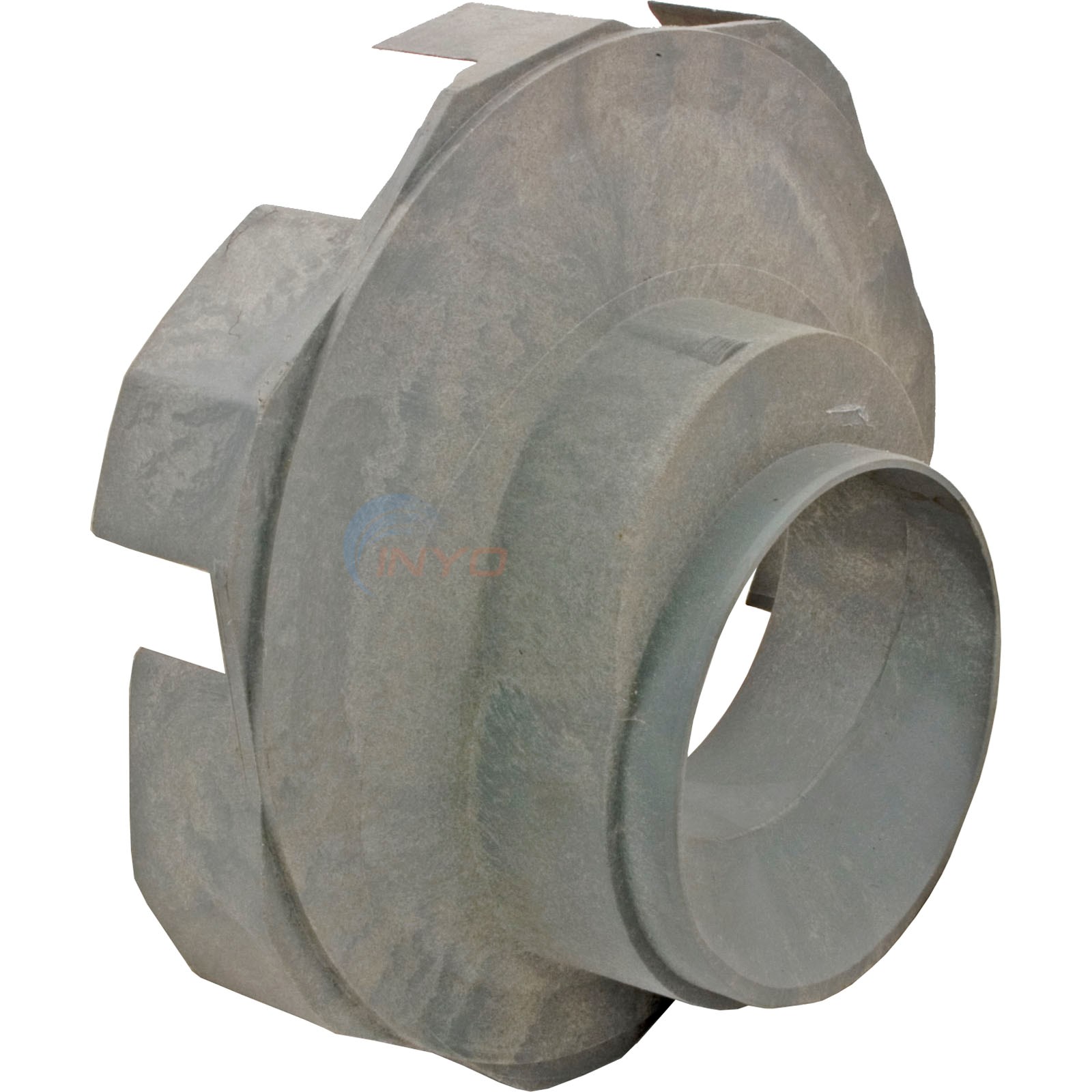

"GRAY DIFFUSER, AQUA HEAT PLUS"

Part # 5171-08

"GRAY DIFFUSER, AQUA HEAT PLUS"

$134.33

O-RING, FACEPLATE

Part # 5030-06 Mfg # 4700-05A

O-RING, FACEPLATE

$20.24

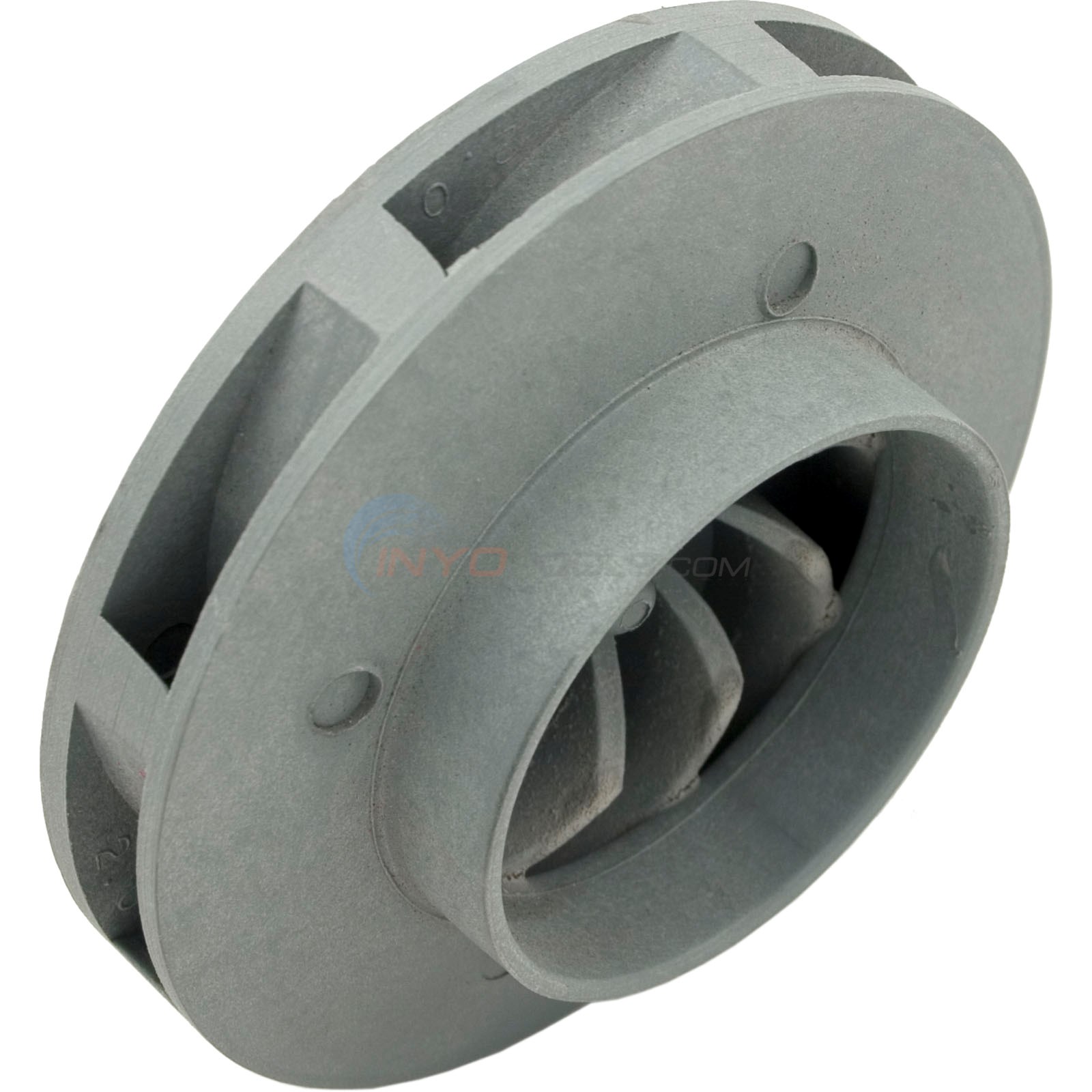

"IMPELLER, 2HP, AQUA HEAT PLUS"

Part # 5171-03

"IMPELLER, 2HP, AQUA HEAT PLUS"

$148.19 IN STOCK

Qty:

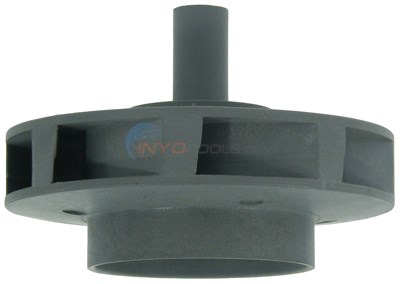

"IMPELLER, 2.6 HP, AQUA HEAT PLUS"

Part # 5171-11 Mfg # 821-M

"IMPELLER, 2.6 HP, AQUA HEAT PLUS"

$148.19 IN STOCK

Qty:

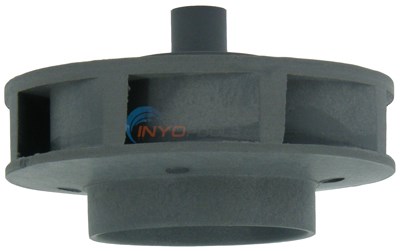

"IMPELLER, 3.25 HP, AQUA HEAT PLUS"

Part # 5171-04 Mfg # 822-M

"IMPELLER, 3.25 HP, AQUA HEAT PLUS"

$148.19

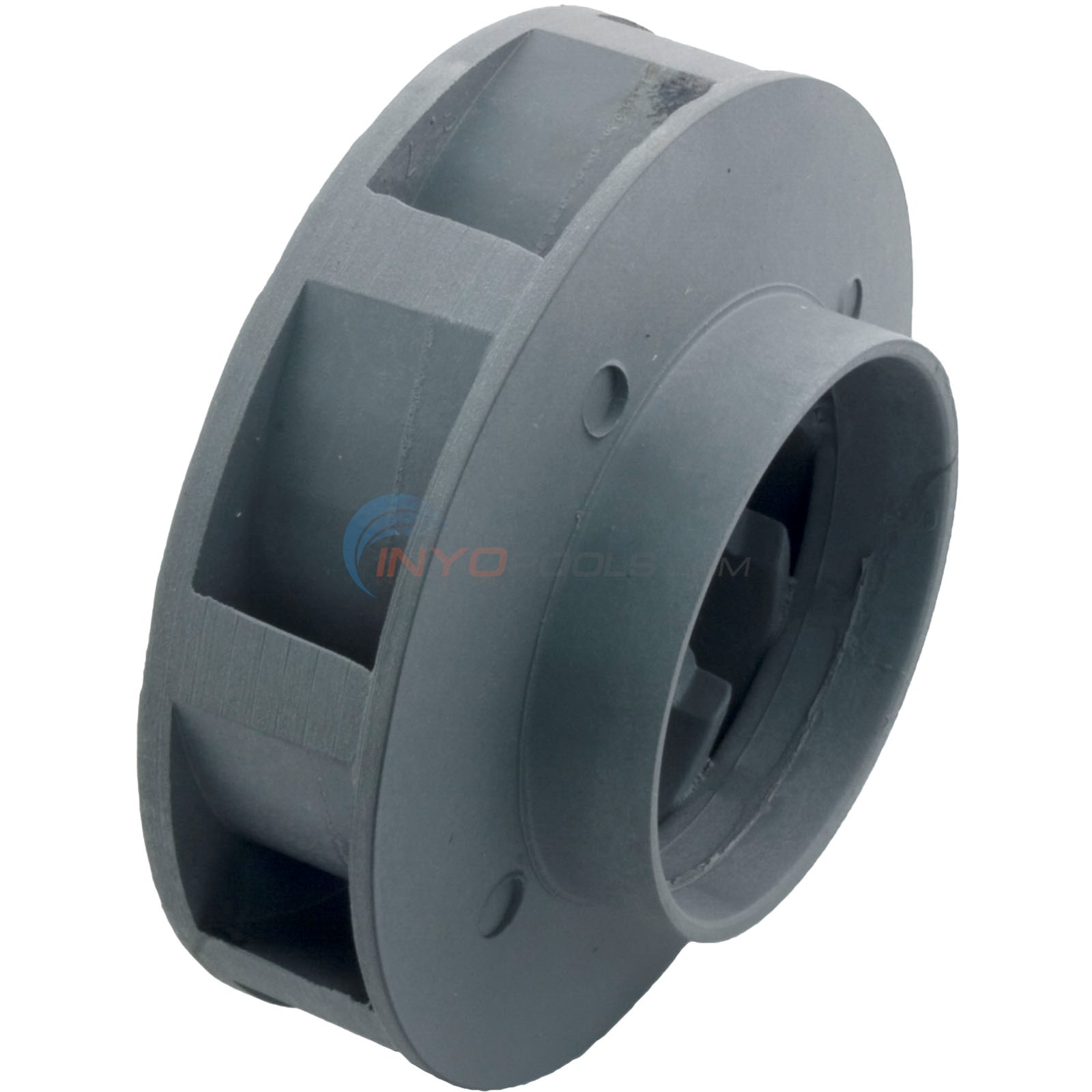

"IMPELLER, 4 HP, AQUA HEAT PLUS"

Part # 5171-05

"IMPELLER, 4 HP, AQUA HEAT PLUS"

$148.19

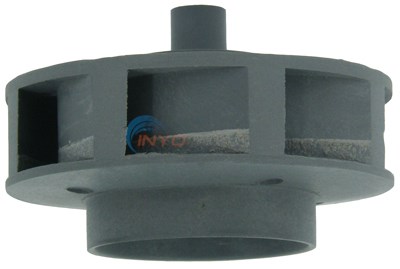

"IMPELLER, 4-1/2 HP, AQUA HEAT PLUS"

Part # 5171-06 Mfg # 824-M

"IMPELLER, 4-1/2 HP, AQUA HEAT PLUS"

$148.19

GENERIC SHAFT SEAL (REPLACES 1090-A)

Part # 5250-106 Mfg # PS-1000

GENERIC SHAFT SEAL (REPLACES 1090-A)

$8.39 IN STOCK

Qty:

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

Part # 5250-225 Mfg # PS-3865

GENERIC SHAFT SEAL (FOR SALTWATER POOLS)

$17.65 IN STOCK

Qty:

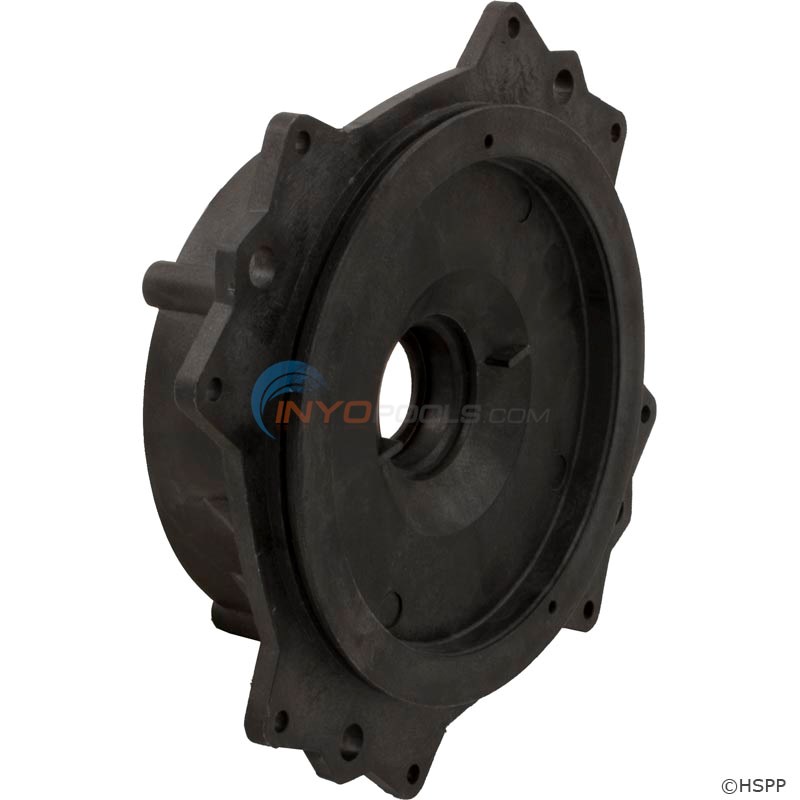

LTD QTY BACK PLATE - AQUAHEAT

Part # 5170-05

LTD QTY BACK PLATE - AQUAHEAT

$190.84

2 HP 230/115V Thru-Bolt Motor

Part # BN40SS Mfg # BN40SS

2 HP 230/115V Thru-Bolt Motor

$250.11 IN STOCK

Service Factor 1.0 Voltage 230/115 Max Amps 10.0/20.0 Frame 48Y

Service Factor 1.0 Voltage 230/115 Max Amps 10.0/20.0 Frame 48Y

Qty:

2 HP 2 Speed 230V Thru Bolt Motor

Part # BN51 Mfg # BN51

2 HP 2 Speed 230V Thru Bolt Motor

$343.25 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 10.5/2.6 Frame 48Y

Qty:

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN61 Mfg # BN61

2 HP 2 Speed 230V Low Amps Thru Bolt Motor

$340.32 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 8.5/2.8 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 8.5/2.8 Frame 48Y

Qty:

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN62 Mfg # BN62

3 HP 2 Speed 230V Low Amps Thru Bolt Motor

$361.79 IN STOCK

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 230 Max Amps 12.0/3.5 Frame 48Y

Qty:

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

Part # BN63 Mfg # BN63

4 HP 2 Speed 230V Low Amps Thru Bolt Motor

$392.94

Service Factor 1.0 Voltage 208-230 Max Amps 12.0/3.5 Frame 48Y

Service Factor 1.0 Voltage 208-230 Max Amps 12.0/3.5 Frame 48Y

* - NOT SHOWN
