Astral, 22358, 1-1/2" Top Mount Parts

MODEL 22358

Click to zoom in

Diagram #	Part Title

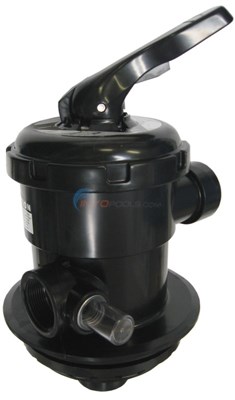

A	MULTIPORT VALVE NPT, TOP MOUNT 1 1/2"

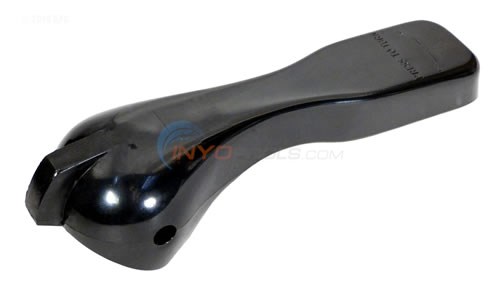

1	HANDLE
2	HANDLE PIN
3	LABEL, LID MULTIPORT VALVE 22358
4	WASHER (00600R0203)

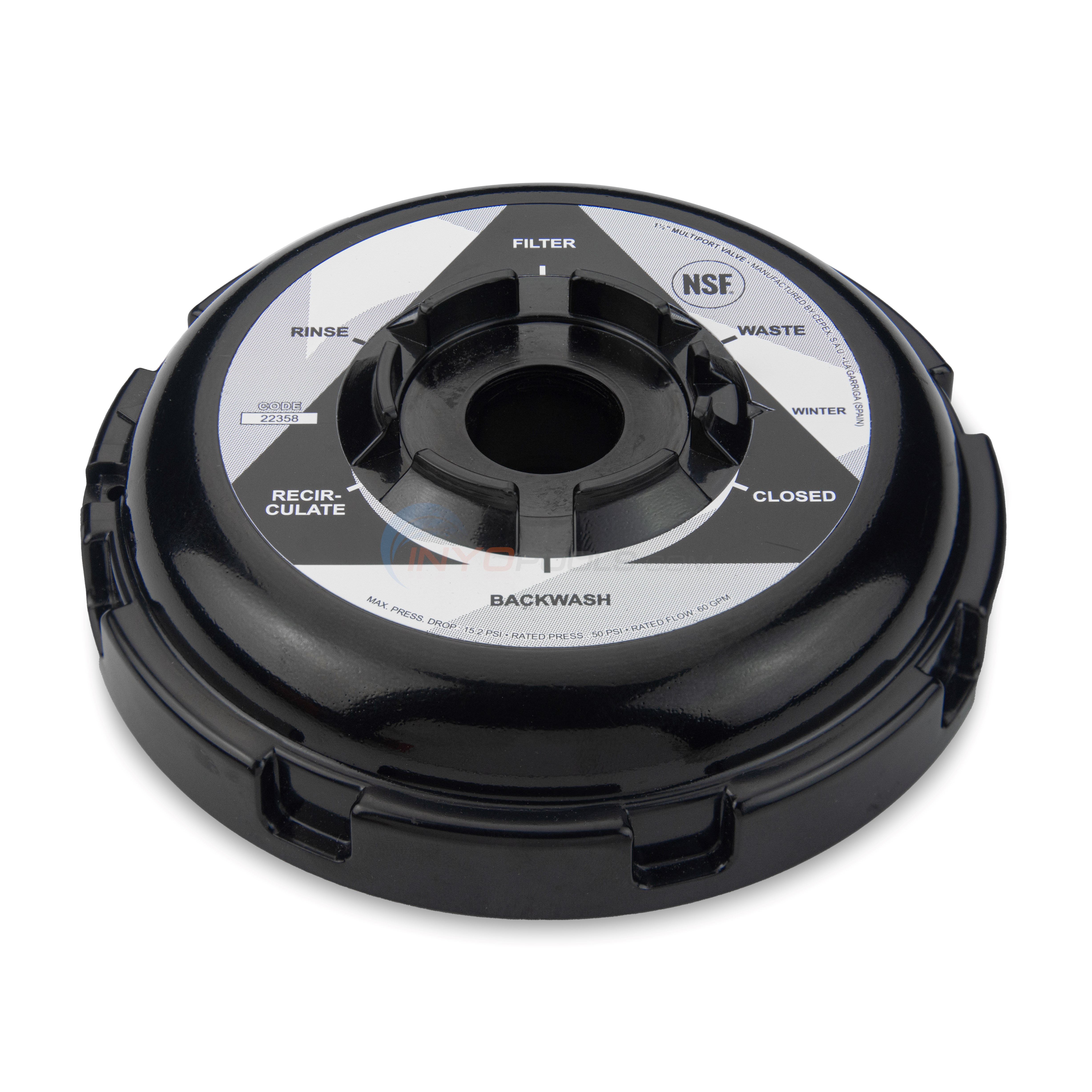

5	VALVE LID FOR 22358 MPV
6	SECURITY CLIP, ASTRAL 1 1/2"" MPV

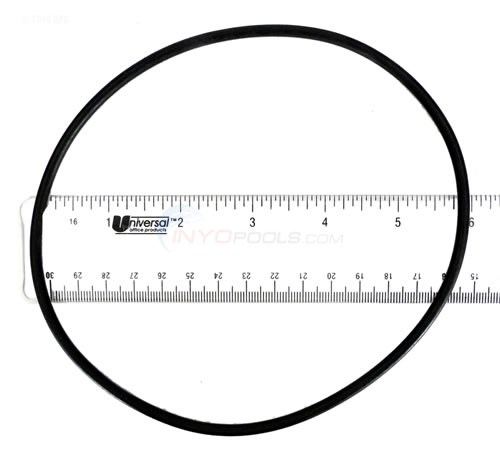

7	O-RING COVER, MPV 22355
8	BACK RING

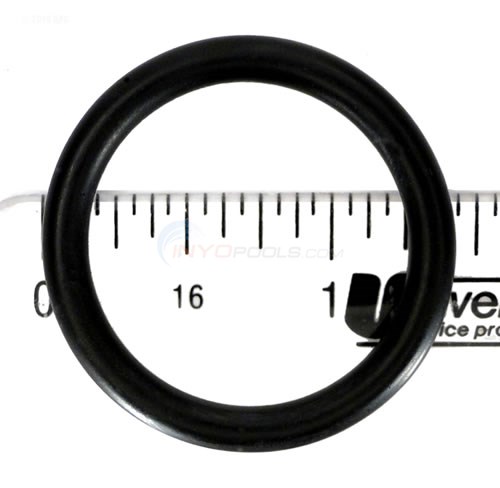

9	O-RING, ASTRAL MPV's
10	SPRING FRICTION WASHER
11	SPRING SUPPORT WASHER

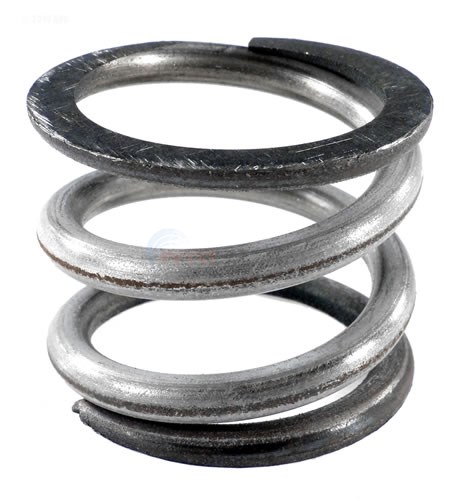

12	SPRING
13	ROTOR 1 1/2"" ASTRAL MPV's
14	SPIDER GASKET ASTRAL 1 1/2"" MPV's (19028R0204)
15	O-RING, DRAIN PLUG

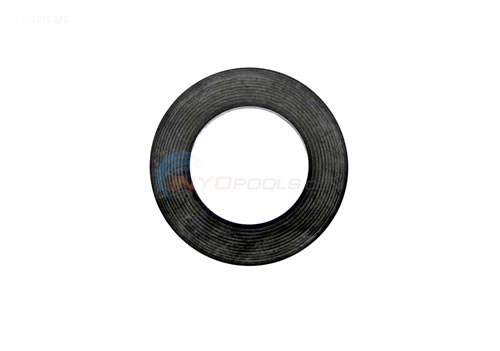

17	Sight Glass Gasket

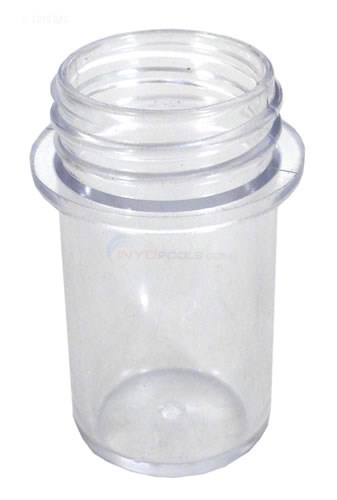

18	Sight Glass

View Parts List
