Astral 22492 Top Mount, 2" Cantebric Valve Parts

22492 - USED ON CANTEBRIC 2"

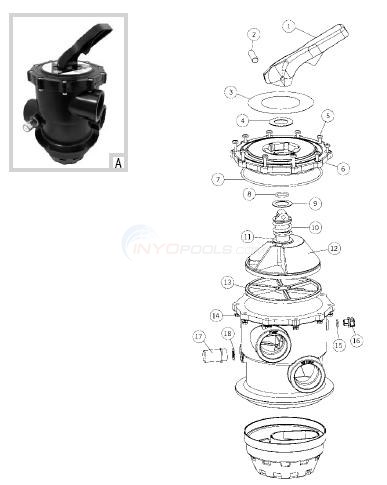

Astral 22492 Top Mount, 2" Cantebric Valve Diagram

Click to zoom in

Diagram #	Part Title
A	MULTIPORT VALVE 2"" ASTRAL TM
1	HANDLE
2	HANDLE PIN
3	LID LABEL
4	WASHER (00600R0203)
5	SCREW
6	NLA VALVE LID REP W/4871-041
7	VALVE LID O-RING
8	ROTOR AXLE O-RING
9	SPRING FRICTION WASHER
10	SPRING
11	SPRING SUPPORT WASHER
12	ROTOR (00600R0210)
13	SPIDER GASKET
14	NUT 1/4"
15	O-RING, DRAIN PLUG
16	DRAIN PLUG
17	SIGHT GLASS
18	GASKET, SIGHT GLASS

View Parts List

Diagram #	Part Title
A	MULTIPORT VALVE 2"" ASTRAL TM
1	HANDLE
2	HANDLE PIN
3	LID LABEL
4	WASHER (00600R0203)
5	SCREW
6	NLA VALVE LID REP W/4871-041
7	VALVE LID O-RING
8	ROTOR AXLE O-RING
9	SPRING FRICTION WASHER
10	SPRING
11	SPRING SUPPORT WASHER
12	ROTOR (00600R0210)
13	SPIDER GASKET
14	NUT 1/4"
15	O-RING, DRAIN PLUG
16	DRAIN PLUG
17	SIGHT GLASS
18	GASKET, SIGHT GLASS

Available Parts:

Part # 4860-047 Mfg # 22492

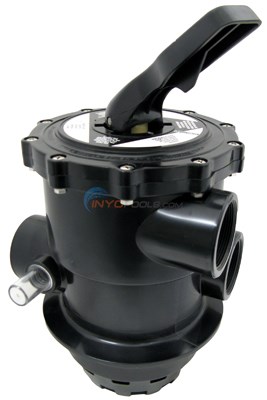

MULTIPORT VALVE 2"" ASTRAL TM

$244.99

Astral 22492 Top Mount, 2" Cantebric Valve Parts

View Parts List

Available Parts:

LID LABEL

NLA VALVE LID REP W/4871-041
